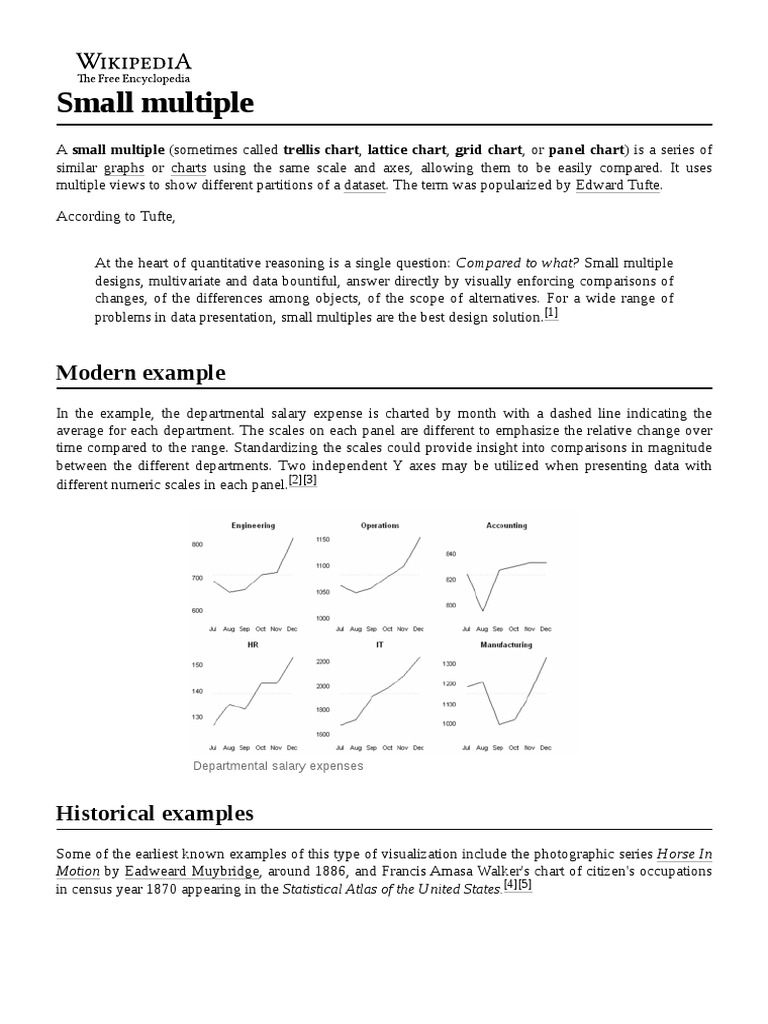

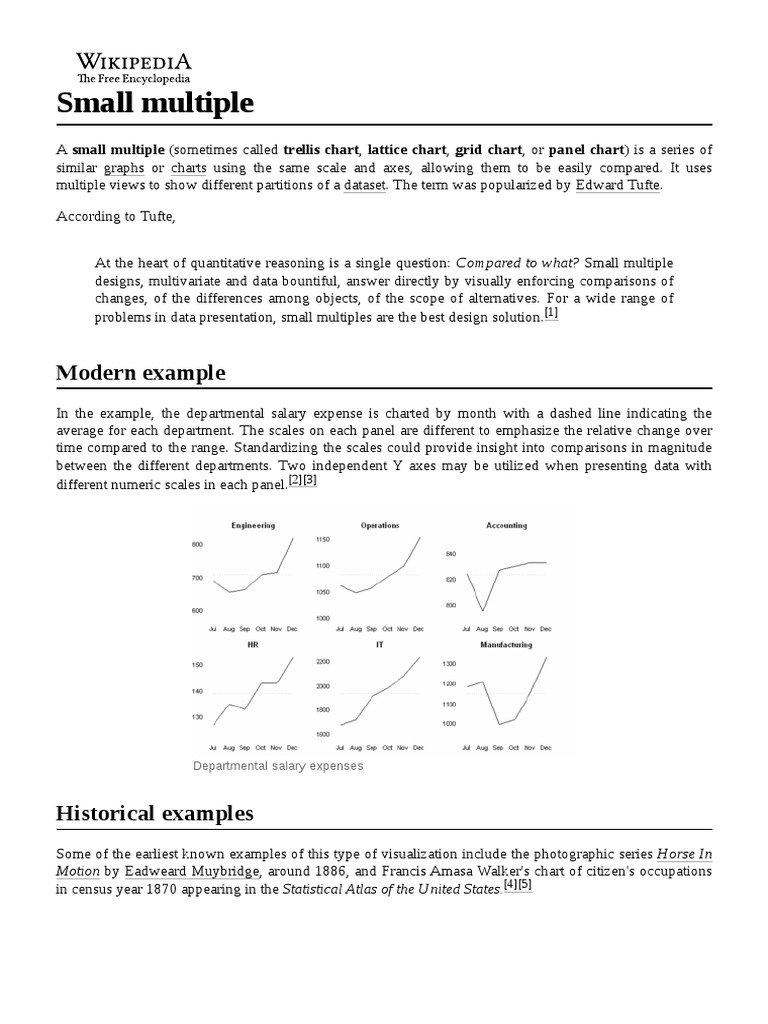

Small multiple

A small multiple (sometimes called trellis chart, lattice chart, grid chart, or panel chart) is a series of
similar graphs or charts using the same scale and axes, allowing them to be easily compared. It uses
multiple views to show different partitions of a dataset. The term was popularized by Edward Tufte.

According to Tufte,

At the heart of quantitative reasoning is a single question: Compared to what? Small multiple
designs, multivariate and data bountiful, answer directly by visually enforcing comparisons of
changes, of the differences among objects, of the scope of alternatives. For a wide range of
problems in data presentation, small multiples are the best design solution.[1]

Modern example
In the example, the departmental salary expense is charted by month with a dashed line indicating the
average for each department. The scales on each panel are different to emphasize the relative change over
time compared to the range. Standardizing the scales could provide insight into comparisons in magnitude
between the different departments. Two independent Y axes may be utilized when presenting data with
different numeric scales in each panel.[2][3]

Departmental salary expenses

Historical examples
Some of the earliest known examples of this type of visualization include the photographic series Horse In
Motion by Eadweard Muybridge, around 1886, and Francis Amasa Walker's chart of citizen's occupations
in census year 1870 appearing in the Statistical Atlas of the United States.[4][5]
Muybridge's work not only proved for the first time that all four of a
horse's hooves left the ground during gallop (see upper central
plates), but it also broke new ground in terms of artistic expression
and became foundational to the development of the motion picture.
Muybridge went on to produce many more examples of small
multiples showing animal locomotion through the medium of stop-
motion photography, including boys playing leapfrog and a bison
cantering.
Horse In Motion, Muybridge (1886)
Sketched graphic examples can be found in Francis Amasa
Walker's charts appearing in the 1870 Statistical Atlas of the United
States. Superintendent of the US Census at the time of its creation, Walker was determined to modernize
the Census collection and analysis methods and used the Atlas to present the final data set using
unprecedented visual forms, including many beautiful examples of small multiples.

Adjacent is a chart showing the population broken down by occupation,

including a count of those attending school, according to the 1870 Census.
This graphic is innovative in its use of both a treemap display and a latticed
layout of small multiples. Additional examples appearing in the Atlas
include side-by-side geographic maps showing the changes in population
over time, as well as tiled mosaic charts showing population demographic
breakdowns, and diverging bar graphs showing deaths broken down by age
and gender, tiled by state.[5]

Thematic maps

Persons with gainful

occupations and attending
school, Walker (1874)

Small multiples are a popular technique

Small multiple map series showing the trends in partisan voting
in cartographic design for multivariate
margins in Utah, 1900–2012.
mapping. As with the small multiple
chart, each panel uses the same
underlying two-dimensional space, but in this case that is a geographic space. Typically, the variables being
mapped are of a similar type, such as types of agricultural products, so that the same strategy of map
symbol can be used on each panel, enabling rapid comparison between the maps.

Another common use of small multiples is to show change in spatial patterns over time, as an alternative to
an animated map.[6] Several tests of the effectiveness of each method have generally concluded that they
have distinct advantages, with animation being better for seeing trends, especially movement, and small
multiples being better for making comparisons between times.[7]
