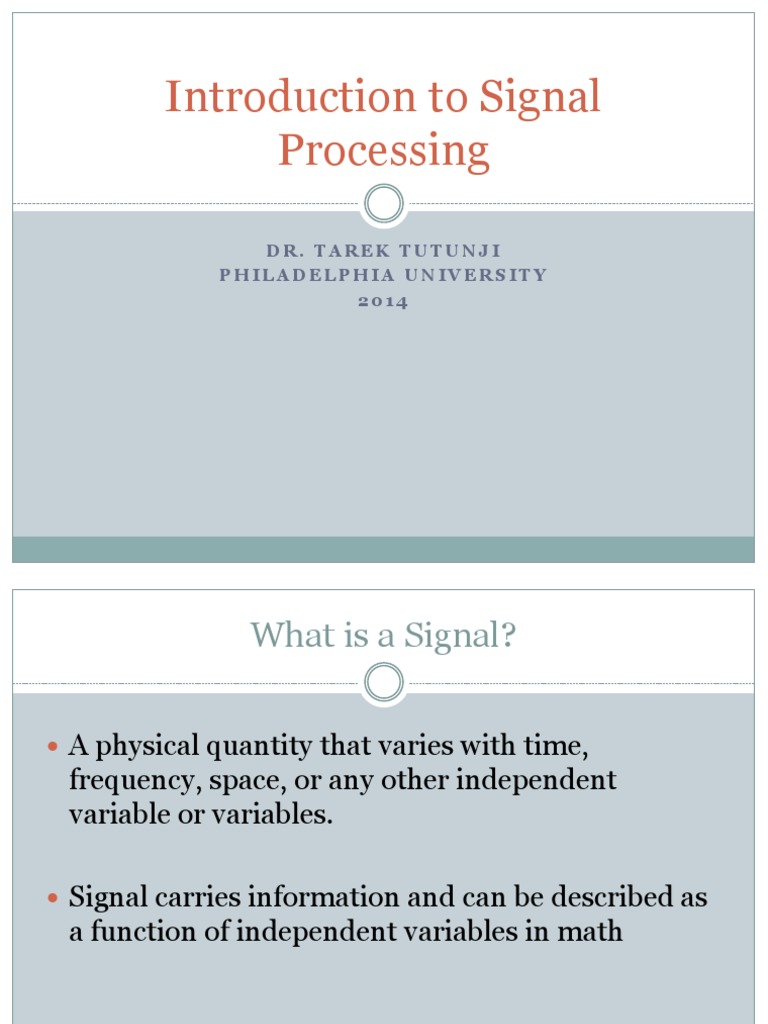

Introduction to Signal

Processing

DR. TAREK TUTUNJI

PHILADELPHIA UNIVERSITY
2014
 What is a Signal?

 A physical quantity that varies with time,

frequency, space, or any other independent
variable or variables.

 Signal carries information and can be described as

a function of independent variables in math

Tarek A. Tutunji
 What is a signal?

sensor
Dynamical Physical quantity
phenomenon signal

• Speech • Microphone • Current varies with time

•Image • Camera • Voltage varies with time
• Temperature • Thermocouple
• Force • Strain Gauge
Biomedical Signal (ECG) Signal

1.5

0.5
ECG

-0.5

-1
0 2 4 6 8 10 12 14 16 18 20
Temps [s]
 Temperature Signal

15

10

5
Température de l'air

-5

-10

-15

-20
140 150 160 170 180 190 200 210 220 230
Heures de 1992~1990
 Pressure Flow Signal

112.5

112

111.5
Pression

111

110.5

110
0.05 0.1 0.15 0.2 0.25 0.3
Temps [s]
 Vibration Signal

4000

3000

2000

1000
Accélération

-1000

-2000

-3000

-4000
0 0.02 0.04 0.06 0.08 0.1 0.12
Temps [s]
 Speech Signal

y  t   sin  2  500  t 

Speech signals are examples of information-bearing signals that evolve as

functions of signal independent variable, time
 Image Signal

I  B  x, y 

An image signal is an example of a signal that depends on two independent

variables, spatial.
 Moving Image Signal

 A one-dimensional signal depends on one

independent variable while an M-dimensional signal
depends on M independent variables

 Example: color TV signal is a three-channel, three-

dimensional signal and can be presented by the
vector
 I r ( x , y ,t )
I ( x , y , t )   I g ( x , y , t )
 
 I b ( x , y , t )

Tarek A. Tutunji
 Systems

 A System is a physical device and/or software realizations that

performs an operation on a signal

 A System is a collection of one or more devices, processors, or

computer-implemented algorithms that operate on an input
signal x to produce an output signal y

 When a signal is passed through a system. Then the signal is

processed. Such operations are called Signal Processing

 For example a filter is used to reduce the noise corrupting a

signal

Tarek A. Tutunji
Signal Processing
 Analog vs. Digital Signal Processing

 Most signals in science and engineering are Analog (i.e. signals are
functions of continuous variable). These can be processed directly
by analog systems such as filters.

 Analog signals can be converted to digital signals using A/D

 Digital Signal Processing uses a program to implement an algorithm

while Analog Signal Processing is implemented using an electrical
circuits

 Advantages of Digital over Analog Processing

 Flexibility
 Accuracy
 Reliability
 Sophistication

Tarek A. Tutunji
 Signal Processing

Analog Digital

Implementation: H/W Implementation: S/W on DSP chip

Examples: Filters and Op-Amps Examples: Algorithm / C++ Program

Tarek A. Tutunji
 Digital Signal Processing

 Algorithm is a method or set of rules for implementing a

system by a program that performs mathematical
operations

 Digital Signal Processing is defined as the arithmetic

processing of signals sampled at regular intervals

 We are interested in performing computationally

efficient and fast algorithms using Digital Signal
Processing

 Operations Filtering, Correlation, and Spectral Analysis

Tarek A. Tutunji
 Digital Signal Processing

 Digital Signal Processing provides an alternative

where the signal is transformed to Digital through
A/D interface, run through DSP, then output is
transferred back to Analog through D/A

 DSP may be a programmable computer or a

programmable microprocessor

 Applications: Speech Processing, Signal

Transmission, Image Processing, Oil Exploration,
and Control

Tarek A. Tutunji
 Digital Signal Processors (DSPs)

Digital signal processing operations

are implemented using
Digital Signal Processors (DSP)

Tarek A. Tutunji
 DSPs

 A digital signal processor (DSP) is an optimized

microprocessor used in real-time signal processing
applications.

 DSPs are typically embedded in larger systems (e.g., a

desktop computer) handling general-purpose tasks.

 A DSP system typically consists of a processor, memory,

analog-to-digital converters (ADCs), and digital-to-
analog converters (DACs).

 The main difference with typical microprocessors is they

are faster.
 Continuous-Time vs. Discrete-Time Signals

 Continuous (or analog) signals are defined for every

value of time in a continuous interval
x( t )  cos t ,  t  
 Discrete-time signals are defined only at specific
values of time
x(n)  cosn, n  0,1,2,...

 Discrete-time signals can be obtained by: Sampling

Tarek A. Tutunji
 Continuous-Time Signal using MATLAB

x(t )  exp( 0.1t ) * sin 0.75t

0.8

>> t=1:0.1:30; 0.6

>> x=exp(-.1*t).*sin(2/3*t);
>> plot(t,x) 0.4

>> grid
0.2
>> xlabel('Time (sec)');
x(t)

>> ylabel('x(t)') 0

-0.2

-0.4

-0.6
0 5 10 15 20 25 30
Time (sec)

Tarek A. Tutunji
 Discrete-Time Signal using MATLAB

>> n=1:8; 6
>> x=[2 3 4 7 1 2 -2 2];
>> plot(n,x,'x') 5

>> stem(n,x,'filled') 4

>> xlabel('n') 3
>> ylabel('x[n]')
x[n]
2

-1

-2
1 2 3 4 5 6 7 8
n

Tarek A. Tutunji
 Continuous-Valued vs. Discrete-Valued Signals

 A continuous-valued signal takes all possible values

in a range

 A discrete-valued signal takes on values from a finite

set of possible values

 Digital Signal is a discrete-time signal having a

discrete value.

Tarek A. Tutunji
 Analog-to-Digital Conversion

 Sampling. The conversion of a continuous-time signal into a

discrete-time signal obtained by taking samples of the
continuous-time signal at discrete-time instants

 Quantization. The conversion of a discrete-time continuous-

valued signal into a discrete-time, discrete-valued signal (i.e.
digital signal)

 Coding. Each discrete value is represented by a binary

sequence
Discete-Time Discete-Time
Signal Discrete-Value
Analog Signal
Signal
Sampling Quantization Coding

Tarek A. Tutunji
 Sampling Process

Analog Signal

Sampling
Interval
(Ts)

Sampled
Numbers
Sampling
 Quantization

Analog Discete-Time Discete-Time

Signal Signal Discrete-Value
Signal
Analog and Discrete-Time Signals
Analog and Discrete-Time Signals
 Calculus Review

 Differentiation

 Difference

 Integration

 Summation
Differential and Difference Equations
 Math Intro: Continuous-Time Signals

 The single-sided Laplace transform of a

continuous-time signal, x(t), is given by

 The Fourier transform of x(t) is given by

Where ω is in units of radians per second

Notice that when x(t)=0 for t ≤ 0, the Laplace transform is
equivalent to the Fourier transform by setting s = jω
Tarek A. Tutunji
 Math Intro: Discrete-Time Signals

 The z-transform of a discrete-time signal, x[n], is

defined as

 The discrete-time Fourier transform (DTFT) of a

signal are defined by

Note that the DTFT can be derived from the z-

transform by setting

Tarek A. Tutunji
 Deterministic vs. Random Signals

 Deterministic signals can be uniquely described by

mathematical expression, table, or set of rules.
Therefore, all past, present, and future values of the
signal are known precisely

 Random signals cannot be described mathematically

with a high degree of accuracy or are too complicated
to describe mathematically

 Theoretical analysis of random signals are provided

by theory of probability an stochastic processes

Tarek A. Tutunji
Signal Processing Applications: Communication
Signal Processing Applications: Control
 Signal Processing Applications

 Image Processing
 Pattern recognition; Robotic vision; Image enhancement;
Animation
 Instrumentation and Control
 Spectrum analysis; Position control; Noise reduction;

 Military
 Secure communication; Radar processing; Sonar processing;
Missile guidance
 Speech and Audio
 Speech recognition; Digital audio

Tarek A. Tutunji
 Signal Processing Applications

 Telecommunication
 Video conferencing; Data communication
 Biomedical
 ECG (Electrocardiograph); X-ray storage/enhancement
 Consumer
 Cellar mobile phones; Digital television; Digital camera;
Internet music; Interactive entertainment systems

Tarek A. Tutunji
 Conclusion

 Signals are physical quantities that carry information

and vary with time, space, or frequency

 Signal processing are operations that are carried on

signals in order to extract better information

 Signal processing can be analog or digital

 Signal processing is used in mechatronics

applications for instrumentation and control

Tarek A. Tutunji
