Experiment No. 1 (A) : Merge Signals in Labview and Observing The Output
Experiment No. 1 (A) : Merge Signals in Labview and Observing The Output

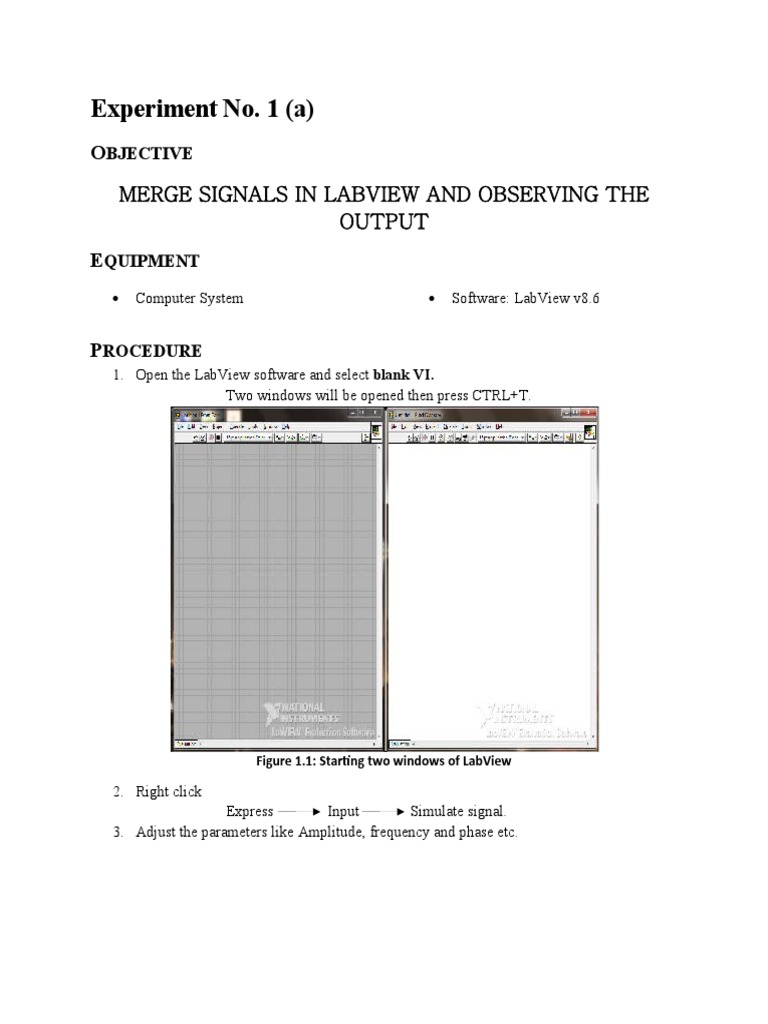

1 (a)
OBJECTIVE
PROCEDURE
1. Open the LabView software and select blank VI.
Two windows will be opened then press CTRL+T.
2. Right click
Express Input Simulate signal.
3. Adjust the parameters like Amplitude, frequency and phase etc.
Figure 1.2: Adjusting the parameters of LabView
4. Repeat the same procedure as in (3) but with phase shift of 90(deg).
Figure 1.3: Adjusting the parameters of LabView with 90o phase shift
RESULTS
Two signals are merged and shown on the same graph.
Attach the graphs in the results
What is Modulation.
---------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------
2. ------------------------------------------------------------------------------------------------------------
3. ------------------------------------------------------------------------------------------------------------
Experiment No. 1 (b)
OBJECTIVE
TO LEARN HOW TO SPLIT SIGNALS IN LABVIEW
EQUIPMENT
Computer System
PROCEDURE
1. Open the LabView software and
select blank VI.
Two windows will be
opened then press
CTRL+T.
2. Right click
Express Input
Simulate signal.
3. Adjust the parameters like
Amplitude, frequency and phase etc.
Figure 1.5: Adjusting the parameters
4. Repeat the same procedure as in (3) but with phase shift of 90(deg).
5. Right Click on block diagram and select
Express Signal manipulation Split Signal.
6. Connect the output of merge signal block with the input of Split signal block.
7. Right Click at the output of Split signal block and select Graph indicator.
8. Right Click on the frequency parameter of simulate signal first and select
Create Control
9. Right Click Structure While Loop
10. Drag the Wile Loop to cover all the blocks as shown in the diagram below and
run the VI.
Figure 1.6: Dragging the While loop and running the VI
RESULTS
Two signals are split and shown on the different graphs.
ATTACH THE GRAPHS
Define Frequency and Amplitude
-------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------
2. ------------------------------------------------------------------------------------------
3. ------------------------------------------------------------------------------------------
