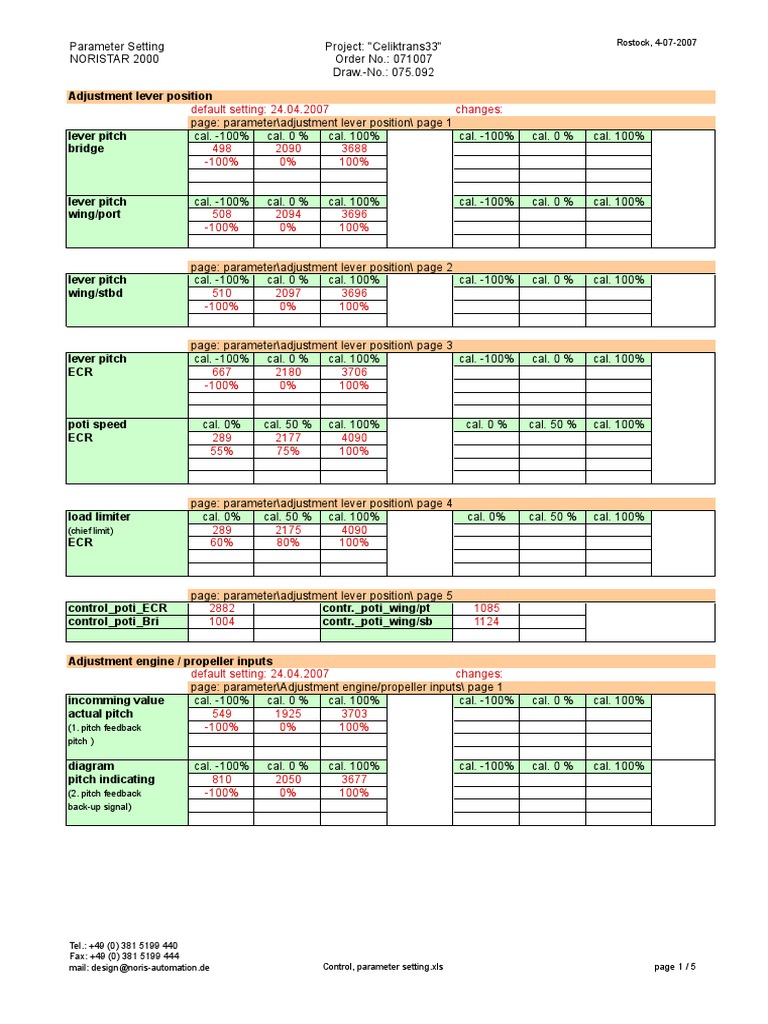

Rostock, 4-07-2007

Parameter Setting Project: "Celiktrans33"

NORISTAR 2000 Order No.: 071007
Draw.-No.: 075.092

Adjustment lever position

default setting: 24.04.2007 changes:
page: parameter\adjustment lever position\ page 1
lever pitch cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
bridge 498 2090 3688
-100% 0% 100%

lever pitch cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
wing/port 508 2094 3696
-100% 0% 100%

page: parameter\adjustment lever position\ page 2

lever pitch cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
wing/stbd 510 2097 3696
-100% 0% 100%

page: parameter\adjustment lever position\ page 3

lever pitch cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
ECR 667 2180 3706
-100% 0% 100%

poti speed cal. 0% cal. 50 % cal. 100% cal. 0 % cal. 50 % cal. 100%
ECR 289 2177 4090
55% 75% 100%

page: parameter\adjustment lever position\ page 4

load limiter cal. 0% cal. 50 % cal. 100% cal. 0% cal. 50 % cal. 100%
(chief limit) 289 2175 4090
ECR 60% 80% 100%

page: parameter\adjustment lever position\ page 5

control_poti_ECR 2882 contr._poti_wing/pt 1085
control_poti_Bri 1004 contr._poti_wing/sb 1124

Adjustment engine / propeller inputs

default setting: 24.04.2007 changes:
page: parameter\Adjustment engine/propeller inputs\ page 1
incomming value cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
actual pitch 549 1925 3703
(1. pitch feedback -100% 0% 100%
pitch )

diagram cal. -100% cal. 0 % cal. 100% cal. -100% cal. 0 % cal. 100%
pitch indicating 810 2050 3677
(2. pitch feedback -100% 0% 100%
back-up signal)

Tel.: +49 (0) 381 5199 440

Fax: +49 (0) 381 5199 444
mail: design@noris-automation.de Control, parameter setting.xls page 1 / 5
 Rostock, 4-07-2007
Parameter Setting Project: "Celiktrans33"
NORISTAR 2000 Order No.: 071007
Draw.-No.: 075.092

Adjustment engine / propeller inputs

default setting: 24.04.2007 changes:
page: parameter\Adjustment engine/propeller inputs\ page 2
incoming value cal. 0% cal. 100 % cal. 105% cal. 0% cal. 100 % cal. 105%
actual load 820 3600 4095
0% 100% 105%

incoming value cal. 0% cal. 50 % cal. 100% cal. 0% cal. 50 % cal. 100%
actual speed 820 2300 3500
0,0% 55% 100%

incoming value cal. 0% cal. 100 % cal. 105% cal. 0% cal. 100 % cal. 105%
actual load PTI 820 3600 4095
0% 100% 105%

Adjustment engine / propeller outputs

default setting: 24.04.2007 changes:
page: parameter\adjustment engine/propeller outputs\ page 1
analogue output cal. -100 % cal. 0 % cal. 100% cal. -100 % cal. 0 % cal. 100%
pitch setting -100% 0% 100%
(pitch setting) 10 2047 4090

output
pitch control
limit low pitch 400
limit high pitch 2100

page: parameter\adjustment engine/propeller outputs\ page 2

analogue output cal. 0 % cal. 50 % cal. 100% cal. 0 % cal. 50 % cal. 100%
speed setting 55% 75% 100%
(speed setting) 2458 3277 4095

Delay Programs
default setting: 24.04.2007 changes:
page: parameter\travelling programs\ page 1
Delay Program unloading pitch loading pitch unloading pitch loading pitch
Sailing demand time demand time demand time demand time
base 1 full astern -100% -40s -100% -40s
base 2 -90% -25s -90% -30s
base 3 -80% -15s -80% -25s
base 4 -50% -8s -50% -12s
base 5 zero pitch 0% 0s 0% 0s

page: parameter\travelling programs\ page 2

Delay Program unloading pitch loading pitch unloading pitch loading pitch
sailing demand time demand time demand time demand time
base 6 50% 8s 50% 12s
base 7 80% 15s 80% 30s
base 8 90% 25s 90% 50s
base 9 full ahead 100% 40s 100% 90s

Tel.: +49 (0) 381 5199 440

Fax: +49 (0) 381 5199 444
mail: design@noris-automation.de Control, parameter setting.xls page 2 / 5
 Rostock, 4-07-2007
Parameter Setting Project: "Celiktrans33"
NORISTAR 2000 Order No.: 071007
Draw.-No.: 075.092

Delay Programs
default setting: 24.04.2007
page: parameter\travelling programs\ page 3
Delay Program unloading speed loading speed unloading speed loading speed
manoev. demand time demand time demand time demand time
base 1 full astern -100% -25s -100% -30s
base 2 -90% -20s -90% -25s
base 3 -80% -15s -80% -20s
base 4 -50% -8s -50% -10s
base 5 zero pitch 0% 0s 0% 0s

page: parameter\travelling programs\ page 4

Delay Program unloading speed loading speed unloading speed loading speed
manoev. demand time demand time demand time demand time
base 6 50% 8s 50% 10s
base 7 80% 15s 80% 20s
base 8 90% 20s 90% 27s
base 9 full ahead 100% 25s 100% 50s

default setting: 09.03.2006

page: parameter\travelling programs\ page 5
Delay Program unloading speed loading speed unloading speed loading speed
emergency demand time demand time demand time demand time
base 1 full astern -100% -16s -100% -20s
base 2 -90% -13s -90% -15s
base 3 -80% -10s -80% -10s
base 4 -50% -6s -50% -6s
base 5 zero pitch 0% 0s 0% 0s

page: parameter\travelling programs\ page 6

Delay Program unloading speed loading speed unloading speed loading speed
emergency demand time demand time demand time demand time
base 5 zero pitch 0% 0s 0% 0s
base 6 50% 6s 50% 5s
base 7 80% 10s 80% 10s
base 8 90% 13s 90% 15s
base 9 full ahead 100% 16s 100% 20s

Combinator Mode
default setting: 24.04.2007 changes:
page: parameter\combinator mode\ page 1
Combinator load demand / speed / pitch load demand / speed / pitch
Mode demand speed demand pitch demand speed demand pitch
base 1 full astern -100% 100% -100% -100%
base 2 -90% 100% -90% -90%
base 3 -70% 86% -70% -70%
base 4 -50% 71% -50% -50%
base 5 zero pitch 0% 65% 0% 0%
page: parameter\combinator mode\ page 2
Combinator load demand / speed / pitch load demand / speed / pitch
Mode demand speed demand pitch demand speed demand pitch
base 6 50% 71% 50% 50%
base 7 70% 86% 70% 70%
base 8 90% 100% 90% 90%
base 9 full ahead 100% 100% 100% 100%

Tel.: +49 (0) 381 5199 440

Fax: +49 (0) 381 5199 444
mail: design@noris-automation.de Control, parameter setting.xls page 3 / 5
 Rostock, 4-07-2007
Parameter Setting Project: "Celiktrans33"
NORISTAR 2000 Order No.: 071007
Draw.-No.: 075.092

Constant Mode
default setting: 24.04.2007 changes:
page: parameter\constant mode\ page 1
Constant load demand / pitch load demand / pitch
Mode demand pitch demand pitch demand pitch demand pitch
base 1 full astern -100% -100%
base 2 -90% -90%
base 3 -70% -70%
base 4 -50% -50%
base 5 zero pitch 0% 0%
Constant speed value 100%
page: parameter\constant mode\ page 2
Constant load demand / pitch load demand / pitch
Mode demand pitch demand pitch demand pitch demand pitch
base 6 50% 50%
base 7 70% 70%
base 8 90% 90%
base 9 full ahead 100% 100%
Overload delay time 5s

Limiter
default setting: 24.04.2007 changes:
page: parameter\limiter\ page 1
step length pitch 5,0
step length speed 1,0
dead band lever equal 10,0%
dead band lever in ZERO 14,0

Special parameters
gear ratio 1
full scale deflection (not used) 1,13
number of teeth 16
firing speed 20 rpm
nominal speed 138 rpm

Load Control
default setting: 24.04.2007 changes:
page: parameter\load control\ page 1
run up without overload
dead band load controller 0,0%
amplification Ks 0,001
compensation time Tg 3200,0
scan time 0,050
reduce at overload
dead band load controller 0,0%
amplification Ks 0,025
compensation time Tg 2000,0
scan time 0,050

page: parameter\load control\ page 2

pitch reducing
"slow down" (ahead) 60,0%
load limit
n = constant 100.0%
value
fuel-filtering 2.0

Tel.: +49 (0) 381 5199 440

Fax: +49 (0) 381 5199 444
mail: design@noris-automation.de Control, parameter setting.xls page 4 / 5
 Rostock, 4-07-2007
Parameter Setting Project: "Celiktrans33"
NORISTAR 2000 Order No.: 071007
Draw.-No.: 075.092

Load Control
default setting: 24.04.2007 changes:
page: parameter\load control\ page 3
Load Limit Curve speed / load demand speed / load demand speed / load demand speed / load demand
speed lo.demand speed lo.demand speed lo.demand speed lo.demand
base 1 minimum -100% 0%
base 2 -75% 0%
base 3 -50% 0%
base 4 -25% 0%
base 5 0% 40%

page: parameter\load control\ page 4

Load Limit Curve speed / load demand speed / load demand speed / load demand speed / load demand
speed lo.demand speed lo.demand speed lo.demand speed lo.demand
base 6 1% 40%
base 7 60% 60%
base 8 95% 100%
base 9 maximum 100% 100%

Pitch Control
default setting: 24.04.2007 changes:
page: parameter\pitch control\ page 1
edge control ahead
(right) 30,0%
edge control astern
(left) -30,0%

amplification Ks 5.0
dead zone
pitch controlling 0,8%
treshold failure
hysterese 40,0%
max. pitch
ahead 100,0%
max. pitch
astern -100,0%
Miscelleanous
default setting: 24.04.2007 changes:
page: parameter\
VDR parameter
speed signal select 1
shaft number 0
baudrate 4800
send intervall 1000

renewal time alarms 3
