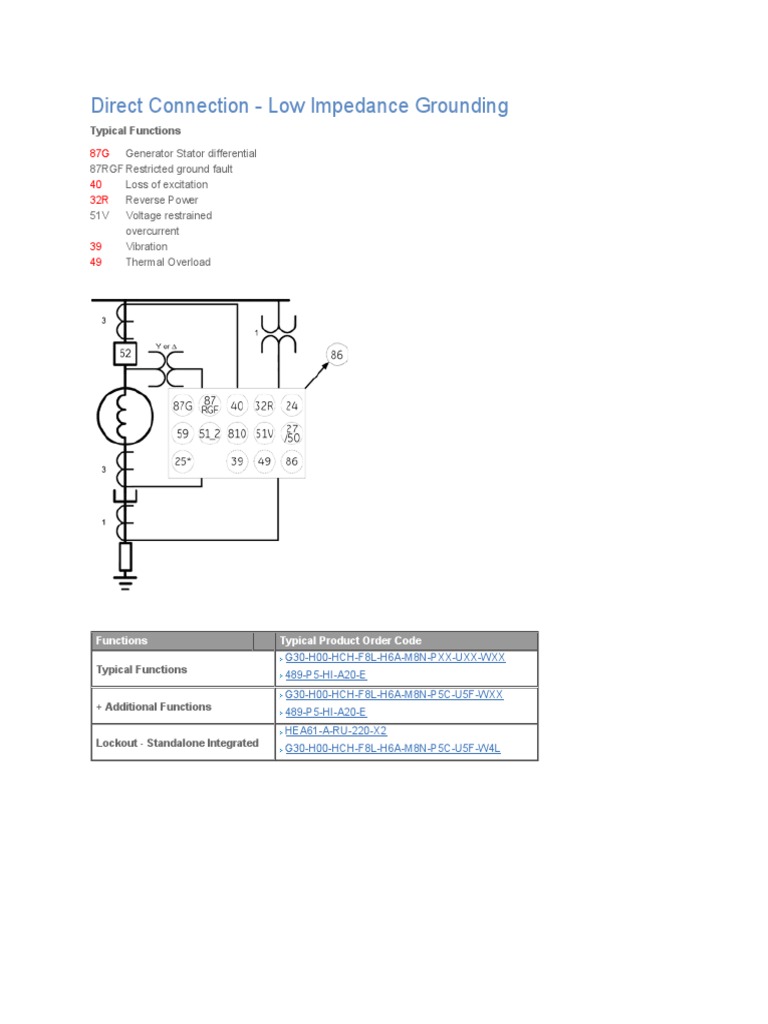

Direct Connection - Low Impedance Grounding

Typical Functions

87G Generator Stator differential

87RGF Restricted ground fault
40 Loss of excitation
32R Reverse Power
51V Voltage restrained
overcurrent
39 Vibration
49 Thermal Overload

Functions   Typical Product Order Code


Typical Functions

+ Additional Functions

Lockout - Standalone Integrated
G30-H00-HCH-F8L-H6A-M8N-PXX-UXX-WXX
489-P5-HI-A20-E
G30-H00-HCH-F8L-H6A-M8N-P5C-U5F-WXX
489-P5-HI-A20-E
HEA61-A-RU-220-X2
G30-H00-HCH-F8L-H6A-M8N-P5C-U5F-W4L
Unit Connected - High Impedance Grounding
Typical Functions

87G Generator Stator differential

27TN/59N 100% Stator Earth Fault
40 Loss of excitation
32R Reverse Power
21P Phase Distance
39 Vibration
49 Thermal Overload

Functions   Typical Product Order Code

 G60-H00-HCH-F8L-H6A-M8N-PXX-UXX-WXX
Typical Functions  489-P5-HI-A20-E
 G60-H00-HCH-F8L-H6A-M8N-P5C-U5F-WXX
+ Additional Functions  489-P5-HI-A20-E
 HEA61-A-RU-220-X2
Lockout - Standalone Integrated  G60-H00-HCH-F8L-H6A-M8N-P5C-U5F-W4L
In-Zone Transformer
Typical Functions

87GT Generator Transformer differential

27TN 3rd Harmonic Neutral Undervoltage
40 Loss of excitation
32R Reverse Power
39 Vibration
49 Thermal Overload

Functions   Typical Product Order Code

Typical Functions  G30-K00-HCH-F8L-H6A-M8N-PXX-UXX-WXX

+ Additional Functions  G30-K00-HCH-F8L-H6A-M8N-P5C-U5F-WXX

 HEA61-A-RU-220-X2
Lockout - Standalone Integrated  G30-K00-HCH-F8L-H6A-M8N-P5C-U5F-W4L
Hydro with Parallel Branch Winding
Typical Functions

87G Generator Stator differential

60SP Split phase protection
40 Loss of excitation
32R Reverse Power
21P Voltage restrained
overcurrent
39 Vibration
49 Thermal Overload

Functions   Typical Product Order Code

Typical Functions  G60-K00-HCH-F8L-H6A-M8N-PXX-UXX-WXX

+ Additional Functions  G60-K00-HCH-F8L-H6A-M8N-P5C-U5F-WXX

 HEA61-A-RU-220-X2
Lockout - Standalone Integrated  G60-K00-HCH-F8L-H6A-M8N-P5C-U5F-W4L
Pumped Storage
Typical Functions

87G Generator Stator differential

27TN/59N 100% Stator Ground
40 Loss of excitation
32R Reverse Power
21P Phase Distance
39 Vibration
49 Thermal Overload

Functions   Typical Product Order Code

Typical Functions  G60-K00-HCH-F8L-H6A-M8N-PXX-UXX-WXX

+ Additional Functions  G60-K00-HCH-F8L-H6A-M8N-P5C-U5F-WXX

 HEA61-A-RU-220-X2
Lockout - Standalone Integrated  G60-K00-HCH-F8L-H6A-M8N-P5C-U5F-W4L
