OSPF Practical Lab

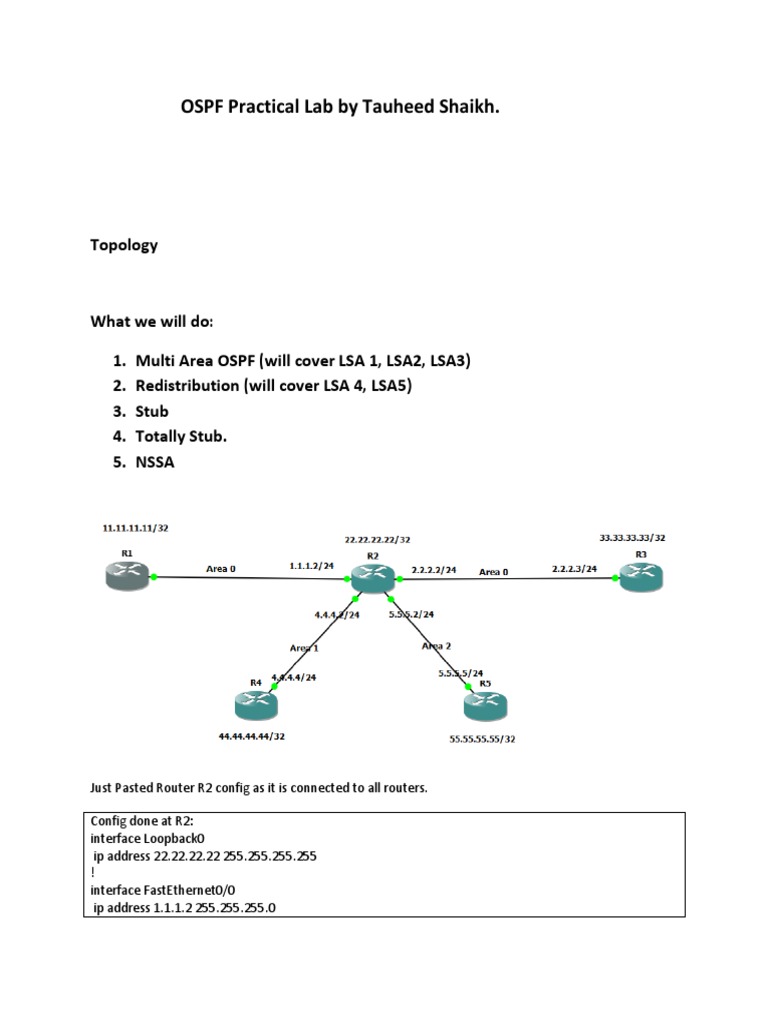

OSPF Practical Lab by Tauheed Shaikh.
Topology
What we will do:
1. Multi Area OSPF (will cover LSA 1, LSA2, LSA3)

2. Redistribution (will cover LSA 4, LSA5)
3. Stub
4. Totally Stub.
5. NSSA
Just Pasted Router R2 config as it is connected to all routers.
Config done at R2:

interface Loopback0
ip address 22.22.22.22 255.255.255.255
!
interface FastEthernet0/0
ip address 1.1.1.2 255.255.255.0
no shut
!
ip address 2.2.2.2 255.255.255.0
no shut
!
ip address 4.4.4.2 255.255.255.0
no shut
!
ip address 5.5.5.2 255.255.255.0
no shut
router ospf 1
network 1.1.1.0 0.0.0.255 area 0

network 2.2.2.0 0.0.0.0 area 0
network 2.2.2.0 0.0.0.255 area 0
network 4.4.4.0 0.0.0.255 area 1
network 5.5.5.0 0.0.0.255 area 2
network 22.22.22.22 0.0.0.0 area 0
Output:
R2#sh ip ospf database
OSPF Router with ID (22.22.22.22) (Process ID 1)
Router Link States (Area 0)

Notes: Router Link state is LSA 1: which is generated by DR other or ordinary router to their neighbors.
Link ID ADV Router Age Seq# Checksum Link count

11.11.11.11 11.11.11.11 1065 0x80000002 0x00662D 2
22.22.22.22 22.22.22.22 1059 0x80000003 0x0040AA 3
33.33.33.33 33.33.33.33 1061 0x80000002 0x0095EB 2
Net Link States (Area 0)

Notes: Net Link state is LSA 2: which is generated by DR and BDR.
Link ID ADV Router Age Seq# Checksum

1.1.1.2 22.22.22.22 1064 0x80000001 0x00E770
2.2.2.3 33.33.33.33 1061 0x80000001 0x000EC1
Summary Net Link States (Area 0)

Notes: Summary Net Link state is LSA 3: which is generated by Area 0, here adv router is router id of
R2, which is advertising LSA 3 to Area 1 and Area 2, link id here is the connected link to Area 1 and
Area 2.LSA 3 is only generated by Area 0, LSA 3 cannot enter into Area 0.

4.4.4.0 22.22.22.22 1099 0x80000001 0x006C6B
5.5.5.0 22.22.22.22 1099 0x80000001 0x00488C
44.44.44.44 22.22.22.22 1059 0x80000001 0x00171B
55.55.55.55 22.22.22.22 1049 0x80000001 0x001BEA

Notes: LSA1
22.22.22.22 22.22.22.22 1064 0x80000002 0x0093CE 1
44.44.44.44 44.44.44.44 1066 0x80000002 0x00FEEF 2

Notes: LSA2
4.4.4.4 44.44.44.44 1066 0x80000001 0x00E788

1.1.1.0 22.22.22.22 1100 0x80000001 0x00D808
2.2.2.0 22.22.22.22 1100 0x80000001 0x00B429
5.5.5.0 22.22.22.22 1100 0x80000001 0x00488C
11.11.11.11 22.22.22.22 1061 0x80000001 0x000BAB
22.22.22.22 22.22.22.22 1100 0x80000001 0x000586
33.33.33.33 22.22.22.22 1051 0x80000001 0x00134B
55.55.55.55 22.22.22.22 1051 0x80000001 0x001BEA

22.22.22.22 22.22.22.22 1060 0x80000002 0x00D981 1
55.55.55.55 55.55.55.55 1063 0x80000002 0x00E37E 2

5.5.5.5 55.55.55.55 1063 0x80000001 0x00E52E
R2#sh ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface

33.33.33.33 1 FULL/DR 00:00:32 2.2.2.3 FastEthernet1/0
11.11.11.11 1 FULL/BDR 00:00:35 1.1.1.1 FastEthernet0/0
R2#
Redistribute EIGRP into OSPF: check LSA 4 and LSA 5.
EIGRP is configured between R6 and R1.
We will redistribute EIGRP into OSPF at R1:
Router eigrp 100

Network 6.6.6.0
Network 66.66.66.66
No auto-summary
Router ospf 1
Redistribute eigrp 100 metric 10 subnets
OUTPUT at R2: here E2 is the external routes, which we redistributed into OSPF.
R2(config)# do sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/24 is subnetted, 1 subnets

C 1.1.1.0 is directly connected, FastEthernet0/0
O 33.33.33.33 [110/2] via 2.2.2.3, 01:24:42, FastEthernet1/0
O E2 66.66.66.66 [110/10] via 1.1.1.1, 00:38:13, FastEthernet0/0
C 22.22.22.22 is directly connected, Loopback0
R2(config)#
OSPF database table:
Notes: As we know LSA 5 will be generated only when we redistribute the routes in OSPF, it is
generated by ASBR, when ASBR send LSA 5 to ABR router, in our case ASBR is R1 and ABR is R2, R1 will
send LSA 5 to R2, then R2 will generate LSA 4.
R2(config)#do sh ip ospf dat

11.11.11.11 11.11.11.11 459 0x80000005 0x006628 2
22.22.22.22 22.22.22.22 1270 0x80000005 0x003CAC 3
33.33.33.33 33.33.33.33 1255 0x80000004 0x0091ED 2

1.1.1.2 22.22.22.22 1270 0x80000003 0x00E372
2.2.2.3 33.33.33.33 1255 0x80000003 0x000AC3

4.4.4.0 22.22.22.22 1270 0x80000003 0x00686D
5.5.5.0 22.22.22.22 1270 0x80000003 0x00448E
44.44.44.44 22.22.22.22 1270 0x80000003 0x00131D
55.55.55.55 22.22.22.22 1270 0x80000003 0x0017EC

22.22.22.22 22.22.22.22 1270 0x80000004 0x008FD0 1
44.44.44.44 44.44.44.44 1242 0x80000004 0x00FAF1 2

4.4.4.4 44.44.44.44 1242 0x80000003 0x00E38A

1.1.1.0 22.22.22.22 1271 0x80000003 0x00D40A
2.2.2.0 22.22.22.22 1271 0x80000003 0x00B02B
5.5.5.0 22.22.22.22 1271 0x80000003 0x00448E
11.11.11.11 22.22.22.22 1271 0x80000003 0x0007AD
22.22.22.22 22.22.22.22 1271 0x80000003 0x000188
33.33.33.33 22.22.22.22 1271 0x80000003 0x000F4D
55.55.55.55 22.22.22.22 1271 0x80000003 0x0017EC
Summary ASB Link States (Area 1)

Note: LSA 4 generated by R2 defines where is ASBR located in OSPF domain.
11.11.11.11 22.22.22.22 531 0x80000002 0x00F0C4

22.22.22.22 22.22.22.22 1272 0x80000004 0x00D583 1
55.55.55.55 55.55.55.55 1264 0x80000004 0x00DF80 2

5.5.5.5 55.55.55.55 1263 0x80000003 0x00E130

1.1.1.0 22.22.22.22 1272 0x80000003 0x00D40A
2.2.2.0 22.22.22.22 1272 0x80000003 0x00B02B
4.4.4.0 22.22.22.22 1272 0x80000003 0x00686D
11.11.11.11 22.22.22.22 1272 0x80000003 0x0007AD
22.22.22.22 22.22.22.22 1272 0x80000003 0x000188
33.33.33.33 22.22.22.22 1273 0x80000003 0x000F4D
44.44.44.44 22.22.22.22 1273 0x80000003 0x00131D
Summary ASB Link States (Area 2)

Note: LSA 4 generated by R2 defines where is ASBR located in OSPF domain.
11.11.11.11 22.22.22.22 532 0x80000002 0x00F0C4
Type-5 AS External Link States

Note: LSA 5 is generated by ASBR which is R1.
Link ID ADV Router Age Seq# Checksum Tag
6.6.6.0 11.11.11.11 462 0x80000002 0x005D0E 0
66.66.66.66 11.11.11.11 462 0x80000002 0x004E26 0
R2(config)#
STUB:
Topology:
We have made Area 1 as Stub
Config for stub, we need to configure it on all area 1 router.
Router ospf 1
Area 1 stub
Now we will check output of R8,R7,R4 and R2.
As we know Stub routers will only show O and OIA routes and there
will be default route 0.0.0.0* to ABR router.
OUTPUT at R8:
R8(config-router)#do sh ip route ospf

O IA 1.1.1.0 [110/3] via 8.8.8.4, 00:00:30, FastEthernet0/0
O*IA 0.0.0.0/0 [110/3] via 8.8.8.4, 00:00:30, FastEthernet0/0
R8(config-router)#
OUTPUT at R4:
R4(config-router)#do sh ip route
Gateway of last resort is 4.4.4.2 to network 0.0.0.0

R4(config-router)#
Totally Stub:
As we know in totally stub, only O routes (LSA 1 and LSA2) will be

seen in database table.
Topology:
Here Area 2 is made totally stub.
Config for totally stub, we need to configure it on all area 2 router.
Router ospf 1
Area 2 stub no-summary
OUTPUT at R9:
R9#sh ip route
Gateway of last resort is 9.9.9.5 to network 0.0.0.0

R9#
R9(config-router)# do sh ip ospf dat

22.22.22.22 22.22.22.22 218 0x80000005 0x00F168 1
55.55.55.55 55.55.55.55 63 0x8000000A 0x005CAB 3
99.99.99.99 99.99.99.99 257 0x80000006 0x008DA0 2

5.5.5.5 55.55.55.55 213 0x80000004 0x00FD15
9.9.9.9 99.99.99.99 253 0x80000003 0x0070AD

0.0.0.0 22.22.22.22 220 0x80000001 0x001BCA
R9(config-router)#
NSSA:
As we know that LSA 5 cannot enter STUB, but if in future there can
be possibility that stub area needs to be connected to some customer
router for redistribute the routes, for that we have NSSA Not so
stubby area, It will generate LSA 7 which will be in area 1, and when it
will go to area 0 it will be converted to LSA5 by the ABR of area 0.
Now we will see it practically:
Topology:
We have configured EIGRP between R10 and R4, and redistributed
EIGRP routes in R4, we also need to make area 1 as NSSA, need to
configure it on all area 1 routers.
router ospf 1
area 1 nssa
OUTPUT at R8:

O N2 10.10.10.0 [110/10] via 8.8.8.4, 00:02:08, FastEthernet0/0
R8(config-router)#do wr
R8(config-router)#do sh ip ospf data

22.22.22.22 22.22.22.22 1288 0x80000009 0x003122 1
44.44.44.44 44.44.44.44 1289 0x8000000F 0x0097B0 4
77.77.77.77 77.77.77.77 1326 0x80000009 0x0045F6 2
88.88.88.88 88.88.88.88 1353 0x80000009 0x002A85 2

4.4.4.4 44.44.44.44 1285 0x80000007 0x0081E2
7.7.7.7 77.77.77.77 1322 0x80000005 0x00CF29
8.8.8.8 88.88.88.88 1348 0x80000005 0x00CDCE

1.1.1.0 22.22.22.22 1293 0x80000006 0x007461
2.2.2.0 22.22.22.22 1293 0x80000006 0x005082
5.5.5.0 22.22.22.22 1293 0x80000004 0x00E7E3
9.9.9.0 22.22.22.22 1294 0x80000004 0x00615D
11.11.11.11 22.22.22.22 1294 0x80000006 0x00A605
22.22.22.22 22.22.22.22 1294 0x80000006 0x00A0DF
33.33.33.33 22.22.22.22 1294 0x80000006 0x00AEA4
55.55.55.55 22.22.22.22 1294 0x80000004 0x00BA42
99.99.99.99 22.22.22.22 1294 0x80000004 0x00D476
Type-7 AS External Link States (Area 1)

10.10.10.0 44.44.44.44 1403 0x80000001 0x00F828 0
R8(config-router)#
Output at R1 where we will see this N2 route converted to E2:
R1#sh ip route

D 66.66.66.66 [90/156160] via 6.6.6.6, 01:54:17, FastEthernet1/0
R1#sh ip ospf data
R1#sh ip ospf data

11.11.11.11 11.11.11.11 1414 0x80000005 0x006628 2
22.22.22.22 22.22.22.22 1382 0x80000006 0x0040A5 3
33.33.33.33 33.33.33.33 1414 0x80000005 0x008FEE 2

1.1.1.2 22.22.22.22 1382 0x80000004 0x00E173
2.2.2.3 33.33.33.33 1414 0x80000004 0x0008C4

4.4.4.0 22.22.22.22 111 0x80000004 0x00666E
5.5.5.0 22.22.22.22 111 0x80000003 0x00448E
7.7.7.0 22.22.22.22 1449 0x80000001 0x000AC3
8.8.8.0 22.22.22.22 1449 0x80000001 0x00E5E4
9.9.9.0 22.22.22.22 111 0x80000003 0x00BD08
44.44.44.44 22.22.22.22 1450 0x80000001 0x00171B
55.55.55.55 22.22.22.22 112 0x80000003 0x0017EC
77.77.77.77 22.22.22.22 1450 0x80000001 0x002D7F
88.88.88.88 22.22.22.22 1450 0x80000001 0x00314F
99.99.99.99 22.22.22.22 113 0x80000003 0x003121
Type-5 AS External Link States

6.6.6.0 11.11.11.11 1415 0x80000004 0x005910 0
10.10.10.0 22.22.22.22 1444 0x80000001 0x00245F 0
66.66.66.66 11.11.11.11 1415 0x80000004 0x004A28 0
R1#

OSPF Practical Lab

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

OSPF Practical Lab

Uploaded by

Copyright:

Available Formats

OSPF Practical Lab by Tauheed Shaikh.

What we will do:

1. Multi Area OSPF (will cover LSA 1, LSA2, LSA3)

Just Pasted Router R2 config as it is connected to all routers.

Config done at R2:

network 1.1.1.0 0.0.0.255 area 0

R2#sh ip ospf database

OSPF Router with ID (22.22.22.22) (Process ID 1)

Router Link States (Area 0)

Link ID ADV Router Age Seq# Checksum Link count

Net Link States (Area 0)

Link ID ADV Router Age Seq# Checksum

Summary Net Link States (Area 0)

Link ID ADV Router Age Seq# Checksum

Router Link States (Area 1)

Net Link States (Area 1)

Summary Net Link States (Area 1)

Link ID ADV Router Age Seq# Checksum

Router Link States (Area 2)

Link ID ADV Router Age Seq# Checksum Link count

Net Link States (Area 2)

Link ID ADV Router Age Seq# Checksum

R2#sh ip ospf neighbor

Neighbor ID Pri State Dead Time Address Interface

Redistribute EIGRP into OSPF: check LSA 4 and LSA 5.

EIGRP is configured between R6 and R1.

We will redistribute EIGRP into OSPF at R1:

Router eigrp 100

Gateway of last resort is not set

1.0.0.0/24 is subnetted, 1 subnets

OSPF database table:

R2(config)#do sh ip ospf dat

OSPF Router with ID (22.22.22.22) (Process ID 1)

Router Link States (Area 0)

Link ID ADV Router Age Seq# Checksum Link count

Net Link States (Area 0)

Link ID ADV Router Age Seq# Checksum

Link ID ADV Router Age Seq# Checksum

Router Link States (Area 1)

Link ID ADV Router Age Seq# Checksum Link count

Net Link States (Area 1)

Link ID ADV Router Age Seq# Checksum

Summary Net Link States (Area 1)

Link ID ADV Router Age Seq# Checksum

Summary ASB Link States (Area 1)

Router Link States (Area 2)

Link ID ADV Router Age Seq# Checksum Link count

Net Link States (Area 2)

Link ID ADV Router Age Seq# Checksum

Summary Net Link States (Area 2)

Summary ASB Link States (Area 2)

Type-5 AS External Link States

Config for stub, we need to configure it on all area 1 router.

Now we will check output of R8,R7,R4 and R2.

R8(config-router)#do sh ip route ospf

Gateway of last resort is 4.4.4.2 to network 0.0.0.0

1.0.0.0/24 is subnetted, 1 subnets

As we know in totally stub, only O routes (LSA 1 and LSA2) will be

Here Area 2 is made totally stub.

Config for totally stub, we need to configure it on all area 2 router.

Area 2 stub no-summary

Gateway of last resort is 9.9.9.5 to network 0.0.0.0

55.0.0.0/32 is subnetted, 1 subnets

OSPF Router with ID (99.99.99.99) (Process ID 1)
