Roll # and Name:

CLO 3 Assignment No 06

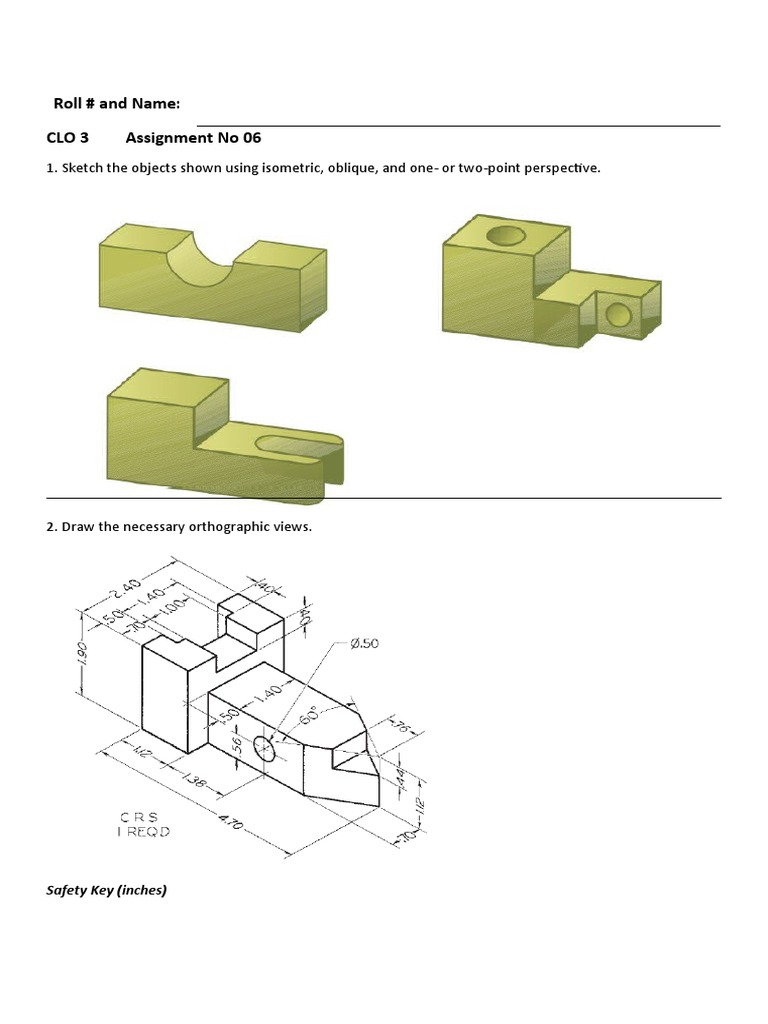

1. Sketch the objects shown using isometric, oblique, and one- or two-point perspective.

2. Draw the necessary orthographic views.

Safety Key (inches)

Parallel block (Metric)

Angle stop (inches)

3. In the table, match the given surface letter from the pictorial drawing with the corresponding surface
number from the multiview drawing for each view.
4. Multiview Sketching Problems. Sketch necessary orthographic views on graph paper or plain paper,
showing either one or two problems per sheet. These exercises are designed to fit on 8.5” × 11” size A
or metric A4 paper. The units shown may be either .500” and .250” or 10 mm and 5 mm. All holes are
through holes.
