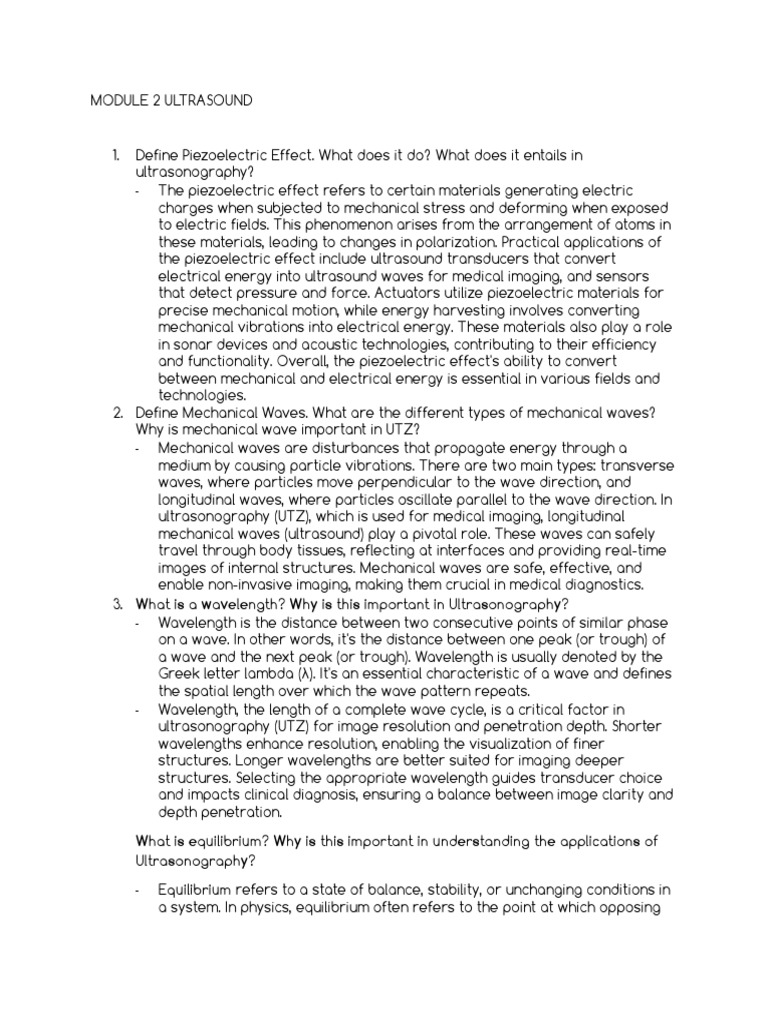

MODULE 2 ULTRASOUND

1. Define Piezoelectric Effect. What does it do? What does it entails in

ultrasonography?
- The piezoelectric effect refers to certain materials generating electric
charges when subjected to mechanical stress and deforming when exposed
to electric fields. This phenomenon arises from the arrangement of atoms in
these materials, leading to changes in polarization. Practical applications of
the piezoelectric effect include ultrasound transducers that convert
electrical energy into ultrasound waves for medical imaging, and sensors
that detect pressure and force. Actuators utilize piezoelectric materials for
precise mechanical motion, while energy harvesting involves converting
mechanical vibrations into electrical energy. These materials also play a role
in sonar devices and acoustic technologies, contributing to their efficiency
and functionality. Overall, the piezoelectric effect's ability to convert
between mechanical and electrical energy is essential in various fields and
technologies.
2. Define Mechanical Waves. What are the different types of mechanical waves?
Why is mechanical wave important in UTZ?
- Mechanical waves are disturbances that propagate energy through a
medium by causing particle vibrations. There are two main types: transverse
waves, where particles move perpendicular to the wave direction, and
longitudinal waves, where particles oscillate parallel to the wave direction. In
ultrasonography (UTZ), which is used for medical imaging, longitudinal
mechanical waves (ultrasound) play a pivotal role. These waves can safely
travel through body tissues, reflecting at interfaces and providing real-time
images of internal structures. Mechanical waves are safe, effective, and
enable non-invasive imaging, making them crucial in medical diagnostics.
3. What is a wavelength? Why is this important in Ultrasonography?
- Wavelength is the distance between two consecutive points of similar phase
on a wave. In other words, it's the distance between one peak (or trough) of
a wave and the next peak (or trough). Wavelength is usually denoted by the
Greek letter lambda (λ). It's an essential characteristic of a wave and defines
the spatial length over which the wave pattern repeats.
- Wavelength, the length of a complete wave cycle, is a critical factor in
ultrasonography (UTZ) for image resolution and penetration depth. Shorter
wavelengths enhance resolution, enabling the visualization of finer
structures. Longer wavelengths are better suited for imaging deeper
structures. Selecting the appropriate wavelength guides transducer choice
and impacts clinical diagnosis, ensuring a balance between image clarity and
depth penetration.

What is equilibrium? Why is this important in understanding the applications of

Ultrasonography?

- Equilibrium refers to a state of balance, stability, or unchanging conditions in

a system. In physics, equilibrium often refers to the point at which opposing
 forces or factors are balanced, resulting in a state where there is no net
change in the system.
- Equilibrium principles elucidate how waves propagate, interact with tissues,
reflect, and attenuate. This knowledge influences factors like sound speed,
wave interactions, image quality, and artifact correction, ensuring accurate
and clinically valuable ultrasound imaging. Equilibrium's role is pivotal in
comprehending the foundation of UTZ applications and addressing related
challenges.
4. What is amplitude? What significance does this concept apply in
Ultrasonography?
- Amplitude refers to the maximum displacement or distance that a particle in
a wave moves from its equilibrium position. In simpler terms, it represents
the magnitude or strength of the wave's oscillations. For a sound wave or an
ultrasound wave, the amplitude corresponds to the maximum pressure or
displacement variation from the baseline value.
-
- Amplitude's significance in ultrasonography lies in its impact on signal
strength, image quality, and diagnostic accuracy. Higher amplitude indicates
stronger ultrasound signals, leading to clearer and well-defined images.
Amplitude variations determine the brightness of structures and contribute
to image contrast, aiding in the differentiation of tissues. Effective diagnosis
relies on amplitude's role in highlighting abnormalities and anomalies.
However, extreme amplitude variations can lead to artifacts, emphasizing
the need for balance in obtaining accurate and clinically valuable ultrasound
images.
5. What is the importance of compression in the physics of Ultrasonography? How
does this concept carry relevance?
- Compression is a key concept in ultrasonography's physics, holding
significance for understanding how ultrasound waves interact with tissues. It
influences wave propagation, reflection, and transmission at tissue
interfaces. Compression variations within tissues contribute to the creation
of ultrasound images, allowing for the representation of internal structures
and properties. These variations provide diagnostic information, enabling
accurate identification of anomalies and pathologies. Overall, grasping the
role of compression enhances the interpretation and diagnostic value of
ultrasonography images.
6. What is the importance of refraction in the physics of Ultrasonography? How
does this concept carry relevance?
- Refraction holds significant importance in the physics of ultrasonography
(UTZ) due to its impact on how ultrasound waves interact with tissues. It
involves the change in wave direction as waves pass through tissue
boundaries with varying acoustic properties. Understanding refraction is
crucial for accurate diagnosis, image quality, and proper transducer
placement. Refraction-related artifacts can compromise image accuracy.
Additionally, knowledge of refraction enables techniques to correct for its
effects, ensuring that ultrasound images provide reliable and valuable
diagnostic information.
7. What is Differential Absorption? Why is this concept important?
 - Differential absorption, the varying absorption of ultrasound waves by
different tissues, is a vital concept in ultrasonography (UTZ). It creates image
contrast by causing tissues with higher absorption properties to appear
darker. This contrast enhances visualization, aids in accurate diagnoses, and
contributes to proper image calibration. Differential absorption also has
implications for safety, therapeutic uses, and artifact management in UTZ.
Understanding this concept is essential for generating informative images
and ensuring effective medical applications.
- Differential absorption is essentially the amount of absorption or attenuation
that anatomical structures possess. As the x-ray beam passes through the
patient, anatomical structures that are very dense will absorb the radiation
and not permit it to go through to the film.
8. How is velocity relevant in ultrasonography? Provide a table that shows the
various velocities applicable in Ultrasonography.
- The rate at which the ultrasound wave is propagated through a medium is
called the wave velocity. This velocity varies from one medium to another,
depending on the elastic properties of the material. Two physical properties
of the medium are crucial in this respect. These are the density and the
compressibility of the medium. It significantly affects image interpretation
and is particularly important in techniques like Doppler ultrasound, which
assesses blood flow. Tissue velocities vary, allowing ultrasonographers to
differentiate between tissues and make accurate diagnoses. Understanding
tissue velocities enhances the accuracy of UTZ images and contributes to
effective medical evaluations.
-

9. What is frequency? How is this important in Ultrasonography?

- Frequency refers to the number of oscillations or cycles of a wave that
occur in a given unit of time. In the context of ultrasonography (UTZ),
frequency specifically refers to the number of ultrasound waves produced
or received by a transducer in a second. It is usually measured in Hertz (Hz).
 - Frequency's significance in ultrasonography lies in its impact on image
resolution, penetration depth, and clinical applications. Higher frequencies
yield better resolution, enabling visualization of fine details in superficial
structures. Lower frequencies enhance penetration, allowing imaging of
deeper organs. Transducer selection aligns with frequency choice,
optimizing imaging for specific structures. Frequency also plays a role in
Doppler imaging and artifact generation, ensuring accurate and valuable
ultrasound diagnostics.
10. . What are soundwaves? How are these waves different from EMR? Why are
soundwaves the medium for Ultrasonography?
- Sound waves are mechanical waves that propagate through a medium, such
as air, water, or solid materials, by causing particles in the medium to vibrate
in a back-and-forth motion. These vibrations create areas of higher
pressure (compressions) and lower pressure (rarefactions), forming a wave
pattern that travels through the medium. Sound waves require a medium for
propagation and cannot travel through a vacuum.
- Sound waves are mechanical vibrations that propagate through a medium,
unlike electromagnetic radiation (EMR) which doesn't require a medium. EMR,
like light, can travel through a vacuum. Sound waves have lower speeds and
frequencies compared to EMR. Sound waves are safe, penetrate tissues,
reflect off interfaces, allow real-time imaging, differentiate soft tissues, and
provide depth penetration. These qualities make sound waves suitable for
ultrasonography, a vital medical imaging technique.
11. What is attenuation in Ultrasound? What is its effect in terms of providing
scanned images?
- Attenuation in ultrasound refers to the gradual decrease in the intensity or
energy of an ultrasound wave as it travels through a medium, such as human
tissue. This decrease in energy occurs due to the absorption, scattering, and
reflection of the ultrasound waves by the tissues they pass through.
- Its effects on scanned images include variations in brightness for tissue
differentiation, limits on penetration depth, potential loss of high-frequency
details, artifact formation like shadowing and enhancement, and the need to
adjust gain settings for image quality. Managing attenuation is crucial for
obtaining accurate and informative ultrasound images.
12. What is acoustic impedance? What implications does this have in
ultrasonography?
- Acoustic impedance is a characteristic property of a material that describes
how resistant the material is to the transmission of sound waves. It is a
measure of the material's density and compressibility. Acoustic impedance is
calculated by multiplying the density of the material by the speed of sound in
that material.
- It drives reflection at tissue boundaries, contributing to image formation and
contrast. Differences in acoustic impedance aid tissue differentiation and
play a role in diagnosing pathologies. However, impedance mismatches can
also lead to artifacts, impacting image accuracy. Overall, understanding
acoustic impedance is crucial for producing diagnostically valuable
ultrasound images.
13. What is an acoustic mismatch? What implications does this have in
ultrasonography?
- An acoustic mismatch occurs when there is a significant difference in
acoustic impedance between two adjacent tissues or media through which
ultrasound waves are propagating. Acoustic impedance is a property that
combines the density and speed of sound in a material, determining how well
sound waves can pass through it. When sound waves encounter a boundary
with an acoustic impedance mismatch, part of the wave is reflected and part
is transmitted, leading to changes in the direction and intensity of the wave
- It leads to partial reflection of ultrasound waves at tissue boundaries, giving
rise to artifacts like reverberation. Shadowing occurs behind high-impedance
tissues, resulting in dark areas in the image, while low-impedance structures
can cause enhancement and brighter regions. Refraction due to acoustic
mismatch can distort structures and affect boundary localization,
emphasizing the importance of recognizing and managing these effects for
accurate clinical interpretation of ultrasound images.
14. Watch the following video and answer the following questions.
- What is the relationship between sound intensity and distance?
- Sound intensity refers to the amount of energy carried by sound waves per
unit of area as the waves propagate through a medium. This energy transfer
is responsible for the sensation of loudness that we perceive. As sound
waves radiate out from their source, they gradually disperse and lose
energy. This leads to a reduction in the intensity of the sound as it travels
over distance. The inverse square law governs this relationship, where
doubling the distance from the source results in a quarter of the original
sound intensity.
- Why is it that whenever there is a thunderstorm, we see the flash of lightning
first before we hear the roar of thunder? What does this tell us about sound
intensity and its relationship with distance? - The reason we see the flash of
lightning before hearing the roar of thunder during a thunderstorm is due to
the difference in the speed of light and sound. Speed of light is faster than
the speed of sound. From this, we can infer that sound intensity diminishes
with distance. The fact that the thunder's sound takes time to reach us
despite lightning being seen almost instantly illustrates that sound waves
lose energy as they propagate over distance.
Video link: https://www.youtube.com/watch?v=2mlBh5d1IUY
15. What is sound scattering? Sound scattering is when sound waves encounter
obstacles or irregularities in a medium, causing them to change direction and
scatter. There are two types: Rayleigh scattering, occurring when scattering
objects are much smaller than the sound wave's wavelength, and Mie scattering,
occurring with larger objects. Scattering creates effects like echoes, commonly
experienced in environments with hard surfaces. It has practical applications in
sonar systems for underwater navigation and ultrasonography for medical
imaging, utilizing echoes for detection and imaging. Sound scattering contributes
to noise reduction through controlled redirection of sound waves. Additionally,
studying scattering helps scientists understand the behavior of sound in
different environments, aiding in various fields such as acoustics and
environmental science.
 How is this affecting image gathering in Ultrasonography? - In ultrasonography,
sound scattering significantly impacts image gathering and quality. Sound waves
emitted by the transducer interact with tissues, scattering and creating echoes
at tissue boundaries. This scattering helps differentiate tissues, detect
obstacles, and form the basis of image creation. Variations in scattering
properties contribute to image contrast and shades of gray. While scattering is
essential, excessive scattering can lead to artifacts and reduced resolution.
Transducers are designed considering scattering to optimize emitted
frequencies for balanced penetration and sensitivity to echoes. Understanding
sound scattering is crucial for accurate clinical interpretation and the
production of diagnostically valuable ultrasound
images.https://www.youtube.com/watch?v=BL2MtP7j-xk
16. What are the different types of sound transmissions in Ultrasonography? Briefly
describe each type.
1. **A-mode**:
A-mode is a basic ultrasound imaging mode used for measuring distances and
determining positions of structures within tissues. It involves emitting ultrasound
waves and graphing the echoes based on depth and amplitude. Primarily used in
ophthalmology and biometric measurements.

2. **B-mode**:
B-mode is the most common ultrasound imaging mode, providing real-time
two-dimensional images. An array of transducers emits and receives waves
from multiple angles, reconstructing cross-sectional images. Echo amplitude
determines pixel brightness in grayscale images, revealing detailed anatomical
information.

3. **M-mode**:
M-mode captures movement by sending ultrasound pulses along a line,
plotting echoes over time. This dynamic study produces graphs showing
movement over time, helping assess motion of structures.

4. **Doppler Mode**:
Doppler mode measures blood flow velocity using the Doppler effect. Changes
in frequency from moving blood cells provide information on flow direction and
speed, vital for vascular studies and heart function assessment.

5. **Color Doppler Mode**:

Color Doppler enhances Doppler imaging by color-coding blood flow velocity.
Different colors indicate flow direction and speed, simplifying visualization of
blood flow patterns.
17. . What is Period? Why is this important to understand in Ultrasonography? How
do you calculate for Period? Please click the link below and answer the following

questions.
https://www.youtube.com/watch?v=VNQ8RhXw3VA
In ultrasonography, period refers to the time taken for one complete cycle of a
sound wave to pass a certain point. It is the reciprocal of frequency, meaning that
period and frequency are inversely related. The period of an ultrasound wave in
ultrasonography influences image resolution, penetration depth, and the choice of
transducer frequency. The period of a sound wave is important because it
determines the rate at which the wave oscillates and repeats itself.
The period of a wave can be calculated using the formula:

