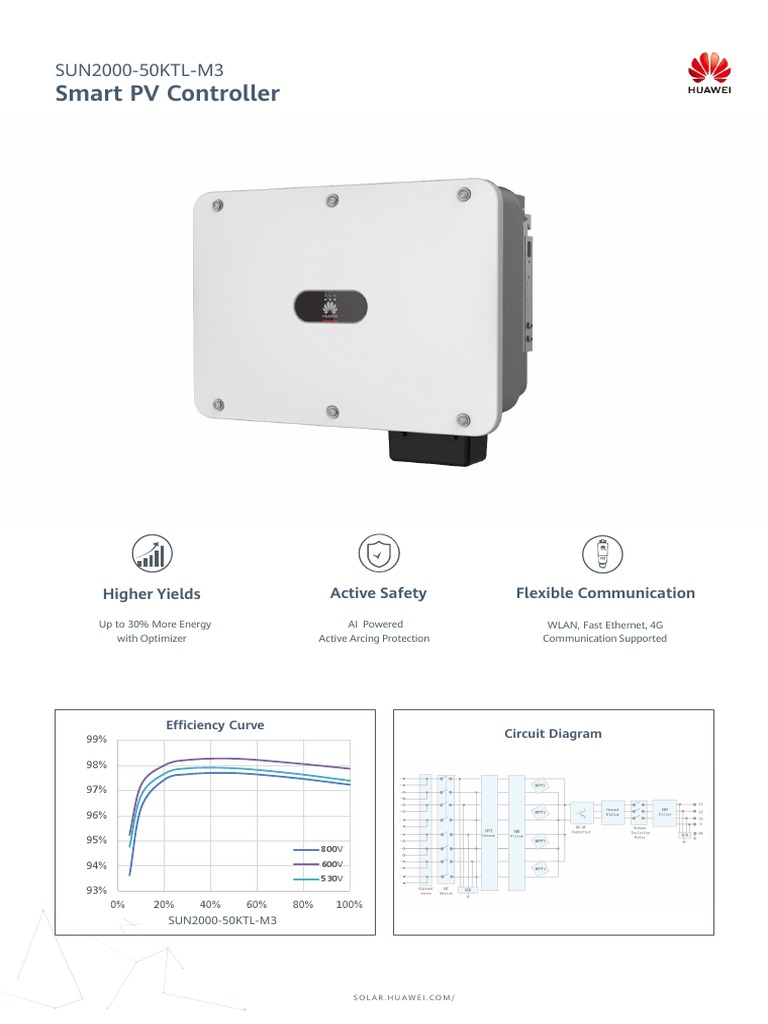

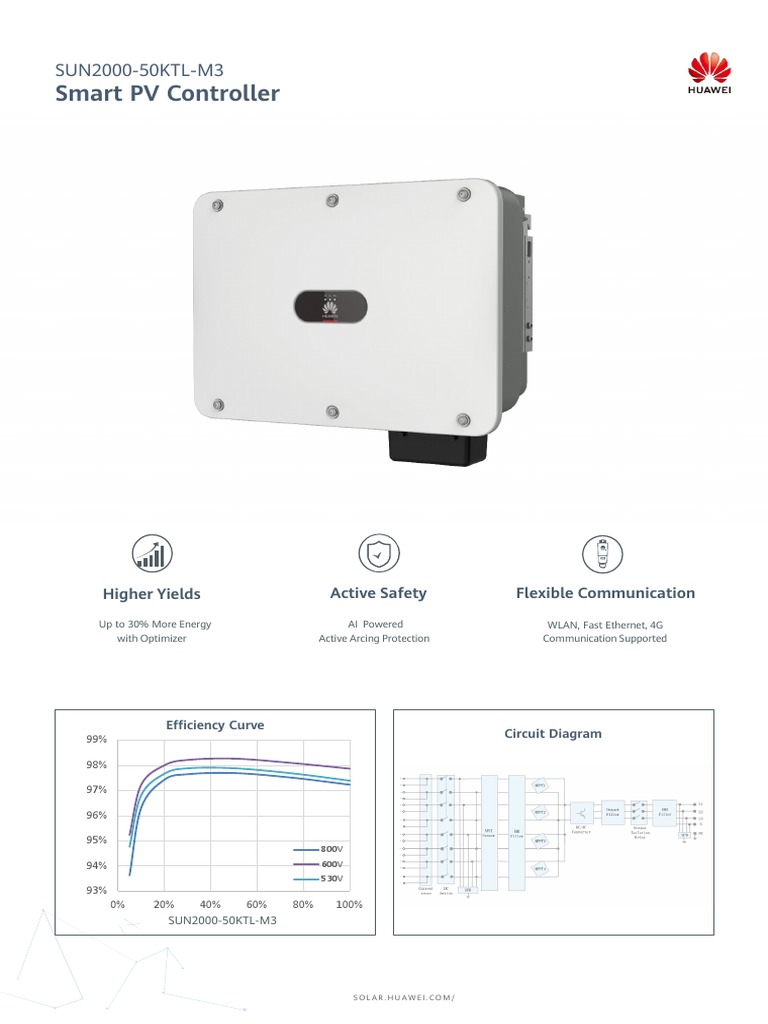

SUN2000-50KTL-M3

Smart PV Controller

Higher Yields Active Safety Flexible Communication

Up to 30% More Energy AI Powered

2 WLAN, Fast Ethernet, 4G
with Optimizer Active Arcing Protection Communication Supported

Efficiency Curve
99% Circuit Diagram

98%

97%

96%

95%
800V
94% 600V
530V
93%
0% 20% 40% 60% 80% 100%
SUN2000-50KTL-M3

SOLAR.HUAWEI.COM/
 SUN2000-50KTL-M3
Technical Specification
Technical Specification SUN2000-50KTL-M3

Efficiency
Max. Efficiency 98.5%
European Efficiency 98.0%

Input
Max. Input Voltage 1 1,100 V
Max. Current per MPPT 30 A
Max. Current per Input 20 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4

Output
Rated AC Active Power 50,000 W
Max. AC Apparent Power 55,000 VA
Max. AC Active Power (cosφ=1) 55,000 W
Rated Output Voltage 400 Vac / 480 Vac, 3W+(N) + PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac
Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac
Adjustable Power Factor Range 0.8 LG ... 0.8 LD
Max. Total Harmonic Distortion <3%

Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Type II
AC Surge Arrester Type II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Arc Fault Protection Yes
Ripple Receiver Control Yes
Integrated PID Recovery 3 Yes

Communication
Display LED Indicators, Bluetooth + APP
RS485 Yes
WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
Smart Dongle
4G / 3G / 2G via Smart Dongle-4G (Optional)
Monitoring BUS (MBUS) Yes (Isolation Transformer required)

General Data
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate) 49 kg (108.1 lb)
Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0% RH ~ 100% RH
DC Connector Amphenol HH4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Nighttime Power Consumption ≤ 5.5W

Standard Compliance (more available upon request)

Safety EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699,
Grid Connection Standards P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS
097-2-1, AS/NZS 4777.2, DEWA
1. The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter.
2. Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
3. SUN2000-30~50KTL-M3 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly),
N-type (nPERT, HIT)
Preliminary version. For Reference only. Any datasheet issued previously becomes invalid when the official version is released.
The words and pictures in this release only reflect the preliminary status of the products and solutions. Because of the product development, the technical specifications from this version may change. We
apologize and will provide you with the latest technical specifications for our products and solutions. For more information, please visit solar.huawei.com/.
SOLAR.HUAWEI.COM/
 Chapter 02
UMG 96RM

UMG 96RM
Multifunction power analyser

Memory 256 MB 8 Tariffs

Harmonics Pulse inputs

and outputs

Measurement accuracy 0.5

Communication (device-specific) Power quality Up to 4 digital inputs

• Modbus (RTU) • Harmonics up to 40th harmonic • Pulse input
• Profibus DP V0 • Rotary field components • Logic input
• Profinet • Distortion factor THD-U / THD-I • State monitoring
• TCP/IP • Waveform display (UMG 96RM-EL) via
• M-Bus GridVis®-Basic software

Interfaces Networks Up to 6 digital outputs

• RS485 (UMG 96RM, UMG 96RM-P,
UMG 96RM-CBM)
• Profibus (UMG 96RM-P)
• Profinet (UMG 96RM-PN)
• M-Bus (UMG 96RM-M)
• Ethernet (UMG 96RM-EL)
• USB (UMG 96RM-P, UMG 96RM-CBM)
Accuracy of measurement
• Energy: Class 0.5S (… / 5 A)
• Current: 0.2 %
• Voltage: 0.2 %
• TN, TT, IT networks • Pulse output kWh / kvarh
• 3 and 4-phase networks • Switch output
• Up to 4 single-phase networks • Threshold value output
• Logic output
• Remote via Modbus / Profibus
Measured data memory
(UMG 96RM-CBM, UMG 96RM-P)
(UMG 96RM, UMG 96RM-M und UMG 96RM-EL Network visualisation software
without measurement data memory, energy, • Free GridVis®-Basic
minimum and maximum values will be saved
in the EEPROM)
• 256 MB Flash

91
 Chapter 02
UMG 96RM

Areas of application
• Measurement, monitoring and checking of electrical
characteristics in energy distribution systems
• Recording of load profiles for energy management systems
(e.g. ISO 50001)
• Acquisition of the energy consumption for cost centre analysis
• Measured value transducer for building management systems or
PLC (Modbus)

Main features
Particular advantages

• Compact construction saves space and costs during installation

• Seamless and sustained recording thanks to large measured data memory
or via the online data acquisition (e.g. GridVis®-Service)
• High data security and redundancy
• Comprehensive communications options and protocols
• Multifaceted, pre-defined reports for power quality and energy consumption
analysis (via GridVis®-Service)
• Simple report generation at the press of a button or automatically
in accordance with defined time plans
• Precision measurement results provide an effective infrastructure as well as
high production availability
• Generic Modbus profile: Arbitrary Modbus-capable devices and systems
from other manufacturers can be incorporated and visualised in the
monitoring solutions
• Long-term availability of the measurement devices guarantees simple
retrofitting with system expansions

Energy data acquisition & load profile

• Detailed acquisition of the energy data and the load profile

• More transparency in energy supply through energy analyses Fig.: Load profiles are the basis for energy
• Safer design of the power distribution systems management

92
 Chapter 02
UMG 96RM

Cost centre analysis

• Determination of energy costs

• Breakdown and allocation of energy consumers

Energy management systems (ISO 50001)

• Continuous increase in energy efficiency

• Cost reduction Fig.: Cost centre analysis
• UMG 96RM series multifunctional power analysers are
an important part of energy management systems

Transparency of energy supply

• More transparency through a multi-stage, scalable measurement

system
• Acquisition of individual events through continuous
measurement with high resolution
Fig.: Transparency of energy supply

Power quality monitoring

• Notification of inadequate power quality

• Introduction of measures to address network problems
• Prevention of production downtimes
• Significantly longer service life for equipment
• Improved sustainability

Measurement accuracy of 0.2 % (V), kWh class = 0.5S

Fig.: Power quality monitoring
(Harmonics analysis for the current
• High sampling rate at 21.3 kHz up to 40th order harmonics)
• Reliable measurement accuracy of 0.2 % (V)
• Effective energy class (kWh): 0.5S

Energy meter with 8 tariffs, effective and reactive energy

• Energy measurement in 4 quadrants, each with 8 tariffs

for effective and reactive energy
• Safe and precise acquisition of operational values for individual
electrical loads

Communications options:
Ethernet, Profibus, Modbus, M-Bus, …

• Numerous interfaces and protocols, guaranteeing

an easy system connection (energy management system,
PLC, SCADA, BMS)

93
Chapter 02
UMG 96RM

Large measurement data memory

• Saving of measurement data possible over very long

periods of time
• Recording freely user configurable

Harmonics analyser

• Harmonics analysis up to 40th harmonic Fig.: GridVis® software: Harmonics analysis

• Information about power quality, grid disturbances and
possible "network polluters"

Pluggable screw terminals

• Convenient installation even where spaces are tight

Backlight
Fig.: Pluggable screw terminals for easy connection
• Large, high-contrast LCD display with backlighting
• Very good readability and intuitive operation, even in poor
lighting conditions

Basic device

• RS485 interface with Modbus protocol and 2 digital outputs

enable quick and low-cost monitoring of power quality and
energy consumption

Fig.: LCD Display backlight

Profibus and digital IOs

• The Profibus connection is used in systems where the

UMG 96RM-P is to be incorporated into the automation
environment (PLC controllers)
Digital input 1
Digital input 2
Digital input 3

M-Bus Digital input 4

LED staus bar-

Digital output 3
Digital output 4
• The UMG 96RM-M can be simply and cost-effectively Digital output 5
integrated into consumption data acquisition systems via Digital output 6

the M-Bus connection. Profibus (only -P model)

• The M-Bus is primarily used for the acquisition of consumption

data collection from various different consumption meters, Fig.: LED status bar for the inputs and outputs
such as water, gas, heat or electrical current. (UMG 96RM-CBM and UMG 96RM-P)

94
 Chapter 02
UMG 96RM

Ethernet (TCP/IP) with the UMG 96RM-EL

• Simple integration into the Ethernet (LAN) network

• Fast and reliable data communication

4th current transformer input

• Continuous monitoring of the N-conductor by means of the 4th

current input
• Available with variants UMG 96RM-P and UMG 96RM-CBM

Dimension diagrams
All dimensions in mm

max. 6
□ 96

□ 91,5

104

42

Side view UMG 96RM Rear view UMG 96RM (basic device) Rear view UMG 96RM-PN
Profinet variant
Cut out: 92+0,8 x 92+0,8 mm

Rear view 96RM-M Rear view 96RM-EL Rear view 96RM-CBM Rear view 96RM-P
M-Bus variant Ethernet light variant Modbus variant Profibus variant

The illustrations shown here are examples. Further dimensional drawings and connection diagrams are available on request
or can be viewed on our homepage.

95
Chapter 02
UMG 96RM

Typical connection
B
24V
DC ~
A
K1 K2

13 14 15 16 17
UMG 96RM
Digital outputs B A Basic device
RS485

Power supply Measuring voltage Current measurement

voltage
N/- L/+ V1 V2 V3 VN
S2 S1 S2 S1 S2 S1
1 2 3 4 5 6

S2 S1
L1
S2 S1
L2
Loads

S2 S1
L3
N The illustration shown here is an example.
230V/400V 50Hz Further connection diagrams are available on request
Connection variant UMG 96RM or can be viewed on our homepage.

Fig.: Battery insertion on the rear Fig.: UMG 96RM-PN with Profinet interface
(UMG 96RM-CBM and UMG 96RM-P)

96
 Chapter 02
UMG 96RM

Device overview and technical data

UMG 96RM*1 UMG 96RM-M*1 UMG 96RM-EL*1 UMG 96RM-CBM*1 UMG 96RM-P*1 UMG 96RM-PN*1
Item no. (90–277 V AC/90–250 V DC) 52.22.061 52.22.069 52.22.068 52.22.066 52.22.064 52.22.090
Item no. (24-90 V AC/24-90 V DC) 52.22.070 52.22.073 52.22.072 52.22.067 52.22.065 52.22.091
RS485, RS485, Ethernet,
Interfaces RS485 M-Bus Ethernet RS485, USB
Profibus, USB Profinet
Protocols
Modbus RTU • - - • • •
Modbus TCP - - • - - •
Profibus DP V0 - - - - • -
Profinet - - - - - •
M-Bus - • - - - -
DHCP or DCP - - • - - •
ICMP (Ping) - - • - - •
Measurement data recording
Current measurement channels 3 3 3 4 4 4 (+2)
Memory (Flash) - - - 256 MB 256 MB -
Type CR2032 Type CR2032
Battery - - - -
3 V, Li-Mn 3 V, Li-Mn
Clock - - - • • -
Digital inputs and outputs
Digital inputs - - - 4 4 3*3
Digital outputs
2 2 - 6 6 2 (+3)*3
(as switch or pulse output)
Mechanical properties
96 x 96 x 96 x 96 x 96 x 96 x 96 x 96 x approx. 96 x 96 x 96 x 96 x
Device dimensions in mm (W xH x D)*2
approx. 48 approx. 48 approx. 48 78 approx. 78 approx. 78

Comment: For detailed technical information, please refer to the operation manual and the Modbus address list.
• = included - = not included
*1 UL certification included.
*2 Accurate device dimensions can be found in the operation manual.
*3
Optional 3 digital inputs or outputs (no pulse output)

General
Service life of backlight 40000 h (50% of the initial brightness)

Transport and storage

The following information applies to devices which are transported or stored in the original packaging.
Free fall 1m
Temperature K55 (-25°C to +70°C)
Relative humidity 0 to 90% RH

Ambient conditions during operation

The UMG 96RM is intended for weather-protected, stationary use.
Protection class II in acc. with IEC 60536 (VDE 0106, Part 1).
Rated temperature range K55 (–10°C to +55°C)
Relative humidity 0 to 75% RH
Operating altitude 0 to 2000 m above sea level
Pollution degree 2
Installation position any
Ventilation forced ventilation is not required.
Protection against ingress of solid foreign bodies and water
- Front IP40 in acc. with EN60529
- Rear IP20 in acc. with EN60529
- Front with seal IP54 in acc. with EN60529

97
 Chapter 02
UMG 96RM

Supply voltage
230 V option Nominal range 90 V - 277 V (50/60 Hz) or DC 90 V - 250 V; Mounting plate

300 V CAT III

24 V option
Operating range
Internal fuse, not
replaceable
Recommended overcurrent protection device
for line protection
(certified under UL)
Power consumption
Nominal range
Power consumption
±10% of nominal range
Type T1A / 250 V/277 V according to IEC 60127
max. 4.5 VA / 2 W (RM-M)
max. 5.5 VA / 3 W (RM)
max. 5 VA / 2 W (RM-EL) Fixing screw
max. 6 VA / 3 W (RM-CBM)
max. 7.5 VA / 4 W (RM-P)
max. 8.5 VA / 5 W (RM-PN)
Mounting
24 V - 90 V AC / DC; 150 V CAT III clips
max. 2.5 VA / 2 W (RM-M)
max. 3.5 VA / 2 W (RM-EL)
max. 4.5 VA / 3 W (RM)
max. 5 VA / 3 W (RM-CBM)
max. 6.5 VA / 5 W (RM-P)
max. 7 VA / 5 W (RM-PN)
230 V option: 6 - 16 A Fig.: The fastening into a switchboard is
24 V option: 1 - 6 A implemented via the side-mounted fastening
(Char. B) clamps (UMG 96RM-P / UMG 96RM-CBM)

Terminal connection capacity (supply voltage)

Connectable conductors. Only one conductor can be connected per terminal!
Single core, multi-core, fine-stranded 0.2 - 2.5 mm2, AWG 26 - 12
Terminal pins, core end sheath 0.2 - 2.5 mm2
Tightening torque 0.4 - 0.5 Nm
Stripping length 7 mm

Voltage measurement
Three-phase 4-conductor systems 277 V/480 V (±10%)
with rated voltages up to
Three-phase 3-conductor systems, IT 480 V (±10%)
unearthed, with rated voltages up to
M+
Overvoltage category 300 V CAT III
Measurement voltage surge 4 kV M-
Metering range L-N 01) to 300 Vrms
(max. overvoltage 520 Vrms) Fig.: M-Bus interface with 2-pole plug contact
Metering range L-L 01) to 520 Vrms
(max. overvoltage 900 Vrms)
Resolution 0.01 V
Crest factor 2.45 (related to the measurement range)
Impedance 3 MΩ/phase
Power consumption approx. 0.1 VA
Sampling rate 21.33 kHz (50 Hz), 25.6 kHz (60 Hz) for each
measurement channel

Frequency of the fundamental 45 Hz to 65 Hz

oscillation 0.01 Hz
- Resolution

1)
The UMG 96RM can only determine measured values if a voltage L1-N greater than 20 Veff (4-wire measurement) or
a voltage L1-L2 greater than 34 Veff (3-wire measurement) is applied at the voltage measurement input V1.
Fig.: 2-pole plug contact with cable connection
Current measurement (cable type: 2 x 0.75 mm2) via twin core end
Rated current 5A sheathes
Metering range 0 to 6 Arms
Crest factor 1.98
Resolution 0.1 mA (display 0.01 A)
Overvoltage category 300 V CAT II
Measurement voltage surge 2 kV
Power consumption approx. 0.2 VA (Ri = 5 mOhm)
Overload for 1 sec. 120 A (sinusoidal)
Sampling rate 21.33 kHz (50 Hz), 25.6 kHz (60 Hz) for each
measurement channel

98
° ° ° °
° ° ° °
