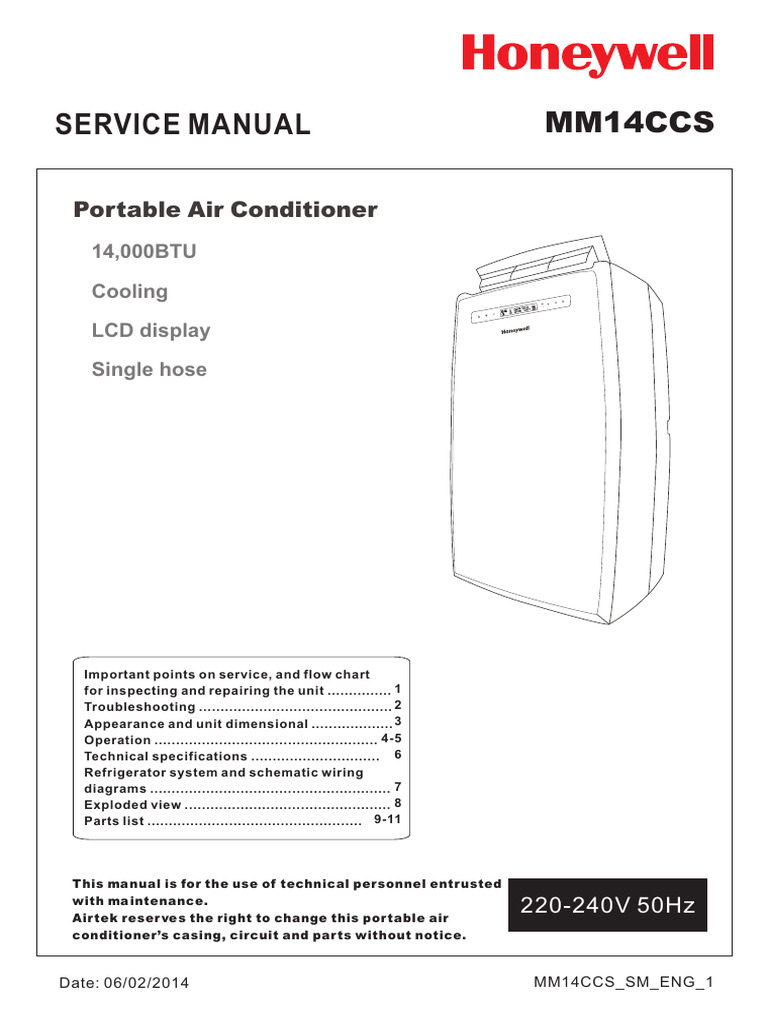

SERVICE MANUAL MM14CCS

Portable Air Conditioner

14,000BTU

Cooling
STOP

LCD display

Single hose

Important points on service, and flow chart

for inspecting and repairing the unit ............... 1
Troubleshooting ............................................. 2
Appearance and unit dimensional ................... 3
Operation .................................................... 4-5
Technical specifications .............................. 6
Refrigerator system and schematic wiring
diagrams ........................................................ 7
Exploded view ................................................ 8
Parts list .................................................. 9-11

This ma nual is for the use of technical personnel entrusted

with ma intenance.
Air tek reser ve s the right to change this por table air
220-240V 50Hz
conditioner’s casing, circuit and par ts without notice.

Date: 06/02/2014 MM14CCS_SM_ENG_1

IMPORTANT POINTS ON SERVICE OPERATING SAFETY
Please follow these instructions carefully :
Unplug the unit to avoid any danger from electric shock before disassembling the unit for
repair.
If there is any sound of the refrigerant circulating when in operation, avoid touching the
cooling coils.
If you need to perform any welding or soldering, be sure you are in a well ventilated area.
Only a qualified professional should perform any welding on the unit.
When repairing the unit, the specifications listed in this manual must be strictly adhered
to when replacing any components.
When replacing any electrical components they should be factory approved units.
Be sure that any electrical components are properly wired and in place.

FLOW CHART FOR INSPECTING AND REPAIRING THE UNIT

AIR CONDITIONER CHECK THE POWER

NO POWER POWER TRIPPED
WON'T START SWITCH

PLUG AND SOCKET RE-PLUGING THE

ARE LOOSE POWER SUPPLY CORD

TESTING BY
TIMER FAILURE ELECTROSCOPE CHANGE THE SWITCH

AIR CONDITIONER COMPRESSOR WON'T CHANGE THE

WON'T COOL START PROTECTOR FAILURE PROTECTOR
PROPERLY

CHANGE THE
CAPACITOR FAILURE
CAPACITOR

WIRING IS LOOSE RE-CONNECTING

REFRIGERANT
LEAKAGE
CHANGE THE AIR CONDITIONER WITH 15 KG/CM 2
TROUBLE SHOOTING NITROGEN GAS FROM LOW-PRESSURE SIDE AND
THE SYSTEM DETECT THE LEAKING POINT BY SOAP

USE OXYACETYLENE AND PLUS 5% RUNNING THE VACUUM CHANGE COOLANT AND
SILVER SOLDER TO WELD THE EVACUATION FOR MORE PROCEED RUNNING TEST
CRACKED POINTS THAN 15 MINUTES

RUNNING TEST

-1-
TROUBLESHOOTING

Problem Analysis

·If the protector trip or fuse is blown.

·Please wait for 3 minutes and start again, protector
Does not run device may be preventing unit to work.
·If batteries in the remote controller exhausted.
·If the plug is not properly plugged.

·If the set temperature is close to room temperature,

Run a short while you can low the set temperature.
only ·Air outlet be blocked by obstacle.
Take the obstacle away.

·If the door or window open.

·If there is other heater appliance work,
like heater or lamp, etc...
Run but not cool
·The air filter is dirty, please clean it.
·Air outlet or intake be blocked.
·Set temperature is too high.

Do not run and water ·Drain the water into a prepared container by the drainage
pipe on the rear panel of the unit.
full indicator lights If still doesn't work, please consult a qualified technician.

-2-
APPEARANCE

Air exhaust for air to be Air inlet for air to

cooled/filtered be cooled / filtered
Air filter
Control panel

Handles Air outlet

Air inlet

Water
outlet drain

Front Panel

Wheels Water drain Electricity cable

UNIT DIMENSIONAL

506.6 401.6
864.3

-3-
 OPERATION
CONTROL PANEL

STOP

Timer Power Control

Fan Speed Control Timer / Temp Mode Control
Set Controls

Indication symbols on LCD :

Disp lay se t Disp lay timer se tting
Cooling mode Fan only mode Med fan sp eed
temperature of auto sw itch on/off

Warni ng light the

Dehumidify mode High fan sp eed Low fan sp eed
STOP
mach ine will stop run ning

Power Control Fan Speed Control

The power control turns the unit on and off.
Mode Control
The Mode Control has 3 settings:
● Cool ● Dehumidify ● Fan
The settings are adjusted with Mode Control button.
A light will indicate which setting is currently being
used.
Cooling Mode
During the cooling mode the air is cooled and hot air
is exhausted to the outside through the exhaust tube.
Adjust fan speed and air temperature to suit your desired
comfort level. Temperature setting range is 16℃ ~ 32℃.
Note : The air exchange hoses must vent outside the
room when using cool mode.
Dehumidify Mode
When dehumidify mode is selected, the indicator light will
shine . Air is dehumidified as it passes through the unit,
without being in full cooling mode If room temperature is
higher than 25 degree Celsius, fan speed can be adjusted;
otherwise fan speed is fixed to " LOW ".
Note : If the unit will be used mainly as dehumidifier,
do not connect the exhaust hose and let the warm air
return in the room. Continuous drainage is then
necessary and more efficient.
Fan Mode
When fan mode is selected the indicator light will shine.
Air is circulated throughout the room with no cooling.
Note: unit does not need to be vented in Fan mode
The Fan Speed Control has 3 settings: High, Medium,
and Low.
Timer
Auto turn off :
With machine in running mode, press timer button to
select number of hours you would like the unit to run in
air conditioning mode until it automatically shuts off.
Auto turn on :
With machine in stand by mode, press timer button to
select number of hours until you would like the unit to
automatically start running in air conditioning mode.
Timer / Temp set controls
● Used for adjusting the timer and thermostat.
● The default display is room temperature.
● In cooling mode, when “ “ or “ “ button is pressed,
the set temperature is displayed and may be adjusted.
After 10 seconds the display will revert back to room
temperature. Temperature is only adjustable in cool
mode. The time is adjustable between 1~24 hours.
Note : By pressing both “ “ / “ “ set buttons
at the same time, the display will toggle
between Celsius and Fahrenheit.
Warning Light
Condensed water may accumulate in the unit. If the
internal tank becomes full, the Warning Light will shine
and the unit will not operate until the unit has been
drained.

-4-
 OPERATION

CONTROL PANEL

Timer / Temperature Buttons

● Used for adjusting the timer and
thermostat.
Power Key ● The default display is room temperature.
● When " " or " " button is pressed,
the set temperature is displayed and
On / Off may be adjusted. After 10 seconds the
display will revert back to room
ON/OFF
temperature.
Fan Speed Key
DOWN UP

:HIGH :MED :LOW

SPEED
Set-up of Function key
TIMER MODE : lamp is on when in
On / Off Timer Key cooling mode
In running mode : : lamp is on when in
Auto switch off dehumidification mode
In standby mode: : lamp is on when in
Auto switch on fan mode

Air Conditioner Remote Control

The functions work the same as your air conditioner's touch controls.

Batteries : Remove the cover on the back of the remote controller and insert the batteries with the
( + ) and ( - ) poles pointing in the proper direction.

CAUTION ！
Use only AAA or IEC R03 1.5V batteries.
Remove the batteries if the remote controller is not used for a month or longer.
Do not attempt to recharge the supplied batteries
All batteries should be replaced at the same time.
Do not dispose of the batteries in a fire as they may explode.

-5-
TECHNICAL SPECIFICATIONS

ITEM UNIT MM14CCS

OUTER DIMENSION mm 506.6W*506.6H*401.6D

REFERENTIAL USING
AREA m2 12~21

RATED VOLTAGE V/Hz 220-240 / 50

COOLING CAPACITY B.T.U. 14000

DEHUMIDIFYING
L/H 1.9
CAPACITY
POWER W 1400
CONSUMPTION
INDOOR AIR VOLUME M 3/hr 420

MODEL 44N110-A1-BEAD
INPUT
POWER W 1160
OPERATING
COMPRESSOR CYCLE uF/V 35/400

PROTECTOR Containing

MODEL LS-23D3-4P
INDOOR OUTPUT
MOTOR POWER W 23
OPERATING
CYCLE uF/V 2/450
MODEL LS-53D1-4P
OUTDOOR OUTPUT
MOTOR POWER W 53
OPERATING
CYCLE uF/V 4/450
MODEL RSH6870S1
TURBINE
FAN MOTOR Specification
DC12V 0.09A
CAPILLARY mm 2.2(O.D.)*1.0(I.D.)*700(L)

EVAPORATOR 3R14S19FPI
CONDENSER (2+3)R20S19FPI
REFRIGERANT R410A/g 850
WEIGHT kg 35.5

-6-
REFRIGERATOR SYSTEM DIAGRAM

CAPILLARY
FILTER

EVAPORATOR
CONDENSOR

COMPRESSOR

SCHEMTIC WIRING DIAGRAM

-7-
 EXPLODED VIEW

ACCESSORIES

62 63 64 65 66 67 68 69

58 59 55
48

47
39
46 38
28
45 32
30 57
44 33
29
31 54
43

42

41

25
56
26
27
24 40

16
34
20
35 18
19 21
36 15 17
70
37 71
23

22 13 14
11 12

50

51

52

53
49

3
10
7
6
4 9
5
8
6
61

60
2

Date : 2014/02/21 Version : 1.0

-8-
 PARTS LIST MM14CCS

NO MATERIAL CODE PARTS NAME QUANTITY PRICE

1 A4805-22H-A-11 BASE PAN 1
2 A7402-020 TURNING WHEEL 4
3 A5408-250-H-11 DRAIN BUCKET COVER-B 1
4 A5408-230-H-11 DRAIN BUCKET COVER-A 1
5 A5405-110-H-11 TANK LID 1
6 A5404-090 FLOAT 1
7 A2506-040 MICRO SWITCH 1
8 A5812-630-X-11 FIX TURE 1
9 A3020-630 WATER MOTOR(WT-15D1-03) 1
10 A5311-030-A-11 BLADE 1
11 A3202-900 COMPRESSOR ASS'Y(44N110-A1) 1
12 A5600-170 RUBBER 3
13 A6209-270 DISCHARGE PIPE 1
14 A6228-300 SUCTION PIPE 1
15 A3423-120 CONDENSER ASS'Y 1
16 D6202-210 CAPILLARY TUBE 2
17 A6212-190 Y TUBE 1
18 A5301-610-AB-22 FAN CASING 1
19 A5304-470-I-11 BLOWER WHEEL 1
20 A3002-460 FAN MOTOR(LS-53D1-4P) 1
21 A5301-620-AB -22 FAN CASING 1
22 A2509-640 CAPACITOR(4uF/450V FOR FAN MOTOR(20)) 1
23 A2510-200 CAPACITOR( 35uF/400V FOR COMPRESSOR(11)) 1
24 A6101-920-AF-11 COVER 1
25 A6101-800-AF-11 COVER 2
26 A5825-050-AF-11 FIX TURE 2
27 A5702-080-A-22 PLATE 1
28 A3419-341 EVAPORATOR ASS'Y 1
29 A5301-590-A-22 FAN CASING 1
30 A5304-310-A-22 BLOWER WHEEL 1
31 A3001-760 FAN MOTOR(LS-23D3-4P) 1
32 A5301-600-A-22 FAN CASING 1
33 A7204-040 SCREEN 1
34 A2509-120 CAPACITOR(2uF/450V FOR FAN MOTOR(31) 1
35 A6101-510-AF-11 COVER 1

-9-
 PARTS LIST MM14CCS

NO MATERIAL CODE PARTS NAME QUANTITY PRICE

36 A2517-190 CONTROL BOARD 1
37 A5812-570-AF-11 FIX TURE 1
38 A5812-540-P-11 FIX TURE 1
39 A2524-190 SENSOR(FOR INDOOR) 1
40 A3700-610 POWER SUPPLY CORD COMPLETE 1
41 A4239-070-A-22 DISCHARGE GRILLE 1
42 A7200-120 BOLT 2
43 A5825-170-M-11 BEARING 2
44 A4246-020-M-11 GEAR WHEEL 2
45 A3204-380 BUSHING 2
46 A4244-390-A-BA VAN-AIR DEFLECTOR 1
47 A4244-100-H-22 VAN-AIR DEFLECTOR 2
48 A4251-570-H-FD BAR 1
49 A4202-370-A-BA FRONT PANEL 1
50 A2522-970 PC BOARD 1
51 A5825-270-H-22 FIX TURE 1
52 A4254-912-A-AF CONTROL PLATE 1
53 A4230-371-C-22 DECORATING PLATE 1
54 A5805-400-A-11 STRIKE-R 1
55 A5805-390-A-11 STRIKE-L 1
56 A4219-900-A-FV REAR PANEL 1
57 A7301-650-A-22 AIR FILTER 1
58 D7324-030 SOFT CAP 1
59 D7306-050-H-22 PLUG 1
60 D7324-020 SOFT CAP 1
61 A7305-010-A-22 PLUG 1
62 A6200-070 HEAT EXHAUST HOSE 1
63 A5815-090-H-BS HEAT EXHAUST HOSE CONNECTOR 1
64 A4239-290-P-BS DISCHARGE GRILLE 1
65 A5700-520 PLATE 1
66 A5700-530 PLATE 1
67 A5700-540 PLATE 1
68 A7437-010 RIVET 2
69 A2530-580-AF01 REMOTE CONTROL ASS'Y 1
70 A5802-530 METAL FIXTURE 1

- 10 -
 PARTS LIST MM14CCS

NO MATERIAL CODE PARTS NAME QUANTITY PRICE

71 A5311-030-A-11 BLADE 1
72
73
74
75
76
77
78
79
80

- 11 -
AirTek International Corporation Limited
Suite 806-807A, West Wing,
Tsim Sha Tsui Centre, 66 Mody Road,
Tsim Sha Tsui East, Kowloon, Hong Kong
tel: +852 2559-5522
PSC-2012-07
fax: +852 2559-0699 July 2012
c 2012 AirTek International Corporation Ltd. (Hong Kong).
e-mail: info@honeywellportableac.com All rights reserved.

www.honeywellportableac.com The Honeywell Trademark is used under license from

Honeywell International lnc.
Jmatek Group Co.
Honeywell International Inc. makes no representation or
e-mail: info@jmatek.com warranties with respect to these products.
