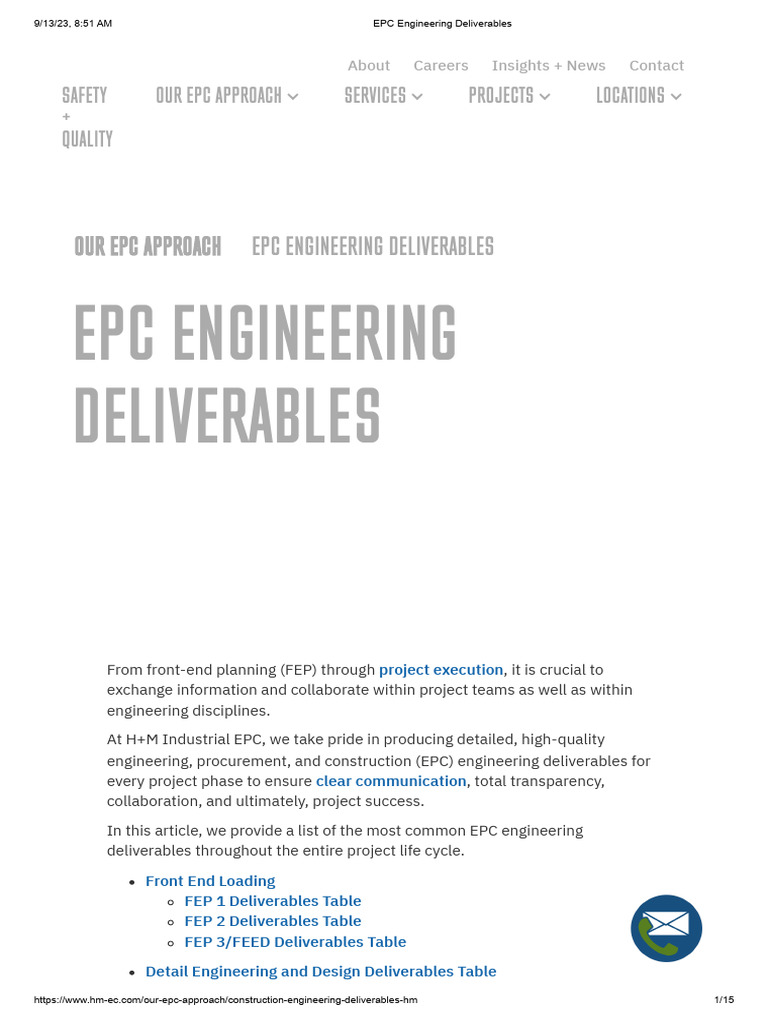

OUR EPC APPROACH EPC ENGINEERING DELIVERABLES

EPC ENGINEERING
DELIVERABLES

From front-end planning (FEP) through project execution, it is crucial to

exchange information and collaborate within project teams as well as within
engineering disciplines.
At H+M Industrial EPC, we take pride in producing detailed, high-quality
engineering, procurement, and construction (EPC) engineering deliverables for
every project phase to ensure clear communication, total transparency,
collaboration, and ultimately, project success.

In this article, we provide a list of the most common EPC engineering

deliverables throughout the entire project life cycle.

Front End Loading

FEP 1 Deliverables Table
FEP 2 Deliverables Table
FEP 3/FEED Deliverables Table

Detail Engineering and Design Deliverables Table

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 1/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Construction Deliverables Table

H+M Industrial EPC: Delivering Capital Project Success Since 1988

EPC Engineering Deliverables: FEP

‍

FEP, also called front-end loading (FEL), is a

valuable process in the capital project life cycle
that lays the framework for project success. It
includes the development of strategic information
and key documentation necessary for project
owners to address potential risks, decide
whether or not to move forward with the project
and commit resources, and maximize the potential for project success.
‍

FEP 1 Deliverables Table

Font-End Loading 1 Deliverables

Typically <5% of Eng. Cost - TIC Estimate +/- 50%

Standard Deliverables

Preliminary

Instrumentation
Mechanical/Piping Process Overall
and Electrical

Control Plot Plan PProcess Justification

Philosophy Major Flow Scope of
Instrument Equipment Diagrams Work
List List (PFDs,

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 2/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Location block Project

Plans flow) Schedule
Area Font-End Loading 1 Deliverables
Heat and (level 2)
Classification Typically <5% of Eng. Cost - TIC Estimate
Material+/- 50% Infrastructure
Review Balance Review
(H&MB) (power,
utilities, etc.)
Total
Installed Cost
(TIC)
Estimate

Early/Optional Deliverables

Process Design Basis Tie-In Photos

Identification/Evaluation of Licensing Foundation and Structural Support
Technology Sketches
Preliminary HSE Guidelines Civil/Structural Layout
General Quotes Constructability Review
Standards and Specifications

FEP 2 Deliverables Table

Front-End Loading 2 Deliverables

Typically 5-10% of Eng. Cost - TIC Estimate +/- 20% to 30%

Standard Deliverables

Preliminary

Instrumentation and Single-Line Diagrams (SLDs)

Electrical Instrument List
Major Electrical Equipment List
Control System Philosophy

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 3/15
9/13/23, 8:51 AM EPC Engineering Deliverables

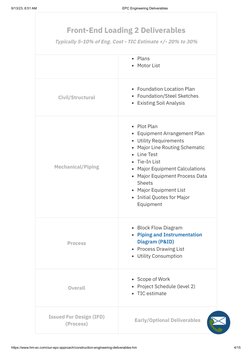

Front-End Loading 2 Deliverables

Typically 5-10% of Eng. Cost - TIC Estimate +/- 20% to 30%

Plans
Motor List

Foundation Location Plan

Civil/Structural Foundation/Steel Sketches
Existing Soil Analysis

Plot Plan
Equipment Arrangement Plan
Utility Requirements
Major Line Routing Schematic
Line Test
Tie-In List
Mechanical/Piping Major Equipment Calculations
Major Equipment Process Data
Sheets
Major Equipment List
Initial Quotes for Major
Equipment

Block Flow Diagram

Piping and Instrumentation
Process Diagram (P&ID)
Process Drawing List
Utility Consumption

Scope of Work
Overall Project Schedule (level 2)
TIC estimate

Issued For Design (IFD)

Early/Optional Deliverables
(Process)

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 4/15
9/13/23, 8:51 AM EPC Engineering Deliverables

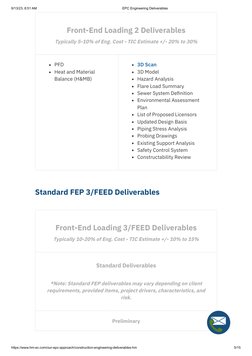

Front-End Loading 2 Deliverables

Typically 5-10% of Eng. Cost - TIC Estimate +/- 20% to 30%

PFD 3D Scan
Heat and Material 3D Model
Balance (H&MB) Hazard Analysis
Flare Load Summary
Sewer System Definition
Environmental Assessment
Plan
List of Proposed Licensors
Updated Design Basis
Piping Stress Analysis
Probing Drawings
Existing Support Analysis
Safety Control System
Constructability Review

Standard FEP 3/FEED Deliverables

Front-End Loading 3/FEED Deliverables

Typically 10-20% of Eng. Cost - TIC Estimate +/- 10% to 15%

Standard Deliverables

*Note: Standard FEP deliverables may vary depending on client

requirements, provided items, project drivers, characteristics, and
risk.

Preliminary

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 5/15
9/13/23, 8:51 AM EPC Engineering Deliverables

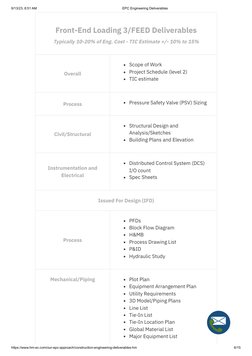

Front-End Loading 3/FEED Deliverables

Typically 10-20% of Eng. Cost - TIC Estimate +/- 10% to 15%

Scope of Work
Overall Project Schedule (level 2)
TIC estimate

Process Pressure Safety Valve (PSV) Sizing

Structural Design and

Civil/Structural Analysis/Sketches
Building Plans and Elevation

Distributed Control System (DCS)

Instrumentation and I/O count
Electrical Spec Sheets

Issued For Design (IFD)

PFDs
Block Flow Diagram
H&MB
Process Process Drawing List
P&ID
Hydraulic Study

Mechanical/Piping Plot Plan

Equipment Arrangement Plan
Utility Requirements
3D Model/Piping Plans
Line List
Tie-In List
Tie-In Location Plan
Global Material List
Major Equipment List

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 6/15
9/13/23, 8:51 AM EPC Engineering Deliverables

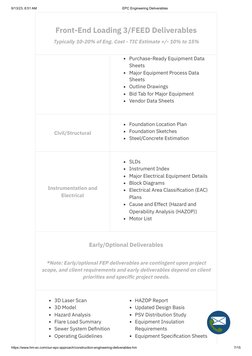

Front-End Loading 3/FEED Deliverables

Typically 10-20% of Eng. Cost - TIC Estimate +/- 10% to 15%

Purchase-Ready Equipment Data

Sheets
Major Equipment Process Data
Sheets
Outline Drawings
Bid Tab for Major Equipment
Vendor Data Sheets

Foundation Location Plan

Civil/Structural Foundation Sketches
Steel/Concrete Estimation

SLDs
Instrument Index
Major Electrical Equipment Details
Block Diagrams
Instrumentation and Electrical Area Classification (EAC)
Electrical Plans
Cause and Effect (Hazard and
Operability Analysis (HAZOP))
Motor List

Early/Optional Deliverables

*Note: Early/optional FEP deliverables are contingent upon project

scope, and client requirements and early deliverables depend on client
priorities and specific project needs.

3D Laser Scan HAZOP Report

3D Model Updated Design Basis
Hazard Analysis PSV Distribution Study
Flare Load Summary Equipment Insulation
Sewer System Definition Requirements
Operating Guidelines Equipment Specification Sheets

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 7/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Front-End Loading 3/FEED Deliverables

Typically 10-20% of Eng. Cost - TIC Estimate +/- 10% to 15%

Demolition Drawings New Soil Study

Piping Insulation Schedule Contaminant Calculations
Fire Water System Design Safety Control System
Process Sewer System Identify Substation, Transformer,
Pipe Support Details or Feeder Needs
Pipe Stress Analysis Constructability Review

EPC Engineering Deliverables: Detail

Engineering and Design
‍
‍
‍

During detail engineering and design (the start of

project execution), all project team members
work together to develop the optimal design for
the project’s success that strikes a balance
between budget and efficiency. The end result of
this phase is a set of highly disciplined drawings
that will be used for construction.

‍
‍
‍

Detail Engineering and Design Deliverables

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 8/15
9/13/23, 8:51 AM EPC Engineering Deliverables

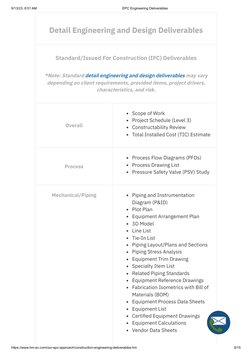

Detail Engineering and Design Deliverables

Standard/Issued For Construction (IFC) Deliverables

*Note: Standard detail engineering and design deliverables may vary

depending on client requirements, provided items, project drivers,
characteristics, and risk.

Scope of Work
Project Schedule (Level 3)
Overall Constructability Review
Total Installed Cost (TIC) Estimate

Process Flow Diagrams (PFDs)

Process Process Drawing List
Pressure Safety Valve (PSV) Study

Mechanical/Piping Piping and Instrumentation

Diagram (P&ID)
Plot Plan
Equipment Arrangement Plan
3D Model
Line List
Tie-In List
Piping Layout/Plans and Sections
Piping Stress Analysis
Equipment Trim Drawing
Specialty Item List
Related Piping Standards
Equipment Reference Drawings
Fabrication Isometrics with Bill of
Materials (BOM)
Equipment Process Data Sheets
Equipment List
Certified Equipment Drawings
Equipment Calculations
Vendor Data Sheets

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 9/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Detail Engineering and Design Deliverables

Equipment Installation Operating

Manual (IOM)

Foundation Location Plan

Foundation Drawings
Structural Design and
Analysis/Sketches
Civil/Structural Building Plans and Elevation
Concrete Details
Steel Details
Calculation Package

Single-Line Diagrams (SLDs)

Instrument Index
Instrumentation and Electrical Classification Plan
Electrical Controls Logic
Specification Sheets

Early/Optional Deliverables

*Note: Optional detail engineering and design deliverables are

contingent upon project scope, and client requirements and early
deliverables depend on client priorities and specific project needs.

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 10/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Detail Engineering and Design Deliverables

Hazard Analysis Safety Control System

Process-Specific Deliverables Motor List
IFC Design Basis and Demolition Drawings
Assumptions Identify Substation, Transformer,
Final Equipment Insulation or, Feeder Needs
Underground Plan Electrical Heat Tracing (EHT)
Firewater Plan Lighting
Pipe Support Details Gas/Fire Detectors
New Soil Study Emergency Shutdowns (ESDs)
Contaminant Calculations Programming
Grading Plan

EPC Engineering Deliverables:

Construction
‍
‍

The construction phase involves all construction

activities required to meet predetermined
deadlines and goals per the scope of the project.
This includes all civil, structural, piping,
equipment, electrical, and instrumentation
activities.

Construction Deliverables

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 11/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Construction Deliverables

Standard Deliverables

*Note: Standard detail engineering and design deliverables may vary

depending on client requirements, provided items, project drivers,
characteristics, and risk.

Project Schedule (LEVEL 3)

Project Controls
Overall Engineering Oversight
Construction Management
Subcontract Management

Behavior-Based Safety (BBS)

Program
Safety Job Safety Analysis (JSA)
Toolbox Talks

Quality Assurance/Quality Weld Log

Control

Non-Destructive Testing (NDT)

Control Discipline Check Sheets

Tagged Equipment
Procurement Bulk Materials

Pipe Spooling
Pipe Fabrication and Testing
Fabrication Vessel Fabrication - ASME U
Stamp

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 12/15
9/13/23, 8:51 AM EPC Engineering Deliverables

Construction Deliverables

System-Based Execution and

Constructability Completion

Optional Deliverables

*Note: Optional construction deliverables are contingent upon project

scope, and client requirements and early deliverables depend on client
priorities and specific project needs.

Progress Tracking by Discipline

Procurement of Tagged quipment

H+M Industrial EPC: Delivering Capital

Project Success Since 1988
For more than 30 years, H+M Industrial EPC has provided leading capital
project management services to the energy, chemicals, and terminal and
logistics industries using our proven EPC approach, established work
processes, and highly experienced team.

To find out more about working with an industry-leading EPC contractor,

H+M Industrial EPC, or EPC engineering deliverables, contact us through our
website today.

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 13/15
9/13/23, 8:51 AM EPC Engineering Deliverables

READY TO WORK
TOGETHER? To learn more about our
unique approach to project
“For more than execution, or to schedule a
consultation, please give us a
30 years, we
call or fill out the form below.
have provided
leading capital
project First & Last Name

execution
services to the
Company
energy,
chemical, and
terminal and Email
logistics
industries. We
would love to sit Phone
down with you
and discuss your
Project Description
design-build,
engineering, and
construction
needs.”

SUBMIT
Robyn Hall

Sr. Marketing
Manager

832-558-6212

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 14/15
9/13/23, 8:51 AM EPC Engineering Deliverables

About Careers Services Contact

Safety + EPC Front-End

Quality Training Planning
Program
FOLLOW US Our EPC Detail Design /
Approach Job Engineering
Postings
Projects Procurement

Insights/News Fabrication

Construction

Additional
Services

Copyright © 2020 H+M Industrial • All Rights Reserved Privacy

https://www.hm-ec.com/our-epc-approach/construction-engineering-deliverables-hm 15/15
