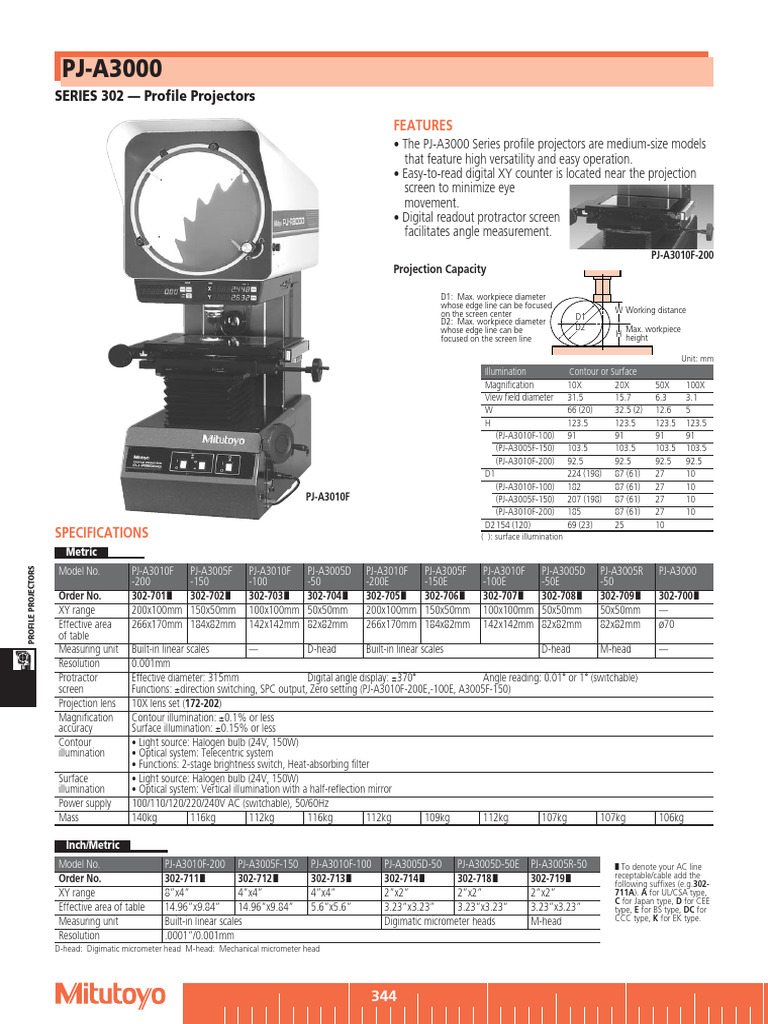

PJ-A3000

SERIES 302 — Profile Projectors

FEATURES
• The PJ-A3000 Series profile projectors are medium-size models
that feature high versatility and easy operation.
• Easy-to-read digital XY counter is located near the projection
screen to minimize eye
movement.
• Digital readout protractor screen
facilitates angle measurement.
PJ-A3010F-200
Projection Capacity

D1: Max. workpiece diameter

whose edge line can be focused
on the screen center W Working distance
D1
D2: Max. workpiece diameter
D2
whose edge line can be H Max. workpiece
focused on the screen line height

Unit: mm
Illumination Contour or Surface
Magnification 10X 20X 50X 100X
View field diameter 31.5 15.7 6.3 3.1
W 66 (20) 32.5 (2) 12.6 5
H 123.5 123.5 123.5 123.5
(PJ-A3010F-100) 91 91 91 91
(PJ-A3005F-150) 103.5 103.5 103.5 103.5
(PJ-A3010F-200) 92.5 92.5 92.5 92.5
D1 224 (198) 87 (61) 27 10
(PJ-A3010F-100) 182 87 (61) 27 10
PJ-A3010F (PJ-A3005F-150) 207 (198) 87 (61) 27 10
(PJ-A3010F-200) 185 87 (61) 27 10
D2154 (120) 69 (23) 25 10
SPECIFICATIONS ( ): surface illumination
Metric
PROFILE PROJECTORS

Model No. PJ-A3010F PJ-A3005F PJ-A3010F PJ-A3005D PJ-A3010F PJ-A3005F PJ-A3010F PJ-A3005D PJ-A3005R PJ-A3000
-200 -150 -100 -50 -200E -150E -100E -50E -50
Order No. 302-701■ 302-702■ 302-703■ 302-704■ 302-705■ 302-706■ 302-707■ 302-708■ 302-709■ 302-700■
XY range 200x100mm 150x50mm 100x100mm 50x50mm 200x100mm 150x50mm 100x100mm 50x50mm 50x50mm —
Effective area 266x170mm 184x82mm 142x142mm 82x82mm 266x170mm 184x82mm 142x142mm 82x82mm 82x82mm ø70
of table
Measuring unit Built-in linear scales — D-head Built-in linear scales D-head M-head —
Resolution 0.001mm
Protractor Effective diameter: 315mm Digital angle display: ±370° Angle reading: 0.01° or 1° (switchable)
screen Functions: ±direction switching, SPC output, Zero setting (PJ-A3010F-200E,-100E, A3005F-150)
Projection lens 10X lens set (172-202)
Magnification Contour illumination: ±0.1% or less
accuracy Surface illumination: ±0.15% or less
Contour • Light source: Halogen bulb (24V, 150W)
illumination • Optical system: Telecentric system
• Functions: 2-stage brightness switch, Heat-absorbing filter
Surface • Light source: Halogen bulb (24V, 150W)
illumination • Optical system: Vertical illumination with a half-reflection mirror
Power supply 100/110/120/220/240V AC (switchable), 50/60Hz
Mass 140kg 116kg 112kg 116kg 112kg 109kg 112kg 107kg 107kg 106kg

Inch/Metric
Model No. PJ-A3010F-200 PJ-A3005F-150 PJ-A3010F-100 PJ-A3005D-50 PJ-A3005D-50E PJ-A3005R-50 ■ To denote your AC line
Order No. 302-711■ 302-712■ 302-713■ 302-714■ 302-718■ 302-719■ receptable/cable add the
following suffixes (e.g.302-
XY range 8”x4” 4”x4” 4”x4” 2”x2” 2”x2” 2”x2” 711A). A for UL/CSA type,
C for Japan type, D for CEE
Effective area of table 14.96”x9.84” 14.96”x9.84” 5.6”x5.6” 3.23”x3.23” 3.23”x3.23” 3.23”x3.23” type, E for BS type, DC for
Measuring unit Built-in linear scales Digimatic micrometer heads M-head CCC type, K for EK type.

Resolution .0001”/0.001mm
D-head: Digimatic micrometer head M-head: Mechanical micrometer head

344
OPTIONAL ACCESSORIES
Order No. Description Dimensions
Unit: mm
172-203 20X projection lens set
400 741
172-204 50X projection lens
172-207 100X projection lens
172-229 Oblique illumination mirror for 10X lens
172-230 Oblique illumination mirror for 20X lens
172-116 Standard scale (50mm)
172-117 Standard scale (2")
172-118 Reading scale (200mm)
172-161 Reading scale (300mm)

1093
932105 Overlay chart set
172-160-2 Green filter (for PJ-A3000, 3005D-50,3005R, -A3010F-200,

854
3005F-150 and 3010F-100)
172-160-3 Green filter (for all models except PJ-A3010F-200, -200E)
176-106 Rotary table (Effective diameter: 66mm)
172-196 Rotary table (Effective diameter: 100mm)
172-198 Rotary table with fine feed wheel (Effective diameter: 100mm)
176-105 Swivel center support (Max. workpiece dia.: 70mm) A 706
172-197 Swivel center support (Max. workpiece dia.: 80mm)
PJ-A3005D-100
176-107 Holder with clamp
172-378 V-block with clamp (Max. workpiece dia.: 25mm)
999678 Fixture mount adapter (required for PJ-A3010F-200)
965012 SPC cable (2m) for angle display output
(See page 376.) QM-Data200 2-D data processor

SYSTEM DIAGRAM

PROFILE PROJECTORS
932105

172-230
172-229

12AAA807

QM-Data 200
172-203 172-204 172-207

172-116 172-160-2
172-117

PJ-A3000
172-118 172-119
172-161 172-162 999678

176-105
172-197 176-107
176-106 172-196 172-198 172-378

176-106 172-196 176-105 172-197 176-107 176-378

PJ-A3005, PJ-A3005R-50, PJ-A3005D-50/E ✓ — ✓ — ✓ ✓
PJ-A3005F-150/E, PJ-3010F-100/E, PJ-A3010F-200/E — ✓* — ✓* ✓* ✓*
*Fixture mount adapter (999678) is required for PJ-A3010F-200/E.

345
 PJ-H3000
SERIES 303 — Profile Projectors

PJ-H3005T1-50 PJ-H3005FT1/2/4-100

PJ-H3010FT2-200
PJ-H3010FT1/2/4-200 PJ-H3010FT1/2/4-300

By separating axial motion, and stabilizing the XY measuring table

PROFILE PROJECTORS

in2 the vertical direction, high measuring accuracy of (3+L/25)µm

has been achieved on the PJ-H3000 Series Profile Projectors.
Focusing is accomplished by moving the screen head itself up &
down with the hand wheel or motorized unit. The power
focusing type (T2 and T4) provides higher performance.

FEATURES
• Newly designed lenses with a high NA provide drastically
brighter and clearer screen images during surface illumination. Projection Capacity
• The three-lens mounting turret includes a 10X lens as standard.
Four types of projection lenses (5X, 20X, 50X, 100X) are Max. workpiece
diameter whose edge
available. line can be focused on W Working distance
the screen center
D
Selection Guide H Max. workpiece
height
Type T1 Type T2 Type T4
Power focus* — Provided Provided Unit: mm
(*Manual feed available) Illumination Contour or Surface
OPTOEYE image edge — — Provided Magnification 5X 10X 20X 50X 100X
sensor (built-in) View field diameter 61.2 30.6 15.3 6.12 3.06
H 100 100 100 100 100
W 66 70.5 56.5 50 50
D 148 197 167 114 123

346
SPECIFICATIONS
Protractor screen Effective diameter: 306mm
Digital angle display: ±370°
Angle reading: 0.01° or 1' (switchable)
Functions: Zero-setting, ABS/INC switching
Lens mount 3-mount turret type
Projection lens 10X (172-472)
Magnification Contour illumination: ±0.1% or less
accuracy Surface illumination: ±0.15% or less
Contour illumination • Light source: Halogen bulb (24V, 150W)
• Telecentric system
• High/low brightness switchable
Surface illumination • Light source: Halogen bulb (24V, 150W)
• Vertical/oblique illumination switchable
Data output SPC (X, Y coordinate data only)
Power supply 100V-240V AC, 50/60Hz

Metric Basic Version (Type T1) Inch/Metric Basic Version (Type T1)
Model No. PJ-H3005F PJ-H3005F PJ-H3010F PJ-H3010F Model No. PJ-H3005F PJ-H3005F PJ-H3010F PJ-H3010F
-50 -100 -200 -300 -50 -100 -200 -300
Order No.100V AC 303-980 303-981 303-984 303-987 Order No.100V AC 303-990 303-991 303-994 303-997
110V AC 303-980C 303-981C 303-984C 303-987C 120V AC 303-990A 303-991A 303-994A 303-997A
120V AC 303-980A 303-981A 303-984A 303-987A 230V AC 303-990D 303-991D 303-994D 303-997D
230V AC 303-980D 303-981D 303-984D 303-987D 240V AC 303-990E 303-991E 303-994E 303-997E
240V AC 303-980E 303-981E 303-984E 303-987E XY range 2"x2" 4"x2" 8"x4" 12"x4"
XY range 50x50mm 100x50mm 200x100mm 300x100mm Effective area ø4.65" ø7" 11.02"x 14.33"x
Effective area ø118mm ø178mm 280x180mm 364x180mm of table 7.09" 7.09"
of table Resolution .0001"/ .0001"/ .0001"/ .0001"/
Resolution 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm

PROFILE PROJECTORS
Metric Power Focus Version (Type T2) Inch/Metric Power Focus Version (Type T2)
Model No. PJ-H3005F-100 PJ-H3010F-200 PJ-H3010F-300 Model No. PJ-H3005F-100 PJ-H3010F-200 PJ-H3010F-300
Order No. 100V AC 303-982 303-985 303-988 Order No. 100V AC 303-992 303-995 303-998
110V AC 303-982C 303-985C 303-988C 120V AC 303-992A 303-995A 303-998A
120V AC 303-982A 303-985A 303-988A 230V AC 303-992D 303-995D 303-998D
230V AC 303-982D 303-985D 303-988D 240V AC 303-992E 303-995E 303-998E
240V AC 303-982E 303-985E 303-988E XY range 4"x2" 8"x4" 12"x4"
XY range 100x50mm 200x100mm 300x100mm Effective area of table ø7" 11.02"x7.09" 14.33"x7.09"
Effective area of table ø178mm 280x180mm 364x180mm Resolution .0001"/ .0001"/ .0001"/
Resolution 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm

Metric High Performance Version (Type T4) Inch/Metric High Performance Version (Type T4)
Model No. PJ-H3005F-100 PJ-H3010F-200 PJ-H3010F-300 Model No. PJ-H3005F-100 PJ-H3010F-200 PJ-H3010F-300
Order No. 100V AC 303-983 303-986 303-989 Order No. 100V AC 303-993 303-996 303-999
110V AC 303-983C 303-986C 303-989C 120V AC 303-993A 303-996A 303-999A
120V AC 303-983A 303-986A 303-989A 230V AC 303-993D 303-996D 303-999D
230V AC 303-983D 303-986D 303-989D 240V AC 303-993E 303-996E 303-999E
240V AC 303-983E 303-986E 303-989E XY range 4"x2" 8"x4" 12"x4"
XY range 100x50mm 200x100mm 300x100mm Effective area of table ø7" 11.02"x7.09" 14.33"x7.09"
Effective area of table ø178mm 280x180mm 364x180mm Resolution .0001"/ .0001"/ .0001"/
Resolution 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm 0.001mm

347
 PJ-H3000
SERIES 303 — Profile Projectors

SYSTEM DIAGRAM

QM-Data
200

172-116
172-117

MUX-10F
12AAD196
172-118
172-119
932105
172-161
172-162

965014 (2m) x 2pcs.

990600

172-271
(5X)

172-278

172-473
(20X)

990744
PROFILE PROJECTORS

172-474
(50X) Type T1 Type T2 Type T4

172-258 172-269
172-275 172-555
(100X) 172-259 937386 (1m) DP-1VR
965012 (2m) (for printing angle data)

PJ-H3000F Series Types T1,T2,T4 172-289

100x100mm stage 200x100mm stage 300x100mm stage

999678

172-378
172-197 172-196
176-107

348
OPTIONAL ACCESSORIES
Order No. Description
172-271 5X projection lens 5X 20X 100X
172-473 20X projection lens projection lens projection lens projection lens
172-474 50X projection lens
172-275 100X projection lens
172-555 Oblique illumination adapter
172-116 Standard scale (50mm)
172-117 Standard scale (2")
172-118 Reading scale (200mm)
172-161 Reading scale (300mm)
10X 50X
172-119 Reading scale (8") projection lens projection lens
172-162 Reading scale (12")
932105 Overlay chart set
172-258 Green filter
172-259 Polarizing unit
172-196 Rotary table (Effective diameter: 100mm)
172-289 Rotary table (Effective diameter: 200mm)
176-105 Swivel center support (Max. workpiece dia.: 70mm)
172-197 Swivel center support (Max. workpiece dia.: 80mm)
176-107 Holder with clamp
172-378 V-block with clamp (Max. workpiece dia.: 25mm)
999678 V-block with clamp (Max. workpiece dia.: 25mm)
990744 Hood (lager type)
172-269 Machine stand
172-278 Polaroid photography attachment
936937 SPC cable (1m)
965014 SPC cable (2m)
12AAD196 QM-Data200 connecting kit (for Type T4 only)

PROFILE PROJECTORS
(See page 376.) QM-Data200 2-D data processor

Dimensions Unit: mm
382 798.5
1049 to 1149
855 to 955

500
120

378 329 329

430 816.6

PJ-H3010F-300

349
 PJ-500
SERIES 303 — Profile Projector

FEATURES
• Large-diameter (508mm) screen with staggered cross hairs
minimizes errors in aligning the image of a workpiece.
• Digital readout protractor and built-in XY counter for
efficient measurement.
• Motor-controlled XY table for speedy measurement.
• Three-lens mount turret includes 10X and 20X projection
lens as standard.
• Projection lens has a long working distance for efficient
inspection.
• Provided with SPC data output ports.

SPECIFICATIONS
Metric
Model No. PJ-500
Order No. 100V AC 303-801
110V AC 303-801C
120V AC 303-801A
220V AC 303-801D
240V AC 303-801E
XY range 200x100mm
Resolution 0.001mm
Measuring unit Built-in linear scales
Table size (WxD) 430x254mm
PJ-500
Effective area of table 270x170mm
Protractor screen Effective diameter: 508mm
PROFILE PROJECTORS

Digital angle display: ±370°

Angle reading: 0.01° or 1' (switchable)
Functions: Zero-setting, ABS/INC switching
Projection lens 10X lens (172-281) and 20X lens (172-282)
Magnification Contour illumination: ±0.1% or less
accuracy Surface illumination: ±0.15% or less
Contour illumination • Light source: Halogen bulb (24V, 150W)
• Telecentric system
Digital angle and XY counters Control Box • High/low brightness switchable
Surface illumination • Light source: Halogen bulb (24V, 150W)
• Vertical illumination
Data output SPC (X, Y coordinate data only)
Projection Capacity Power supply 100/110/120/220/240V AC, 50/60Hz
Dimensions 775(W)x1375(D)x1905(H)mm
Max. workpiece Screen center height 1595mm
diameter whose edge
line can be focused on W Working distance Mass 660kg
the screen center
D

H Max. workpiece Inch/Metric

height
Model No. PJ-500
Unit: mm Order No. 100V AC 303-811
Illumination Contour or Surface 120V AC 303-811A
Magnification 5X 10X 20X 50X 100X 220V AC 303-811D
View field diameter 101.6 50.8 25.4 10.16 5.08
240V AC 303-811E
W 156.8 101 90 82 69
H 98.2 205 205 205 205
XY range 8"x4"
D 186.4 287 308 260 193 Resolution .0001"/0.001mm
Measuring unit Built-in linear scales
Table size (WxD) 16.93"x10"
Effective area of table 10.63"x6.69"

350
OPTIONAL ACCESSORIES
Order No. Description Dimensions
Unit: mm
172-280 5X projection lens 610 1375
172-283 50X projection lens
172-284 100X projection lens
172-287 Oblique surface illumination unit
172-116 Standard scale (50mm)
172-117 Standard scale (2")
172-118 Reading scale (200mm)

1905
172-161 Reading scale (300mm)

1595
172-119 Reading scale (8")
172-162 Reading scale (12")
172-286 Green filter
999678 Fixture mount adapter
172-196 Rotary table (Effective diameter: 100mm)
172-289 Rotary table (Effective diameter: 200mm)
450 968
172-197 Swivel center support (Max. workpiece dia.: 80mm)
775 1110
176-107 Holder with clamp
172-378 Holder with clamp
172-285 Polaroid Photographic Attachment
172-288 Controller stand
936937 SPC cable (1m)
965014 SPC cable (2m)
(See page 376.) QM-Data200 2-D data processor

MUX-10F
SYSTEM DIAGRAM QM-Data200

PROFILE PROJECTORS
172-285 936937 (1m) x 2pcs.

172-116 172-280 172-283 172-284

172-117

172-118 172-119
172-161 172-162

172-287

172-286
999678

172-288

172-289
172-197 176-107 172-378
172-196

351
 PV-5000
SERIES 304 — Profile Projector

SPECIFICATIONS
Model No. PV-5000
Order No. 100V AC 304-201-1
110V AC 304-201-1C
120V AC 304-201-1A
220V AC 304-201-1D
240V AC 304-201-1E
XY table (Optional)
Protractor screen Effective diameter: 508mm
Digital angle display: ±370°
Angle reading: 0.01° or 1' (switchable)
Functions: Zero-setting, ABS/INC switching
Projection lens (Optional)
Magnification Contour illumination: ±0.1% or less
accuracy Surface illumination: ±0.15% or less
Contour illumination • Light source: Halogen bulb (24V, 150W)
• Telecentric system
• High/low brightness switchable
Surface illumination (Optional)
Power supply 100/110/120/230/240V AC, 50/60Hz
PV-5000 with Dimensions 738(W)x1021(D)x1520(H)mm
optional Mass 180kg
accessories

FEATURES
• Floor model that uses a downward illumination system.
• Digital readout protractor screen (including zero-setting, ABS/
PROFILE PROJECTORS

XY Table
INC coordinate switching functions) for easy and error-free (319-222-1)
angle measurement.
• Angled screen allows projected images to be easily traced or
compared with a template.
• The optional oblique surface illumination unit (172-418)
provides clear and bright images, allowing easy inspection of XY range: 100x50mm
Effective area: 180x150mm
non-reflection workpieces such as plastic parts or printed Measuring unit: Built-in linear scales
materials.
XY Table
Projection Capacity (319-225-1)
Working
Max. workpiece distance
height H D
Max. workpiece diameter
W whose edge line can be
focused on the screen center
XY range: 200x100mm
Effective area: 266x170mm
Measuring unit: Built-in linear scales

Unit: mm
Illumination Contour or Surface Surface Illumination Unit (172-418)
Magnification 5X 10X 20X 50X 100X
View field diameter 100 50 25 10 5
W 57 57 57 32.4 22.5
(32) (57) (57)
H 125 181 206 87 87
D 114 114 114 64.8 45 Method: Twin-bulb type oblique illumination
( ): When using surface illumination Light source: Halogen bulbs (24V, 150W)
Note: Surface illumination is not available at 50X and 100X
magnifications. Note: 5X, 10X, 20X magnifications only available.

352
OPTIONAL ACCESSORIES
Order No. Description Order No. Description
172-401 5X projection lens set 319-222-1 XY table, 100x50mm (with built-in linear scales)
172-402 10X projection lens set 319-225-1 XY table, 200x100mm (with built-in linear scales)
172-403 20X projection lens set 172-196 Rotary table (Effective diameter: 100mm)
172-404 50X projection lens set 172-198 Rotary table with fine feed wheel (Effective diameter: 100mm)
172-405 100X projection lens set 172-197 Swivel center support (Max. workpiece dia.: 80mm)
172-418 Surface illumination unit 176-107 Holder with clamp
172-116 Standard scale (50mm) 172-378 V-block with clamp (Max. workpiece dia.: 25mm)
172-330 Standard scale (80mm) 999678 Fixture mount adapter
172-117 Standard scale (2") 937387 SPC cable (1m)
172-161 Reading scale (300mm) 965013 SPC cable (2m)
172-329 Reading scale (600mm) (See page 324.) KA Counter
172-162 Reading scale (12") (See page 376.) QM-Data200 2-D data processor
512089 Digital counter stand
172-160-2 Green filter
172-319 Canopy

SYSTEM DIAGRAM

172-319

PROFILE PROJECTORS
KA Counter 172-160-2
319-225-1
319-222-1

999678 512089
(Required
for 319-225-1) 172-116
172-117
QM-Data 200 172-330

Optoeye
172-378
332-151 172-196 172-418

172-161
Attachment (B) 176-107 172-162
12AAE672 172-329
172-198

172-197 172-402 172-403

172-401 172-404 172-405

353
 PV-600A
SERIES 305 — Profile Projector

Projection Capacity

Working
Max. workpiece distance
height H D
Max. workpiece diameter
W whose edge line can be
focused on the screen center

Unit: mm
Illumination Contour or Surface
Magnification 5X 10X 20X 50X 100X
View field diameter 120 60 30 12 6
W 37 37 37 — —
(12) (37) (37)
H 140 182 257 76 76
D 94 94 94 14 6
( ): When using surface illumination

PV-600A
with optional XY Table (319-225-1)
accessories

FEATURES
• Floor model that uses a downward illumination system.
PROFILE PROJECTORS

• Large diameter (600mm) screen for efficient inspection.

• Angled screen allows projected images to be easily traced or
compared with a template.
• The optional oblique surface illumination unit (172-418) XY range: 200x100mm
provides clear and bright images, allowing easy inspection of Effective area: 266x170mm
non-reflection workpieces such as plastic parts or printed Measuring unit: Built-in linear scales
materials.
Surface Illumination Unit (172-418)
SPECIFICATIONS
Model No. PV-600A
Order No. 100V AC 305-103
110V AC 305-103C
120V AC 305-103A
220V AC 305-103D
240V AC 305-103E
XY table (Optional)
Method: Twin-bulb type oblique illumination
Protractor screen (Optional) Light source: Halogen blubs (24V, 150W)
Projection lens (Optional) Note: Vertical illumination when using 50X, 100X magnifications.
Magnification Contour illumination: ±0.1% or less
accuracy Surface illumination: ±0.15% or less
Contour illumination • Light source: Halogen bulb (24V, 150W)
• Telecentric system
Surface illumination (Optional)
Power supply 100/110/120/230/240V AC, 50/60Hz
Dimensions 1010(W)x1150(D)x1750(H)mm
Mass 200kg

354
OPTIONAL ACCESSORIES
Order No. Description Dimensions Unit: mm
172-308 Protractor screen (Effective diameter: 600mm)
172-371 5X projection lens set
172-384 10X projection lens set
172-385 20X projection lens set
172-372 50X projection lens set
172-373 100X projection lens set
319-225-1 XY table, 200x100mm (with built-in linear scales)

1750
172-418 Surface illumination unit
172-330 Standard scale (80mm)
172-117 Standard scale (2")

1100
172-329 Reading scale (600mm)
172-162 Reading scale (12")
512089 Digital counter stand
172-160-2 Green filter
635 625
172-196 Rotary table (Effective diameter: 100mm) 1010 1150
172-197 Swivel center support (Max. workpiece dia.: 80mm)
176-107 Holder with clamp
172-378 V-block with clamp (Max. workpiece dia.: 25mm)
999678 Fixture mount adapter
172-319 Canopy
12AAD193 Connecting kit for KA Counter
Optoeye
(See page 324.) KA Counter
(See page 376.) QM-Data200 2-D data processor
Attachment (B)
332-151 12AAE672
QM-Data200

SYSTEM DIAGRAM

PROFILE PROJECTORS
KA Counter

999678 319-225-1

172-319

172-308

172-197 512089
176-107
172-196 172-378

172-160-2

172-330
172-371 172-384 172-385 172-372 172-373 172-117

172-329
172-418 172-162

355
 PH-3515F
SERIES 172 — Profile Projector

SPECIFICATIONS
Metric
Model No. PH-3515F
Order No. 100V 172-847
110V 172-847C
120V 172-847A
220V 172-847CED
220V/230V 172-847D
240V 172-847E, 172-847CEE
Resolution 0.001mm
Projection lens 10X (172-184)
Magnification accuracy ±0.1% under contour illumination, ±0.15%
under surface illumination
PH-3515F with Projector Effective Dia 353mm
optional accessories Screen Screen material Fin-grain ground glass
Display range Staggered crosses and crosshairs
Resolution 1'/0.01° switchable
Functions ABS/INC mode switch, zero-setting
Contour Light source Halogen bulb (24V, 150W)
FEATURES illumination Optical system Telecentric
• Heavy-duty, bench-top model that uses horizontal optical Functions 2-step brightness switching, cooling fan,
heat-absorbing filter, green filter (optional)
system.
Surface Light source Halogen bulb (24V, 150W)
• Erect image on the day-bright screen.
illumination Functions Adjustable condenser lens (for all
PROFILE PROJECTORS

• Suitable for thread pitch measurements—blurred or distorted magnifications), cooling fan, heat-absorbing
images will not be produced when workpiece is angled. filter
• 356mm diameter protractor screen with cross-hairs and Power supply 100/110/120/220/240V AC (switchable),
staggered lines for easy alignment. 50/60Hz
• Digital angle measurement to 1' or 0.01°. Mass 155kg
• Floating-type workpiece table incorporates linear scales for fast, Standard accessories 10X projection lens set, workstage (319-
227-1), surface illumination unit(172-133),
accurate measurement. power cord, halogen bulb 24V 150W(2pcs.),
• Built-in XY counter. machine cover (383228), user's manual

Projection Capacity (PH-3515F) Inch/Metric

Max. workpiece width Working distance Model No. PH-3515F
L W Order No. 100V 172-857
110V —
120V 172-857A
D 220V 172-857CED
220V/230V 172-857D
Max. workpiece
diameter whose edge 240V 172-857E,02172-857CEE
line can be focused on
the screen center Projector Effective Dia 13.9"/353mm
Unit: mm
Screen Screen material Fin-grain ground glass
Illumination Contour or Surface Display range Staggered crosses and crosshairs
Magnification 5X 10X 20X 50X 100X Resolution 1'/0.01° switchable
View field diameter 71.2 35.6 17.8 7.12 3.5 Functions ABS/INC mode switch, zero-setting
W 160 93 40 14.6 9.5 Mass 341 lbs./155kg
(64) (41) (40) (14.6)
H 175 235 235 80 109
D 152.4 152.4 116 30.4 19
( ): When using surface illumination

356
OPTIONAL ACCESSORIES
Order No. Description
Dimensions
172-145 5X projection lens set
172-173 20X projection lens set 460 Unit: mm
172-165 50X projection lens set
172-166 100X projection lens set
12AAB988 Half miorror for 100X projection lens
172-133 Verrtical surface illumination unit
172-116 Standard scale (50mm)
172-117 Standard scale (2")

1155
172-118 Reading scale (200mm)

935
172-161 Reading scale (300mm)
172-119 Readins scale (8")
172-162 Reading scale (12")
172-286 Green filter

110
932105 Overlay chart set 18 424 321 540
172-142 Center support 460 906
172-143 Center support riser 1138
172-144 Rotary vise (Max. workpiece dia.: 60mm)
172-234 V-block with clamp (Max. workpiece dia.: 50mm)
172-132 Vertical holder
172-001 Chipping saw blade measuring jig
172-002 Cutting saw blade measuring jig
(See page 376.) QM-Data200 2D data prosessor

SYSTEM DIAGRAM

PROFILE PROJECTORS
172-001 172-002
172-286

QM-Data 200

172-133 Optoeye

332-151 Attachment (A)

12AAE671
264-141
172-145

172-173

172-165
932105

172-166 172-116
172-117

172-143 172-142 172-144 172-234 172-132 172-118 172-119

172-161 172-162

357
 Accessories for Profile Projectors

Standard Scales Polaroid Photographic Attachments

172-330

172-116
172-249

• Used for checking magnification accuracy.

SPECIFICATIONS
Metric
Graduation Range Order No. Accuracy Mass
0.1mm 50mm 172-116 3.25µm 10g
80mm 172-330 3.4µm 18g

Inch
Graduation Range Order No. Accuracy Mass 172-278
.01" 2" 172-117 .00013" .02 lbs.

Reading Scales
PROFILE PROJECTORS

172-285

172-161

172-118

172-238
• Specially designed for inspecting the magnified image of a
standard scale on the projection screen. • The Polaroid film eliminates the need for developing in a dark
room. By using this unit, the workpiece's surface image
SPECIFICATIONS projected on the screen can be recorded easily.
Metric • The focus can be adjusted after loading the film.
• Films: Polaroid #669 (color film) or Polaroid #665 (monochrome
Graduation Range Order No. Accuracy Mass
film)
0.5mm 200mm 172-118 18µm 65g
300mm 172-161 19.5µm 100g
600mm 172-329 24µm 720g
SPECIFICATIONS
Inch Order No. Applicable profile projectors
172-249 PJ-A3000 Series
Graduation Range Order No. Accuracy Mass
172-278 PJ-H3000 Series
.02" 8" 172-119 .00071" .14 lbs.
12" 172-162 .00077" .22 lbs.

358
 SPECIFICATIONS
Overlay Chart Set Order No. 932105
• Makes inspection of projected images an easy process. No. of sheets 12
• Twelve different patterns are available in set. Included chart 512066: Protractor (1°-grad. radial index) and radius
• Designed for use with profile projectors whose screen diameter patterns (1mm-radius increment concentric semicircles)
is 300mm or larger. 512067: Radius (0.1cm-reading scales and 5mm-radius
increment concentric circles)
512068: Radius (1X, 10X, 20X, 50X)
512069: 1mm-reading scales (20X, 50X)
512070: 10x10mm sections
512071: 0.5mm-reading scales
512072: 1x1mm sections
512073: Protractor (1°-grad. diametrical index)
512074: 1mm-reading vertical scale
512075: Protractor (1°-grad. diametrical index) and radius
(1mm-radius increment concentric circles)
512076: Metric, Unified, and Whitworth screw threads
(20X)
512077: Metric screw thread (100X) and 20° and 14.5°
gear teeth (20X)

PROFILE PROJECTORS
512066 512067 512068 512069

512070 512071 512072 512073

512074 512075 512076 512077

359
 Micrometer Heads for Profile Projectors and Toolmaker's Microscopes

Micrometer Heads for XY Stage Adjustable Micrometer Heads for XY Stages

152-390
152-389
152-402
FEATURES 152-401
• Non-rotating device is provided.
• The thimble reading can be zero-set at any spindle position.
• Black and red figures of the bidirectional graduation allow easy FEATURES
reading in both directions. • The adjustable spindle can be fed under the thimble clamped at
• Clamping stem diameter: 18mm any reading, allowing easy reference point setting.
SPECIFICATIONS • The spherical measuring face is carbide-tipped.
• Clamping stem diameter: 18mm
Metric
Graduation Range Order No. Accuracy Remarks
0.005mm 25mm 152-390 ±2µm X-axis type
152-389 ±2µm Y-axis type
*Obtained by using vernier.

Inch
Graduation Range Order No. Accuracy Remarks
.0001" 1" 152-391 ±.0001" X-axis type
152-392 ±.0001" Y-axis type
PROFILE PROJECTORS

Digimatic Micrometer Heads

SPECIFICATIONS
164-162 Metric
(A pair of Digimatic Micrometer Heads
are required for an XY table.) Resolution Range Order No. Accuracy
0.001mm 50mm 164-161 ±3µm

164-162 Inch/Metric

FEATURES Resolution Range Order No. Accuracy

.00005"/0.001mm 2" (50mm) 164-162 ±.00015"
• Large LCD digits for error-free reading.
• The display rotates 330° for easy viewing.
• The spindle does not rotate. Technical Data
• With SPC data output. Display: LCD
Functions: Zero-setting (ABS/INC coordinate switching), preset, power
on/off, counting direction switching, inch/mm conversion
SPECIFICATIONS (inch/mm type only), SPC data output
Quantizing error: ±1 count
Metric Measuring face: Carbide-tipped
Graduation Range Order No. Accuracy Remarks Battery: SR44 (938882) x 2 pcs.
Battery life: Approx. 1.8 years under normal use
0.001mm* 25mm 152-402 ±2µm X-axis type Alarm: Low battery voltage, over-speed error, over-flow error
152-401 ±2µm Y-axis type Operating temperature: 5°C to 40°C
*Obtained by using vernier. Mass: 500g

360
 Workpiece Fixtures for Profile Projectors and Measuring Microscopes

Rotary Tables Swivel Center Supports

176-105

176-106 172-196 172-289

172-197
Order No. 176-106 172-196 172-289
Effective glass 66mm 100mm 200mm diameter
Angle reading 6' 2' — Order No. 176-105 172-197
Mass 1.7kg 2.5kg 14kg Maximum 70mm 80mm
Remarks Holder with clamp Holder with clamp — workpiece dia. (45mm)* (65mm)*
(176-107) can be mounted. (176-107) can be mounted. Maximum 140mm 140mm
workpiece length
Swivel range ±10° ±10°
Mass 2.4kg 2.5kg
*When swiveled 10°
V-Blocks with Clamp
Holder with Clamp
172-234
Fixture Mount Adapter

176-107
172-378

PROFILE PROJECTORS
Order No. 176-107 Order No. 172-234 172-378
Maximum 35mm Maximum 50mm 25mm 999678
workpiece heigth workpiece dia.
Mass 0.42kg Width of block 60mm 41mm • Secures any of the following fixtures on
Mass 1.24kg 0.8kg the large type XY table.
Remarks For PH-3515F For PJ, PV • Fixtures: Rotary table (172-196), swivel
center support (172-197), holder with
clamp (176-107), and
V-block with clamp (172-378).
Center Support Rotary Vise

Vertical Holder
172-142

172-144

Order No. 172-144

172-132
Maximum 60mm
172-143 workpiece dia.
Order No. 172-142 Width of jaw 40mm Order No. 172-132
Maximum 120mm (240mm)* Angle reading 5° Mass 1.3kg
workpiece dia. Mass 2.5kg Remarks For PH-3515F
Mass 3.3kg Remarks For PH-3515F
Remarks For PH-3515F
*When using a center support riser (172-143)

361
