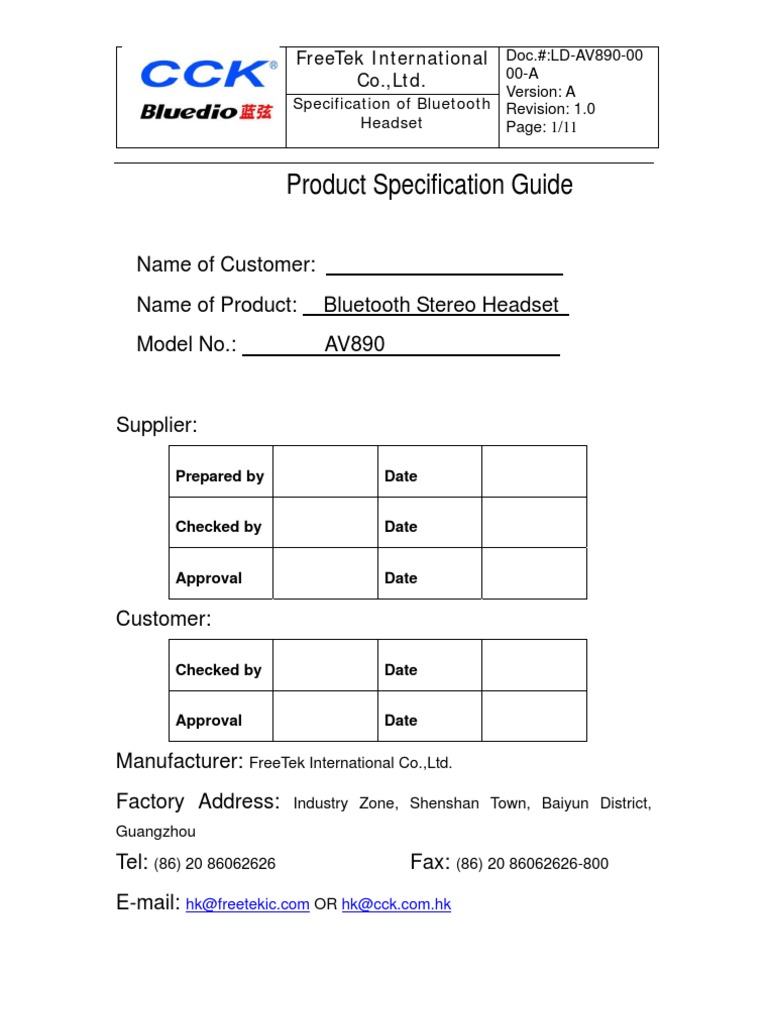

Version: A Specification of Bluetooth Revision: 1.

0 Headset Page: 1/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

Product Specification Guide

Name of Customer: Name of Product: Model No.: Bluetooth Stereo Headset AV890

Supplier:
Prepared by Checked by Approval Date Date Date

Customer:
Checked by Approval Date Date

Manufacturer: FreeTek International Co.,Ltd. Factory Address:

Guangzhou Industry Zone, Shenshan Town, Baiyun District,

Tel: (86) 20 86062626

Fax: (86) 20 86062626-800

E-mail: hk@freetekic.com OR hk@cck.com.hk

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 2/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

Contents
1. Application --------------------------------------------------- 03 2. Standard --------------------------------------------------- 03 3. Bluetooth Version ------------------------------------------ 03 4. IC/CPU -------------------------------------------------------- 03 5. Testing Parameter ------------------------------------- 04-06 6. Layout ------------------------------------------------------ 07

7. Electric Description---------------------------------------- 08 8. Product Features -------------------------------------------08-09 9. Requirements on Products Surface -------------- 09-10 10. Testing on Reliability ------------------------------------ 10 11. Specification of Headset ------------------------------ 11

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 3/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

1. Application
This Specification Guide is applicable to all mobile phone, PC, PDA, AV Dongle or general Dongle which support Bluetooth

2. Standard

Bluetooth V2.1 compliant

3. Bluetooth Version

Bluetooth V2.1 specification Class II

4. IC/CPU

Adopt the latest ISSC BlueCore-3 Multimedia chipset

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 4/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

5. Testing Parameter (1) Transmitting Test

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 5/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

(2) Receiving Test

(3) Stereo Audio Test

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 6/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

(4)

Audio/Speaker Output Test

(5) Audio/MIC Input Test

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 7/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

6. Layout Earpiece

Audio Decoder

Bluetooth Stereo Status Module Indicator Power

Controlling Button

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 8/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

7. Electric Description

Standard: Bluetooth V2.1+EDR, Class 2 Supported Profile: A2DP(Advanced Audio Distribution Profile), AVRCP(Audio Video Remote Control Profile), Headset, Handsfree RF Range: 2402~2480MHz (ISM BAND) Receiver Sensitivity: <-80dBm (PER 1%) Operating Distance: 8-20 meters (free space) Frequency Range: 20Hz-22KHz Signal Noise Ratio (SNR): > 80dB Total Harmonic Distortion: < 0.1% RF Output Power: >10mW Batter Life: @ Music Time: Up to 4 hours @ Talk Time: Up to 4 hours @ Standby Time: Up to 100 hours Battery Charging Time: 1.5-3 hours

Operating Temperature: -10~50C Humidity: 0-95% (non-condensing)

8. Product Features:

Compatible with most of the Bluetooth enabled audio devices,Including mobile phons, computers, MP3/MP4 players, iPod, PDA,etc... The 3.5mm audio jack allows you to change the earphone you like. Crystal clear sound quality, perfect for music.

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 9/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

Faster pairing and connecting, automatically resuming to work after interrupt. Streaming music from computer to headset through Bluetooth dongle, allowing you to enjoy the real stereo music wirelessly from your PC, MP3, iPod and so on (all these devices should be Bluetooth enabled.), or to talk freely on Skype, MSN or ICQ.

One headset can be connected with one handset and one computer which are Bluetooth enabled. You will never miss your calls when you are listening to the music or talking on computer via headset, it will automatically switch to phone for incoming calls under other modes.

Rechargeable lithium polymer battery.

9. Requirements on Products Surface:

Item Cond Surface I Surface II L4,W0.15,N3, max. one scratch on each surface L2,W0.2,N2, Not allow max. one scratch on each surface L10,H0.08,N2,and 3 Crude Edge Not allow DS20, but not sharp Surface III L6,W 0.15,N2, and DS20 L2.5,W 0.2,N2, and DS20 L10,H0.1,N 2,but not sharp D0.7,N 4 Glue Spot Not allow D0.6,N3,and DS20 D1.0,N4,and DS D0.6,N1 20,max. two spots on each surface Should not exceed the stated specification in the blueprint Refer to measured samples 3,should not affect the setting 5 6 7 Brightness Spot Twist Shrink D1.5, N2

Measurable Defectiveness 1 Slight Scratch Hard 2 Scratch/ Crash L3,W0.15 and N1

Defectiveness which can be found by comparing to the measured samples:

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 10/11

8 9 10 Melted Wire Gap Chromatic aberration Topmost Whiteness Protrude Insufficient Filling Silver Strip Veins Scratch Edge Broken Paint (unwipeable) Not allow Not allow Not allow Not allow Not allow Not allow Not allow Refer to measured samples Refer to measured samples Refer to measured samples (or E1.0)

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

Eliminated Defectiveness by modifying mould or adjust moulding condition: 11 12 13 14 15 16 17 18 Not allow

10. Testing on Reliability:

a) Falling down on the cement ground without any packaging from 1.5 meter high three times, the headset still works well and no components fell off, while the surface might be broken. b) After testing under high temperature as 65 and low temperature as -20 for 2 hours, the headset works normally. c) After testing under temperature 402 and relative humidity as 103% for 48 hours, the headset works normally.

Version: A Specification of Bluetooth Revision: 1.0 Headset Page: 11/11

FreeTek International Doc.#:LD-AV890-00 00-A Co.,Ltd.

11. Specification of Headset:

No. 1 2 3 4 5 6 Item Length Width Height Wight Color Battery Specification 49.6mm 18.8mm 14.8mm 11g Black/White 3.6V rechargeable lithium polymer battery Please refer to the picture Note
