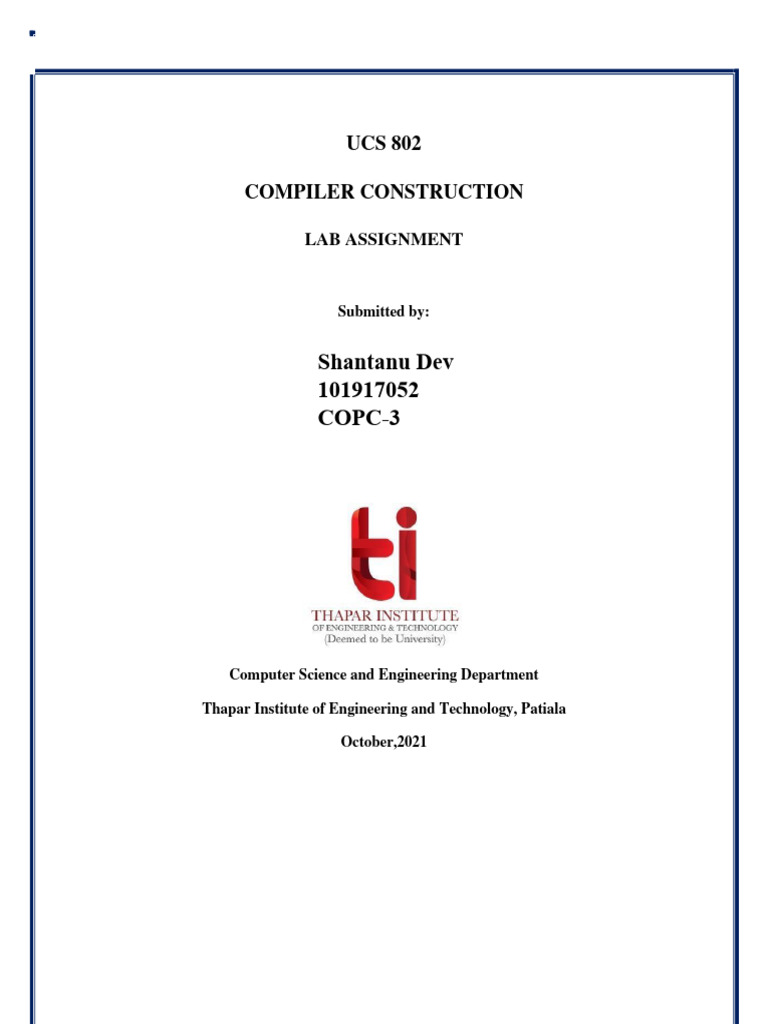

UCS 802

COMPILER CONSTRUCTION

LAB ASSIGNMENT

Submitted by:

Shantanu Dev
101917052
COPC-3

Computer Science and Engineering Department

Thapar Institute of Engineering and Technology, Patiala

October,2021
Q. Design a Minimized DFA for the generic Regular Expression This will involve three
steps:
• Generate the NFA using Thomson's Construction
• Generate the DFA using Subset Construction
• Minimize the DFA generated

CODE :

#include<bits/stdc++.h>
using namespace std;
struct nst
{ vector<int> a[2], e; bool
f=0;
};

vector<nst> nfa;

struct dst
{ int a[2] = {-1,-1}; bool
f=0;
};
vector<dst> dfa;
stack<int> st;
int nfa_size, dfa_size; string
dispregex;
struct nst init_nfa_state;
struct dst init_dfa_state;
void custom_clear() { for(int i=0; i<100; i++)
cout<<endl;
}

/***************************** regex to nfa ****************************/

1 | Page
string insert_concat(string regexp){ string ret=""; char
c,c2; for(unsigned int i=0; i<regexp.size(); i++){
c=regexp[i]; if(i+1<regexp.size()){
c2=regexp[i+1]; ret+=c;
if(c!='('&&c2!=')'&&c!='+'&&c2!='+'&&c2!='*'){ ret+='.';
}
}}
ret+=regexp[regexp.size()-1]; return ret;
}

void character(int i)
{ nfa.push_back(init_nfa_state);
nfa.push_back(init_nfa_state);
nfa[nfa_size].a[i].push_back(nfa_size+
1); st.push(nfa_size); nfa_size++;
st.push(nfa_size); nfa_size++;
}

void union_()
{ nfa.push_back(init_nfa_state);
nfa.push_back(init_nfa_state); int d =
st.top(); st.pop(); int c = st.top();
st.pop(); int b = st.top(); st.pop(); int a =
st.top(); st.pop();
nfa[nfa_size].e.push_back(a);
nfa[nfa_size].e.push_back(c);
nfa[b].e.push_back(nfa_size+1);
nfa[d].e.push_back(nfa_size+1);
st.push(nfa_size); nfa_size++;
st.push(nfa_size); nfa_size++;

2 | Page
}

void concatenation()
{ int d = st.top(); st.pop(); int c =
st.top(); st.pop(); int b =
st.top(); st.pop(); int a =
st.top(); st.pop();
nfa[b].e.push_back(c);
st.push(a); st.push(d);
}

void kleene_star()
{ nfa.push_back(init_nfa_state);
nfa.push_back(init_nfa_state); int b = st.top();
st.pop(); int a = st.top(); st.pop();
nfa[nfa_size].e.push_back(a);
nfa[nfa_size].e.push_back(nfa_size+1);
nfa[b].e.push_back(a);
nfa[b].e.push_back(nfa_size+1); st.push(nfa_size);
nfa_size++; st.push(nfa_size); nfa_size++;
}

void postfix_to_nfa(string postfix)

{ for(unsigned int i=0; i<postfix.size(); i++)
{ switch(postfix[i]) {
case 'a':
case 'b': character(postfix[i]-'a'); break; case '*':
kleene_star(); break; case '.': concatenation();
break; case '+': union_();
}

3 | Page
 }
}

void display_nfa()
{ cout<<endl<<endl;
cout<<"Phase 1: regex to nfa conversion using thompson's construction algorithm\n";
cout<<" \n";
cout<<"State\t|\ta\t|\tb\t|\teps\t|accepting state|"<<endl;
cout<<" \n";
for(unsigned int i=0; i<nfa.size(); i++)
{ cout<<i<<"\t|\t";
for(unsigned int j=0; j<nfa[i].a[0].size(); j++)cout<<nfa[i].a[0][j]<<' '; cout<<"\t|\t";
for(unsigned int j=0; j<nfa[i].a[1].size(); j++)cout<<nfa[i].a[1][j]<<' '; cout<<"\t|\t";
for(unsigned int j=0; j<nfa[i].e.size(); j++)cout<<nfa[i].e[j]<<' '; cout<<"\t|\t";
if(nfa[i].f)cout<<"Yes"; else cout<<"No"; cout<<"\t|\n";
}
cout<<" \n";
}

int priority(char c){

switch(c){
case '*': return 3;
case '.': return 2;
case '+': return 1;
default: return 0;
}
}

string regexp_to_postfix(string regexp)

4 | Page
{ string postfix="";
stack<char> op; char
c;
for(unsigned int i=0; i<regexp.size(); i++)
{ switch(regexp[i])
{ case 'a':
case 'b': postfix+=regexp[i]; break;
case '(': op.push(regexp[i]); break;
case ')':
while(op.top()!='('){
postfix+=op.top();
op.pop(); } op.pop(); break;
default:
while(!op.empty()){
c=op.top();
if(priority(c)>=priority(regexp[i])){
postfix+=op.top(); op.pop();
} else break;
}
op.push(regexp[i]);
}
//cout<<regexp[i]<<' '<<postfix<<endl;
}
while(!op.empty())
{ postfix += op.top();
op.pop();
} return postfix;
}

/***************************** nfa to dfa ****************************/

5 | Page
void print_dfa(){
cout<<endl;
cout<<"NFA TO DFA CONVERSION"<<endl;
cout<<" "<<endl;
cout<<"STATE\t|\t"<<"a"<<"\t|\t"<<"b"<<"\t|\t"<<"FINAL"<<"\t|"<<endl;
cout<<" "<<endl; for(int i=0;i<dfa.size();i++){
cout<<i<<"\t|\t"<<dfa[i].a[0]<<"\t|\t"<<dfa[i].a[1]<<"\t|\t"<<dfa[i].f<<"\t|"<<endl;
}
cout<<" "<<endl;
}

void epsilon_closure(int state,set<int>&si){

for(unsigned int i=0;i<nfa[state].e.size();i++){
if(si.count(nfa[state].e[i])==0){
si.insert(nfa[state].e[i]); epsilon_closure(nfa[state].e[i],si);
}
}
}

set<int> state_change(int c,set<int>&si){

set<int> temp; if(c==1){
for (std::set<int>::iterator it=si.begin(); it!=si.end(); ++it){
for(unsigned int j=0;j<nfa[*it].a[0].size();j++){
temp.insert(nfa[*it].a[0][j]);
}
}}
else{
for (std::set<int>::iterator it=si.begin(); it!=si.end(); ++it){
for(unsigned int j=0;j<nfa[*it].a[1].size();j++){
temp.insert(nfa[*it].a[1][j]);

6 | Page
 }
} } return
temp;
}

void nfa_to_dfa(set<int>&si,queue<set<int> >&que,int start_state){ map<set<int>, int> mp; mp[si]=-1; set<int>

temp1; set<int> temp2; int ct=0; si.clear(); si.insert(0); epsilon_closure(start_state,si); if(mp.count(si)==0){
mp[si]=ct++;
que.push(si); } int p=0; bool
f1=false;
while(que.size()!=0){
dfa.push_back(init_dfa_state);
si.empty(); si=que.front(); f1=false;
for (set<int>::iterator it=si.begin(); it!=si.end(); ++it){
if(nfa[*it].f==true)
f1=true; } dfa[p].f=f1;
temp1=state_change(1,si);
si=temp1;
for (set<int>::iterator it=si.begin(); it!=si.end(); ++it){
epsilon_closure(*it,si);
} if(mp.count(si)==0){
mp[si]=ct++;
que.push(si); dfa[p].a[0]=ct-1;
} else{
dfa[p].a[0]=mp.find(si)->second;
}
temp1.clear();

si=que.front(); temp2=state_change(2,si);
si=temp2;
for (set<int>::iterator it=si.begin(); it!=si.end(); ++it){

7 | Page
 epsilon_closure(*it,si);
} if(mp.count(si)==0){
mp[si]=ct++; que.push(si);
dfa[p].a[1]=ct-1;
} else{
dfa[p].a[1]=mp.find(si)->second;
} temp2.clear();
que.pop(); p++; } for(int
i=0;i<p;i++){
if(dfa[i].a[0]==-1)dfa[i].a[0]=p; if(dfa[i].a[1]==-1)dfa[i].a[1]=p;
} dfa.push_back(init_dfa_state);
dfa[p].a[0]=p; dfa[p].a[1]=p;
//cout<<p<<endl;
}

/***************************** min dfa ****************************/

/// Function to minimize DFA

pair<int,vector<tuple<int,int,bool> > > minimize_dfa(vector<dst> dfa) {
//cout<<dfa.size()<<endl;
vector<int> grp(dfa.size()); /// Group number for states vector<vector<int> > part(2,
vector<int>()); /// Partition for groups

/// Initializing the groups

part[0].push_back(0); for(int i=1;
i<(int)grp.size(); i++) { if(dfa[i].f==dfa[0].f) {
grp[i]=0; part[0].push_back(i);
} else { grp[i]=1;
part[1].push_back(i);
}

8 | Page
 }

if(!part[1].size()) part.erase(part.end());

/// Loop until no new partition is created bool chk=true; /// Check if
any new partition is created int strt = 0; /// Starting State
while(chk) {
chk=false;

/*for(int i=0; i<part.size(); i++) { cout<<i<<":";

for(int j=0; j<part[i].size(); j++) { cout<<part[i][j]<<" ";
} cout<<endl;
} cout<<endl;*/
/// Iterate over partitions and alphabets for(int i=0; i<part.size(); i++) { for(int j=0; j<2; j++) { vector<pair<int,int>
> trans(part[i].size()); /// Transitions for the states of partitions
/// Iterate over states of partitions and find transition groups for(int k=0;
k<part[i].size(); k++) { if(dfa[part[i][k]].a[j] >= 0) trans[k] =
make_pair(grp[dfa[part[i][k]].a[j]],part[i][k]);
else trans[k] = make_pair(-1,part[i][k]);
}
sort(trans.begin(), trans.end());

/// Break partition in case of different transitions if(trans[0].first!=trans[trans.size()-1].first) {

chk=true;
int k, m = part.size()-1;

part[i].clear();
part[i].push_back(trans[0].second);
for(k=1; k<trans.size() and (trans[k].first==trans[k-1].first); k++) {
part[i].push_back(trans[k].second);
}
while(k<trans.size()) {

9 | Page
 if(trans[k].first!=trans[k-1].first) {
part.push_back(vector<int> ()); m++;
}
grp[trans[k].second] = m;
part[m].push_back(trans[k].second); k++;
}
}
}
}
}

for(int i=0; i<part.size(); i++) {

for(int j=0; j<part[i].size(); j++) {
if(part[i][j]==0) strt=i;
}
}

vector<tuple<int,int,bool> > ret(part.size());

//cout<<part.size()<<endl;
//sort(part.begin(), part.end()); for(int i=0;
i<(int)part.size(); i++) {
//cout<<grp[part[i][0]]<<endl;
get<0>(ret[i]) = (dfa[part[i][0]].a[0]>=0)?grp[dfa[part[i][0]].a[0]]:-1; get<1>(ret[i]) =
(dfa[part[i][0]].a[1]>=0)?grp[dfa[part[i][0]].a[1]]:-1; get<2>(ret[i]) = dfa[part[i][0]].f;
}

return make_pair(strt, ret);

}

void print_menu(){

10| Page
 cout<<"\n \n";
cout<<"Input Regex: "<<dispregex<<endl<<endl; cout<<"1.
NFA\n"; cout<<"2. Intermediate DFA\n"; cout<<"3. Minimized
DFA\n"; cout<<"4. Simulation\n"; cout<<"Press any other key to
exit...\n\n";
}

void print(vector<tuple<int,int,bool> > min_dfa) {

cout<<" "<<endl;
cout<<"State\t|\tA\t|\tB\t|\tFinal\t|"<<endl;
cout<<" "<<endl;
for(int i=0; i<(int)min_dfa.size(); i++) { cout<<i<<"\t|\t";
cout<<get<0>(min_dfa[i])<<"\t|\t";
cout<<get<1>(min_dfa[i])<<"\t|\t";
if(get<2>(min_dfa[i])) cout<<"Yes\t|"; else cout<<"No\t|"; cout<<endl;
}
cout<<" "<<endl;
}

void simulate(int start_st,vector<tuple<int,int,bool> >min_dfa){

print_menu(); cout<<"Enter string :
"; string input; cin.ignore();
getline(cin,input); int
curr_state,next_state;
curr_state=start_st;
custom_clear();
cout<<" "<<endl;
cout<<"Input\t|\tCurrent\t|\tNext\t|"<<endl;
cout<<" "<<endl;

11| Page
 for(unsigned i=0;i<input.size();i++){ if(input[i]=='a')
next_state=get<0>(min_dfa[curr_state]);
else next_state=get<1>(min_dfa[curr_state]);
cout<<input[i]<<"\t|\t"<<curr_state<<"\t|\t"<<next_state<<"\t|\n"; curr_state=next_state;
}
cout<<" "<<endl;
cout<<endl<<"Verdict: ";
if(curr_state>=0&&get<2>(min_dfa[curr_state]))cout<<"Accepted"; else cout<<"Rejected";

cout<<endl;
}

int main()
{ custom_clear(); string
regexp,postfix;
cout<<"Enter Regular Expression: "; cin>>regexp;
dispregex=regexp; regexp=insert_concat(regexp); postfix
= regexp_to_postfix(regexp); cout<<"Postfix Expression:
"<<postfix<<endl; postfix_to_nfa(postfix);

int final_state=st.top();st.pop(); int

start_state=st.top();st.pop();
//cout<<start_state<<' '<<final_state<<endl; nfa[final_state].f=1;

set<int> si; queue<set<int> > que;

nfa_to_dfa(si,que,start_state);

cout<<endl<<endl;

12| Page
pair<int,vector<tuple<int,int,bool> > > min_dfa_tmp = minimize_dfa(dfa);

vector<tuple<int,int,bool> > min_dfa= min_dfa_tmp.second; int start_st =

min_dfa_tmp.first;

getchar(); custom_clear();

while(1){
print_menu(); char
choice;
choice=getchar();
custom_clear();
switch(choice) { case
'1':
display_nfa();
getchar(); break;
case '2': print_dfa();
getchar(); break;
case '3':
print(min_dfa);
getchar(); break;
case '4':
simulate(start_st,min_dfa); break;
default:
exit(EXIT_SUCCESS);
} } cout<<endl<<endl; cout<<"Enter string : ";
string input; cin.ignore(); getline(cin,input); int
curr_state,next_state; while(input!=""){
//cout<<input<<endl; curr_state=start_st;

13| Page
 for(unsigned i=0;i<input.size();i++){
if(curr_state>=0){ if(input[i]=='a')
next_state=get<0>(min_dfa[curr_state]);
else
next_state=get<1>(min_dfa[curr_state]);
if(next_state>=0){
cout<<input[i]<<" : State "<<curr_state<<" -> State "<<next_state<<endl;
}
else cout<<input[i]<<" : State "<<curr_state<<" -> Trap State"<<endl;
}
else cout<<input[i]<<" : Trapped"<<endl; curr_state=next_state;
} if(curr_state>=0&&get<2>(min_dfa[curr_state]))cout<<"accepted"; else
cout<<"rejected"; cout<<endl<<endl;
cout<<"Enter string : "; getline(cin,input);
} return 0;
}

14| Page
