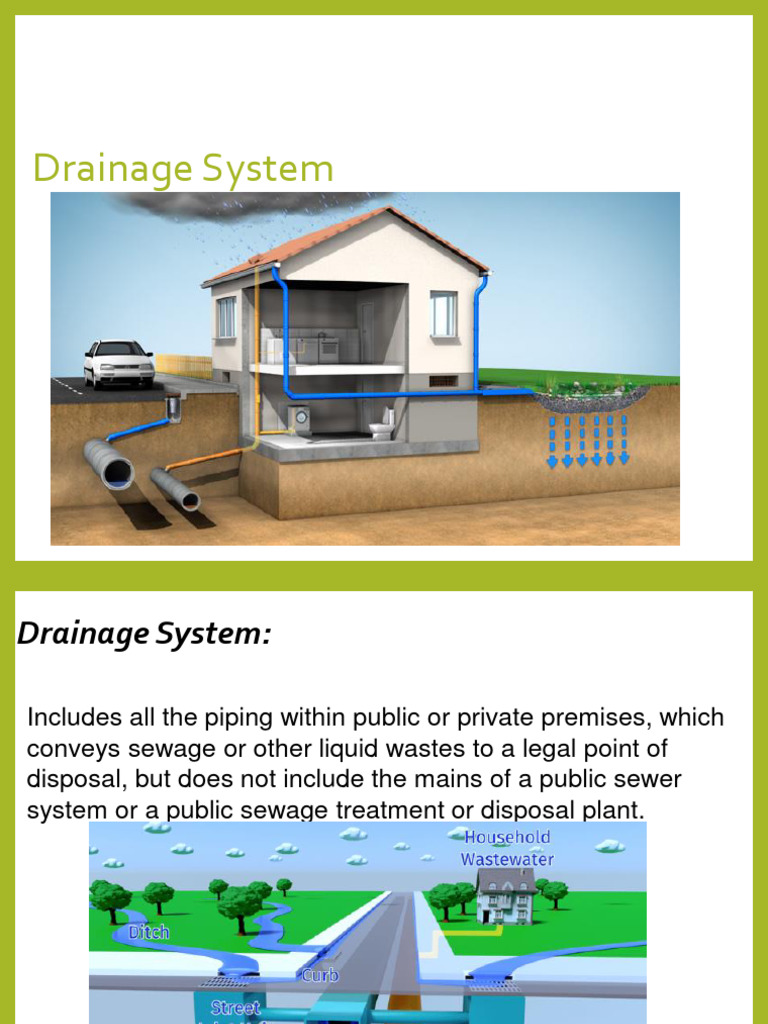

Includes all the piping within public or private premises, which
conveys sewage or other liquid wastes to a legal point of disposal, but does not include the mains of a public sewer system or a public sewage treatment or disposal plant. Drainage System: This system is often known as the DWV System (Drainage, Waste and Vent). The complete drainage system is subdivided into four (4) sub-systems, as follows. Drainage System: Subdivision of complete drainage system is:
1. SOIL DRAINAGE SYSTEM- The piping that conveys the
discharge of water closets or fixtures having similar functions (containing fecal matter), with or without the discharges from other fixtures. Drainage System: Subdivision of complete drainage system is:
2. WASTE DRAINAGE SYTEM or
SANITARY DRAINAGE SYSTEM- The piping that receives the liquid discharge, from plumbing fixtures other than those fixtures (water closets) receiving fecal matter. This piping is free of fecal flow. This is often a smaller diameter pipe that carries grey water from any appliance that uses water. Since the waste pipe is intended to carry only water, it is narrower than a soil pipe. Furthermore, it does not require the same venting system as a soil pipe. Moreover, since wastewater does not typically emit harmful gases, it does not need to be vented above ground level. Drainage System: Subdivision of complete drainage system (cont):
3. STORM DRAINAGE SYSTEM- The piping system that
receives clear water drainage from leaders, downspouts, surface run-off, ground water, subsurface water, condensate water, cooling water or other similar discharges and conveys them to the point of disposal. All sanitary wastes must be excluded.
4. VENT SYSTEM- the piping system that receives a flow or
air to or from a drainage system or to provide a circulation of air within such system to protect trap seals from siphonage or back pressure. Properly Designed Drainage System Gen. Req’t:
a. The piping must be air tight, gas tight and water tight.
b. Each plumbing fixture, except those with integral traps,
shall be separately trapped by an approved type water seal trap. This is to prevent odor-laden and germ-laden to rise out of the drainage system and contaminate the surrounding air in the room.
c. Each plumbing fixture trap shall be provided with vent
pipes. This is to protect the drainage system against siphonage and back pressure and to assure air circulation throughout the drainage system. Properly Designed Drainage System Gen. Req’t (con’t):
d. A cleanout, easily accessible, shall be provided for
inspection or cleaning of the pipe run. The location of the cleanout shall be:
- At the upper end of every horizontal waste or soil pipe.
- At every change of horizontal direction of not more
than 22.5 degrees
- Within 1.5 m (5’) inside the property line before the
house sewer connection
- At every 15m (50’) to a horizontal run of a soil or waste
pipe Properly Designed Drainage System Gen. Req’t (con’t):
e. All horizontal piping shall be run in practical alignment and
at a uniform grade of not less than 2% or 2 cm per meter toward the point of disposal.
f. All horizontal piping shall be supported and anchored at
intervals not to exceed 3 meters.
g. Vertical piping shall be secured at sufficiently close intervals
to keep the pipe in alignment. Stacks shall be properly supported at their bases. Essential Parts of the Sanitary Drainage System Essential Parts of the Sanitary Drainage System:
• Waste Pipe- conveys only wastewater or liquid waste
free of fecal matter.
• Soil Pipe- any pipe which conveys the discharge of
water closet, urinal or fixtures having similar functions, with or without the discharges from other fixtures to the building drain or building sewer.
• Vent Pipe- used for ensuring the circulation of air in a
plumbing system and for relieving the negative pressure exerted on trap seals. Essential Parts of the Sanitary Drainage System: • Vent Stack- the vertical vent pipe installed primarily for providing circulation of air to and from any part of the soil, waste of the drainage system.
• Stack- the vertical main of a system of soil, waste or
vent piping extending through one or more stories and extended thru the roof.
• Branch- any part of the piping system other than a
main, riser or stack. Essential Parts of the Sanitary Drainage System:
• House/Building Drain- part of the lowest horizontal
piping of a plumbing system which receives the discharges from the soil, waste and other drainage pipes inside of a building and conveys it to the house sewer outside of the building.
• House/Building Sewer- extends from the house drain
at a point 0.60 meters from the outside face of the foundation wall of a building to the junction with the street sewer or to any point of discharge, and conveying the drainage of one building site. Essential Parts of the Sanitary Drainage System:
• Trap- a fitting or device designed and constructed to
provide, when properly vented, a liquid seal which prevents the backflow of foul air or methane gas without materially affecting the flow of sewage or wastewater through it. • Septic Tank- A watertight receptacle which receives the discharge of a drainage system or thereof, designed and constructed so as to retain solids, digest organic matter through a period of detention and allow the liquids to discharge into the soil outside of the tank through a system of open joint piping or a seepage pit. Essential Parts of the Sanitary Drainage System:
• Private Sewage Disposal System- a septic tank with the
effluent discharging into a subsurface disposal field, seepage pits or of such other facilities or may be permitted by the plumbing code.
• Roof Gutter- collector at the eaves of the building.
• Down Spout - A vertical pipe which conveys rain water, also
known as conductor or rain water.
• Storm Drain- Receives storm water , clear, rain or
surface-water waste (SD).
• Catch Basin- A receptacle in which liquids are retained for
a sufficient period of time to allow materials to settle to deposit. TYPICAL PLUMBING SYSTEM OF A TOILET AND BATH Unit of Measurement of Sizes of Sanitary Drainage Lines
• The size of waste pipes or soil pipes depend on
the amount of waste it carries.
• A lavatory discharges 0.47 liters/sec or 28.3
liters/min (7.5 gallons per min or 1 cu ft per min), which is equivalent to the Fixture Unit (F.U.)
• The F.U. rating of plumbing fixtures is based on
the size of required trap. Traps Traps Types of Permissible Traps:
resealing quality is greater Traps Types of Permissible Traps:
The Stand Trap:
Used for fixtures such as slop sinks
that are usually built low in the ground, leaving very little space for a foundation & a trap
Serves as a water seal & structural
support for the fixture Traps
Types of Permissible Traps:
The Running Trap:
Used within the line of the house drain.
Traps Types of Permissible Traps:
The Drum Trap:
Has a large diameter (around 0.16 m)
Used for fixtures that discharge large amount of
water (bathtubs, shower or floor drains) Traps Types of Prohibited Traps:
• No fixtures shall be double-trapped
The S-Trap:
• Predecessor of P-traps
• Used before traps had to connect to a ventilation line
Traps Size of Traps:
• The trap shall be the same size as the trap arm to
which it is connected.
• Each fixture trap shall have a trap seal of water of
not less than 51 mm and not more than 100 mm (except where a deeper seal is found necessary by the Administrative Authority for special conditions. DFU – What is DFU? • Drainage Fixture Units • 1 cubic foot • Drain Fixture Unit, or DFU, is a plumbing design factor, or a relative measure of the drain wastewater flow or load for various plumbing fixtures. • 1 DFU = 1 cubic foot of water drained through a 1 1/4" diameter pipe in one minute. (1 ft³ /min water drained through a 1 1/4" diameter pipe). Drainage Fixture Unit Computations (UPC) Drainage Fixture Unit Computations (UPC) – cntd. Drainage Fixture Unit Computations (UPC) Drainage Fixture Unit Computations (UPC) Size of Drainage Piping • The minimum sizes of vertical and horizontal drainage piping shall be determined from the total of all fixtures units connected and additionally, in the case of vertical drainage pipes, in accordance with their length.
• Table 7-5 (UPC) and Table 11.5.1B (NSPC) shows the
maximum number of fixture unit allowed on any vertical or horizontal drainage pipe, building drain, or building sewer of given size; the maximum number of fixture units allowed on any branch interval of a given size. Maximum Unit Loading and Maximum Length of Drainage and Vent Piping TRAPS • Minimum Trap(Pipe) Size • Using table 5.2 (NSPC), we get the minimum pipe size to be used for each plumbing fixtures. For example, one Water Closet (WC) = 4 DFU. From table 11.5.1B up to 6 DFU pipe size shall be 2”. But for WC minimum pipe size shall be 3 inch. So even one WC DFU is 4, pipe will be 3 in and not 2 in. TRAPS VENTS • SIZING THE VENT PIPE SYSTEMS • Use Table 12.16 (NSPC) & Table 7-5 (UPC) to size vent pipe. • Table 12.16 (National standard plumbing code illustrated) we find that 1-1/2” vent pipe can connect up to 8 drainage fixture units. And 2” vent pipe can connect up to 20 DFU. Each WC has a 1-1/2” vent pipe connected to it as each WC has a value of 4 DFU. As the vent pipes are connected together as shown in figure 1.1 the DFU value exceeds 8 DFU which means that a 2” pipe has to be used. VENTS SAMPLE DESIGN
