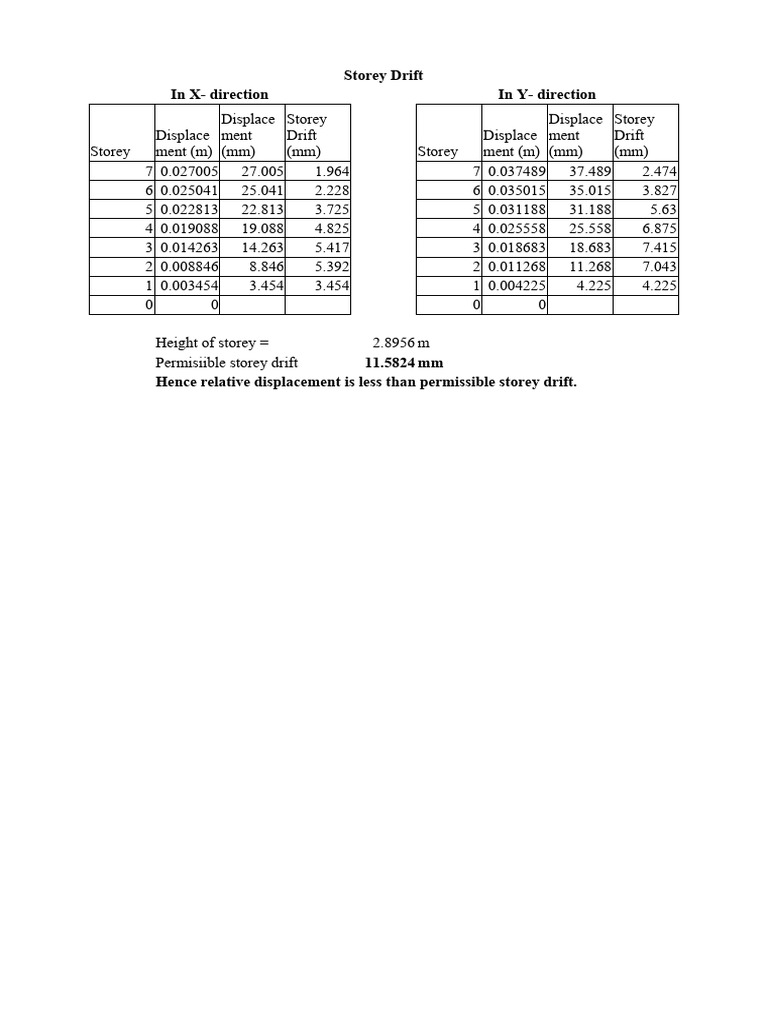

Storey Drift

In X- direction In Y- direction
Displace Storey Displace Storey
Displace ment Drift Displace ment Drift
Storey ment (m) (mm) (mm) Storey ment (m) (mm) (mm)
7 0.027005 27.005 1.964 7 0.037489 37.489 2.474
6 0.025041 25.041 2.228 6 0.035015 35.015 3.827
5 0.022813 22.813 3.725 5 0.031188 31.188 5.63
4 0.019088 19.088 4.825 4 0.025558 25.558 6.875
3 0.014263 14.263 5.417 3 0.018683 18.683 7.415
2 0.008846 8.846 5.392 2 0.011268 11.268 7.043
1 0.003454 3.454 3.454 1 0.004225 4.225 4.225
0 0 0 0

Height of storey = 2.8956 m

Permisiible storey drift 11.5824 mm
Hence relative displacement is less than permissible storey drift.
Mass Irregularity:
Mass irregularity shall be considered to exist where the seismic weight of any storey is more than
200 percent of that of its adjacent storey. The irregularity need not be considered in case of roofs.
(IS 1893 (Part1): 2002)
Neglecting the staircase cover, the seismic weights of all floors are equal and that of ground floor
is slightly greater than other floors. So, there is no way that the seismic weight of any floor is grea-
ter than 200 percent of that of its adjacent floors. Hence, mass irregularity does not exist in the
structure.

Torsional Irregularity

For Sixth floor,

Load Case:Eqx

Drift 1(D1) = 25.041 mm

Drift 2(D2) = 22.813 mm

Therefore Maximun Drift(Dmax) = 25.041 mm

Davg = 23.927 mm
Then,
Dmax/Davg = 1.047 < 1.2 (OK)

Load Case:Eqy

Drift 1(D1) = 35.015 mm

Drift 2(D2) = 31.188 mm

Therefore Maximun Drift(Dmax) = 35.015 mm

Davg = 33.1015 mm
Then,
Dmax/Davg = 1.058 < 1.2 (OK)
 Stability Index of different storey in X- direction
Seismic Axial Load Σ Lateral
Storey Weight Wi Pu = Σ Wi ∆u (mm) Load Hu = Hs (mm) Qsi = Classification
(KN) (KN) Vi (KN)
7 67.826 67.826 1.964 24.648 2895.6 0.0019 Non-Sway Qsi<0.04
6 608.157 675.984 2.228 187.017 2895.6 0.0028 Non-Sway Qsi<0.04
5 4441.671 5117.655 3.725 1010.533 2895.6 0.0065 Non-Sway Qsi<0.04
4 4441.671 9559.325 4.825 1537.583 2895.6 0.0104 Non-Sway Qsi<0.04
3 4441.671 14000.996 5.417 1834.049 2895.6 0.0143 Non-Sway Qsi<0.04
2 4441.671 18442.667 5.392 1965.811 2895.6 0.0175 Non-Sway Qsi<0.04
1 4441.671 22884.338 3.454 1998.752 2895.6 0.0137 Non-Sway Qsi<0.04

Stability Index of different storey in Y- direction

Seismic Axial Load Σ Lateral
Storey Weight Wi Pu = Σ Wi ∆u (mm) Load Hu = Hs (mm) Qsi = Classification
(KN) (KN) Vi (KN)
7 67.826 67.826 2.474 20.292 2895.6 0.0029 Non-Sway Qsi<0.04
6 608.157 675.984 3.827 153.968 2895.6 0.0058 Non-Sway Qsi<0.04
5 4441.671 5117.655 5.63 831.953 2895.6 0.0120 Non-Sway Qsi<0.04
4 4441.671 9559.325 6.875 1265.864 2895.6 0.0179 Non-Sway Qsi<0.04
3 4441.671 14000.996 7.415 1509.939 2895.6 0.0237 Non-Sway Qsi<0.04
2 4441.671 18442.667 7.043 1618.417 2895.6 0.0277 Non-Sway Qsi<0.04
1 4441.671 22884.338 4.225 1645.536 2895.6 0.0203 Non-Sway Qsi<0.04
 Stiffness Irregularity

Load Cases : Eqx

Storey Elevation Lateral Force Displacement( X-direction 0.7ki+1 Remarks

(m) (KN) mm) (KN/m)
7 20.2692 24.648 1.964 12549.874393 0 Not Soft Storey
6 17.3736 187.017 2.228 83939.524939 8784.91208 Not Soft Storey
5 14.478 1010.533 3.725 271284.02217 58757.6675 Not Soft Storey
4 11.5824 1537.583 4.825 318670.06094 189898.816 Not Soft Storey
3 8.6868 1834.049 5.417 338572.77157 223069.043 Not Soft Storey
2 5.7912 1965.811 5.392 364579.23201 237000.94 Not Soft Storey
1 2.8956 1998.752 3.454 578677.43133 255205.462 Not Soft Storey

Load Cases : Eqy

Storey Elevation Lateral Force Displacement( Y-direction 0.7ki+1 Remarks
(m) (KN) mm) (KN/m)
7 20.2692 20.292 2.474 8202.1871876 0 Not Soft Storey
6 17.3736 153.968 3.827 40232.010904 5741.53103 Not Soft Storey
5 14.478 831.953 5.63 147771.47461 28162.4076 Not Soft Storey
4 11.5824 1265.864 6.875 184125.69014 103440.032 Not Soft Storey
3 8.6868 1509.939 7.415 203633.02743 128887.983 Not Soft Storey
2 5.7912 1618.417 7.043 229790.79622 142543.119 Not Soft Storey
1 2.8956 1645.536 4.225 389475.97577 160853.557 Not Soft Storey
