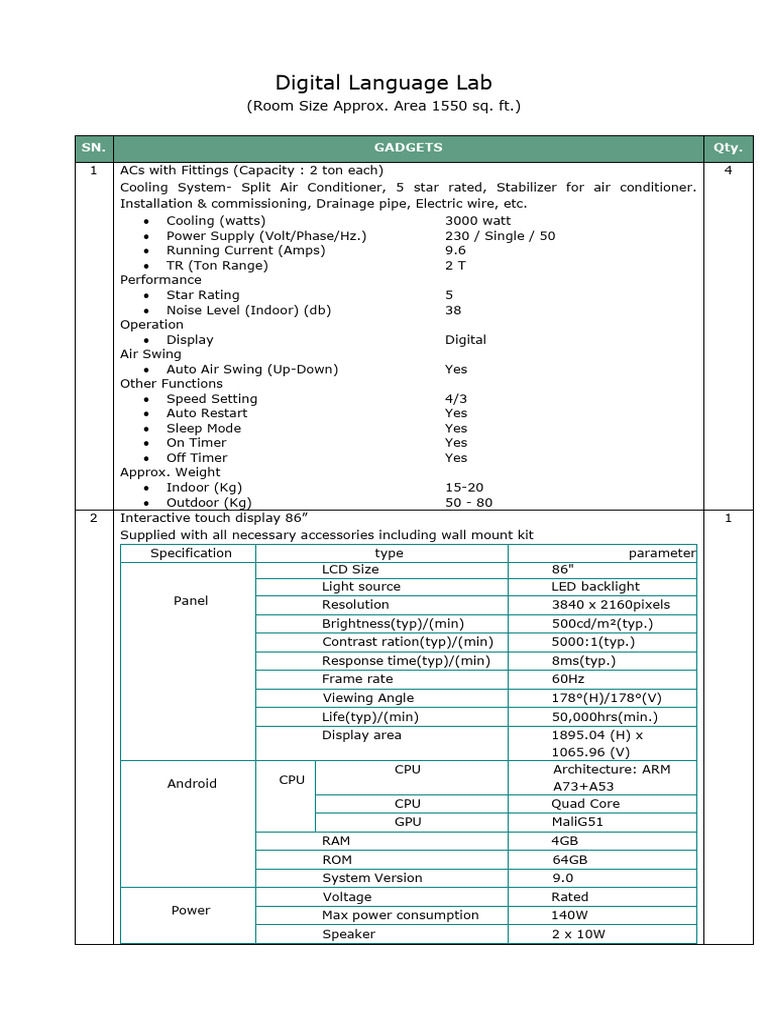

Digital Language Lab

(Room Size Approx. Area 1550 sq. ft.)

SN. GADGETS Qty.

1 ACs with Fittings (Capacity : 2 ton each) 4
Cooling System- Split Air Conditioner, 5 star rated, Stabilizer for air conditioner.
Installation & commissioning, Drainage pipe, Electric wire, etc.
 Cooling (watts) 3000 watt
 Power Supply (Volt/Phase/Hz.) 230 / Single / 50
 Running Current (Amps) 9.6
 TR (Ton Range) 2T
Performance
 Star Rating 5
 Noise Level (Indoor) (db) 38
Operation
 Display Digital
Air Swing
 Auto Air Swing (Up-Down) Yes
Other Functions
 Speed Setting 4/3
 Auto Restart Yes
 Sleep Mode Yes
 On Timer Yes
 Off Timer Yes
Approx. Weight
 Indoor (Kg) 15-20
 Outdoor (Kg) 50 - 80
2 Interactive touch display 86” 1
Supplied with all necessary accessories including wall mount kit
Specification type parameter
LCD Size 86"
Light source LED backlight
Panel Resolution 3840 x 2160pixels
Brightness(typ)/(min) 500cd/m²(typ.)
Contrast ration(typ)/(min) 5000:1(typ.)
Response time(typ)/(min) 8ms(typ.)
Frame rate 60Hz
Viewing Angle 178°(H)/178°(V)
Life(typ)/(min) 50,000hrs(min.)
Display area 1895.04 (H) x
1065.96 (V)
CPU Architecture: ARM
Android CPU
A73+A53
CPU Quad Core
GPU MaliG51
RAM 4GB
ROM 64GB
System Version 9.0
Voltage Rated
Power Max power consumption 140W
Speaker 2 x 10W
 Power supply (AC) input AC 100 V ~ 240 V,
50/60 Hz
LAN 1
HDMI 3
In Interface
VGA 1
DP 1
USB 2
Accessories Remote Control 1
Touch Pen 1
Power Cord 1
3 Home Theatre Sound System 1
Product Dimensions 40 x 33.2 x 30 cm; 6.12 Kilograms

Compatible Devices Mobiles, Tablets, Laptops, Computers, TV

Special Features Auto speaker setup, BLUETOOTH

Mounting Hardware 2 RCA to stereo-1 no. cable, Remote control

Audio Output Mode Surround

Speaker Surround Sound 5.1

Channel Configuration

Speakers Maximum Output 45 Watts

Power

Speaker Amplification Type AB amplifier

Speaker Connectivity Wired

Audio Wattage 45 Watts

Voltage 230 Volts

Wattage 28 Watts

Power Source Corded Electric

Signal To Noise Ratio 60

Total USB Ports 2

Connector Type Wired

Mounting Type Wall Mount

Item Weight 6 kg 120 gm

4 Head phone with mic 35
Package Dimensions 21.8 x 17.2 x 8.1 cm; 150 Grams

Hardware Platform PC

Special Features Volume Control

Mounting Hardware Cable

Microphone Form Factor With microphone

 Headphones Form Factor On Ear

Connector Type Wired

Material Faux Leather

Item Weight 150 gm

5 15 KVA Single phase In - Single phase Out, Online UPS With backup time 60 minutes, 1
isolation transformer, battery and stand, SMF battery 100 Ah x 30 pc
VA Rating: 1000, Technology: Sine wave, Max Charging Current (in Amperes) : 21,
Running appliances : Fans, LED Screen, Lights, Supported battery types: Flat Tubular,
Protections Deep Discharge, MCB, Overload, Short circuit Other features: Digital
display, Fast charging, Easy UPS bypass, MCB protection.

6 Digital Podium: 1
Size 2.2 (L) x 2.4 (W) x 4 (H) feet
MS-toughened steel structure with front side
lockable opening to allow ease of debugging and
Structure
making connections
MS-steel holders for cables
Mobility 4 castor wheels with locking facility
Display 21 inch or higher LED, Full HD touch display
VESA Tiltable hydraulic display mount
Touch Technology Optical finger and pen touch input
Resolution 1920 x 1080
Amplifier 120 watt
Condenser adjustable mic with XLR connector on
podium top surface
Microphones
VHF handheld and collar mic integrated with
receiver
XLR & ¼” Jack Output
level control output
Onboard EFX delay with repeat
AUX Out Unit
RCA input control
3 band EQ for total 6 lines
Cue channel control for total 6 lines
Drawer for keyboard & mouse
Storage Drawer for Document Camera
Storage compartment for UPS
Network NET - 1 IN
VGA - Port
Curtain Power - 1 OUT
HDMI - Port
Audio Visual Interface
Audio – in built
Microphone - 1 IN
USB - 2 IN

7 Ultra short throw Projector: 1

Projection System: 0.48" WUXGA
Native Resolution: 1920x1200
Brightness: 4500 ANSI Lumens
 Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor system
Light Source Life (Normal): up to 20000
Lamp Watt: Nichia 67W x2
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2 , (HDMI 2.0 (HDCP 2.2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
RJ45 Input: (LAN control)
8 Motorised Projector Screen 4’ x 6’ 1

TECHNICAL
1 Digital Language Lab Installation including all kind of taxes, labour works, transportation,
installation charges, etc.
2 Technical knowhow and Human Resourcing Training for 2 days - onsite
3 Perpetual Licensed modules of English Language Learning
Should have 3 levels ranging Basic, Intermediate and Advanced with substantial content to
hone the learner skills and should be based on the Blended Learning Mechanism, i.e. It
should have Instructor Lead Teaching (ILT/ Classroom teaching) content as well as Computer
Based Training (CBT/Lab practice) content. Basic Level should use the contextual learning
methodology.
Content should purely be multimedia based and comprise of graphics, audio, video and
should be highly interactive in nature.
The content should be as per the Common European Framework of reference (CEFR)

The software should have capabilities of Listening, Recording and Comparing of Speech
patterns both via audio and visual. The software should have speech spectrograph for
visualization.
The software should be based on neutral accent and should not use the foreign accent
The software should consist of a glossary of words with correct pronunciation in the Indian
context
The software should have 3D animated mouth movements for proper articulation for all 44
sounds
Should have a Mother Tongue Influence (MTI) removal tool
It should cater to all the four skills:
Listening
Conversation
Narrative
Advertisement
News
Speaking
Conversation
Public speaking
Opinion
Reading
Skimming & Scanning
 Identifying Facts & Opinion
Loud Reading
Paragraph
Silent Reading
Writing
Formal Letter
Informal Letter
Paragraph
Email
Blog
Analytical Paragraph
And also Grammar & Vocabulary with CEFR levels
The software should also have the following soft skills/personality development topics:
 Types of Personalities
 Self Confidence
 Positive Attitude
 Emotional Intelligence (EI)
 Stress Management
 Anger Management
 Creative Thinking
 Grooming
 Interpersonal Skills which include Group Discussion, Public Speaking, Presentation Skills
Etc.
 Time Management
 Job Interview Preparation
 Entrepreneurship Skills
Detailed trainer Manuals as per session plan should be available for each level to guide the
teacher in each lesson for the training purpose
The software should have pre-defined lesson plans
Student courseware/work books should be available in accordance with the software
Teacher should be able to create tasks for students to work later on
Detailed reports on the activities performed by the students as well as teachers should be
made available
Students recordings should be made available to the teachers for evaluation at any time,
during and after the students sessions
There should not have a limit on the number of student logins to be created
There should be automatic update feature available using Automatic Patch Servers
2 Days Train the Trainer program should be provided by a subject matter expert
There should be a company’s support centre with proper support procedures like web based
ticketing system
The Software should work on Desktop PCs , Thin Client/Zero Client and Android Tablets
The English Language Lab should work on Windows , Android as well as the Linux operating
systems
Should be a make in India Product
It should be ISO certified company
The software should not have any plagiarised content i.e. no data from the internet should be
downloaded as part of content. The company should own the IPR of all the content used in
the language lab
 FURNITURE AND FIXTURE
1 Wooden Furniture:
Computer table for faculty 2
Computer table size – 5’ L x 3’ H x 3’ W.
Carpentry work for computer table: Fabrication of wooden work of 5ft long x 3ft wide and
2.6 ft. height with a comfortable seating. Standard ISI water and insect proof laminated
particle board with minimum 18 mm thick board should be used. Laminate, fevicol, Nails
screws, Abro tapes, cuttings, etc. Material: High quality, ISI marked
Computer Table for Students For
Carpentry work for student table: Fabrication of wooden work with a comfortable seating. 60
Standard ISI water and insect proof laminated particle board with minimum 18 mm thick users
board should be used. Laminate, fevicol, Nails screws, Abro tapes, cuttings, etc. Material:
High quality, ISI marked. Table size would be done as per room size
Miscellaneous wall using Fevicol, Nails, Screws, Abro tapes cuttings, etc. Standard ISI water
and insect proof laminated particle board with minimum 18 mm thick board should be used.
Material: High quality, ISI marked
2 Student chair
Specially designed student chair (2’L x 2’W x 2’.6”H) with Seat & Back cover cushion chair
60
upholstered in Leatherette, Metal Powder Coated Four Legs CN Size: Max H-455mm x W-
595mm x D-510mm Fixed Arms.
3 Chair for Faculty
Finish : Matt, Medium Back Office Chair, Color: Black, Revolving Chair with Castor
2
Wheels, Ergonomically Designed Dimensions : Overall Height (cm) : 45, Overall Width
(cm) : 51, Overall Depth (cm) : 43
Group discussion table for students
Carpentry work for group discussion table: Fabrication of wooden work of 6’ Lx 3’ H x 3’.
4 Standard ISI water and insect proof laminated particle board with minimum 18 mm thick 2
board should be used. Laminate, fevicol, Nails screws, Abro tapes, cuttings, etc. Material:
High quality, ISI marked
Chairs with Group discussion table with Seat & Back cover cushion chair upholstered in
Leatherette, Metal Powder Coated Four Legs CN Size: Max H-455mm x W- 595mm x D-
510mm Fixed Arms.
5 16
Finish: Matt, Medium Back Office Chair, Color: Black, Revolving Chair with Castor
Wheels, Ergonomically Designed Dimensions: Overall Height (cm) : 45, Overall Width
(cm) : 51, Overall Depth (cm) : 43
Center table with glass: Standard ISI water and insect proof laminated particle board with
6 minimum 18 mm thick board should be used. Laminate, fevicol, Nails screws, Abro tapes, 1
cuttings, etc. Material: High quality, ISI marked 4’ Lx 2’.6” W x 2’ H
8 Visitor chairs 2 seater with Seat & Back cover cushion 2

9 Wooden Door with lock, door closure and panelling 2

ACOUSTICS - FLOORING – CEILING – COLOR – ELECTRIFICATION & OTHERS

Acoustics & False ceiling work:
Acoustic work with perforated wall panelling, finishing of wall with material; space between wall
& board foam filled with 25 MM glass wool; vertical wall color work with putty.
1 (i) Plain gyp-board ceiling: Characteristics: Standard board product (Gypsum core firmly
500
bonded with strong paper liners)
sq.
Properties:
ft.
Thermal Conductivity: 0.16 (w/mºK)
 Thermal resistance: 0.059 for 9.5mm thick board Edges: Taper edge along length of
board Square edge along width of board
(ii) Grid ceiling:
Material Mineral Fiber
Size 24"W x 24"L x 8 MM T
1050
Colour White
sq.
Style FISSURED
ft.
Installation Type Glue Down
Pattern Square
Shape Square
1300
(iii) Acoustics work: Gyp. Perforated wall panelling work with painting with acrylic
sq.
washable enamel paint
ft.
Colour work (using best quality plastic paint)
1550
I. Ceiling color work with putty etc. sq.
2 ft.
1300
II. Vertical wall color work with putty etc. sq.
ft.
1550
3 Flooring Work : Vitrified Tiles Using 'Tile on Tile' Chemical
sq. ft.
Electrification:
I. 2' x 2' LED fixtures
Features Back Light
Shape Square
Wattage 36w
Fixing Type Recessed/Surface
12
IP Rating IP20
Body Material Sheet Aluminium
Product Dimensions in MM S-600 x H-50mm
Lumen Output 3600Lm
Operating Temperature -20 °C to +60 °C
II. Round Down Light LED
Colour White
4 Material Polycarbonate
Style Asian
20
Light fixture form Close to Ceiling
Indoor/Outdoor Usage Indoor
Product Dimensions 11L x 11W x 5H Centimetres
Light Source Type LED
III. ISI marked Wires, Switches & Metal Boxes, etc. as per requirement
IV. Wall fan (12'' S.S.)
Speed - 1350 rpm, Number of Blades - 3
Sweep - 400 mm, Dimensions- 48.8x46.2x24 cm 8
Model No- Swing, Weight - Approx. 4.6 Kg
Power - 55 W
V. MCB, ELCB, etc.
1 set
1P Single MCB, four Pole ELCB ISI marked
 Networking
 ISI marked Wires, Switches & Surface Boxes, etc.
 Material: Flame Retardant PVC Insulated, Color: Blue/ RED/ BLACK/ Green
5  Package Contents: 1-Piece Fire Retardant Wire, PVC insulated cable
 Single core copper conductor flexible, 1100 volts
 (16 x 4 PORTS) SWITCH; Cabling with Conduit; I/O Boxes; Rack With PDU; Patch Cables;
Patch Panel D-link switch 10/100 speed, twisted pair cat 6 cable.
6 Civil work like closing windows, finishing of wall with material, etc.
Doormat
Color - Green/Grey/ Black
7 2
Mat Size 3 - 4 Feet
Thickness 15 mm
8 To be provided with ABC type firefighting equipment 2
As per
9 Stage for faculty 14’ L x 4’ W x 4” H room
size
10 4’ x 6’ magnetic writing board 1
11 Lab manuals 1
As
12 Room to be split in to 3 steps with 3” H of each step. per
req.

******
