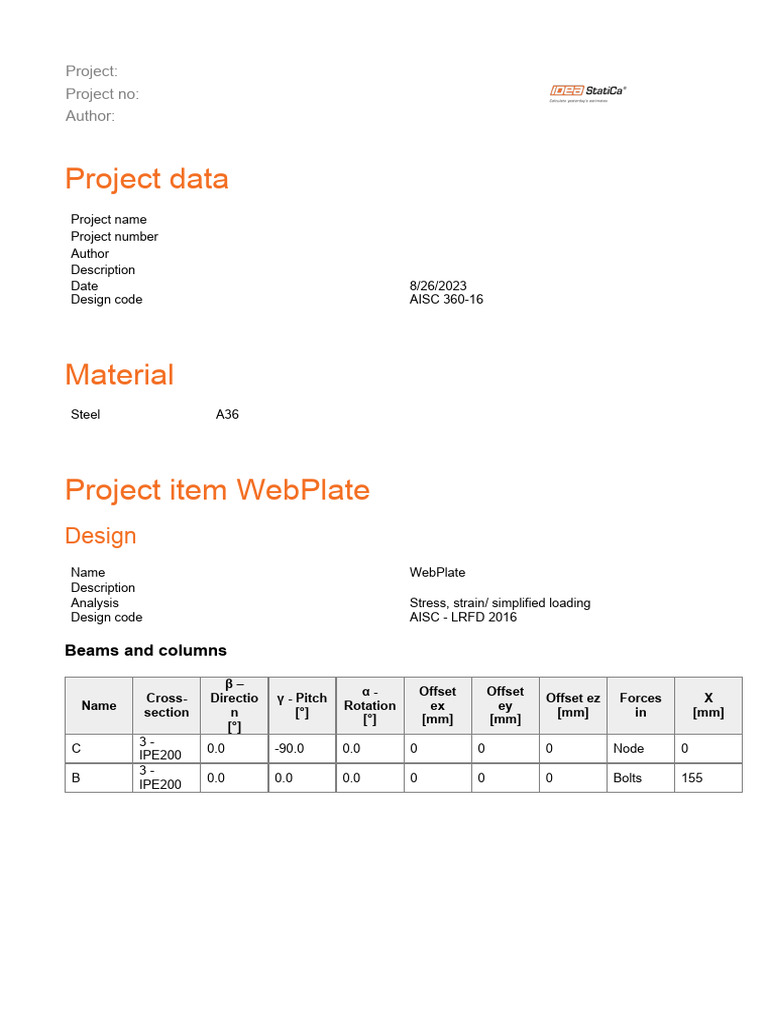

Project data
Project name
Project number
Author
Description
Date 8/26/2023
Design code AISC 360-16

Material
Steel A36

Project item WebPlate

Design
Name WebPlate
Description
Analysis Stress, strain/ simplified loading
Design code AISC - LRFD 2016

Beams and columns

β–
α- Offset Offset
Cross- Directio γ - Pitch Offset ez Forces X
Name Rotation ex ey
section n [°] [mm] in [mm]
[°] [mm] [mm]
[°]
3-
C 0.0 -90.0 0.0 0 0 0 Node 0
IPE200
3-
B 0.0 0.0 0.0 0 0 0 Bolts 155
IPE200
Project:
Project no:
Author:

Cross-sections

Name Material
3 - IPE200 A36

Cross-sections

Name Material Drawing

3 - IPE200 A36

Bolts

Diameter fu Gross area

Name Bolt assembly
[mm] [MPa] [mm2]
5/8 A325 5/8 A325 16 827.4 198

Load effects (equilibrium not required)

N Vy Vz Mx My Mz
Name Member
[kN] [kN] [kN] [kNm] [kNm] [kNm]
LE1 B 0.0 0.0 -100.0 0.0 0.0 0.0
Project:
Project no:
Author:
Check
Summary

Name Value Check status

Analysis 100.0% OK
Plates 2.8 < 5.0% OK
Bolts 90.9 < 100% OK
Welds 78.7 < 100% OK
Buckling Not calculated

Plates

fy Thickness σEd εPl σcEd Check

Name Loads
[MPa] [mm] [MPa] [%] [MPa] status
C-bfl 1 248.2 8.5 LE1 222.0 0.0 0.0 OK
C-tfl 1 248.2 8.5 LE1 23.2 0.0 0.0 OK
C-w 1 248.2 5.6 LE1 223.4 0.0 0.0 OK
B-bfl 1 248.2 8.5 LE1 156.6 0.0 0.0 OK
B-tfl 1 248.2 8.5 LE1 155.4 0.0 0.0 OK
B-w 1 248.2 5.6 LE1 229.1 2.8 70.1 OK
FP1 248.2 10.0 LE1 224.2 0.4 70.1 OK

Design data

fy εlim
Material
[MPa] [%]
A36 248.2 5.0

Symbol explanation

εPl Plastic strain

σcEd Contact stress
σEd Eq. stress
fy Yield strength
εlim Limit of plastic strain
Project:
Project no:
Author:

Overall check, LE1

Strain check, LE1

Project:
Project no:
Author:

Equivalent stress, LE1

Bolts

Ft V ϕRn,bearing Utt Uts Utts

Shape Item Grade Loads Sta
[kN] [kN] [kN] [%] [%] [%]
5/8 A325
B1 LE1 19.2 49.8 64.0 20.9 90.2 - OK
-1

5/8 A325
B2 LE1 9.9 50.2 64.0 10.7 90.9 - OK
-1

Design data

ϕRn,tension ϕRn,shear
Grade
[kN] [kN]
5/8 A325 - 1 92.0 55.2

Symbol explanation

Ft Tension force
V Resultant of shear forces Vy, Vz in bolt
ϕRn,bearing Bolt bearing resistance
Utt Utilization in tension
Uts Utilization in shear
Utts Utilization in tension and shear
ϕRn,tension Bolt tension resistance AISC 360-16 J3.6
ϕRn,shear Bolt shear resistance AISC 360-16 – J3.8
Project:
Project no:
Author:
Detailed result for B1

Tension resistance check (AISC 360-16: J3-1)

92.0 kN ≥ 19.2 kN
Where:
– nominal tensile stress from AISC 360-16 Table J3.2
– gross bolt cross-sectional area
– resistance factor

Shear resistance check (AISC 360-16: J3-1)

55.2 kN ≥ 49.8 kN
Where:
– nominal shear stress from AISC 360-16 Table J3.2
– gross bolt cross-sectional area
– resistance factor

Bearing resistance check (AISC 360-16: J3-6)

≤

64.0 kN ≥ 49.8 kN
Where:
– clear distance, in the direction of the force, between
the edge of the hole and the edge of the adjacent hole or
edge of the material
– thickness of the plate
– diameter of a bolt
– tensile strength of the connected material
– resistance factor for bearing at bolt holes

Interaction of tension and shear check (AISC 360-16: J3-2)

The required stress, in either shear or tension, is less than or equal to 30% of the corresponding
available stress and the effects of combined stresses need not to be investigated.

Detailed result for B2

Tension resistance check (AISC 360-16: J3-1)

92.0 kN ≥ 9.9 kN
Where:
– nominal tensile stress from AISC 360-16 Table J3.2
– gross bolt cross-sectional area
– resistance factor

Shear resistance check (AISC 360-16: J3-1)

55.2 kN ≥ 50.2 kN
Where:
Project:
Project no:
Author:
– nominal shear stress from AISC 360-16 Table J3.2
– gross bolt cross-sectional area
– resistance factor

Bearing resistance check (AISC 360-16: J3-6)

≤

64.0 kN ≥ 50.2 kN
Where:
– clear distance, in the direction of the force, between
the edge of the hole and the edge of the adjacent hole or
edge of the material
– thickness of the plate
– diameter of a bolt
– tensile strength of the connected material
– resistance factor for bearing at bolt holes

Interaction of tension and shear check (AISC 360-16: J3-2)

The required stress, in either shear or tension, is less than or equal to 30% of the corresponding
available stress and the effects of combined stresses need not to be investigated.

Weld sections

Th Ls L Lc Fn ϕRn Ut
Item Edge Xu Loads Status
[mm] [mm] [mm] [mm] [kN] [kN] [%]
C-bfl 1 FP1 E70xx ◢3.5◣ ◢5.0◣ 149 10 LE1 9.0 11.4 78.7 OK
E70xx ◢3.5◣ ◢5.0◣ 149 10 LE1 8.6 11.1 77.4 OK

Symbol explanation

Th Throat thickness of weld

Ls Leg size of weld
L Length of weld
Lc Length of weld critical element
Fn Force in weld critical element
ϕRn Weld resistance AISC 360-16 J2.4
Ut Utilization

Detailed result for C-bfl 1 / FP1 - 1

Weld resistance check (AISC 360-16: J2-4)

11.4 kN ≥ 9.0 kN
Where:
– nominal stress of weld material:

, where:

482.6 MPa – electrode classification number, i.e. minimum specified tensile strength

84.7° – angle of loading measured from the weld longitudinal axis

Project:
Project no:
Author:
– effective area of weld critical element
– resistance factor for welded connections

Detailed result for C-bfl 1 / FP1 - 2

Weld resistance check (AISC 360-16: J2-4)

11.1 kN ≥ 8.6 kN
Where:
– nominal stress of weld material:

, where:

482.6 MPa – electrode classification number, i.e. minimum specified tensile strength

69.8° – angle of loading measured from the weld longitudinal axis

– effective area of weld critical element
– resistance factor for welded connections

Buckling

Buckling analysis was not calculated.

Cost estimation
Steel

Steel grade
A36 1.18

Bolts

Bolt assembly
5/8 A325 0.49

Welds

Throat thickness Leg size Total weight Unit cost

Weld type
[mm] [mm] [kg] [T/kg]
Double fillet 3.5 5.0 0.03 2000000.00 588

Hole drilling

Bolt assembly cost Percentage of bolt assembly cost Cost

[T] [%] [T]
148458.53 30.0 44537.56
Project:
Project no:
Author:
Cost summary

Cost
Cost estimation summary
[T]
Total estimated cost 281308.59

Bill of material
Manufacturing operations

Plates Welds Length

Name Shape Nr. Bolts Nr.
[mm] [mm] [mm]

P10.0x100.
Double fillet:
FP1 0-150.0 1 150.0 5/8 A325 2
a = 3.5
(A36)

Welds

Throat thickness Leg size Length

Type Material
[mm] [mm] [mm]
Double fillet E70xx 3.5 5.0 150.0

Bolts

Grip length
Name Count
[mm]
5/8 A325 16 2

Code settings
Item Value Unit Reference
Friction coefficient -
0.40 - ACI 349 – B.6.1.4
concrete
Friction coefficient in slip-
0.30 - AISC 360-16 J3.8
resistance
Limit plastic strain 0.05 -
Weld stress evaluation Plastic redistribution
Detailing No
Distance between bolts [d] 2.66 - AISC 360-16 – J3.3
Distance between bolts
1.25 - AISC 360-16 – J.3.4
and edge [d]
Concrete breakout
Both
resistance check
Base metal capacity check
No AISC 360-16: J2-2
at weld fusion face
Cracked concrete Yes ACI 318-14 – Chapter 17
Local deformation check No
Local deformation limit 0.03 - CIDECT DG 1, 3 - 1.1
Project:
Project no:
Author:
Analysis with large
Geometrical nonlinearity
Yes deformations for hollow
(GMNA)
section joints
