Schlumberger Private

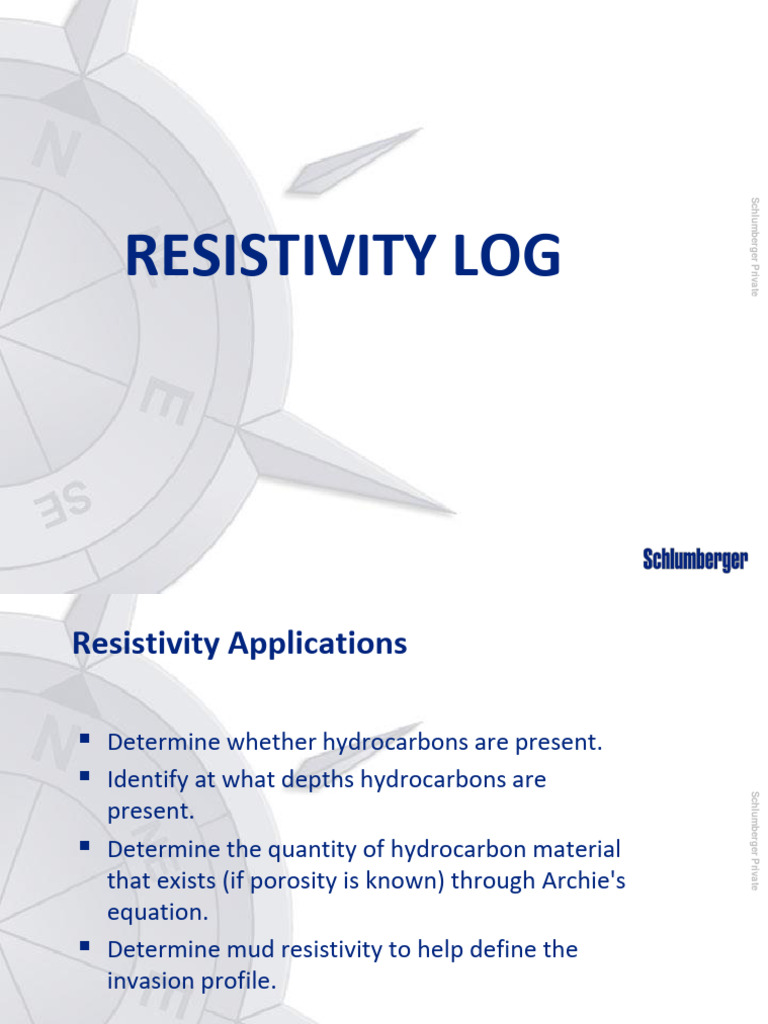

RESISTIVITY LOG
Resistivity Applications

▪ Determine whether hydrocarbons are present.

▪ Identify at what depths hydrocarbons are

Schlumberger Private
present.
▪ Determine the quantity of hydrocarbon material
that exists (if porosity is known) through Archie's
equation.
▪ Determine mud resistivity to help define the
invasion profile.

2
Resistance vs. Resistivity

 Resistance – property of an object – Cable (will

depend on quantity)
 Resistivity – property of a material – Copper

Schlumberger Private
3
Material Resistivities

Material Resistivity in ohm-m2/m

Schlumberger Private
-8
Silver 1.59 x 10
-8
Bismuth - Tin 400 x 10
10
Dielectrics > 10
8
Marble 5 x 10
Quartz 3 x 1014
Petroleum 2 x 1014

4
Measuring Resistivity
V - Voltage (Volts) R - Resistance (Ohms)
I - Current (Amperes) A - Area (Square Meters)
L - Length (Meters) r - Resistivity (Ohms

Schlumberger Private
Meters)

Ohms Low : V=IR

L
Substitute R with r: R= r x L/A
A Ohms Law with resistivity: V=r x L/A x I
R
Substitute : k = (A/L) r = V/I x (A/L)
r

I
V
Resistivity: r = V/I x k

K : Geometrical factor

5
Resistivity

Schlumberger Private
 Resistivity of the salt water is  Resistivity of the Oil is high
low ( highly conductive )  ( Poor conductor )
Resistivity

Schlumberger Private
 Dry, nonmetallic minerals (rock matrix) have a very high resistivity
Resistivity

Schlumberger Private
 The resistivity of a rock will depend on the conductivity of
the fluids saturating the porous volume
Common formation Resistivities

Schlumberger Private
Formation type Resistivity Range (ohm-m)
Soft Formations - shaley sands 0.2 to 50
Hard Formation - carbonates 100 to 1000
Evaporites - salt and anhydrite > 1000

9
 Resistivity Logs

 Measure the resistivity (conductivity) of the formation

 Two types available

Schlumberger Private
▪ Induction logs: run in nonconductive or low-conductivity
muds
▪ Laterologs: run in highly conductive muds (salt based)
Resistivity Tool Limitations

1000 Possible large errors all AIT logs

Schlumberger Private
Possible large errors on shallow AIT logs
Rt (ohmm)

100
Recommended AIT AIT
operating Range and/or
HRLA
10
HRLA

0.001 0.01 0.1 1 10 100 1000 10000

Rt/Rm
(Low Rm or High Rt)
History

Normals (16”, 64”) (1930)

Laterals (18”)
1940
Laterolog

Schlumberger Private
Induction (IES) 1950
Dual Induction (DIT-B)
Dual Laterolog 1960
Spherically Focused Laterolog
Dual Induction (DIT-D) 1970
Dual Induction - Phasor (DIT-E)
Array Induction 1980
AIT-B
Platform Express (AIT-H) 1990

1995
AIT-H Features
 Five depth of investigation
 10, 20, 30, 60 and 90”
 Vertical resolutions
 1, 2 and 4ft
 Real time borehole corrections

Schlumberger Private
 Built in Rm Sensor
 Caliper input from PEX
 Real time data quality Monitoring
 Invasion Profiling
 Model-based Rt and Rxo measurements
 SP within the Rm Sensor
 Logging speed: 3600ft/hr
AIT-H Specifications

• Name: AIT-H
• Length: 16ft
• Diameter: 3 7/8”

Schlumberger Private
• Borehole size: 4 3/4” - 20”
• Single Frequency: 26.325 khz
• Compatibility: standalone or Platform
Express
• Bottom only tool
• Max Temp: 257 degF
• Max. pressure: 10,000 psi (15k mod)
• Built - in SP sensor
• Built - in Rm sensor
• Other tools – Xtreme AIT / Slim AIT
 Induction Theory

 Transmitter creates
Magnetic field
• This creates a ground loop

Schlumberger Private
• The ground loop current
also creates a magnetic
field
• This field is picked up by
the receiver
 AITH Outputs

AHT 20

Schlumberger Private
AHT20

Tool type:
AITH 20” depth of
investigation

Two foot vertical resolution

O - One
F - Four

AHEXX=ECLP (environmentally computed resolution)

Picks up the best resolution possible.
Thin Bed Analysis

 Four Foot curves: 4’

 AHF10, AHF20,

Schlumberger Private
AHF30, AHF60,
AHF90
 Two Foot curves:
 AHT10, AHT20, 2’
AHT30, AHT60,
AHT90
 One Foot curves:
 AHO10, AHO20,
AHO30, AHO60,
AHO90 1’
 Rm Calibration

Schlumberger Private
12 in. min
diam
Plastic tank
 Master Calibration

Schlumberger Private
Winch
12 ft

4 ft
To be performed every 3 months or 20 jobs
Wellsite Calibrations
• Electronics Check
• Check master
calibrations for:

Schlumberger Private
– expired
– out of tolerance
– missing
 Known Response
Permeable Zone
Example: sand

Schlumberger Private
Impermeable Zone

Example: shale

0.2 m 2000

Curve separation matches the expected invasion profile

Laterolog

 Laterolog
Principle:

Schlumberger Private
 Measuring the
voltage difference
between two electrodes
is the fundamental idea
behind laterolog devices.
 Invasion
 Resistivity profile is the radial
distribution of resistivity resulting
from the invasion of fluids having
different conductivity than the

Schlumberger Private
formation fluids .
Resistivity Profiles

 Depth of Investigation:
 Logging tools are designed to

Schlumberger Private
measure resistivity at different
depths radially from the wellbore to
determine the resistivity of the
flushed zone and the virgin zone.
Example Log With Resistivity
001) BONANZA 1
GRC ILDC RHOC DT
0 150 0.2 200 1.95 2.95 150 us/f 50
SPC SNC CNLLC
-160 MV 40 0.2 200 0.45 -0.15 ILDC
ACAL MLLCF
6 16 0.2 200 0.2 200
10700

Schlumberger Private
SNC
0.2 200

MLLCF
0.2 200
10800

10900
Resistivity
Log
