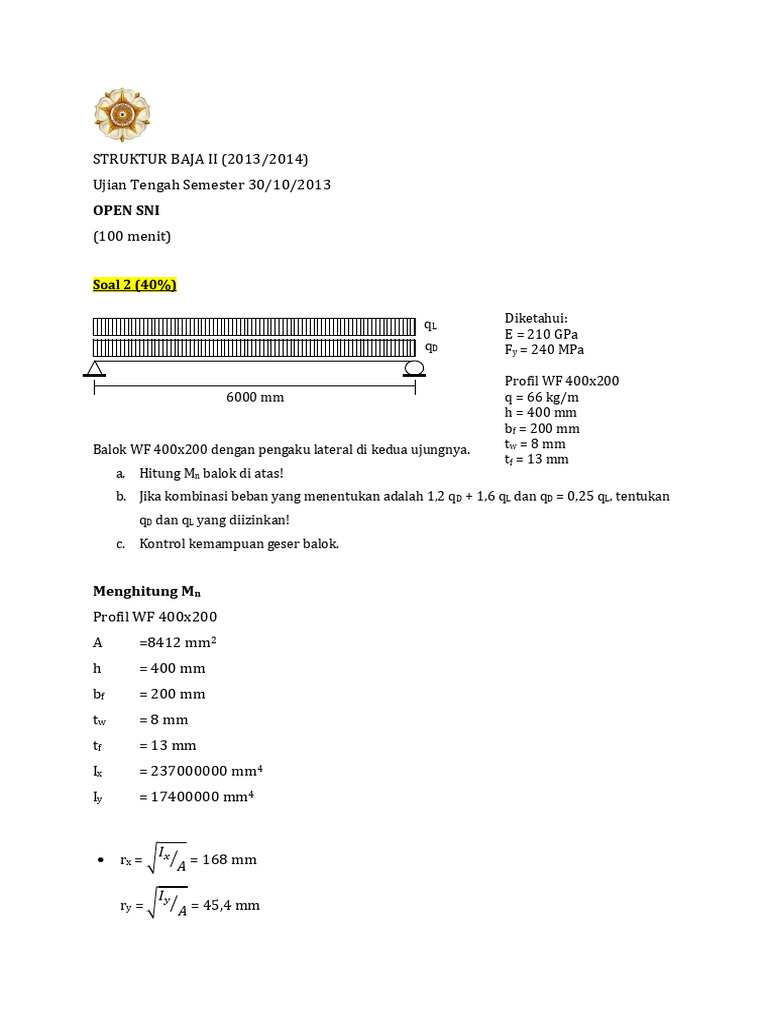

    STRUKTUR BAJA II (2013/2014)

    Ujian Tengah Semester 30/10/2013


    OPEN SNI
    (100 menit)

    Soal 2 (40%)

    qL Diketahui:
    E = 210 GPa
    qD Fy = 240 MPa

    Profil WF 400x200
    6000 mm q = 66 kg/m
    h = 400 mm
    bf = 200 mm
    Balok WF 400x200 dengan pengaku lateral di kedua ujungnya. tw = 8 mm
    tf = 13 mm
    a. Hitung Mn balok di atas!
    b. Jika kombinasi beban yang menentukan adalah 1,2 qD + 1,6 qL dan qD = 0,25 qL, tentukan
    qD dan qL yang diizinkan!
    c. Kontrol kemampuan geser balok.

    Menghitung Mn
    Profil WF 400x200
    A =8412 mm2
    h = 400 mm
    bf = 200 mm
    tw = 8 mm
    tf = 13 mm
    Ix = 237000000 mm4
    Iy = 17400000 mm4

    𝐼
     rx = √ 𝑥⁄𝐴 = 168 mm

    𝐼
    ry = √ 𝑦⁄𝐴 = 45,4 mm
     Flange
    𝑏
    λ = 2𝑡𝑓 = 7,69
    𝑓

    λp =0,38√𝐸⁄𝑓 = 11,24
    𝑦

    λr =1√𝐸⁄𝑓 = 29,58
    𝑦

     λ < λp .....Compact
     Web
    𝑑
    λ= = 46,75
    𝑡𝑤

    λp =3,76√𝐸⁄𝑓 = 111,22
    𝑦

    λr =5,7√𝐸⁄𝑓 = 168,61
    𝑦

     λ < λp .....Compact
    ∴LB Tidak perlu ditinjau

    Tinjauan LTB
    𝐼𝑦 ℎ0
     rts = = 53,30 mm
    2𝑆𝑥
    1
     J = 3 [2𝑏𝑓 . 𝑡𝑓 3 + (ℎ − 2𝑡𝑓 )𝑡𝑤 3 ] = 356762,67 mm4

     c = 1
     h0 = jarak antar titik berat sayap = h-tf = 387 mm
    𝐼
     Sx = (ℎ/2)
    𝑥
    = 1185000 mm3
    1 2
     Zx = 𝑏𝑓 . 𝑡𝑓 . (ℎ − 𝑡𝑓 ) + 4 𝑡𝑤 (ℎ − 2𝑡𝑓 ) = 1285952 mm3

    𝐸
     Lp = 1,76 . ry . √𝐹𝑦 = 2363,59 mm

    E Jc Jc 2 0,7Fy 2
    Lr = 1,95rts √ + √( ) + 6,76 ( )
    0,7Fy Sx ho Sx ho E

    = 7019,59 mm
    Lb = 6000mm
     Lp < Lb < Lr
     Reaksi pada tumpuan = 0,5 x (q x 6 m) = 3q
    Mmax = MB = 0,5 (3q x (0,5 x 6 m)) = 4,5q
    MA = MC = 0,5 (0,5 x 3 m) ((3q -1,5 m x q)+3q) = 3,375q
    12,5Mmaks
    Cb =
    2,5Mmaks + 3MA + 4MB + 3MC
    = 1,136

    Mp= Fy . Zx = 308628480 N.mm = 308,63 kNm


    𝐿 −𝐿𝑝
    Mn= 𝐶𝑏 [𝑀𝑝 − (𝑀𝑝 − 0,7𝐹𝑦 𝑆𝑥 ) (𝐿𝑏−𝐿 )] = 253,4 kNm
    𝑟 𝑝

    Beban izin
    qD = 0,25 qL
    q = 1,2 qD +1,6 qL = 1,2 (0,66 kN/m+0,25 qL)+ 1,6 (qL)
    = 0,792+1,9qL kN/m
    1 1
    Mu = 8 𝑞𝐿2 = 8 (0,792 + 1,9q L )62 = 3,564 +8,55qL kNm

     Mn = 0,9*253,4 kNm = 228 kNm = 3,564 +8,55qL kNm


    qL = 26,26 kN/m
    qD = 0,25 (26,26 kN/m) = 6,56 kNm

    Menghitung kemampuan Geser Vn


    D = 400 -2*13 = 374 mm
    tw = 8 mm
    D/tw = 46,8 < 2,2(E/Fy)0,5 = 66,26
    ∴ Cv = 1,0
    Vn = 0,6FyAwCv = 0,6 * 240 * 374 * 8 * 1,0 = 430,85 kN
    Vu = 0,5*(1,2qD + 1,6qL)*L = 0,5*(1,2*(0,66+6,56)+1,6*26,26)*6 = 152 kN
    Vu <=  Vn
    152 kN <= 1,0*430,85 = 430,85 kN
    ∴ Ok
