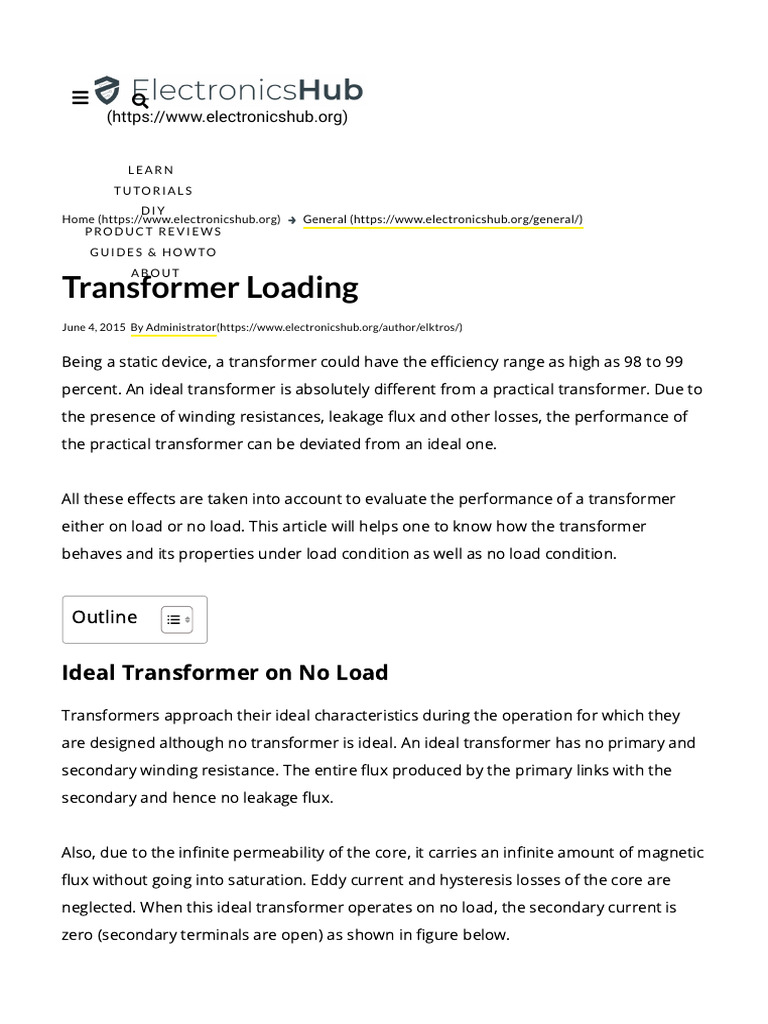

Transformer Loading
June 4, 2015 By Administrator(https://www.electronicshub.org/author/elktros/)

Being a static device, a transformer could have the efficiency range as high as 98 to 99
percent. An ideal transformer is absolutely different from a practical transformer. Due to
the presence of winding resistances, leakage flux and other losses, the performance of
the practical transformer can be deviated from an ideal one.

All these effects are taken into account to evaluate the performance of a transformer
either on load or no load. This article will helps one to know how the transformer
behaves and its properties under load condition as well as no load condition.

Outline

Ideal Transformer on No Load

Transformers approach their ideal characteristics during the operation for which they
are designed although no transformer is ideal. An ideal transformer has no primary and
secondary winding resistance. The entire flux produced by the primary links with the
secondary and hence no leakage flux.

Also, due to the infinite permeability of the core, it carries an infinite amount of magnetic
flux without going into saturation. Eddy current and hysteresis losses of the core are
neglected. When this ideal transformer operates on no load, the secondary current is
zero (secondary terminals are open) as shown in figure below.
  
(https://www.electronicshub.org)

LEARN
T U TO R I A L S
DIY
PRODUCT REVIEWS
G U I D E S & H O W TO
ABOUT

(https://www.electronicshub.org/wp-content/uploads/2015/06/TF-loading-1.jpg)When the
primary is excited with supply source with voltage V1, the primary winding draws a
current I1 to produce the necessary flux in the core. This current is called magnetizing
current Im. As the winding is purely inductive, the winding resistance is zero.

Due to this pure inductance, the magnetizing current Im lags the supply voltage V1 by 90
degrees. This current Im is very small and produce the alternating magnetic flux which is
in phase with current Im as shown in figure.

This magnetic flux links with both primary and secondary windings and produce the
EMFs E1 and E2 in respective windings. These induced EMFs oppose the supply voltage V1
(which is the cause for producing EMFs) according to the Lenz’s Law. Therefore, E1 is
equal in magnitude as V1 but anti phase with V1.

Similarly E2 is anti phase with V1 but its magnitude depends on the number of turns in
secondary, i.e N2. Hence, both EMFs E1 and E2 out of phase with V1 and are in phase with
each other as shown in figure. The power input to the transformer is the multiplication of
primary voltage and current and cosine angle between them.

Here the phase angle between primary voltage and primary current (or magnetizing
current) is 90 degrees. The cosine 90 is zero, so the power input is zero. This is because
under no load, secondary or output power is zero and also due to ideal one, losses also
zero. Hence the input power of an ideal transformer under no load is zero.
 Back to top (https://www.electronicshub.org/transformer-loading/#top)

 
Ideal(https://www.electronicshub.org)
Transformer on Load
Consider Lthat
EARN
the ideal transformer is loaded and the nature of the load is inductive so
the output orR Isecondary
T U TO ALS current lags by the output or secondary terminal voltage V2 by
an angle Φ DasI Yshown in figure. This secondary current I2 produces the secondary flux
PRODUCT REVIEWS
which opposes the main flux in the core. So the mmf N2I2 is called demagnetizing
G U I D E S & H O W TO
ampere-turns.
ABOUT

To reduce the effect of secondary flux on the main flux, primary draws extra current I1’.
This current is called a load component of the current. The ampere-turns N1I1’ balances
N2I2 ampere-turns so that the net flux remains same. Hence the current I1’ is opposite in
direction with I2 and its magnitude is determined by I1’ = N2/N1 × I2.

(https://www.electronicshub.org/wp-content/uploads/2015/06/Ideal-On-load.jpg)

Now the primary current consists of both magnetizing current to produce the magnetic
flux and the load component of current I1’. Hence I1 = Im + I1’. Comparing the above
phasor with ideal transformer with no load, the primary current only makes the
difference between them.

Due to the zero resistance drop, the EMF induced in the secondary E2 is equal to the V2
and are in the same direction as shown in figure.
 Back to top (https://www.electronicshub.org/transformer-loading/#top)

 
Practical Transformer on No Load
(https://www.electronicshub.org)

A practicalL Etransformer
ARN
differs from the ideal one due to various reasons like finite
permeability
T U T O Rof
I Athe
L S core, finite windings resistance and leakage flux in both windings, etc.

When the core

D I Y is subjected to the alternating magnetic flux, eddy current and hysteresis
PRODUCT REVIEWS
losses takes place in the core.
G U I D E S & H O W TO
ABOUT

These are called as iron or core losses. The primary winding of the practical transformer
has certain resistance and hence small primary copper losses are also present.
Therefore, when the practical transformer is operating, it takes the primary current to
supply both core and winding losses.

Thus the no load current consists of two components. The first component is
magnetizing component Im which is responsible for producing the necessary flux in the
core. Another component is the active or core loss component Ic which supplies the total
losses in the core. So the primary current

Io = Im + Ic

Due the winding resistance in the practical transformer, the no load current Io is no
longer lags by the voltage at angle 90 degrees. Thus, Io lags by the voltage V1 by an angle
Φo thereby no load power factor exist as shown in figure.
  
(https://www.electronicshub.org)

LEARN
T U TO R I A L S
DIY
PRODUCT REVIEWS
G U I D E S & H O W TO
ABOUT

(https://www.electronicshub.org/wp-content/uploads/2015/06/Pr-on-no-load.jpg)From
the above phasor diagram,

The magnetizing component of no load current, Im = Io sin Φo

The core loss component of no load current, Ic = Io cos Φo

The no load current magnitude, Io = √ (I2m + I2c)

Where Φo no load angle between primary voltage and current.

Total power input on no load, Wo = V1× Io × cos Φo

It is to be noted that for a well designed transformer, the no load current in primary is
about 3 to 5 percent of the rated or full load current. Due to the small winding resistance,
copper losses are negligibly small. Thus the power input to the practical transformer
operating on no load represents the iron losses in the transformer and are constant
during all load conditions.

Wo = V1× Io × cos Φo = Iron losses

Transformer with No-load Example

Suppose the transformer is connected to 400 V, 50 Hz source supply operating with no
load current of transformer of 5A at a power factor of 0.3 lagging. For this, we calculate
 
the magnetising component of the no load current and iron losses.
(https://www.electronicshub.org)

From
L E A Rthe
N above data, Φo = cos -1(0.3)
T U TO R I A L S
DIY
PRODUCT REVIEWS = 72.54 degrees
G U I D E S & H O W TO
ABOUT
Therefore, Im = Io sin Φo

= 5 × sin 72.54

= 0.953 A

Iron losses, Pi = V1× Io × cos Φo

= 400 × 5 × 0.3

= 600 Watts

Back to top (https://www.electronicshub.org/transformer-loading/#top)

Transformer on Load (Without Winding Resistance and

Leakage Reactance)
The moment when the load is connected to the transformer, the secondary current
starts flowing through load. Depends on the load connected at the secondary, the
magnitude and phase of the secondary current I2 are varied.

In case of resistive load, I2 is in phase with V2, if it is inductive I2 lags V2 and for capacitive
load I2 leads V2. Due to the secondary mmf N2I2, secondary current I2 set up the
magnetic flux Φ2 in the core.
This secondary flux opposes the main flux which is produced by the magnetizing
component. This mmf is called demagnetizing ampere turns. Due to this opposition of
 
flux, the EMF induced in the primary E1 reduces.
(https://www.electronicshub.org)

The primary
L E A draws
RN more current from the supply due to the increase vector difference V1
T U TO R I A L S
– E1. This additional current drawing is due to the load and hence called as load
DIY
component
P R O D U C TofR E
the
V I Eprimary
WS current I2’.
G U I D E S & H O W TO
ABOUT

(https://www.electronicshub.org/wp-content/uploads/2015/06/Pr-on-load.jpg)

This load component current is anti phase with I2 and produces the flux Φ2’ in order to
neutralize the effect of Φ2. Hence the mmf N1I2’ balances the mmf N2I2. Thus, the net
flux in the transformer is constant that’s how the transformer is also called as a constant
flux machine.

From above discussion,

N1I2’ = N2I2

I2’ = (N2/N1)I2

I2’ = K I2
Thus the primary current I1 of transformer under load has two components. The first one
is no load current Io, which has both magnetising component Im and core loss
 
component Ic.
(https://www.electronicshub.org)

This primary
L E A Rcurrent
N lags by the supply voltage by an angle of Φo. Other current is the
T U TO R I A L S
load component of current I2’, which is anti phase with secondary current I2. The phase
DIY
of this
P R Ocurrent
DUCT RE isVdecided
IEWS by the nature of load connected.
G U I D E S & H O W TO
ABOUT

(https://www.electronicshub.org/wp-content/uploads/2015/06/pr-on-load-Phasors.jpg)

It may be noted that the above explanation described by neglecting various drops in the
practical transformer such as resistance and leakage reactance drops. Thus, the E2 is
same as V2. Above three figures show the phasor diagram for transformer which is
operating with different loads.

The primary current I1 is the vector sum of currents Io and I2’. The secondary current I2
lags by V2 by an angle Φ2 for inductive load. In resistive load, I2 is in phase with E2 and in
capacitive load, I2 leads the E2 by angle Φ2 as shown in figures.

Back to top (https://www.electronicshub.org/transformer-loading/#top)

Transformer on Load (With Winding Resistance and
Leakage
  Reactance)
(https://www.electronicshub.org)
The practical transformer windings possess certain resistance. These resistances of both
primary and secondary windings not only cause the voltage drops I1 R1 and I2 R2 in
LEARN
respective O R I A L S but also ohmic losses I12 R1 and I22 R2.
T U Twindings
DIY
PRODUCT REVIEWS
When the current flows through the primary I1, the winding resistance causes a voltage
G U I D E S & H O W TO
drop I1R1 Aand
BOUdue
T to this the EMF induced in the primary no longer equal to the supply

voltage V1.

Therefore, E1 = V1 – I1R1

Similarly, the EMF induced in the secondary will not appear across the load terminals due
to the I2R2 drop in the secondary winding.

Therefore, V2 = E2 – I2R2

In the above two equations, the subtraction should be performed vectorially. These
drops are purely resistive (https://www.electronicshub.org/ac-resistive-circuits/) and
hence these are in phase respective currents.

Also, in practical transformer, in addition to the mutual or useful flux that links both
primary and secondary windings, a small portion of the flux that completes the path
through the air and links with respective windings alone is called as leakage flux.

The primary leakage flux is produced by the current I1 and links only with primary
winding. And the secondary leakage flux is produced by the current I2 and links only with
secondary winding. These leakage fluxes cause self induced EMFs E2 and E2 in their
respective windings.

Hence, to produce E1 in the primary, the supply voltage has to overcome the self induced
EMF in the primary. Similarly to produce the secondary terminal voltage V2, the induced
EMF E2 has to overcome the secondary self induced EMF due to the leakage flux.
These EMFs are considered as voltage drops or reactance drops across fictitious
reactances connected in series with windings. Thus I1X1 is the primary reactance drop
 
and I2X(https://www.electronicshub.org)
2 is the secondary reactance drop.

Then, theLbasic
E A R N voltage equations of the transformer becomes,
T U TO R I A L S
DIY
PRODUCT REVIEWS E 1 = V1 – I1 R1 – jI1 X1
G U I D E S & H O W TO
ABOUT
V2 = E 2 – I2 R2 – jI2 X2

Thus by considering the effects of leakage reactance and winding resistance, a

transformer can be visualised as below figure.

(https://www.electronicshub.org/wp-content/uploads/2015/06/pr-on-load-with-res.jpg)

Also, no load current carried by the primary current in the transformer is required to
maintain the mutual flux in the core as well as to respond to the core losses. With the no
load equivalent, the practical transformer on load is shown in below figure. This is also
called as an equivalent circuit of the transformer.
  
(https://www.electronicshub.org)

LEARN
T U TO R I A L S
DIY
PRODUCT REVIEWS
(https://www.electronicshub.org/wp-content/uploads/2015/06/Equivalent-ckt.jpg)
G U I D E S & H O W TO
ABOUT

The below figure shows the phasor diagram of the transformer which is operating with a
load. The secondary current I2 lags the voltage across the load V2 by an angle Φ2 so the
power factor of the load is cos Φ2. ‘

The drop I2 R2 on the secondary side is in phase with secondary current, whereas I2 X2
drop leads by 90 degrees with reference to the current I2. By adding these drops to V2,
we get induced secondary EMF E2 as shown in figure.

I2’ is the current flowing in the primary corresponds to the secondary current I2. Io is the
no load current which has both Im and Ic components. Hence the total current flowing in
the primary is the phasor sum of I2’ and Io as shown in figure. –E1 is the induced EMF in
the primary which is a head of flux by 90 degrees.

The primary winding resistance drop I1 R1 is in phase with I1 and leakage drop I1 X1 leads
90 degrees with reference to I1. Hence, by adding –E1 and drops I1 R1 and I1 X1 we get the
voltage V1 as shown in phasor diagram.
  
(https://www.electronicshub.org)

LEARN
T U TO R I A L S
DIY
PRODUCT REVIEWS
G U I D E S & H O W TO
ABOUT

(https://www.electronicshub.org/wp-content/uploads/2015/06/Phasor-tr-on-ld.jpg)

Back to top (https://www.electronicshub.org/transformer-loading/#top)

Related Posts:
Open Circuit and Short Circuit Test on Transformer
(https://www.electronicshub.org/open-circuit-and-short-circuit-test-on-
transformer/)
Transformer Symbols | Single Phase, 3-Phase,…
(https://www.electronicshub.org/transformer-symbols/)
What is Maximum Power Transfer Theorem (MPTT)?
(https://www.electronicshub.org/maximum-power-transfer-theorem/)
Inverter Vs Transformer Welders - Which One To Choose
(https://www.electronicshub.org/inverter-vs-transformer-welders/)
10 Best Voltage Converter Transformer in 2023 Reviews &…
(https://www.electronicshub.org/best-voltage-converter-transformer/)
 Ground vs Neutral | Learn the Differences between Ground and…
(https://www.electronicshub.org/ground-vs-neutral/)
 
(https://www.electronicshub.org)

LEARN
T U TO R I A L S
Leave
DIY a Reply
PRODUCT REVIEWS
Your email address will not be published. Required fields are marked *
G U I D E S & H O W TO
ABOUT

Comment *

Name *

Email *

Website

Post Comment
 Get Our Latest Newletters General Projects Projects Tutorials
Tutorials Electrical Mini Capacitors
Get Great
Content That You Love. No Ads Or Spams,
We Promise. (https://www.electronicshub.org/tutorials/)
(https://www.electronicshub.org/electrical
projects (https://www.e
(https://www.electronicshub.org)
Symbols projects- (https://www.electronicshub.o
Resistors
(https://www.electronicshub.org/symbols/)
ideas/) mini- (https://www.e
LEARN
Enter your email Sign Courses Electronics project- Filters
T U TO R I A L S
(htt Up
(https://electronicshub.teachable.com/)
(https://www.electronicshub.org/electronic
circuits/) (https://www.e
(htt
DIY
ps:/
P R O D U ps:/
/ww (htt
CT REVIEWS
Calculator projects- MicrocontrollerDiodes

G U I D E S/w
(htt w.y ps:/
& H O W TO (https://www.electronicshub.org/tools/)
ideas/) (https://www.electronicshub.o
(https://www.e
Aww.
p:// out /w
BOUT Embedded based-mini- Transistors
(https://www.electronicshub.org)
fac twit ube. ww. (https://www.electronicshub.org/embedde
projects- (https://www.e
ebo ter. co inst systems- ideas/) Amplifiers
ok.cco m/uagr projects- Arduino (https://www.e
om/ m/e ser/ am. ideas/) (https://www.electronicshub.o
IO Devices
elec h_o elec co Power project- (https://www.e
tron rg) tron m/e (https://www.electronicshub.org/top-
ideas/) Thyristors
icsh icsh h_o power- Solar (https://www.e
ub. ubo rg/) electronics- (https://www.electronicshub.o
DC Circuits
org) rg) projects- energy- (https://www.e
ideas/) projects- Number
Robotics ideas/) System
(https://www.electronicshub.org/robotics-
Free circuits (https://www.e
projects- (https://www.electronicshub.o
ideas/) project-
ARM circuits/)
(https://www.electronicshub.org/arm-
Home
based- Automation
projects/) (https://www.electronicshub.o
IOT automation-
(https://www.electronicshub.org/iot-
projects/)
project- Seminar
ideas/) Topics
(https://www.electronicshub.o
topics-ece-
students/)
Electronics
(https://www.electronicshub.o
electronics-
questions/)
Questions
 Q

(https://www.electronicshub.o

  electronics-
(https://www.electronicshub.org) questions/)

LEARN
T U TO R I A L S
DIY
PRODUCT REVIEWS About Advertise with us
(https://www.electronicshub.org/about/)
GUIDES & HO W TO
ABOUT
Contact
(https://www.electronicshub.org/contact/)

Affiliate Disclosure(https://www.electronicshub.org/affiliate-disclosure/)
Disclaimer(https://www.electronicshub.org/disclaimer/)
Terms and Conditions(https://www.electronicshub.org/terms-and-conditions/)
Privacy Policy(https://www.electronicshub.org/privacy-policy/)

Copyright © 2023 Electronicshub.org
