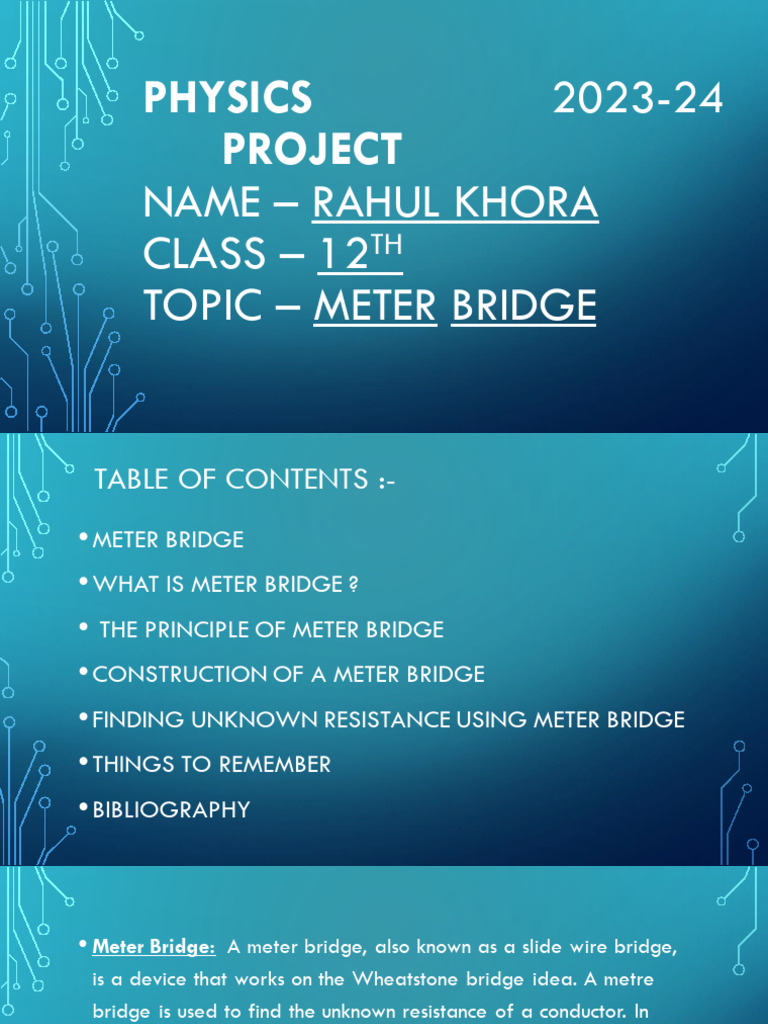

TABLE OF CONTENTS :- • METER BRIDGE • WHAT IS METER BRIDGE ? • THE PRINCIPLE OF METER BRIDGE • CONSTRUCTION OF A METER BRIDGE • FINDING UNKNOWN RESISTANCE USING METER BRIDGE • THINGS TO REMEMBER • BIBLIOGRAPHY • Meter Bridge: A meter bridge, also known as a slide wire bridge, is a device that works on the Wheatstone bridge idea. A metre bridge is used to find the unknown resistance of a conductor. In Physics, while theory forms the basis of our knowledge, practicals form our understanding. What is this device? This is a meter bridge! It consists of a wire of one meter, which is why it is called a ‘meter bridge’. It is used to measure the resistance of wires, coils or any other material. Please read on to learn about the meter bridge formula, meter bridge diagram, and more. WHAT IS METER BRIDGE ? • A Meter Bridge is an electrical apparatus using which we can measure the value of unknown resistance. It is made using a metre long wire of uniform cross-section. This wire is either nichrome or manganin or constantan because they offer high resistance and low-temperature coefficient of resistance. A meter bridge or Slide wire bridge is designed from a Wheatstone bridge. It is the most basic and functional application of a Wheatstone bridge. THE PRINCIPLE OF METER BRIDGE • A Meter Bridge works on the principle of a Wheatstone bridge. A Wheatstone bridge is based on the principle of null deflection, i.e. When the ratio of resistances in the two arms is equal, no current will flow through the middle arm of the circuit. Consider the diagram of the Wheatstone bridge as shown below. It consists of four resistances P,Q,R and S with a battery of EMF . • In the balanced condition, no current flows through the galvanometer, and terminals, B and D are at the same potential. This condition arises when, P = R Q S CONSTRUCTION OF A METER BRIDGE • A meter bridge has a 1m long wire of uniform cross-section area, which is stretched tight. • Between two metal strips that are bent at right angles, this wire is then carefully clamped, as shown in the diagram below: • Within the gap between the metal stripes, resistances are connected. In the first gap, R, a resistance box, and in the second gap, a small resistor wire S is connected. • The endpoints within which the wire is clamped are connected to a key through the cell. • A galvanometer is connected to the metallic right in the middle of the two gaps. • A jockey is connected at the other end of the galvanometer (Here, a jockey is a metal rod with a knife-like edge at one end that slides over the potentiometer wire to make an electrical connection). The jockey is slid over the meter bridge wire till the galvanometer shows zero deflection. FINDING UNKNOWN RESISTANCE USING METER BRIDGE • To find the unknown resistance using meter bridge, given below step-by-step procedure must be followed: • Gather the instruments and get ready associations as demonstrated in the above figure. • Take some appropriate sort of obstruction ‘R’ from the opposition box. • Contact jockey at point A; look that there exists an avoidance in the galvanometer on one of the sides, at that point contact the rider on point C of wire, at that point the diversion in the galvanometer must be on another side. • Discover the situation of the invalid point having redirection in the galvanometer that gets zero. • Proceed with the above strategy for various estimations of the ‘R’. Note probably around 5 readings. • Consider where the galvanometer shows a 0 avoidance; this is known as the equilibrium point. • Presently, Measure the length of a given wire by the utilization of standard scale and range of the wire by the usage of a screw check, (Take in any event five readings). • Compute Mean Resistance of Single Unknown Resistance = Total Sum of protections of Unknown opposition from the over five readings)/5. THINGS TO REMEMBER !!! • Meter Bridge is used to find the unknown resistance of a conductor as that of in a wheatstone bridge. • A Meter connect is a sort of electrical circuit utilized in estimating an electrical obstruction. Which is obscure by adjusting its two legs of the scaffold circuit, where one of the legs incorporates an obscure segment. • The flow of electric charge is known as electric current. It is calculated as a charge flow rate. It refers to the volume of charge flowing over time. • Amperes is a unit of measurement (A). • Samuel Hunter Christie made this instrument in the year 1833 and was improved and rearranged by Sir Charles Wheatstone in the year 1843. BIBLIOGRAPHY • Internet • CBSE text book • www.topper.com • www.studyrankers.com • www.physicsadda.com
