1.

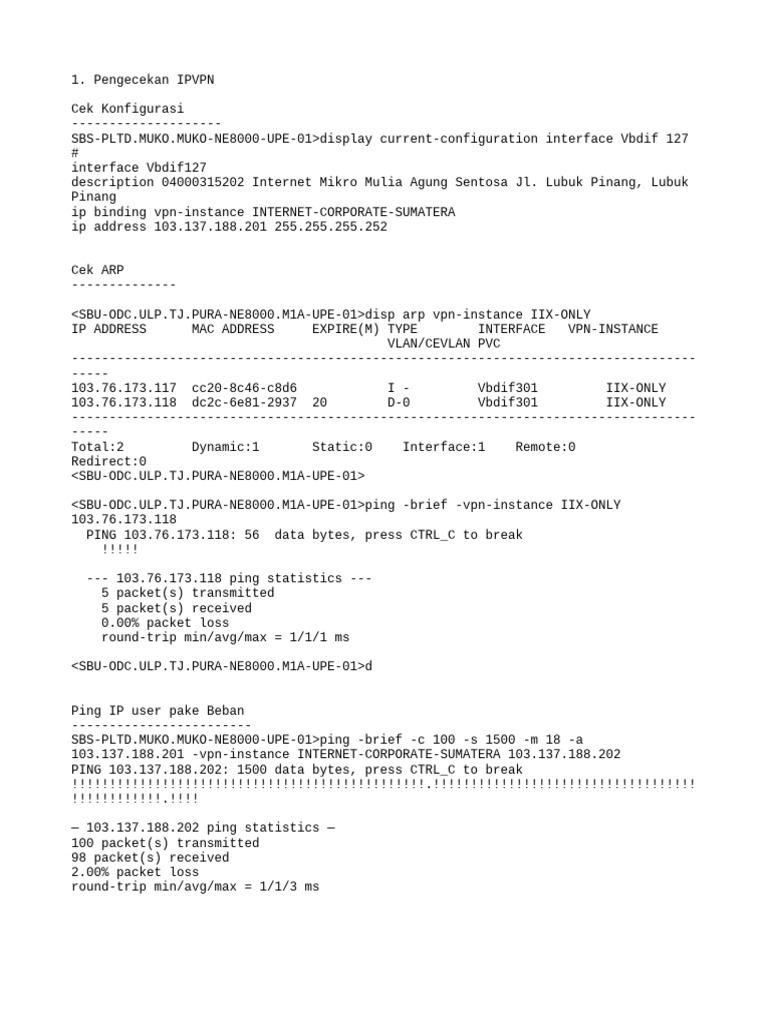

Pengecekan IPVPN

Cek Konfigurasi
--------------------
SBS-PLTD.MUKO.MUKO-NE8000-UPE-01>display current-configuration interface Vbdif 127
#
interface Vbdif127
description 04000315202 Internet Mikro Mulia Agung Sentosa Jl. Lubuk Pinang, Lubuk
Pinang
ip binding vpn-instance INTERNET-CORPORATE-SUMATERA
ip address 103.137.188.201 255.255.255.252

Cek ARP
--------------

<SBU-ODC.ULP.TJ.PURA-NE8000.M1A-UPE-01>disp arp vpn-instance IIX-ONLY

IP ADDRESS MAC ADDRESS EXPIRE(M) TYPE INTERFACE VPN-INSTANCE
VLAN/CEVLAN PVC
-----------------------------------------------------------------------------------
-----
103.76.173.117 cc20-8c46-c8d6 I - Vbdif301 IIX-ONLY
103.76.173.118 dc2c-6e81-2937 20 D-0 Vbdif301 IIX-ONLY
-----------------------------------------------------------------------------------
-----
Total:2 Dynamic:1 Static:0 Interface:1 Remote:0
Redirect:0
<SBU-ODC.ULP.TJ.PURA-NE8000.M1A-UPE-01>

<SBU-ODC.ULP.TJ.PURA-NE8000.M1A-UPE-01>ping -brief -vpn-instance IIX-ONLY

103.76.173.118
PING 103.76.173.118: 56 data bytes, press CTRL_C to break
!!!!!

--- 103.76.173.118 ping statistics ---

5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/1 ms

<SBU-ODC.ULP.TJ.PURA-NE8000.M1A-UPE-01>d

Ping IP user pake Beban

------------------------
SBS-PLTD.MUKO.MUKO-NE8000-UPE-01>ping -brief -c 100 -s 1500 -m 18 -a
103.137.188.201 -vpn-instance INTERNET-CORPORATE-SUMATERA 103.137.188.202
PING 103.137.188.202: 1500 data bytes, press CTRL_C to break
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!.!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!.!!!!

— 103.137.188.202 ping statistics —

100 packet(s) transmitted
98 packet(s) received
2.00% packet loss
round-trip min/avg/max = 1/1/3 ms
Ping Google.com
-----------------
SBS-PLTD.MUKO.MUKO-NE8000-UPE-01>ping -brief -c 100 -m 18 -a 103.137.188.201 -vpn-
instance INTERNET-CORPORATE-SUMATERA 8.8.8.8
PING 8.8.8.8: 56 data bytes, press CTRL_C to break
!!.!!..!!..!….!.!!!.!.!!!!!!!!.!!!!!!!!…!!!.!!!..!!!.!.!.!.

— 8.8.8.8 ping statistics —

63 packet(s) transmitted
40 packet(s) received
36.50% packet loss
round-trip min/avg/max = 29/29/30 ms

Cek mac address

----------------------
<SBS-SUKAMERINDU-NE8000-UPE-01>display mac-address dynamic interface
GigabitEthernet 0/2/30.15

Cek Redaman
-----------------
<SBS-SUKAMERINDU-NE8000-UPE-01>display optical-module extend information interface
GigabitEthernet 0/2/3
===============================================================================
Transceiver Digital Diagnostic Monitoring (DDM), Internally Calibrated
=============|=================================================================
Card2-Port3 + Value HighAlarm HighWarn LowWarn LowAlarm Status
————-|—————————————————————–
Temperature(C) 40.468 80.000 70.000 0.000 -10.000 Normal
Supply Voltage(V) 3.364 3.630 3.465 3.135 2.970 Normal
Tx Bias(mA) 70.655 97.500 91.000 39.000 32.500 Normal
Tx Power(avg dBm) 2.273 6.000 4.000 -4.700 -6.699 Normal
Rx Power(avg dBm) -1.064 0.999 -1.000 -15.800 -17.798 Normal

Cek fisik Port

-------------------------
<SBS-SUKAMERINDU-NE8000-UPE-01>display bridge-domain 15
——————————————————————————–
MAC_LRN: MAC learning; STAT: Statistics; SPLIT: Split-horizon;
BC: Broadcast; MC: Unknown multicast; UC: Unknown unicast;
*down: Administratively down; FWD: Forward; DSD: Discard;
U: Up; D: Down;
——————————————————————————–

BDID Ports
——————————————————————————–
15 GE0/2/30.15(D)

BDID State MAC-LRN STAT BC MC UC SPLIT Description

——————————————————————————–
15 down enable disable FWD FWD FWD disable
Cek Traffik
-----------------------------
<SBS-SUKAMERINDU-NE8000-UPE-01>display interface GigabitEthernet 0/2/30
GigabitEthernet0/2/30 current state : DOWN(LOS) (ifindex: 35)
Line protocol current state : DOWN
Link quality grade : —
Description:
Route Port,The Maximum Transmit Unit(L3) is 1500 bytes, The Maximum Receive
Unit(L2) is 9700 bytes
Internet protocol processing : disabled
IP Sending Frames’ Format is PKTFMT_ETHNT_2, Hardware address is e483-2671-ecbd
Media type: twisted-pair ,Link type: auto negotiation
Loopback:none, Maximal BW:1G, Current BW:1G, full-duplex mode, negotiation: enable,
Pause Flowcontrol:Receive Enable and Send Disable
Last physical up time : –
Last physical down time : 2021-09-03 18:49:38+07:00
Current system time: 2021-11-28 02:31:08+07:00
Statistics last cleared:never
Last 300 seconds input rate: 0 bits/sec, 0 packets/sec
Last 300 seconds output rate: 0 bits/sec, 0 packets/sec
Input peak rate 0 bits/sec, Record time: –
Output peak rate 0 bits/sec, Record time: –
Input: 0 bytes, 0 packets

Cek Jenis SFP

----------------
<SBS-SUKAMERINDU-NE8000-UPE-01>display inv board
BdName=<CR81IPU160BS 2>
BdeLabel=<
[Slot_2]
/$[Board Integration Version]
/$BoardIntegrationVersion=3.0

2.Pengecekan Metronet

Cek Konfigurasi
<SBS-SUKAMERINDU-NE8000-UPE-01>display current-configuration interface
GigabitEthernet0/2/3.66
#
interface GigabitEthernet0/2/3.66 mode l2
mtu 9000
description 0990000320496396 Metro Hutchison 3 Indonesia Palembang Jl. Pipa RT.24
RW.08,Kel Sukarame – Bengkulu Jl. Pintu Air RT.001 RW.001 Dusun Surabaya
set flow-stat interval 30
encapsulation dot1q vid 66
rewrite pop single
bridge-domain 66

Cek IP Cross connect

<SBS-SUKAMERINDU-NE8000-UPE-01>display current configuration vsi 66
#
vsi 66 bd-mode
pwsignal ldp
vsi-id 66
peer 192.168.40.36
mtu 1998
encapsulation ethernet
#
Return

-atau-

<SBS-SEPUTIH.BANYAK-NE8000-UPE-01>disp vsi remote ldp pw-id 276

Vsi Peer VC Group Encap MTU Vsi State
ID RouterID Label ID Type Value Index Code
276 192.168.40.66 4313 0 ethernet 1998 4 FORWARD

Cek status Cross Connet

<SBS-SUKAMERINDU-NE8000-UPE-01>disp vsi name 66
————————————————————————–
Vsi Mem PW Mac Encap Mtu Vsi
Name Disc Type Learn Type Value State
————————————————————————–
66 — ldp qualify ethernet 1998 up

Ping Cross Connect

<SBS-SEPUTIH.BANYAK-NE8000-UPE-01>ping vpls vsi 277 peer 192.168.40.66 negotiate-
vc-id 277
PW PING : FEC 128 PSEUDOWIRE (NEW). Type = ethernet, ID = 277 : 100 data bytes,
press CTRL_C to break
Reply from 172.23.151.165: bytes=96 Sequence=1 time=5 ms
Reply from 172.23.151.165: bytes=96 Sequence=2 time=4 ms
Reply from 172.23.151.165: bytes=96 Sequence=3 time=4 ms
Reply from 172.23.151.165: bytes=96 Sequence=4 time=5 ms
Reply from 172.23.151.165: bytes=96 Sequence=5 time=4 ms

— FEC : FEC 128 PSEUDOWIRE (NEW). Type = ethernet, ID = 277 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 4/4/5 ms

Cek Fisik Port

<SBS-SUKAMERINDU-NE8000-UPE-01>display bridge-domain 66
——————————————————————————–
MAC_LRN: MAC learning; STAT: Statistics; SPLIT: Split-horizon;
BC: Broadcast; MC: Unknown multicast; UC: Unknown unicast;
*down: Administratively down; FWD: Forward; DSD: Discard;
U: Up; D: Down;
——————————————————————————–

BDID Ports
——————————————————————————–
66 GE0/2/3.66(U)

BDID State MAC-LRN STAT BC MC UC SPLIT Description

——————————————————————————–
66 up enable enable FWD FWD FWD disable

Cek mac address vlan

<SBS-SUKAMERINDU-NE8000-UPE-01>disp mac-address bridge-domain 66
MAC address table of slot 0:
———————————————————————————————————————-
MAC Address VLAN/BD/ PEVLAN CEVLAN Port/Peerip
Type LSP/LSR-ID
VSI/SI/EVPN
MAC-Tunnel
———————————————————————————————————————-
68e2-0947-6a92 BD 66 66 – GE0/2/3.66
dynamic 0/-
60f1-8ade-a693 BD 66 – – GE0/2/1
dynamic 0/3278
———————————————————————————————————————-
Total matching items on slot 0 displayed = 2

Cek neighbor
<SBS-SUKAMERINDU-NE8000-UPE-01>display ospf peer

(M) Indicates MADJ neighbor

OSPF Process 100 with Router ID 192.168.217.16

Neighbors

Area 0.0.0.66 interface 172.21.89.245 (GE0/2/0)’s neighbors

Router ID: 192.168.40.145 Address: 172.21.89.246
State: Full Mode:Nbr is Slave Priority: 1
DR: None BDR: None MTU: 9000
Dead timer due in 14 sec
