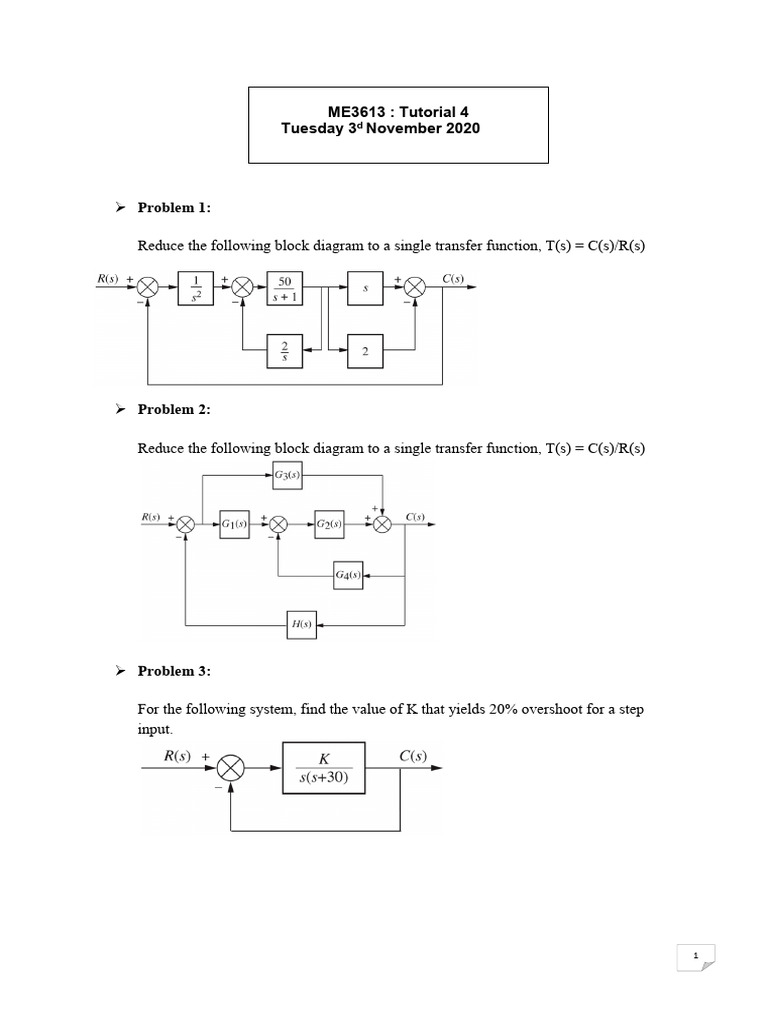

ME3613 : Tutorial 4

Tuesday 3d November 2020

 Problem 1:

Reduce the following block diagram to a single transfer function, T(s) = C(s)/R(s)

 Problem 2:

Reduce the following block diagram to a single transfer function, T(s) = C(s)/R(s)

 Problem 3:

For the following system, find the value of K that yields 20% overshoot for a step
input.

1
 Problem 4:

Draw a signal-flow graph for the following state equations:

 Problem 5:

Using Mason’s rule, find the transfer function, T(s)=C(s)/R(s), for the system
represented by:
