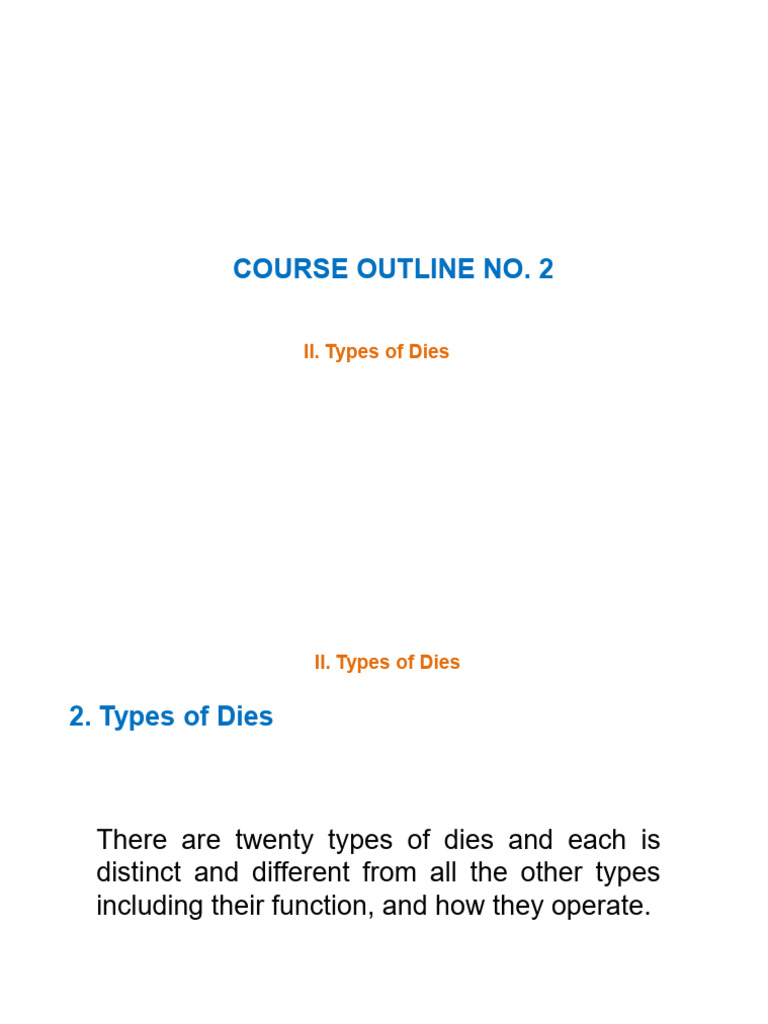

distinct and different from all the other types including their function, and how they operate. II. Types of Dies
2.1 BLANKlNG DIES
A blanking die produces a blank by cutting the entire periphery in one simultaneous operation. Three advantages are realized when a part is blanked:
1. Accuracy. The edges
of blanked parts are accurate in relation to each other II. Types of Dies
2.1 BLANKlNG DIES
2. Appearance. The burnished edge of each blank extends around its entire periphery on the same side.
3. Flatness. Blanked parts
are flat because of the even compression of material between punch and die cutting edges. II. Types of Dies
2.2 CUT OFF DIES
The basic operation of a cut off die consists in severing strips into short lengths to produce blanks. Cut off dies are used for producing blanks having straight, parallel sides because they are less expensive to build than blanking dies. II. Types of Dies
2.3 COMPOUND DIES
In a compound die, holes are pierced at the same station as the part is blanked, The result is greater accuracy in the blank. Whatever accuracy is "built in" the die will be duplicated in every blank produced by it. II. Types of Dies
2.4 TRIMMING DIES
Cut away portions of formed or drawn work pieces that have become wavy and irregular. This condition occurs because of uneven flow of metal during forming operations. II. Types of Dies
2.5 PIERCING DIES
Piercing dies pierce holes in stampings. There are two principal reasons for piercing holes in a separate operation instead of combining piercing with other operations: 1. When a subsequent bending, forming, or drawing operation would distort the previously pierced hole or holes. II. Types of Dies
2.5 PIERCING DIES
2. When the edge of the pierced hole is too close to the edge of the blank for adequate strength in the die section. This occurs in compound and combination dies in which piercing and blanking are done simutaneously. II. Types of Dies
2.6 SHAVING DIES
Shaving is the operation of removing a small amount of metal from around the edges of a blank or hole in order to improve the surface. II. Types of Dies
2.7 BROACHING DIES
A broach is provided with a number of teeth, each of which cuts a chip as the broach traverses the surface to be finished. Internal broaches finish holes; surface or slab broaches finish outside surfaces. II. Types of Dies
2.8 HORN DIES
A horn die is provided with a projecting post called ahorn. Bent, formed, or drawn work pieces are applied over the horn for performing secondary operations. Many other operations such as piercing staking, and the like are also performed in horn dies. II. Types of Dies
2.9 SIDE CAM DIES
Side cams transform vertical motion from the press ram into horizontal or angular motion and they make possible many ingenious operations. II. Types of Dies
2.10 BENDING DIES
A bending die deforms portions of flat blanks to some angular position. The line of bend is straight along its entire length, as differentiated from a forming die which produces work pieces having a curved line of bend. II. Types of Dies
2.11 FORMING DIES
The operation of forming is similar to bending except that the line of bend is curved instead of straight and plastic deformation in the material is more severe. II. Types of Dies
2.12 DRAWING DIES
The operation of drawing is similar to forming, although usually there is more severe plastic deformation in the material. The difference between the two occurs in the extent of closure in the form. II. Types of Dies
2.13 CURLING DIES
A curling die forms the material at the edge of a workpiece into a circular shape or hollow ring. More often, curling is applied to edges of the open ends of cups and shells to provide stiffness and smooth, rounded edges. II. Types of Dies
2.14 BULGING DIES
A bulging die expands a portion of a drawn shell causing it to bulge. There are two types: fluid dies and rubber dies. Fluid dies employ water or oil as the expanding medium and a ram applies pressure to the fluid. II. Types of Dies
2.15 SWAGING DIES
The operation of swaging, sometimes called necking, is exactly the opposite of bulging. When a workpiece is swaged a portion is reduced in size and this causes the part to become longer than it was before swaging. II. Types of Dies
2.16 EXTRUDING DIES
In this type of die each slug is partly confined in a cavity and extremely high pressure is applied by a punch to cause the material in the slug to extrude or squirt out, much like toothpaste is extruded when the tube is squeezed. II. Types of Dies
2.17 COLD FORMING DIES
Cold forming dies produce workpieces by applying pressure to blanks, squeezing and displacing the material until it assumes the shape of the punch and die. II. Types of Dies
2.18 PROGRESSIVE DIES
In a progressive die the strip is moved in stages from station to station. Different operations are performed on it at each station except at idle ones applied to provide room for components. A complete workpiece is removed from the strip at the final station. II. Types of Dies
2.19 SUB PRESS DIES
Sub-press dies blank and form very small watch clock, and instrument parts. An example would be a small instrument cam shown at A. The die components are retained in a subpress which is, as its name implies, actually a small press operated in a large one. II. Types of Dies
2.20 ASSEMBLY DIES
Assembly dies assemble two or more parts together by press-fitting, riveting, staking, or other means. Types of die components are assembled very quickly and relationships between parts can be maintained closely. THANK YOU
