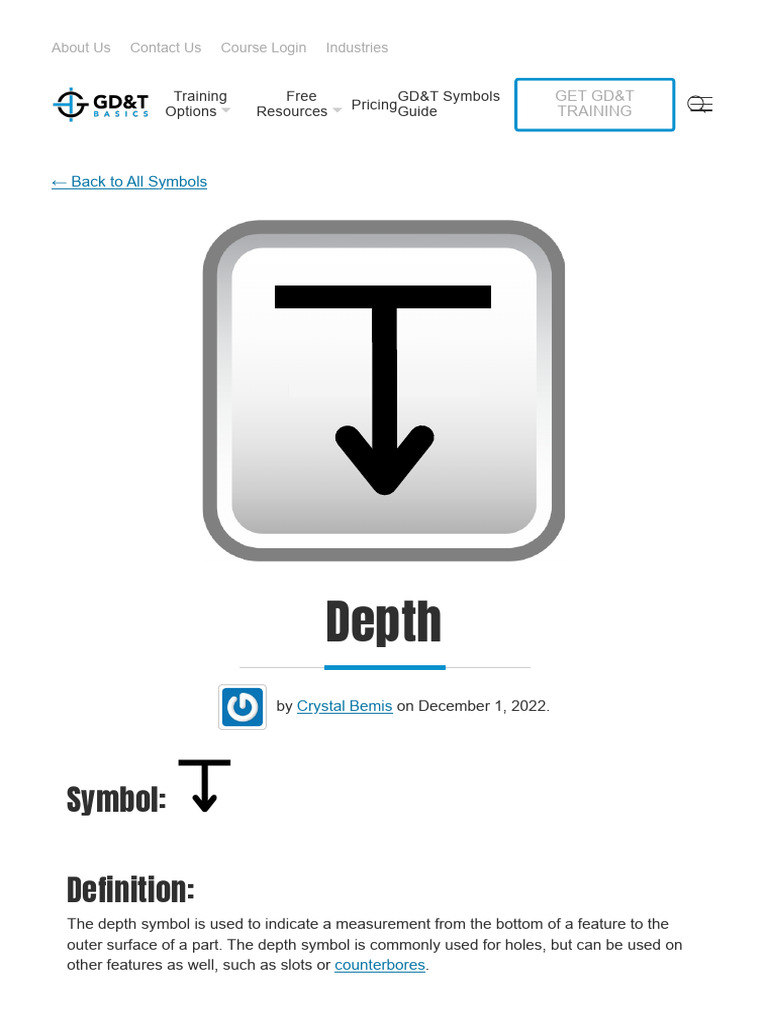

Depth
by Crystal Bemis on December 1, 2022.

Symbol:

Definition:
The depth symbol is used to indicate a measurement from the bottom of a feature to the
outer surface of a part. The depth symbol is commonly used for holes, but can be used on
other features as well, such as slots or counterbores.
Application:
Let’s look at an example. The part in Figure 1, below, has two sets of blind holes which are
dimensioned with depths of 1.5 and 1. Looking at the cross section of this part, we see that
there are angles at the bottom of the holes, indicating that the holes have been drilled. For
our depth measurement, the bottom of the hole is considered to be the deepest location
where full diameter is achieved. Therefore, we do not measure to the bottom of the cone for
our depth measurement. The dashed lines shown on the cross-section of the part indicate
where the depth measurement is taken.

Figure 1: Depth of Feature Indicated by the Depth Symbol

If the depth dimension isn’t clear because of a curved or complex surface, the part should be
dimensioned pictorially, without the depth symbol. The part in Figure 2 is a good example of
this. Because of the curved surface, the depth measurement would be unclear without a
section view indicating where the depth is to be measured from.
 Figure 2: Part with a Curved Surface
