Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 344

Y1 Y2 Y3 Y4
R1 R2
Left CL CR Right

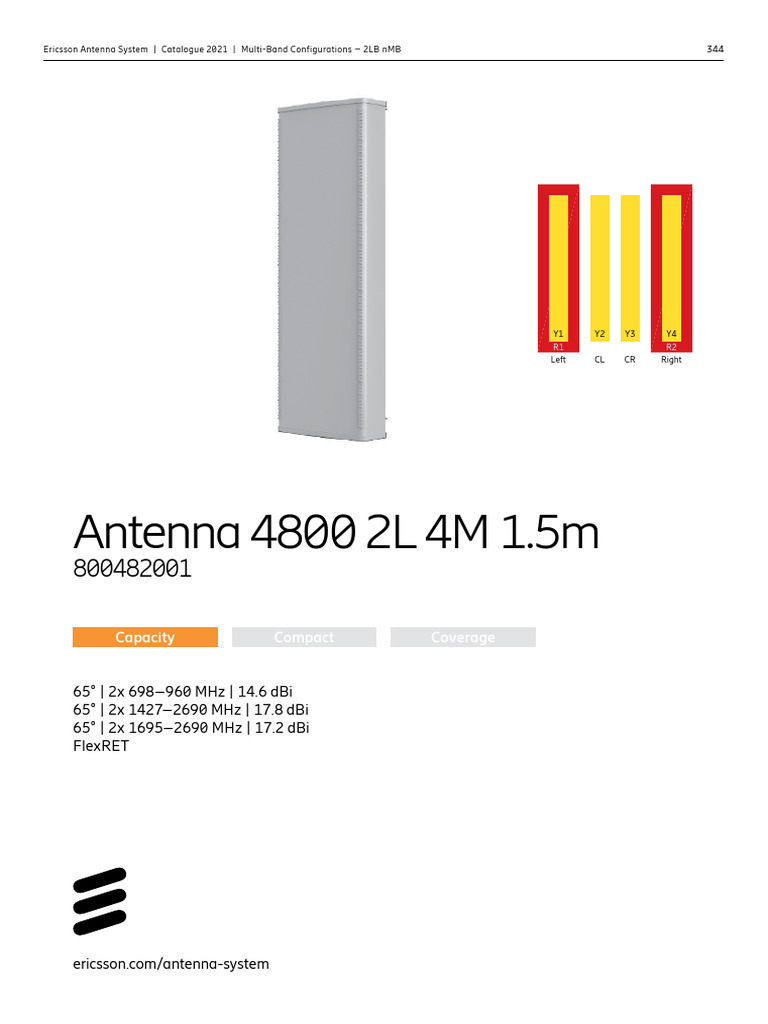

Antenna 4800 2L 4M 1.5m

800482001

Capacity Compact Coverage

65° | 2x 698–960 MHz | 14.6 dBi

65° | 2x 1427–2690 MHz | 17.8 dBi
65° | 2x 1695–2690 MHz | 17.2 dBi
FlexRET

ericsson.com/antenna-system
Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 345

Left side, lowband R1, connector 1 – 2

Frequency Range MHz 698 – 806 791 – 862 824 – 894 880 – 960
Gain at mid Tilt dBi 13.8 14.2 14.4 14.6
Gain over all Tilts dBi 13.8 ± 0.4 14.1 ± 0.3 14.4 ± 0.4 14.6 ± 0.3
Horizontal Pattern:
Azimuth Beamwidth ° 59 ± 6.3 56 ± 3.1 53 ± 5.5 50 ± 4.9
Front-to-Back Ratio,
dB > 20 > 19 > 20 > 22
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 16.1 ± 1.1 15.1 ± 0.9 14.6 ± 0.7 13.6 ± 1.2
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.5 < 0.5 < 0.6 < 0.9
First Upper Side Lobe
dB > 15 > 16 > 17 > 16
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (R1 // R2, Y1, Y2, Y3, Y4)
Max. Effective Power
W 300 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.

Right side, lowband R2, connector 3 – 4

Frequency Range MHz 698 – 806 791 – 862 824 – 894 880 – 960
Gain at mid Tilt dBi 13.8 14.1 14.4 14.8
Gain over all Tilts dBi 13.8 ± 0.3 14.1 ± 0.3 14.3 ± 0.3 14.7 ± 0.4
Horizontal Pattern:
Azimuth Beamwidth ° 60 ± 5.7 56 ± 4.1 54 ± 5.8 50 ± 6.4
Front-to-Back Ratio,
dB > 20 > 20 > 20 > 21
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 16.1 ± 0.8 15.1 ± 0.8 14.6 ± 0.6 13.6 ± 0.9
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.6 < 0.6 < 0.6 < 0.7
First Upper Side Lobe
dB > 16 > 17 > 17 > 17
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (R2 // R1, Y1, Y2, Y3, Y4)
Max. Effective Power
W 300 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.
Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 346

Left side, midband Y1, connector 5 – 6

Frequency Range MHz 1427 – 1518 1695 – 1880 1850 – 1990 1920 – 2180 2300 – 2400 2490 – 2690
Gain at mid Tilt dBi 15.9 17.0 17.2 17.4 17.5 17.8
Gain over all Tilts dBi 15.9 ± 0.6 17.0 ± 0.6 17.2 ± 0.6 17.3 ± 0.7 17.5 ± 0.8 17.8 ± 0.8
Horizontal Pattern:
Azimuth Beamwidth ° 73 ± 3.9 67 ± 4.1 63 ± 4.8 61 ± 4.8 60 ± 4.0 55 ± 3.9
Front-to-Back Ratio,
dB > 30 > 29 > 28 > 29 > 29 > 28
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 8.4 ± 0.5 7.0 ± 0.5 6.5 ± 0.4 6.2 ± 0.4 5.6 ± 0.3 5.2 ± 0.2
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.3 < 0.3 < 0.3 < 0.3 < 0.2 < 0.2
First Upper Side Lobe
dB > 17 > 19 > 17 > 16 > 17 > 19
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (Y1 // R1, R2, Y2, Y3, Y4)
Max. Effective Power W 200 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.

Left side, center midband Y2, connector 7– 8

Frequency Range MHz 1695 – 1880 1850 – 1990 1920 – 2180 2300 – 2400 2490 – 2690
Gain at mid Tilt dBi 17.0 17.0 17.1 17.2 17.4
Gain over all Tilts dBi 16.9 ± 0.7 17.0 ± 0.7 17.0 ± 0.8 17.2 ± 0.7 17.4 ± 0.8
Horizontal Pattern:
Azimuth Beamwidth ° 61 ± 7.9 60 ± 6.5 63 ± 6.7 65 ± 4.6 60 ± 4.3
Front-to-Back Ratio,
dB > 29 > 27 > 28 > 30 > 29
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 7.2 ± 0.6 6.7 ± 0.3 6.4 ± 0.4 5.9 ± 0.2 5.7 ± 0.3
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.4 < 0.3 < 0.3 < 0.2 < 0.3
First Upper Side Lobe
dB > 16 > 17 > 19 > 19 > 20
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (Y2 // R1, R2, Y1, Y3, Y4)
Max. Effective Power W 200 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.
Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 347

Right side, center midband Y3, connector 9 – 10

Frequency Range MHz 1695 – 1880 1850 – 1990 1920 – 2180 2300 – 2400 2490 – 2690
Gain at mid Tilt dBi 16.9 17.1 17.0 17.2 17.2
Gain over all Tilts dBi 16.9 ± 0.8 17.0 ± 0.7 17.0 ± 0.7 17.1 ± 0.6 17.2 ± 0.8
Horizontal Pattern:
Azimuth Beamwidth ° 61 ± 9.2 60 ± 8.4 64 ± 8.9 64 ± 4.1 62 ± 4.6
Front-to-Back Ratio,
dB > 28 > 28 > 28 > 28 > 29
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 7.4 ± 0.5 6.8 ± 0.3 6.5 ± 0.4 6.0 ± 0.3 5.7 ± 0.4
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.4 < 0.3 < 0.3 < 0.2 < 0.3
First Upper Side Lobe
dB > 14 > 17 > 18 > 19 > 20
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (Y3 // R1, R2, Y1, Y2, Y4)
Max. Effective Power
W 200 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.

Right side, midband Y4, connector 11 – 12

Frequency Range MHz 1427 – 1518 1695 – 1880 1850 – 1990 1920 – 2180 2300 – 2400 2490 – 2690
Gain at mid Tilt dBi 15.9 17.0 17.2 17.4 17.5 17.8
Gain over all Tilts dBi 15.9 ± 0.5 17.0 ± 0.6 17.2 ± 0.6 17.4 ± 0.7 17.4 ± 0.7 17.8 ± 0.9
Horizontal Pattern:
Azimuth Beamwidth ° 74 ± 6.1 69 ± 3.5 66 ± 4.6 63 ± 5.8 63 ± 4.9 56 ± 4.4
Front-to-Back Ratio,
dB > 29 > 29 > 29 > 28 > 29 > 28
Total Power, ± 30°
Vertical Pattern:
Elevation Beamwidth ° 8.3 ± 0.5 6.9 ± 0.5 6.5 ± 0.3 6.2 ± 0.5 5.6 ± 0.3 5.2 ± 0.2
Electrical Downtilt
° 2.0 – 12.0
continuously adjustable
Tilt Accuracy ° < 0.3 < 0.3 < 0.4 < 0.3 < 0.2 < 0.2
First Upper Side Lobe
dB > 16 > 17 > 17 > 16 > 17 > 19
­Suppression

Cross Polar Isolation dB > 25

Port to Port Isolation dB > 25 (Y4 // R1, R2, Y1, Y2, Y3)
Max. Effective Power
W 200 (at 50 °C ambient temperature)
per Port
Values based on NGMN-P-BASTA (version 10.0) requirements.
Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 348

Electrical specifications, all ports Mechanical specifications

Impedance Ω 50 Input 12 x 4.3-10 female
VSWR < 1.5 Connector Position bottom
Return Loss dB > 14 Adjustment Mechanism FlexRET,
continuously adjustable
Interband Isolation dB > 25
Wind load (at Rated N | lbf Frontal: 670 | 151
Passive Intermodulation dBc < −153 (2 x 43 dBm carrier)* Wind Speed: 150 km/h) Maximal: 760 | 171
Polarization ° −45, +45 Max. Wind Velocity km/h 241
Max. Effective Power 1000 (at 50 °C ambient mph 150
W
for the Antenna ­temperature) Height / Width / Depth mm 1499 / 488 / 164
Values based on NGMN-P-BASTA (version 10.0) requirements. inches 59.0 / 19.2 / 6.5
* not applicable for L-band Category of
XM (X-Medium)
Mounting ­Hardware
Weight kg 39.0 / 43.5 (clamps incl.)
lb 86.0 / 95.9 (clamps incl.)
Packing Size mm 1650 / 550 / 293
inches 65.0 / 21.7 / 11.5
Scope of Supply Panel, FlexRET and
clamps for 55–115 mm |
2.2–4.5 inches diameter

Accessories (order separately if required)

Remarks
Type No. Description Units per antenna
mm | inches
85010097 2 clamps Mast diameter: 110–220 | 4.3–8.7 1
85010110 1 downtilt kit Downtilt angle: 0°–10° 1
86010154 Site Sharing 3-way (see figure below)

1499 | 59.0
1386 | 54.6
1538 | 60.6
Adapter
86010155 Site Sharing 6-way (see figure below)
Adapter
86010162 Gender Adapter Solely to be used in combination with 1
KRY 121 108/1 Port Extender a compatible FlexRET module 1
1)

Accessories (included in the scope of supply) 2)

Remarks
Type No. Description Units per antenna
mm | inches
85010111 2 clamps Mast diameter: 55–115 | 2.2–4.5 1
4)
3)

86010165 FlexRET Compliant to 1

3GPP / AISG 2.0 – AISG 3 ready
5)
For downtilt mounting use the clamps for an appropriate mast diameter together with the downtilt kit.
Wall mounting: No additional mounting kit needed.
Material: Reflector screen: Aluminum. 1) 79 | 3.1
Fiberglass housing: It covers totally the internal antenna ­components. The special ­design 2) 22 | 0.9
3) 142 | 5.6
reduces the sealing areas to a minimum and ­guarantees the best weather ­protection. 4) 150 | 5.9
Fiberglass material guarantees optimum ­performance with regards to ­stability, stiffness, 5) ∅ 11 | 0.4
UV resistance and painting. The color of the radome is light grey.
All nuts and bolts: Stainless steel or hot-dip galvanized steel. All dimensions
in mm | inches
Grounding: The metal parts of the antenna including the mounting kit and the inner conductors are DC
grounded.
Ericsson Antenna System | Catalogue 2021 | Multi-Band Configurations – 2LB nMB 349

Configuration example Configuration example

with Site Sharing Adapter 86010154 with Site Sharing Adapter 86010155

FlexRET FlexRET FlexRET FlexRET FlexRET FlexRET

Site Sharing Adapter Site Sharing Adapter

3-way 6-way
AISG AISG

BTS1 BTS2 BTS3

BTS1 BTS2 BTS3 BTS4 BTS5 BTS6

For more information please refer to the respective data sheets.

Layout of interface

488 || 19.2
19.2 **
164|| 6.5 *

Left Right

Y1+ Y2+ R1+ R2+ Y3+ Y4+

164
229|| 9.0 **

L 5 CL 7 L 1 R 3 CR 9 R 11
1427 2690 1695 2690 698 960 698 960 1695 2690 1427 2690

Y1- Y2- R1- R2- Y3- Y4-

229

L 6 CL 8 L 2 R 4 CR 10 R 12
1427 2690 1695 2690 698 960 698 960 1695 2690 1427 2690

136|| 5.4
3.7
136
94 || 3.7

131 || 5.2
131
142 || 5.6
142
150 || 5.9
150
221 || 8.7
221
311 || 12.2
311 12.2

Bottom view
Bottom view
**Dimensions referto
Dimensions refer toradome
radome
All
Alldimensions
dimensions in mm ||inches
inches

Correlation Table

Frequency range Array Connector / Ports

698–960 MHz R1 1–2
698–960 MHz R2 3–4
1427–2690 MHz Y1 5–6
1695–2690 MHz Y2 7–8
1695–2690 MHz Y3 9–10 Y1 Y2 Y3 Y4
1427–2690 MHz Y4 11–12 R1 R2
Left CL CR Right
