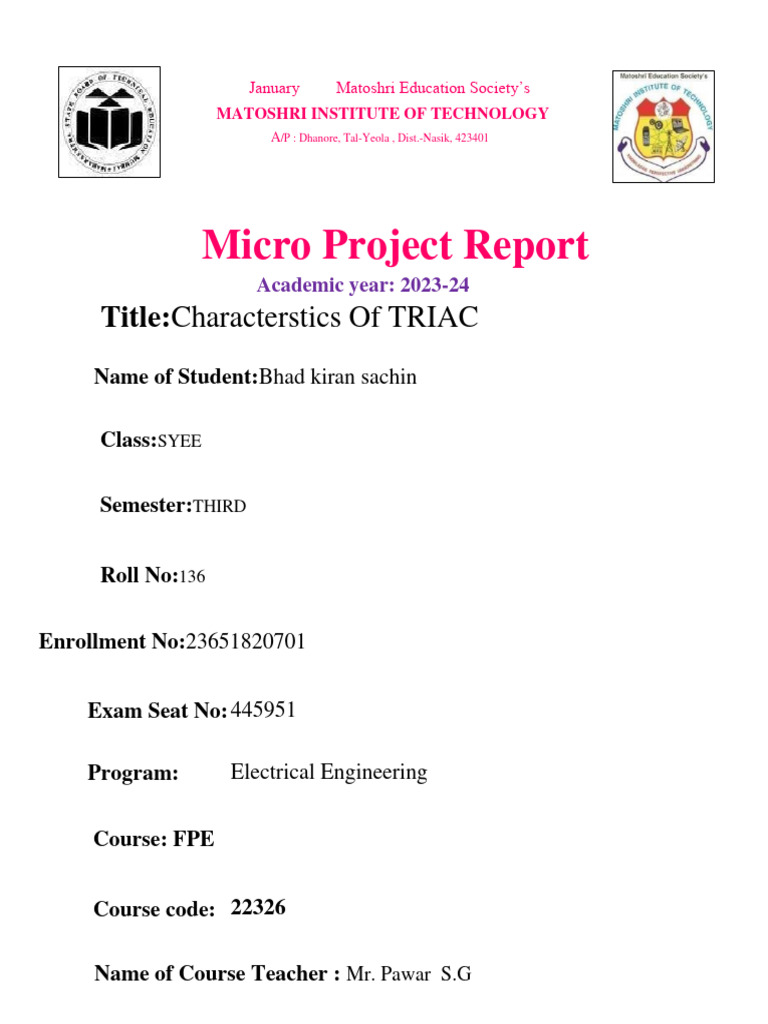

January Matoshri Education Society’s

MATOSHRI INSTITUTE OF TECHNOLOGY

A/P : Dhanore, Tal-Yeola , Dist.-Nasik, 423401

Micro Project Report

Academic year: 2023-24
Title:Characterstics Of TRIAC
Name of Student:Bhad kiran sachin

Class:SYEE

Semester:THIRD

Roll No:136

Enrollment No:23651820701

Exam Seat No: 445951

Program: Electrical Engineering

Course: FPE

Course code: 22326

Name of Course Teacher : Mr. Pawar S.G

 Matoshri Education Society’s
MATOSHRI INSTITUTE OF TECHNOLOGY
A/P : Dhanore, Tal-Yeola , Dist.-Nasik, 423401

CERTIFICATE
This is to certify that Mr.Bhad kiran sachin ROll of:136
of Third semester of Diploma in Electrical Engineering has
successfully completed the Micro Project in characterstics of TRIAC.
for the Academic year 2023 -2024 as prescribed
in MSBT curriculum under the guidance of Course teacher.

Place : Dhanore
EnrollmentNo:23651820701

Date : Exam Seat No:445951

Course Teacher HOD Principal

Mr. Pawar.S.G Mr.N .P.Gujar Mr. G.S. Gujrathi
 Micro Project Report Index

Academic Year : 2023-24 Program :Electrical Engineering

Class:SYEE Course: FPE
Course Code :22326 Roll No : 139

Enrollment No :23651820701 Exam Seat No :445951

Sr. No. Contents Page

No.
1 Introduction 1

2 Triac symbol 2
3 Characteristics 3
4 Construction 4
5 Working 5
6 Advantages & Disadvantages 6
7 Application 7
8 CONCLUSION 8

Signature of Student Signature of Course teacher

Mr.Bhad kiran sachin Mr. Pawar.S.G
 Micro Project Log Book

Academic Year : 2023-24 Program :Electrical Engineering

Class :SYEE Course :FPE
Course Code :22326 Roll No : 136

Enrollment No : 23651820701 Exam Seat No : 445951

Title: Characterstics of TRIAC

Teacher’ s
Week Discussion & Details Teacher’s Comment
No. Sign.

1 General discussion about micro project activity.

2 Guidelines for micro project

Discussion on different
3 industry/application/study oriented topics
Group member are finalized and the topic is
4 decided, as
Work distribution to collect the information
5 regarding topic by each member.
6 Gathered information through the various
sources, such as internet, book, magazine,
journal and newspaper.

7 Discussed the difficulty faced during the

collection of necessary information among the
group member.
8 Discussion with the guide to sort out difficulty
faced while collecting the information.
9
Prepared a rough draft & Shown it to the guide.
Necessary instructions are given by the guide for
10 its better presentation & Finalized project.

11 Presentation is given on the topic, Report is

prepared on the topic & final submission of micro
project and Report

Name & Signature of project Guide

Mr.
 ANNEXURE I

Rubric for Evaluation of Micro Project

Academic Year : 2023-24 Program :Electrical Engineering

Class :SYEE Course :FPE
Course Code : 22326 Roll No : 139

Enrollment No :23651820701 Exam Seat No : 445951

Title : Characterstics of TRIAC

Group Members :
Sr.No. Roll No. Name Of Group Members Sign
1 136 Bhad Kiran Sachin
2 137 Tribhuvan Yash Babasaheb
3 138 Rasal kalyani dattu
4 139 Patil nikita nimba

CO coverage:

Indicators for different level of Performance

Marks (Evaluation Scale 0 to 2)
Sr. No Criteria Obtained
(Out of 2) Poor (0) Average (1) Good (2)

Submission of Project proposal &

1 Not Submitted proposal or project report
Project project report
anything in time submitted in time
proposal/Report submitted ij time

CO/PRO Not attained any Attained maximum

2 attainment CO/PRO Attained some CO/PRO CO/PRO

Content of Not contains Contains maximum

3 Contains some relevant
project/Formattin g relevant relevant
information
information information

Total Marks
4 (06)
Question/
5 Answers (04)
Total (10) :

Additional Comments (if any):

Name & Sign of course teacher
Mr.Pawar S.G
 INTRODUCTION

Triac is switching electronics device has three terminal. It is different from

the other silicon controlled rectifiers (SCR) because it conducts in both the
directions, whether the applied gate signal is positive or negative. Those
control the current flow in a circuit. It belongs to the thyristor family. It is
a bidirectional switching device that can pass the current in both forward
and reverse direction, means they can conduct in both the conditions of the
gate signal, positive and negative. It is a three terminal device, four layers,
bi- directional semiconductor device that control AC power. The
maximum rating of triac is 16kw. The full form of triac is Triode for
Alternating Current (TRIAC) or Triode for AC
.
 Triac symbol

When we connect two equivalent SCRs in reverse but

parallel to one another and gates, these two SCRs are connected together to
form a single gate, it will form the triac. The symbol is shown below. The
three terminal of triac is level by Main Terminal 1 (MT1), Main Terminal
2 (MT2) and Gate (G).
 When we connect two equivalent SCRs in reverse but parallel to one
another and gates, these two SCRs are connected together to form a single
gate, it will form the triac. The symbol is shown below. The three terminal
of triac is level by Main Terminal 1 (MT1), Main Terminal 2 (MT2) and
Gate (G).
 Construction

When two SCRs are connected in reverse direction, but in parallel

with common gate terminal. The common gate connected to both P and N
region due to which gate signal may be applied which is irrespective of the
polarity of the signal. Hence it works for both polarities which means that
device is bilateral. The three terminal is main terminal 1(MT1), main
terminal 2(MT2), and gate terminal G. below the figure shows the
Construction.
 Advantages
1. .In DC application, it works without a diode a safe breakdown is possible in either

direction.

2. .It required dingle heat sink of slightly large size due to this it save the space and cost in

AC power applications.

3. .It can work for both half cycles of an AC waveform.

4. .The TRIAC is turn on by applying to the gate voltage positive and negative.
 Disadvantages

1. .It has small switching frequency compared to other thyristors.

2. .It is less reliable than thyristors It has low rating as compare to other thyristors.

3. .It has low dv/dt rating as.

 TRIAC APPLICATIONS

1.It is use in Lighting control especially domestic dimmmers.

2.We can Control the speed of fans and small motors.
3.Electronic switches for general AC switching and control
 CHARACTERISTICS OF A TRIAC

The V-I characteristics of TRIAC is similar to the SCR, but it applicable to both positive and
negative voltages. The operation is summarized below:

First Quadrant Operation of TRIAC

In first quadrant the voltage MT2 and gate is positive with respect to terminal MT1

Second Quadrant Operation of TRIAC

The voltage MT2 is positive and MT1 and gate is negative terminal voltage

Third Quadrant Operation of TRIAC

The MT1 is positive with respect to MT2 and gate is also negative with respect the MT1

Fourth Quadrant Operation of TRIAC

The MT1 terminal is positive with respect to MT2 and gate is positive terminal. The V-I
characteristic of a TRIAC are given below with different quadrants.
 Conclusion
TRIAC is triggered into conduction in both directions by a gate signal like that of an SCR.
TRIACs were designed to provide a means for the development of improved AC power
controls. TRIACs are available in a variety of packaging arrangements. They can handle a wide
range of current and voltage
