Tree Diagram | Explained with   

Example and Case Study   


 0 Comments

  Facebook  Twitter   

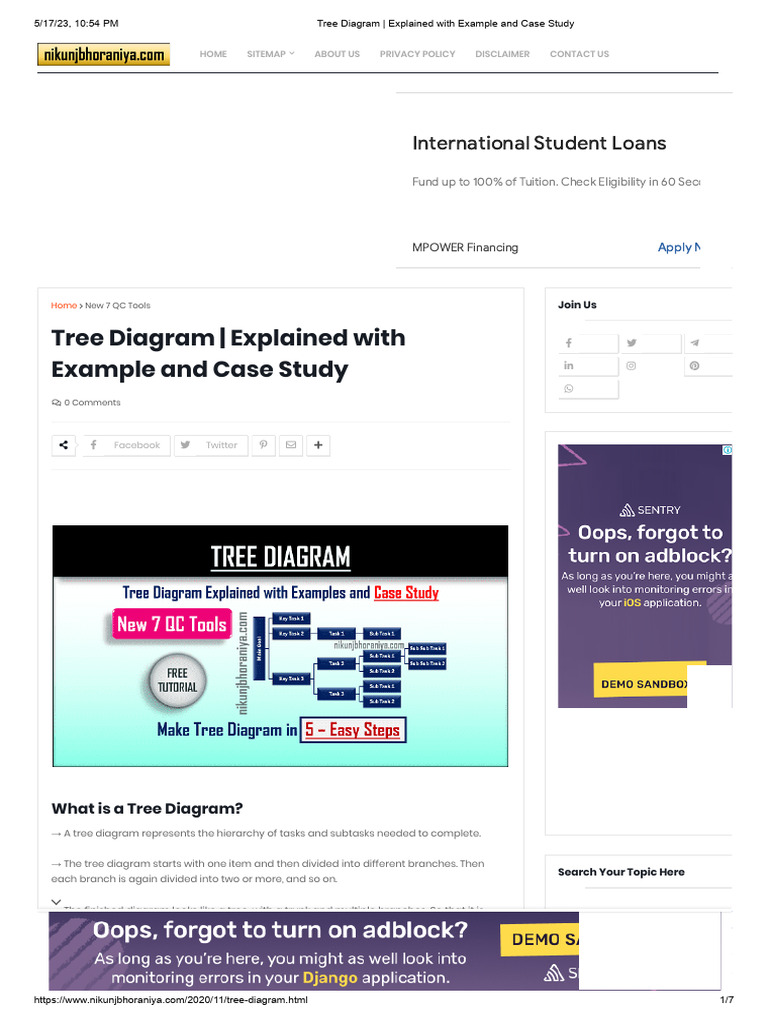

What is a Tree Diagram?

→ A tree diagram represents the hierarchy of tasks and subtasks needed to complete.

→ The tree diagram starts with one item and then divided into different branches. Then
Search Your Topic Here
each branch is again divided into two or more, and so on.

→ The finished diagram looks like a tree, with a trunk and multiple branches. So that it is
known as a tree_diagram.

→ It is used to break down broad categories into detailed levels of category.

https://www.nikunjbhoraniya.com/2020/11/tree-diagram.html 1/7
5/17/23, 10:54 PM Tree Diagram | Explained with Example and Case Study
→ With the help of this tool, we can analyze or plan anything from a very general thing to a Most Popular
detailed specific thing.
Problem Solving
→ It is used to distinguish any broad goal into increasing levels of detailed actions that Methods | Steps, Proces
Examples
could be done to achieve the main goal. This tool represents all things graphically.

7 QC Tools for Process

→ Tree_Diagram is part of a Seven Management and Planning Tool (New 7 QC Tools).
Improvement | PDF |
Case Study

Top Lean Tools | Top 26

Different Names of a Tree Diagram Lean Manufacturing
Tools | Examples
Tree analysis
Analytical tree 7 Steps of Jishu Hozen
(Autonomous
Hierarchy_Diagram Maintenance) Pillar in
TPM

5S in the Workplace | 5S
organizational resilien Implementation | 5S
Meaning | PDF
Make resilience part of your busine
strategy

BS 65000:2022 | BSI O Categories

7 QC Tools
When to use the Tree Diagram
Control Chart
→ When we need to get specific details regarding any issue, planning, or objective from Difference
very general terms.
FMEA

General
→ We can use this tool to develop an action plan for any problem and analyzing the various
processes in detail. IATF 16949

ISO 9001
→ This tool also used as a Root Cause Analysis Tool for a problem.
Lean Manufacturing

Lean Six Sigma

→ After finding the key issues with the help of an Affinity_Diagram or
Interrelationship_Diagram, we can use the Tree_Diagram for the potential solution. Lean Tool

MSA
→ Sometimes this tool is used for the validation purpose for the proposed solutions against New 7 QC Tools
the problems.
OEE

PPAP
→ It is a very good communication and presentation tool while we are presenting some
analysis to others. Problem Solving Method

Process Mapping
→ To develop all process steps for a new product manufacturing and showing the Quality
relationships between the manufacturing operation process.
Quality Core Tools

Six Sigma

SPC

How to make a Tree Diagram? Terms & Definition

→ Refer below Five Steps for understanding the procedure for making the Tree_Diagram. TPM

1. Identify or Define the Problem

2. Formation of Team
3. Generate the major headings of Diagram
4. Divide each major heading into specific detail
5. Review the complete Diagram

https://www.nikunjbhoraniya.com/2020/11/tree-diagram.html 2/7
5/17/23, 10:54 PM Tree Diagram | Explained with Example and Case Study

Step_01: Identify or Define the Problem

→ Identify a high priority problem that needs to be solved on priority.

→ In other words, we can say that to define a goal statement, project planning, problem
statement, or whatever we need to study/solve.

organizational resilien
Make resilience part of your busine
strategy

BS 65000:2022 | BSI O
Step_02: Formation of Team

→ After the first step, now we need to form a competent team for brainstorming and
Problem-Solving.

Step_03: Generate the major headings of the Diagram

→ After Team Formation, we need to decide the direction of the_diagram whether we need
to go from top to bottom or from left to right side during the analysis.

→ Then perform a brainstorming activity to identify the primary ideas or causes to achieve
the objective. Arrange them in an appropriate order and put all ideas into a rectangle box.

Step_04: Divide each major heading into specific detail

→ For each of the primary ideas/causes identify secondary ideas/causes. Arrange them in
next level rectangular boxes.

→ Now after secondary ideas/causes try to identify tertiary ideas/causes that are
necessary to find out the final one. Also, put them into the next level rectangular box.

→ Continue the process until the team can identify the final
solution/ideas/causes/countermeasure.

https://www.nikunjbhoraniya.com/2020/11/tree-diagram.html 3/7
5/17/23, 10:54 PM Tree Diagram | Explained with Example and Case Study
Step_05: Review the complete_Diagram

→ Now in the final stage, we need to review the completed Tree_Diagram for project flow
and completing the same.

→ So this tool helps us to develop the solution.

→ The typical layout of the complete diagram is mentioned in the below picture.

Example and Case Study of Tree Diagram:

→ Refer to the below example for a better understanding of the Tree_Diagram.

Step_01: Identify or Define the Problem

→ In this step, we need to define a goal statement, project planning, Problem Statement, or
whatever we need to study.

→ In our example, we need to find out the Root Cause Analysis.

→ Our problem statement is: "Root Cause Analysis of Pump Failure"

Step_02: Formation of Team

→ The team should have sufficient knowledge of the goal statement and process for the
root cause analysis.

→ Generally, the team should include cross-function's team members.

https://www.nikunjbhoraniya.com/2020/11/tree-diagram.html 4/7
5/17/23, 10:54 PM Tree Diagram | Explained with Example and Case Study
→ The ideal group size is four to six members. But if the project requires more members then
we can add as per the requirement.

Step_03: Generate the major headings of Diagram

→ In this step, we need to identify the first level of detail that is related to the problem
statement.

→ The simple, easy, and effective method for generating ideas is brainstorming.

→ These are the major “ideas/causes” by which we can achieve the goal statement.

→ To encourage creativity, it is often helpful to do an “Action Affinity” on the goal statement.

→ Now we have the major heading "Root Cause Analysis for Pump Failure".

Step_04: Divide each major heading into specific detail

→ In step 4, we need to break or distinguish the major heading into the smaller tasks,
activity, or causes.

→ Now The major heading needs to separate into smaller parts.

→ So the Pump failed due to bearing failure - primary cause(s).

→ After that, the secondary cause(s) are erosion, corrosion, fatigue, and overload.

→ The tertiary cause(s) are high vibration under secondary cause fatigue.

→ Then we have mentioned the causes of high vibration.

→ Finally the in the last column we have mentioned the root cause.

→ We can see all these details in the below picture.

Step_05: Review the complete Diagram

→ Now in the final stage, we need to review the completed Tree_Diagram for project flow
and completing the same.
https://www.nikunjbhoraniya.com/2020/11/tree-diagram.html 5/7
5/17/23, 10:54 PM Tree Diagram | Explained with Example and Case Study
→ The Tree_Diagram is a very good visual communication tool.

→ The team’s final important task is to consider suggested changes, additions, or

elimination and to modify the Tree if it is appropriate.

Benefits of Tree Diagram

→ It is a very good visual tool for analysis or problem-solving.
→ This tool helps us for systematic analysis of any problem.
→ It is very easy to use by any person.
→ This tool is also very easy to understand and very easy to represent.
