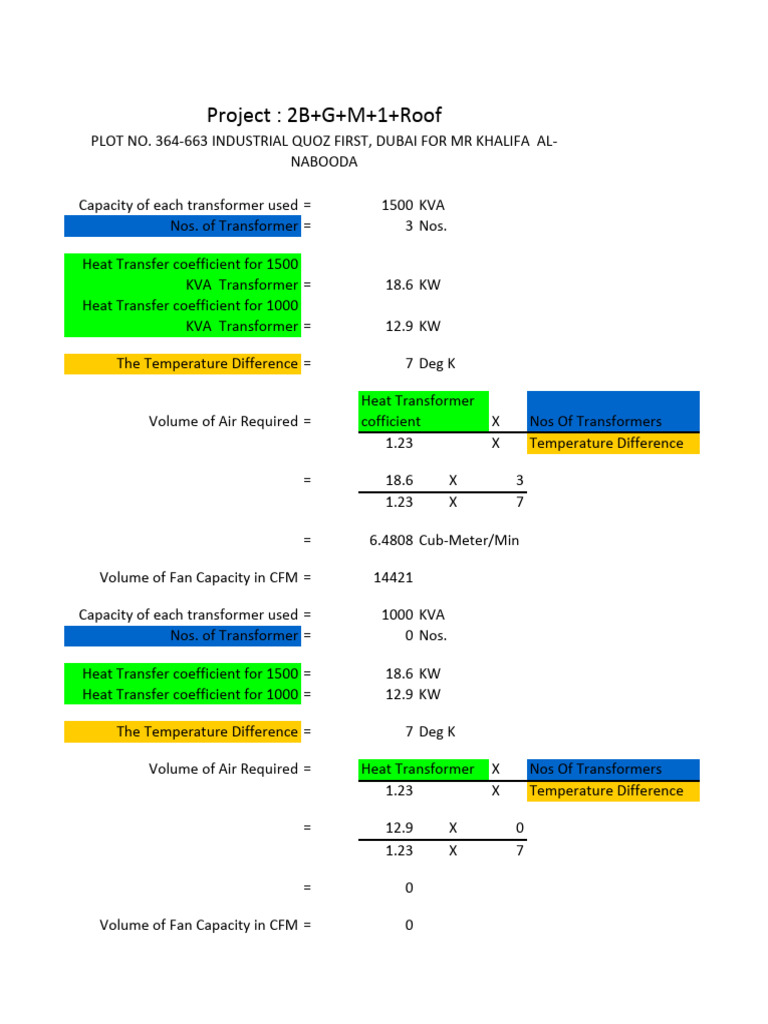

    Project : 2B+G+M+1+Roof

    PLOT NO. 364-663 INDUSTRIAL QUOZ FIRST, DUBAI FOR MR KHALIFA AL-
    NABOODA

    Capacity of each transformer used = 1500 KVA


    Nos. of Transformer = 3 Nos.

    Heat Transfer coefficient for 1500


    KVA Transformer = 18.6 KW
    Heat Transfer coefficient for 1000
    KVA Transformer = 12.9 KW

    The Temperature Difference = 7 Deg K

    Heat Transformer
    Volume of Air Required = cofficient X Nos Of Transformers
    1.23 X Temperature Difference

    = 18.6 X 3
    1.23 X 7

    = 6.4808 Cub-Meter/Min

    Volume of Fan Capacity in CFM = 14421

    Capacity of each transformer used = 1000 KVA


    Nos. of Transformer = 0 Nos.

    Heat Transfer coefficient for 1500 = 18.6 KW


    Heat Transfer coefficient for 1000 = 12.9 KW

    The Temperature Difference = 7 Deg K

    Volume of Air Required = Heat Transformer X Nos Of Transformers


    1.23 X Temperature Difference

    = 12.9 X 0
    1.23 X 7

    = 0

    Volume of Fan Capacity in CFM = 0


    TOTAL CAPACITY = 14421 CFM

    We select Two Duty and One Standby fans, each one 7350 CFM
