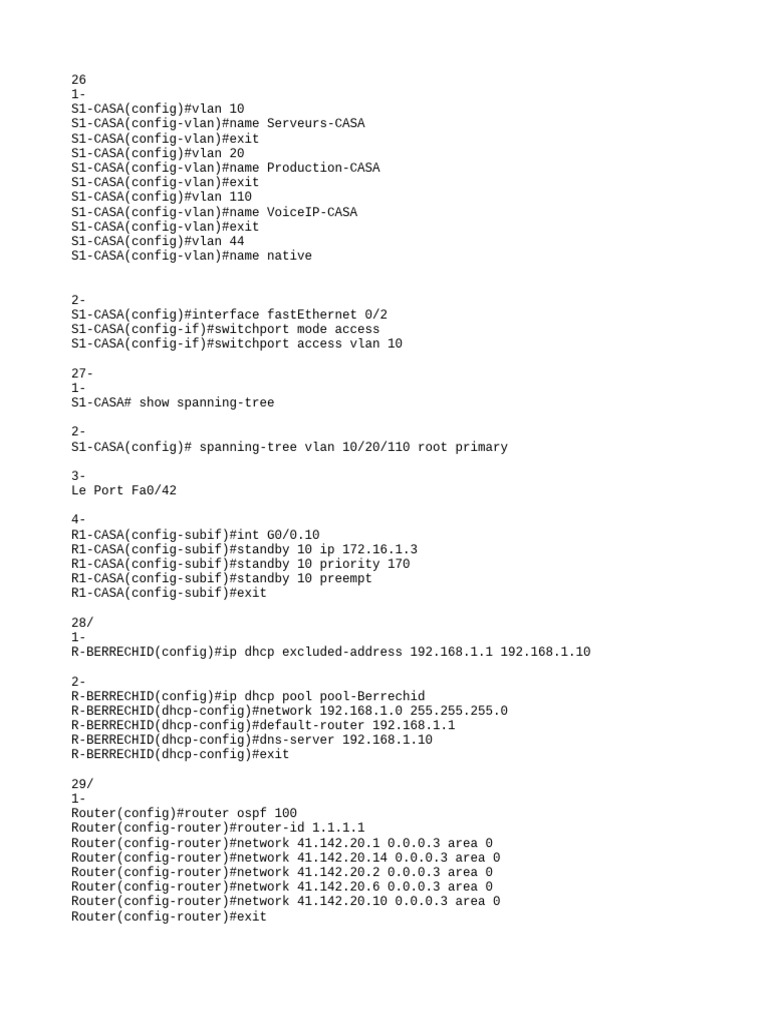

    26

    1-
    S1-CASA(config)#vlan 10
    S1-CASA(config-vlan)#name Serveurs-CASA
    S1-CASA(config-vlan)#exit
    S1-CASA(config)#vlan 20
    S1-CASA(config-vlan)#name Production-CASA
    S1-CASA(config-vlan)#exit
    S1-CASA(config)#vlan 110
    S1-CASA(config-vlan)#name VoiceIP-CASA
    S1-CASA(config-vlan)#exit
    S1-CASA(config)#vlan 44
    S1-CASA(config-vlan)#name native

    2-
    S1-CASA(config)#interface fastEthernet 0/2
    S1-CASA(config-if)#switchport mode access
    S1-CASA(config-if)#switchport access vlan 10

    27-
    1-
    S1-CASA# show spanning-tree

    2-
    S1-CASA(config)# spanning-tree vlan 10/20/110 root primary

    3-
    Le Port Fa0/42

    4-
    R1-CASA(config-subif)#int G0/0.10
    R1-CASA(config-subif)#standby 10 ip 172.16.1.3
    R1-CASA(config-subif)#standby 10 priority 170
    R1-CASA(config-subif)#standby 10 preempt
    R1-CASA(config-subif)#exit

    28/
    1-
    R-BERRECHID(config)#ip dhcp excluded-address 192.168.1.1 192.168.1.10

    2-
    R-BERRECHID(config)#ip dhcp pool pool-Berrechid
    R-BERRECHID(dhcp-config)#network 192.168.1.0 255.255.255.0
    R-BERRECHID(dhcp-config)#default-router 192.168.1.1
    R-BERRECHID(dhcp-config)#dns-server 192.168.1.10
    R-BERRECHID(dhcp-config)#exit

    29/
    1-
    Router(config)#router ospf 100
    Router(config-router)#router-id 1.1.1.1
    Router(config-router)#network 41.142.20.1 0.0.0.3 area 0
    Router(config-router)#network 41.142.20.14 0.0.0.3 area 0
    Router(config-router)#network 41.142.20.2 0.0.0.3 area 0
    Router(config-router)#network 41.142.20.6 0.0.0.3 area 0
    Router(config-router)#network 41.142.20.10 0.0.0.3 area 0
    Router(config-router)#exit
    2-
    Router(config)#ip route 0.0.0.0 0.0.0.0 41.143.21.20

    3-
    Router(config)# router ospf 100
    Router(config-router)# default-information originate
    Router(config-router)# exit

    30/

    31/
    1-

    R-BERRECHID(config)# ip access-list extended ACL-Berrechid


    R-BERRECHID(config-ext-nacl)# permit tcp 192.168.1.0 0.0.0.255 host 172.16.1.12 eq
    21
    R-BERRECHID(config-ext-nacl)# permit UDP 192.168.1.0 0.0.0.255 host 172.16.1.11 eq
    53
    R-BERRECHID(config-ext-nacl)# deny ip any any
    R-BERRECHID(config-ext-nacl)# exit

    2-
    R-BERRECHID(config)# int G0/0
    R-BERRECHID(config-if)# ip access-group ACL-Berrechid in
    R-BERRECHID(config-if)# int Se0/2/0
    R-BERRECHID(config-if)# ip access-group ACL-Berrechid out
    R-BERRECHID(config-if)# exit
