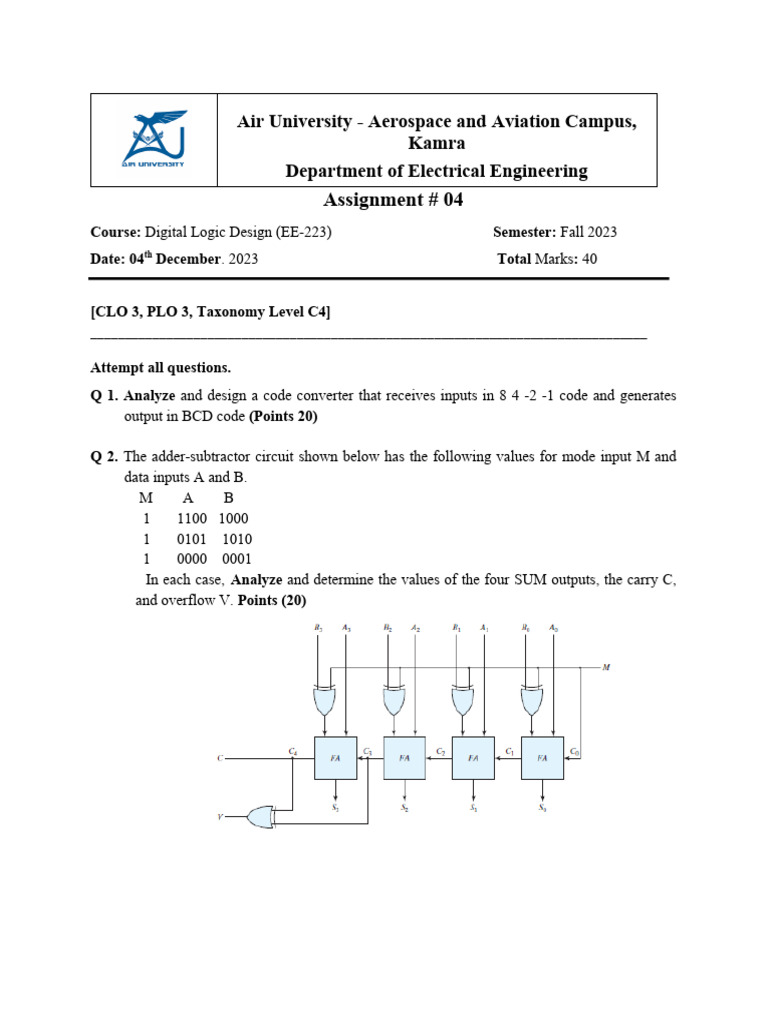

Air University - Aerospace and Aviation Campus,

Kamra
Department of Electrical Engineering
Assignment # 04
Course: Digital Logic Design (EE-223) Semester: Fall 2023
Date: 04th December. 2023 Total Marks: 40

[CLO 3, PLO 3, Taxonomy Level C4]

_________________________________________________________________________________

Attempt all questions.

Q 1. Analyze and design a code converter that receives inputs in 8 4 -2 -1 code and generates
output in BCD code (Points 20)

Q 2. The adder-subtractor circuit shown below has the following values for mode input M and
data inputs A and B.
M A B
1 1100 1000
1 0101 1010
1 0000 0001
In each case, Analyze and determine the values of the four SUM outputs, the carry C,
and overflow V. Points (20)
