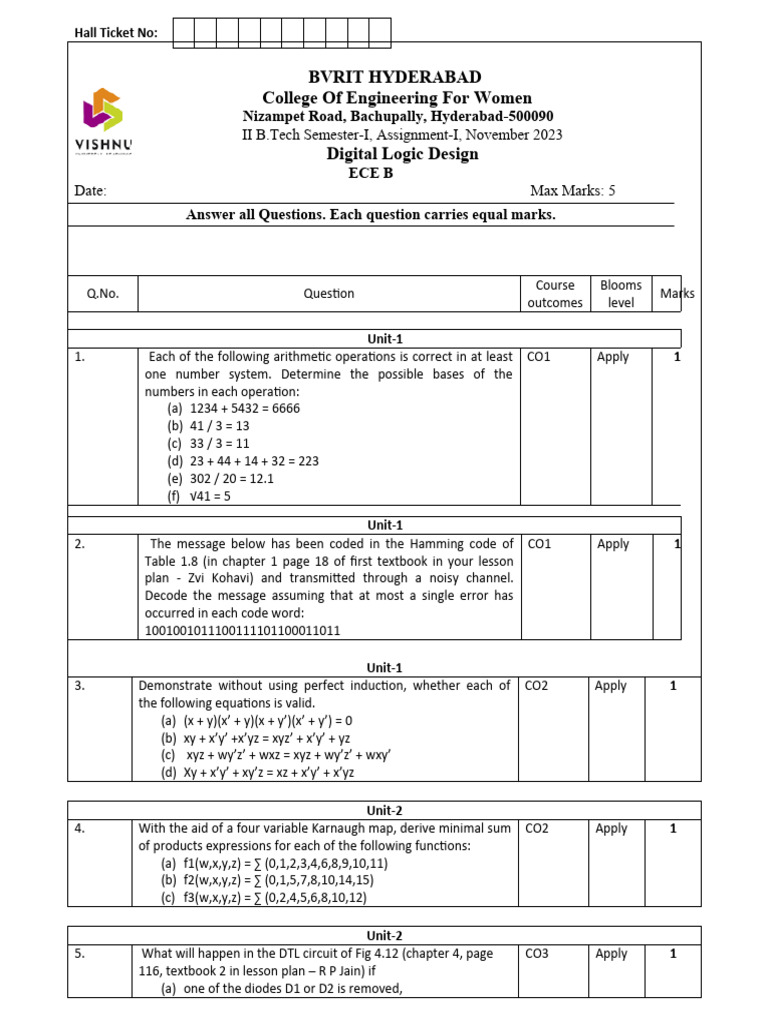

Hall Ticket No:

BVRIT HYDERABAD
College Of Engineering For Women
Nizampet Road, Bachupally, Hyderabad-500090
II B.Tech Semester-I, Assignment-I, November 2023
Digital Logic Design
ECE B
Date: Max Marks: 5
Answer all Questions. Each question carries equal marks.

Course Blooms
Q.No. Question Marks
outcomes level

Unit-1
1. Each of the following arithmetic operations is correct in at least CO1 Apply 1
one number system. Determine the possible bases of the
numbers in each operation:
(a) 1234 + 5432 = 6666
(b) 41 / 3 = 13
(c) 33 / 3 = 11
(d) 23 + 44 + 14 + 32 = 223
(e) 302 / 20 = 12.1
(f) √41 = 5

Unit-1
2. The message below has been coded in the Hamming code of CO1 Apply 1
Table 1.8 (in chapter 1 page 18 of first textbook in your lesson
plan - Zvi Kohavi) and transmitted through a noisy channel.
Decode the message assuming that at most a single error has
occurred in each code word:
1001001011100111101100011011

Unit-1
3. Demonstrate without using perfect induction, whether each of CO2 Apply 1
the following equations is valid.
(a) (x + y)(x’ + y)(x + y’)(x’ + y’) = 0
(b) xy + x’y’ +x’yz = xyz’ + x’y’ + yz
(c) xyz + wy’z’ + wxz = xyz + wy’z’ + wxy’
(d) Xy + x’y’ + xy’z = xz + x’y’ + x’yz

Unit-2
4. With the aid of a four variable Karnaugh map, derive minimal sum CO2 Apply 1
of products expressions for each of the following functions:
(a) f1(w,x,y,z) = ∑ (0,1,2,3,4,6,8,9,10,11)
(b) f2(w,x,y,z) = ∑ (0,1,5,7,8,10,14,15)
(c) f3(w,x,y,z) = ∑ (0,2,4,5,6,8,10,12)

Unit-2
5. What will happen in the DTL circuit of Fig 4.12 (chapter 4, page CO3 Apply 1
116, textbook 2 in lesson plan – R P Jain) if
(a) one of the diodes D1 or D2 is removed,
(b) one more diode D3 is inserted in series with D1 and D2.
