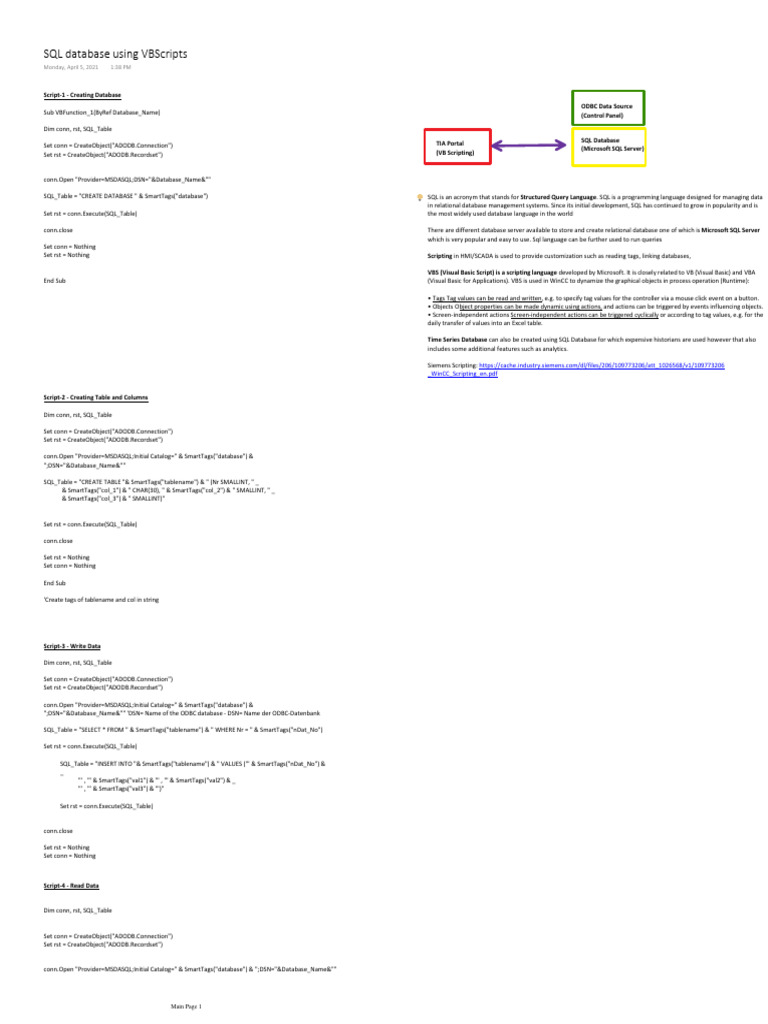

SQL database using VBScripts

Monday, April 5, 2021 1:38 PM

Script-1 - Creating Database

ODBC Data Source
Sub VBFunction_1(ByRef Database_Name) (Control Panel)

Dim conn, rst, SQL_Table

TIA Portal SQL Database

Set conn = CreateObject("ADODB.Connection") (Microsoft SQL Server)
Set rst = CreateObject("ADODB.Recordset") (VB Scripting)

conn.Open "Provider=MSDASQL;DSN="&Database_Name&""

SQL_Table = "CREATE DATABASE " & SmartTags("database") SQL is an acronym that stands for Structured Query Language. SQL is a programming language designed for managing data
in relational database management systems. Since its initial development, SQL has continued to grow in popularity and is
Set rst = conn.Execute(SQL_Table) the most widely used database language in the world

conn.close There are different database server available to store and create relational database one of which is Microsoft SQL Server
which is very popular and easy to use. Sql language can be further used to run queries
Set conn = Nothing
Set rst = Nothing Scripting in HMI/SCADA is used to provide customization such as reading tags, linking databases,

VBS (Visual Basic Script) is a scripting language developed by Microsoft. It is closely related to VB (Visual Basic) and VBA
End Sub (Visual Basic for Applications). VBS is used in WinCC to dynamize the graphical objects in process operation (Runtime):

• Tags Tag values can be read and written, e.g. to specify tag values for the controller via a mouse click event on a button.
• Objects Object properties can be made dynamic using actions, and actions can be triggered by events influencing objects.
• Screen-independent actions Screen-independent actions can be triggered cyclically or according to tag values, e.g. for the
daily transfer of values into an Excel table.

Time Series Database can also be created using SQL Database for which expensive historians are used however that also
includes some additional features such as analytics.

Siemens Scripting: https://cache.industry.siemens.com/dl/files/206/109773206/att_1026568/v1/109773206

_WinCC_Scripting_en.pdf

Script-2 - Creating Table and Columns

Dim conn, rst, SQL_Table

Set conn = CreateObject("ADODB.Connection")

Set rst = CreateObject("ADODB.Recordset")

conn.Open "Provider=MSDASQL;Initial Catalog=" & SmartTags("database") &

";DSN="&Database_Name&""

SQL_Table = "CREATE TABLE "& SmartTags("tablename") & " (Nr SMALLINT, " _
& SmartTags("col_1") & " CHAR(30), " & SmartTags("col_2") & " SMALLINT, " _
& SmartTags("col_3") & " SMALLINT)"

Set rst = conn.Execute(SQL_Table)

conn.close

Set rst = Nothing

Set conn = Nothing

End Sub

'Create tags of tablename and col in string

Script-3 - Write Data

Dim conn, rst, SQL_Table

Set conn = CreateObject("ADODB.Connection")

Set rst = CreateObject("ADODB.Recordset")

conn.Open "Provider=MSDASQL;Initial Catalog=" & SmartTags("database") &

";DSN="&Database_Name&"" 'DSN= Name of the ODBC database - DSN= Name der ODBC-Datenbank

SQL_Table = "SELECT * FROM " & SmartTags("tablename") & " WHERE Nr = " & SmartTags("nDat_No")

Set rst = conn.Execute(SQL_Table)

SQL_Table = "INSERT INTO "& SmartTags("tablename") & " VALUES ('" & SmartTags("nDat_No") &
_
"' , '" & SmartTags("val1") & "' , '" & SmartTags("val2") & _
"' , '" & SmartTags("val3") & "')"

Set rst = conn.Execute(SQL_Table)

conn.close

Set rst = Nothing

Set conn = Nothing

Script-4 - Read Data

Dim conn, rst, SQL_Table

Set conn = CreateObject("ADODB.Connection")

Set rst = CreateObject("ADODB.Recordset")

conn.Open "Provider=MSDASQL;Initial Catalog=" & SmartTags("database") & ";DSN="&Database_Name&""

Main Page 1
SQL_Table = "SELECT * FROM " & SmartTags("tablename") & " WHERE Nr = " & SmartTags("s_no")

Set rst = conn.Execute(SQL_Table)

SmartTags("s_no") = rst.Fields(0).Value
SmartTags("val1") = rst.Fields(1).Value
SmartTags("val2") = rst.Fields(2).Value
SmartTags("val3") = rst.Fields(3).Value
SmartTags("col1") = rst.Fields(1).Name
SmartTags("col2") = rst.Fields(2).Name
SmartTags("col3") = rst.Fields(3).Name

rst.close

conn.close

Set rst = Nothing

Set conn = Nothing

End Sub
