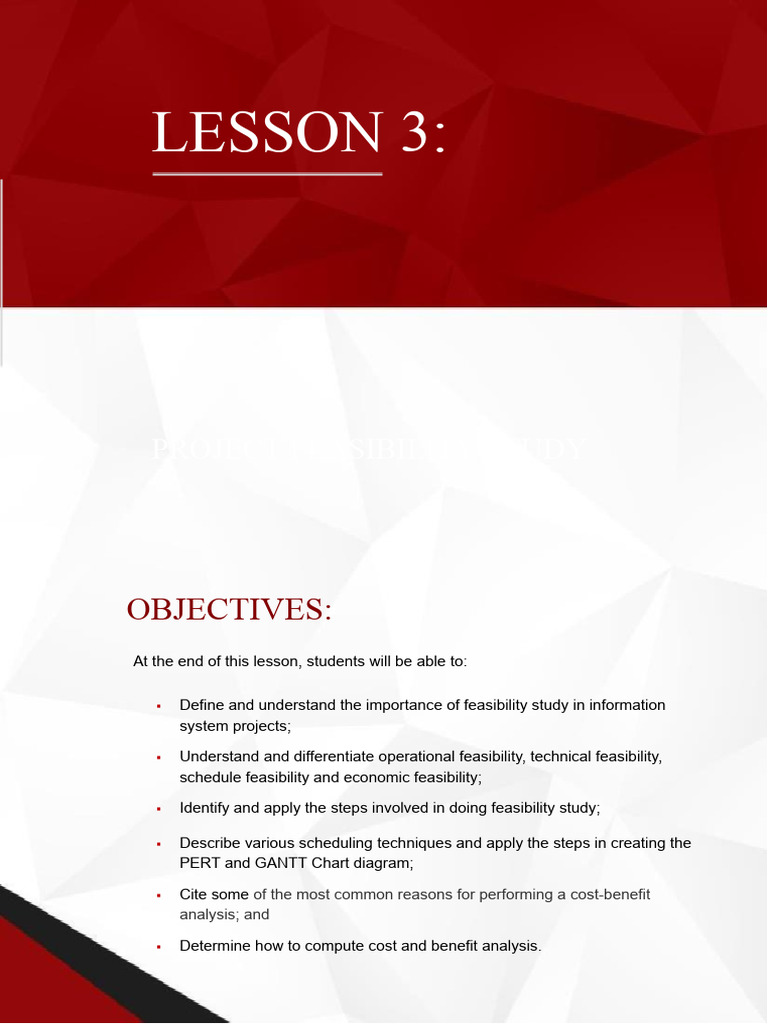

Lesson 3
Lesson 3
OBJECTIVES:
At the end of this lesson, students will be able to:
▪ Describe various scheduling techniques and apply the steps in creating the
PERT and GANTT Chart diagram;
"At the beginning of all experimental work stands the choice of the appropriate
tecHNIQUE of investigation."
A feasibility study plays a vital role in the success of one's potential project;
therefore, biased judgement is an essential factor in the credibility of the result of the
study, especially to the management. There are four types of feasibility studies that
are separately discussed and described below.
Figure 2.6 shows places the project milestones or tasks, time to do a task,
earliest start date/time (ESD), and the earliest finish date (EFD) inside the tasks box.
The horizontal axis shows the time measures in weeks, and the vertical axis shows
the sequence of those project milestones or tasks. It also includes a legend that
serves as a guide in identifying which among your project milestones or tasks is your
critical path.
Once you have determined all three of these criteria and listed out the
sequence of your tasks, you have ready to create your PERT chart.
Gantt Chart
The project schedule Gantt chart may be a useful visualization technique for
progress tracking and reporting purposes. It is the go-to tool for many project
managers once they want to urge a fast estimate of the time it'll fancy completing all
the project activities. A project schedule Gantt chart could also be a bar chart that
shows series of activities or tasks in sequence on the left (first activity is at the very
best left and last activity ends within the bottom right corner) vs. time (on the highest
or bottom). Each activity or task is represented by a bar that reflects the start and
date of the activity, and thus its timescale. The chart showed all the activities or tasks
when they were set to start and to finish, how long each activity will last, where there
are overlaps of activities, dependencies between activities, which are connected with
arrows and, therefore, the start/end date of the whole project.
If the Gantt chart isn't a neighborhood of a project management system, it's very flat
and has similar limitations to the task list, like little collaboration, no versioning, or
progress tracking. ("Most Common Scheduling Techniques in Project Management,"
n.d.)
Pros:
• Adaptable to all industries and projects
• Easy to view progress
• Ability to set accurate deadlines and define dependencies
• Easily modified
• Can be created in Microsoft Excel or in a project management system
• Ability to assign tasks to resources
Cons:
• If the Gantt chart is not part of a project management system, it is flat
• No versioning
• Limited collaboration
• No progress tracking
Steps in Creating A Gantt Chart
Gantt chart as one of the project scheduling techniques used when you create
or manage any kind of system project that has many tasks associated with it.
Consider this: If task ID No. 2 cannot begin until task ID No.1 is complete—and task
ID No.1 takes at least two weeks to complete—we cannot begin task ID No.2 for two
weeks. So it only means that the project will take a minimum of two weeks, plus the
length of completion for task ID No.2. It seems simple to understand, but when you
have many dependencies, it is a little confusing to plot the tasks and need to allocate
your project team's time as effectively as possible. (Foley, 2020)
For a better understanding of how the processes all fit together, below are the
steps in creating a Gantt Chart:
1. List out your costs and benefits. It is the easiest step in the process of
performing a cost-benefit analysis. List all of the costs and benefits of engaging in
a specific action. If you are looking to hire someone new, for example, these
costs and benefits might include:
Costs:
Benefits:
Improved efficiency
Lighter workloads across teams
Higher quality work
More experience on the team
New areas of expertise
Decreased risk of team burnouts
Potential networking opportunities
Assessing cost and benefit is a process of identifying the financial benefits and
costs associated with developing an information system project. The project is
assessed in terms of cost and benefit to decide whether to continue, redirect, or stop
development.
Recurring cost is defined as a cost resulting from the continued evolution and use
of a system.
Examples of these costs include:
● Application software maintenance,
● Incremental data storage expenses,
● Incremental communications,
● New software and hardware leases, and
● Supplies and other expenses (for instance, paper, forms, data center
personnel).
It is not a problem when your list of costs and benefits might come out uneven
with more items than the other. Your analysis is not finished here since you
continue to have not assigned any value metrics.
Tips in doing your costs and benefits is that before you jump into listing these
effects, make certain to utilize of these tips below so you will build the foremost
comprehensive lists possible:
Once you have assigned values to every cost and benefit, it's time to gauge
whether your proposed action would offer a positive benefit to your business.
In order to conduct this analysis, you need to use the subsequent formulas:
Once you have assigned values to each cost and benefit, it is time to assess
whether your proposal would provide a positive benefit to your business.
In order to conduct this analysis, you will need to use the following formulas:
Where:
One Time Cost =Total Development Cost + Total User Training + Total
Additional Hardware/Software
PV of Recurring Cost= Recurring Cost * Discount Rate
The results of the Cost-Benefit Analysis can be used to assess and consider
certain risks of a project. An example is finding the NPV, ROI and payback period,
which are vital to find out in a proposed system project.
How NPV, ROI, and Payback Period Works?
Note: Represented in percentage value (it can be multiplied by 100) and multiplied
on a given period of time based on the projection of the project life span.
If your ROI value is positive, then it indicates your action would benefit your
business. A negative result would only mean profit loss. Once you have determined
this result, then you can make the decision to either pursue or leave the action
behind. (Note: Figure 2.12 below is an example of the ROI Computation.)
Figure 2.12 Example ROI Computation Taken from Break Even Analysis Table
What is NPV?
Compared to ROI, NPV may be a bit complicated when it involves Net
Present Value (NPV) which is usually employed by technology and business asset
investors because it converts the multi-year benefits and costs of investment into
today's Peso value (or other currency value). This makes it easier to match
investment options. Investors can check out this "normalized" value alongside other
factors (like strategic importance and risk) when making decisions. (Kenton, 2020)
Most companies are continuously making decisions on the way to manage
their cash inflows and cash outflows like for instance; they will need to decide
between:
● Reducing debt, which yields a return supported their interest rate; Investing in
their own stock;
● Hiring additional employees
● Acquiring technology to manage productivity
In order to level the playing field regarding riskier options (like acquiring a
business or technology), companies establish an expected annual financial return
percent (or hurdle rate). Projections for a proposed investment must exceed the
hurdle rate to be viable.
The NPV formula Net Present Value (NPV) of a series of money flows
supported by a specified discount rate. The NPV formulas are useful for financial
analysis when determining the worth of an investment
NPV Formula
Below is the formula for computing the present value of annual cash flow.
Where:
NPV: Net Present Value
F : Future payment (cash flow)
i :Discount rate (or interest rate)
n :number of periods in the future the cash flow is
NPV= NPV( Discount Factor Percentage, Value of Cash Flow Cells from Year
1 to Year 5 not included the Year 0) + the Value of Year 0.
See Sample computation below:
Simply put, the payback period is that the length of some time an investment
reaches a break-even point. It directly affects the desirability of an investor to
proceed with the proposed project. Shorter paybacks mean more attractive
investments. The shorter you will get your payback means the higher for you to take
a position your money while the longer it can catch on means not so desirable for an
investor or sponsor. (Kagan, 2020)
Figure 2.14 Example Calculation of Payback Period in MS Excel
Figure 2.14, which was taken from the Break-Even Analysis Table shown a
specific example of how you will get an actual payback or break-even point. This is
done by computing your Yearly NPV Income on the lower portion of your Break-Even
Analysis Table, followed by Overall NPV CAshflow for you to work out your running
balance in your investment. Overall NPV Income turns positive during the period of
Year 3. Seek out how the calculation is done in MS Excel, below is the mathematical
formula for calculating the payback period.
The actual Payback Period or Break-Even Point has often computed counting
on when the general NPV reaches its positive value. Once you get the particular
number of payback year period then the solution to its reach point is going to be
multiplied by twelve (12) because we have twelve (12) months a year to get the
exact number of months, the decimal value to the present answer will then be
multiplied by 30 which is that the average number of days during a month for you to
urge the particular number of days. When you are done, add it with the
implementation date of the project to come up with the particular date of the payback
period or break-even point.
Figure 2.15 Example of Break-Even Analysis Table
Figure 2.16 Example of Payback Period Analysis Table
Figure 2.16 in which data was taken from the Break-Even Analysis Table in
Figure 2.15 shows a reflection of how actual payback or break-even point through a
line graph chart where it shows that the X and Y-Axis meet in almost the middle
period of Year 3 and Year 4 which is logically in accordance with our initial estimation
of Year 3, 5 months and 16 days.
