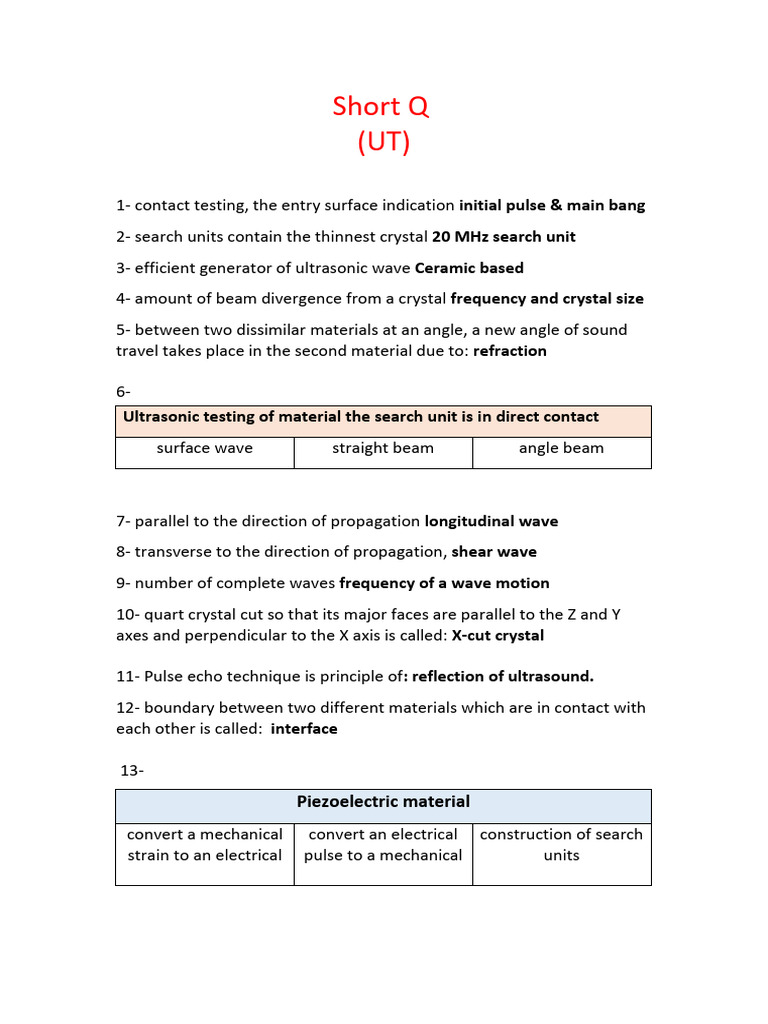

(UT)
1- contact testing, the entry surface indication initial pulse & main bang
2- search units contain the thinnest crystal 20 MHz search unit
3- efficient generator of ultrasonic wave Ceramic based
4- amount of beam divergence from a crystal frequency and crystal size
5- between two dissimilar materials at an angle, a new angle of sound
travel takes place in the second material due to: refraction
6-
Ultrasonic testing of material the search unit is in direct contact
surface wave straight beam angle beam
13-
Piezoelectric material
convert a mechanical convert an electrical construction of search
strain to an electrical pulse to a mechanical units
14- piezoelectric material in a search unit crystal
15- search units would contain the thinnest crystal 20 MHz search unit
22- liquid coupling air interface between the crystal surface and the part
surface would almost completely reflect the ultrasonic vibrations.
37- UT thickness gauge may give error (Surface is rough & corroded)
38- Normal beam UT can best detect lamination
39- for ultrasonic inspection compression velocity is:
a. greater in steel to aluminium
b. greater in aluminium to steel
43- ONE signal send and a second transducer to receive signals from
the same side PICH & catch
44- immersion technique the energy common from the (enter of surface)
more that reflected energy
