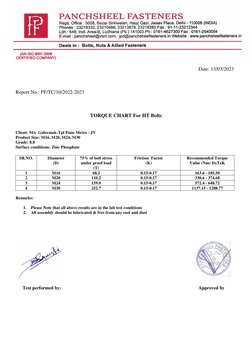

    Date: 13/03/2023

    Report No.: PF/TC/10/2022-2023

    TORQUE CHART For HT Bolts

    Client: M/s Gulermak-Tpl Pune Metro - JV


    Product Size: M16, M20, M24, M30
    Grade: 8.8
    Surface conditions: Zinc Phosphate

    SR.NO. Diameter 75% of bolt stress Friction Factor Recommended Torque


    (D) under proof load (K) Value (Nm) DxTxK
    (T)
    1 M16 68.2 0.15-0.17 163.6 - 185.50
    2 M20 110.2 0.15-0.17 330.6 - 374.68
    3 M24 159.0 0.15-0.17 572.4 - 648.72
    4 M30 252.7 0.15-0.17 1137.15 - 1288.77

    Remarks:

    1. Please Note that all above results are in the lab test conditions
    2. All assembly should be lubricated & free from any rust and dust

    Test performed by: Approved by
