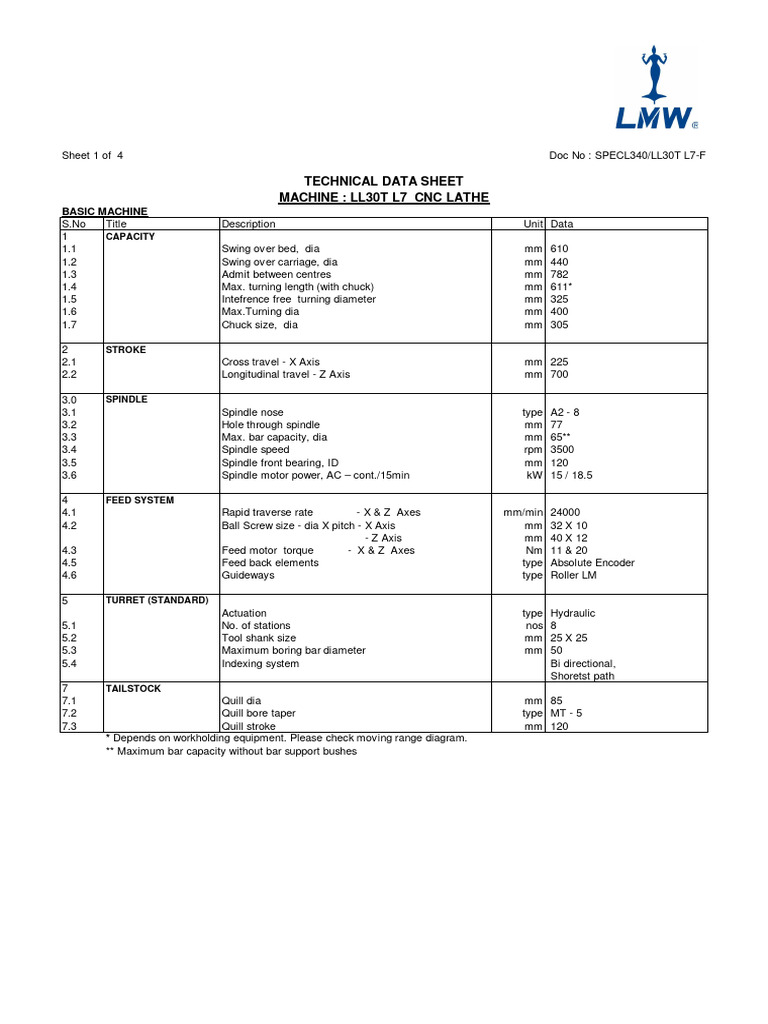

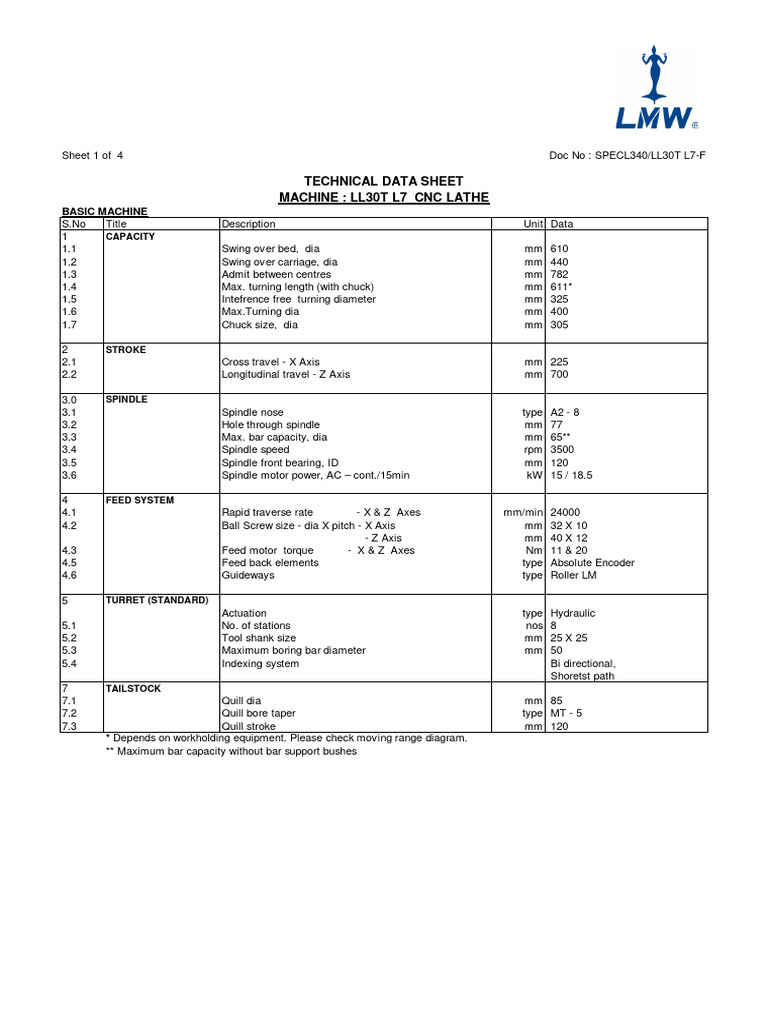

Sheet 1 of 4 Doc No : SPECL340/LL30T L7-F

TECHNICAL DATA SHEET

MACHINE : LL30T L7 CNC LATHE
BASIC MACHINE
S.No Title Description Unit Data
1 CAPACITY
1.1 Swing over bed, dia mm 610
1.2 Swing over carriage, dia mm 440
1.3 Admit between centres mm 782
1.4 Max. turning length (with chuck) mm 611*
1.5 Intefrence free turning diameter mm 325
1.6 Max.Turning dia mm 400
1.7 Chuck size, dia mm 305

2 STROKE
2.1 Cross travel - X Axis mm 225
2.2 Longitudinal travel - Z Axis mm 700

3.0 SPINDLE
3.1 Spindle nose type A2 - 8
3.2 Hole through spindle mm 77
3.3 Max. bar capacity, dia mm 65**
3.4 Spindle speed rpm 3500
3.5 Spindle front bearing, ID mm 120
3.6 Spindle motor power, AC – cont./15min kW 15 / 18.5

4 FEED SYSTEM
4.1 Rapid traverse rate - X & Z Axes mm/min 24000
4.2 Ball Screw size - dia X pitch - X Axis mm 32 X 10
- Z Axis mm 40 X 12
4.3 Feed motor torque - X & Z Axes Nm 11 & 20
4.5 Feed back elements type Absolute Encoder
4.6 Guideways type Roller LM

5 TURRET (STANDARD)
Actuation type Hydraulic
5.1 No. of stations nos 8
5.2 Tool shank size mm 25 X 25
5.3 Maximum boring bar diameter mm 50
5.4 Indexing system Bi directional,
Shoretst path
7 TAILSTOCK
7.1 Quill dia mm 85
7.2 Quill bore taper type MT - 5
7.3 Quill stroke mm 120
* Depends on workholding equipment. Please check moving range diagram.
** Maximum bar capacity without bar support bushes
Sheet 2 of 4 Doc No : SPECL340/LL30T L7-F

S.No Title Description Unit Data

8 LUBRICATION
8.1 Spindle bearings type Grease packed
8.2 Guideways and Ball Screws type Automatic pressure
lubrication with
fault detection

9 COOLANT
9.1 Coolant tank capacity litres 150
9.2 Coolant pump motor - Standard kw 1.1

10 POWER SOURCE
10.1 Electrical power supply - Voltage V AC 415 ± 10 %
10.2 - Frequency Hz 50 ± 1
10.3 Electrical power requirement KVA 35
10.4 Compressed air requirement - std lpm nil
(at NTP) - for options lpm 10
11 MACHINE SIZE
(approximate)
11.1 Machine Front X Side x height mm 2915 x 1635 x 2025
11.2 Machine weight kg 5000
11.3 Colour Shade Off White & Blue (RAL 5015
(Sliding door)
12 ACCURACY (JIS)
12.1 Positioning accuracy - X & Z Axis mm 0.010
12.2 Repeatability - X & Z Axis mm ± 0.003

13 STANDARD ITEMS
13.1 Coolant system, 60 lpm @ 4 bar
13.2 Graphic display
13.3 Automatic lubrication unit
13.4 Machine lamp
13.5 Sliding door Interlock
13.6 Built-in AC (Indigenous)
13.7 Foot switch for chucking
13.8 Manual Pulse generator
13.9 Set ot turret tool holders set 1
13.10 Levelling pads set 1
13.11 Machine manuals set 1
13.12 Maintenance tools set 1
13.13 Process completion lamp ( 3 tier)
13.14 Foot switch for tailstock
13.15 Absolute encoder
13.16 Tool life management
Sheet 3 of 4
Doc No : SPECL340/LL30T L7-F
CNC SYSTEM : FANUC 0i TF

S.No Title Description Specification

1 CONTROL
1.1 Number of controlled axes Two ( X & Z)
1.2 Simultaneously controllable axes Two
1.3 Incremental input & output Minimum : 0.001mm

2 FEED FUNCTIONS
2.1 Rapid traverse rate X : 24 m / min ; Z : 24 m / min
2.2 Rapid traverse override 0 – 100%
2.3 Cutting feed rate override 0 - 120%
2.4 Manual jog feed rate 0 to 1200 mm/min in 20 steps
2.5 Manual handle feed In steps of 0.001, 0.01 & 0.1 mm
2.6 Backlash compensation Compensation of mechanical play seperately settable for
each axes.
2.7 Stored pitch error compensation Correction of ball screw pitch error separately settable
for each axis
2.8 Dwell By G04 : 0 to 99999.999 sec

3.0 SPINDLE
FUNCTIONS
3 Spindle speed command S - 4 digit direct

4 TOOL FUNCTIONS
4.1 Tool function 4 digit T code ( 2 - tool no. ; 2 - offset no.)
4.2 Cutter radius compensation G40 : Cutter radius compensation - Cancel
G41 : Cutter radius compensation - Left
G42 : Cutter radius compensation - Right
4.3 Tool offset 64 Pairs, ± 6 digits

5 PROGRAMMING
FUNCTIONS
5.1 Part program storage - Battery back up 512 KB
5.2 No. of programs registerable 400
5.3 Sub program Sub program call by M98 P xxxx : Sub program
number is xxxx. Nesting depth : 4
5.4 Inch / Metric selection G20 : Inch input G21 : Metric input
5.5 Absolute / Incremental selection X, Z : Absolute input
U,W : Incremental input
5.6 Positioning G00
5.7 Linear interpolation G01
5.8 Circular interpolation G02 - Clockwise G03 - Counter clockwise
5.9 Miscellaneous functions 2 digit M code
5.10 Fixed cycles Simplified commands for machining operations
G70 - Finish cutting cycle
G71 - Stock removal in ID / OD machining
G72 - Rough face cutting cycle
G73 - Pattern repeat cycle
G74 - Peck drilling cycle
G75 - OD / ID grooving cycle
G76 - Multiple thread cutting cycle
G84 – Rigid tapping cycle
G90 - OD / ID Cutting Cycle
G92 - Thread cutting cycle
G94 - End face cutting cycle
Sheet 4 of 4 Doc No : SPECL340/LL30T L7-F

S.No Title Description Specification

6 OPERATIONAL
FUNCTIONS
6.1 Dry run
6.2 Machine lock
6.3 Single block execution
6.4 Feed hold
6.5 Block skip function
6.6 Block search
6.7 Program number search
6.8 Sequence number search
6.9 Coordinate system setting
6.10 Self diagnosis
6.11 Soft over travel
6.12 Decimal point input
6.13 Radius/ Diameter programming
6.14 Extended part program editing
6.15 Radius designation on arc
6.16 Manual reference point return
6.17 Background editing
6.18 Thread cutting retract
6.19 Continous / Variable thread cutting
6.20 Parity check
6.21 Custom macro
6.22 Program input of offset data G10
6.23 Work co-ordinate system G54 - G59
6.24 Run time & parts count display
6.25 Direct drawing dimension programming
6.26 Program protect
6.27 Program restart
6.28 Menu programming
6.29 Polar cordinate Interpolation
6.30 Spindle orientation ( no lock )
6.31 Emergency stop
6.32 Canned cycles
6.33 Automatic accerleration and deceleration
6.34 Absolute/incremental programming
6.35 Tool nose radius compensation
6.36 Spindle speed binary/analog output/Speed
Clamp (G92)
6.37 HRV control
6.38 Inch/metric conversion
6.39 Spindle speed override
6.40 Rigid tapping
6.41 Battery backup for part program

7 MISCELLANEOUS
7.1 Display screen 10.4" Colour LCD with MDI keyboard
7.2 Selection Menu switch
7.3 Manual data input Alphanumeric key board
7.4 Manual pulse generator For manual movement of axes
7.5 Display of messages Operator / Alarm messages on screen
7.6 Fault diagnosis Using ladder diagram
7.7 Tape code EIA RS 244A / ISO 840 (automatic selection)
7.8 Peripheral interface ( Reader / puncher ) RS 232C
7.9 External program execution Thro' DNC mode
