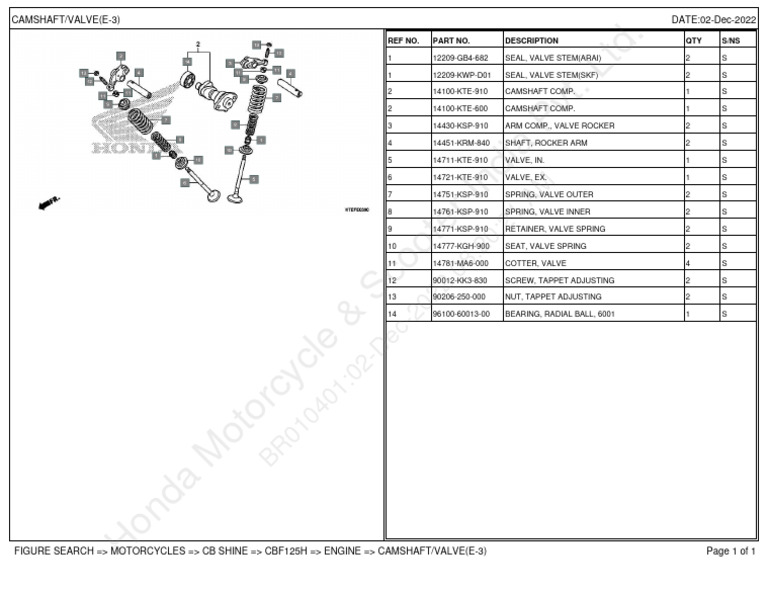

    CAMSHAFT/VALVE(E-3) DATE:02-Dec-2022

    .
    REF NO. PART NO. DESCRIPTION QTY S/NS

    td
    1 12209-GB4-682 SEAL, VALVE STEM(ARAI) 2 S

    .L
    1 12209-KWP-D01 SEAL, VALVE STEM(SKF) 2 S

    2 14100-KTE-910 CAMSHAFT COMP. 1 S

    t
    Pv
    2 14100-KTE-600 CAMSHAFT COMP. 1 S

    3 14430-KSP-910 ARM COMP., VALVE ROCKER 2 S

    4 14451-KRM-840 SHAFT, ROCKER ARM 2 S

    ia
    5 14711-KTE-910 VALVE, IN. 1 S

    nd
    6 14721-KTE-910 VALVE, EX. 1 S

    AM
    7 14751-KSP-910 SPRING, VALVE OUTER 2 S

    rI
    8 14761-KSP-910 SPRING, VALVE INNER 2 S

    21
    te
    9 14771-KSP-910 RETAINER, VALVE SPRING 2 S

    0:
    oo
    10 14777-KGH-900 SEAT, VALVE SPRING 2 S

    :2
    08
    11 14781-MA6-000 COTTER, VALVE 4 S

    Sc
    12 90012-KK3-830 SCREW, TAPPET ADJUSTING 2 S

    2
    02
    13 90206-250-000 NUT, TAPPET ADJUSTING 2 S

    &
    14 96100-60013-00 BEARING, RADIAL BALL, 6001 1 S

    -2
    ec
    e
    D
    cl
    2-
    cy
    :0
    01
    or
    04
    ot
    01
    BR
    M
    da
    on
    H

    FIGURE SEARCH => MOTORCYCLES => CB SHINE => CBF125H => ENGINE => CAMSHAFT/VALVE(E-3) Page 1 of 1
