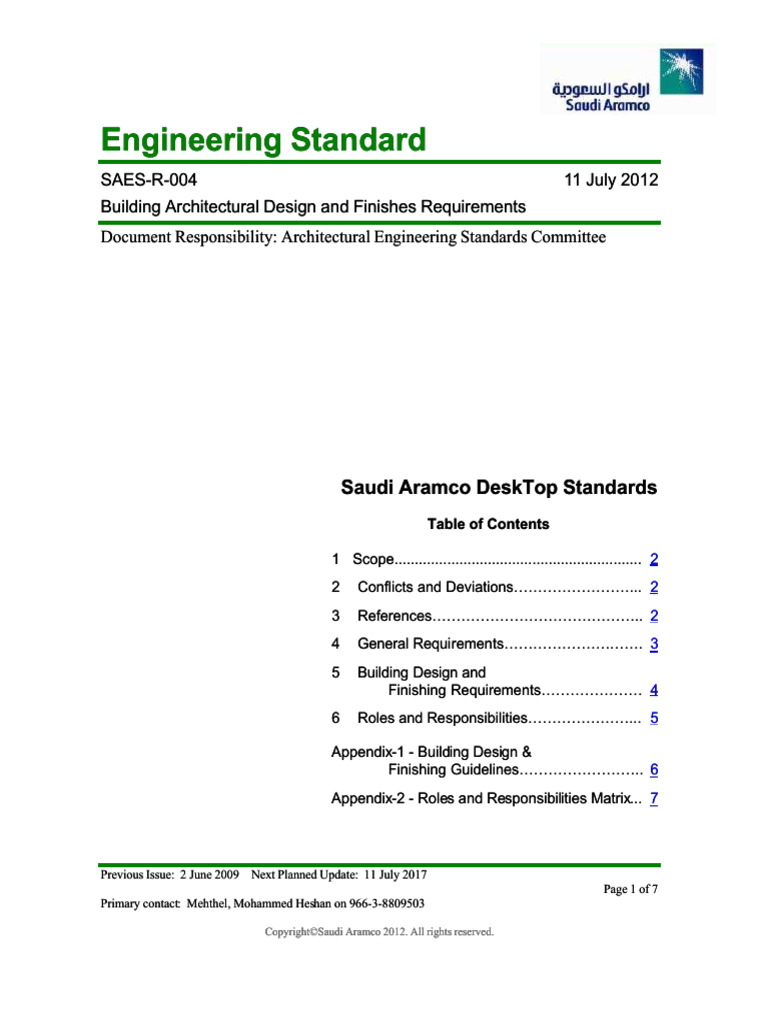

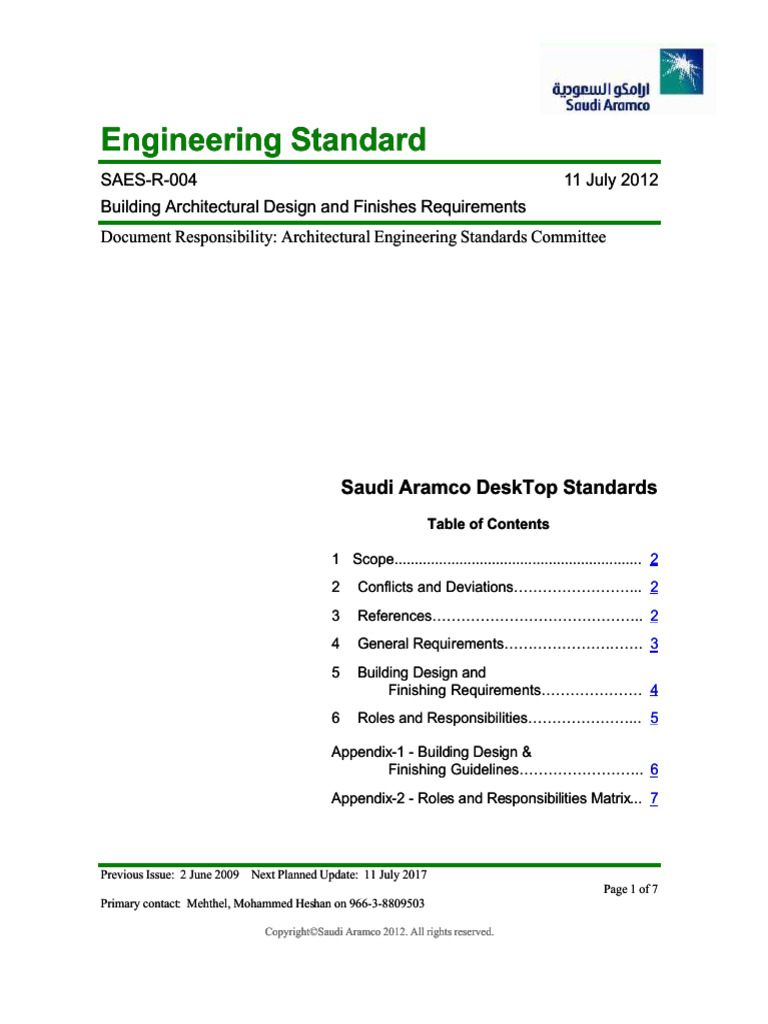

Engineering Standard

SAES-R-004 11 July 2012

Building Architectural Design and Finishes Requirements
Document Responsibility: Architectural Engineering Standards Committee

Saudi Aramco DeskTop Standards

Table of Contents

1 Scope............................................................. 2
2 Conflicts and Deviations……………………... 2

3 References…………………………………….. 2

4 General Requi rements………………….……. 3

5 Building Design and

Finishing Requirements………………… 4

6 Roles and Responsibilities…………………... 5

Appendix-1
Appendix-1 - Building
Building Design
Design &
Finishing Guidelines…………………….. 6

Appendix-2
Appendix-2 - Roles
Roles and Responsibil
Responsibilities
ities Matrix...
Matrix... 7

Previous Issue: 2 June 2009 Next Planned Update: 11 July 2017

Page 1 of 7
Primary contact:
contact: Mehthel, Mohammed Heshan
Heshan on 966-3-8809503

Copyright©Saudi Aramco 2012. All rights reserved.

Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

1 Scope

This Architectural Design and Finishes Engineering Standard document outlines the
interior and exterior architectural finishes for Saudi Aramco buildings. The selected
architectural finishes shall meet international/industry standards, and Saudi Aramco
Mandatory Engineering Standards Requirements. It also addresses the requirements for
architectural design of buildings and presents a tiered ap proach that should be adhered
to in the design development of Saudi Aramco buildings.

This document is intended to supplement, and shall not replace, Saudi Aramco Building
Code, industry standards and project specific design requirements.

Commentary Note:

These requirements address overall design factors that need to be considered to ensure
that the Architectural Quality provided in designing Saudi Aramco buildings is appropriate
for the primary functional use of the buildings.

2 Conflicts and Deviations

2.1 Any conflicts between this Standard and other applicable Saudi Aramco
Engineering Standards (SAES’s), Materials System Spec ifications (SAMSS’s),
Standard Drawings (SASD’s), or industry standards, codes, and forms shall be
resolved in writing by the Company’s or buyer’s representative through the
Supervisor, Civil Engineering Unit/ Consulting Services Department of Saudi
Aramco, Dhahran.

2.2 Direct all requests to deviate from this Standard in writing to the Company or
buyer’s representative, who shall follow internal Company procedure SAEP-302
and forward such requests to the Manager, Consulting Services Department of
Saudi Aramco, Dhahran.

3 References

The selection of the architectural finishes shall comply with the latest edition of the
references listed below unless otherwise noted.

3.1 Saudi Aramco References

Saudi Aramco Engineering Procedure

SAEP-302 Instructions for Obtaining a Waiver of a Mandatory
Saudi Aramco Engineering Requirement

Page 2 of 7
Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

Saudi Aramco Engineering Standards

SAES-B-014 Safety Requirements for Plant and Operations
Support Buildings
SAES-H-001 Coating Selection and Applications Requirements
for Industrial Plants and Equipment
SAES-H-101V Approved Saudi Aramco Data Sheets – Paints and
Coatings
SAES-M-009 Design Criteria for Blast Resistant Buildings
SAES-M-100 Saudi Aramco Building Code

Commentary Note:

SAES-M-100 should govern in case of conflict with this standard.

Saudi Aramco Sanitary Code

SASC-S-10 Health Care Facilities

3.2 Industry Codes and Standards

American Institute of Architects

ALA Guidelines for Design and Construction of Health
Care Facilities

National Fire Protection Association

NFPA 99 Standard for Health Care Facilities

International Building Code

IBC 2009 Guidelines for Design of Buildings and Facilities

4 General Requirements

The Building Architectural Design shall satisfy:

4.1 Applicable Saudi Aramco Engineering standards / G. I. requirements.

4.2 SAES-M-100, “fire performance and smoke development of interior finishes,

trim and decorative materials according to Chapter 8 of the International
Building Code (IBC) adopted by SAES-M-100.”

4.3 SAES-M-009 if applicable.

4.4 SAES-B-014 if applicable.

Page 3 of 7
Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

4.5 The Architectural Design Elements, Shapes, Materials and Finishes of buildings
that are not covered in this standard shall be:

a) In line with the requirements of this document

b) Accepted by the Supervisor of the Civil Engineering Unit / Consulting
Services Department (CSD).
c) Corresponding to the intended function of those buildings.

4.6 Spacing shall be in accordance with applicable Saudi Aramco requirements,

IBC, and the applicable International Code.

Commentary Note:

Spacing is the required area for office, corridor, etc.

4.7 Design and finishes for Medical Buildings shall meet SASC-S-10, AIA and
NFPA 99 for healthcare facilities.

4.8 Coatings shall be in accordance with SAES-H-001 and SAES-H-101V.

4.9 Asbestos containing materials, lead based materials or other materials

considered toxic or hazardous for building occupants are prohibited.

4.10 This engineering standard applies to Saudi Aramco buildings, including

rehabilitation and renovation works of existing buildings.

5 Building Design and Finishing Requirements

For building design and finishing requirements, refer to Appendix-1 – Building Design
& Finishing Guidelines. Architects / Designer should consider:

5.1 The building design will be developed in compliance with the provisions of
Appendix-1 – Building Design & Finishing Guidelines including provisions
covered under the corporate Image thereto, as well as guiding principles
developed including cost effectiveness, flexibility, constructability,
incorporation of new technologies, and sustainability.

5.2 The building design will be developed incorporating building classification and
tiers as established under Appendix-1 – Building Design & Finishing Guidelines
including building tier and building type. The design will incorporate building
exterior and interior building elements to be considered.

5.3 As pre provisions of Appendix-1, other items that will be addressed include
provision of a District Master Plan as directed, and incorporate the building
approach requirements including context evaluation, building scale, form

Page 4 of 7
Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

follows function, material distribution, building approach and site circulation,

site and landscape character. Provisions related to building servicing, loading
docks, trash collection, equipment screening, etc. will also be addressed.

5.4 The design will incorporate requirements of building components detailed under
Appendix-1 including building envelope provisions, thermal design,
maintenance, etc.

5.5 The architectural design of buildings will include provisions for both exterior
and interior finishing materials, patterns and colors to be used as provide d under
Appendix-1 finishing matrixes.

Commentary Notes:

Deviation from regular shapes shall be reviewed and accepted by the supervisor
of the civil engineering unit.

Example of building configuration is one building with ten stories versus two
buildings with five stories each.

6 Roles and Responsibilities

Refer to roles and responsibilities matrix (Appendix-2).

Revision Summary
11 July 2012 Major revision.

Page 5 of 7
Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

Appendix-1

Building Design & Finishing Guidelines

Appended separately

(PRESS THE BELOW HYPERLINK TO OPEN THE APPENDIX-1)

SAES-R-004A

Page 6 of 7
 Document Responsibility: Architectural Engineering Standards Committee SAES-R-004
Issue Date: 11 July 2012
Next Planned Update: 11 July 2017 Building Architectural Design and Finishes Requirements

Appendix-2

Roles and Responsibilities Matrix

RS - RESPONSIBLE T
N s
A - APPROVER E k
N D D T r
O S a
RV - REVIEWER P M
P C F P m
O e
C - CONSULTED R R
P
TASKS
P Project Initiation RS A
S
B Select Building Location - LUP RS RV A
1 D
- Selecting Building Tier C A RS See Form 1
e
r
P Determine Requirement for District MP C A RS See Form 1
Define Project Scope/Space Program RV RV RS RV
P Determine Requirement for LEED RV RV RS RV
2 S
B
D Determine Requirement for Other Studies RV RV RS RV
DBSP Document A A RS A
Design Consultant Selection C RS
l
t a Define Design Parameters RV RV RV RS
c s
3 je o
Studies Required by DBSP RV RV RV RS
o p
r o
P r
P Conceptual Design A A A RS
Project Proposal Document A A A RS
30% Design & Final Design Concept RV RV RS
d n
lie ig 60% Design & Material Selection RV RV RS
4 ta s
e
e 90% Design RV RV RS
D D
IFC Design A RS

Page 7 of 7
