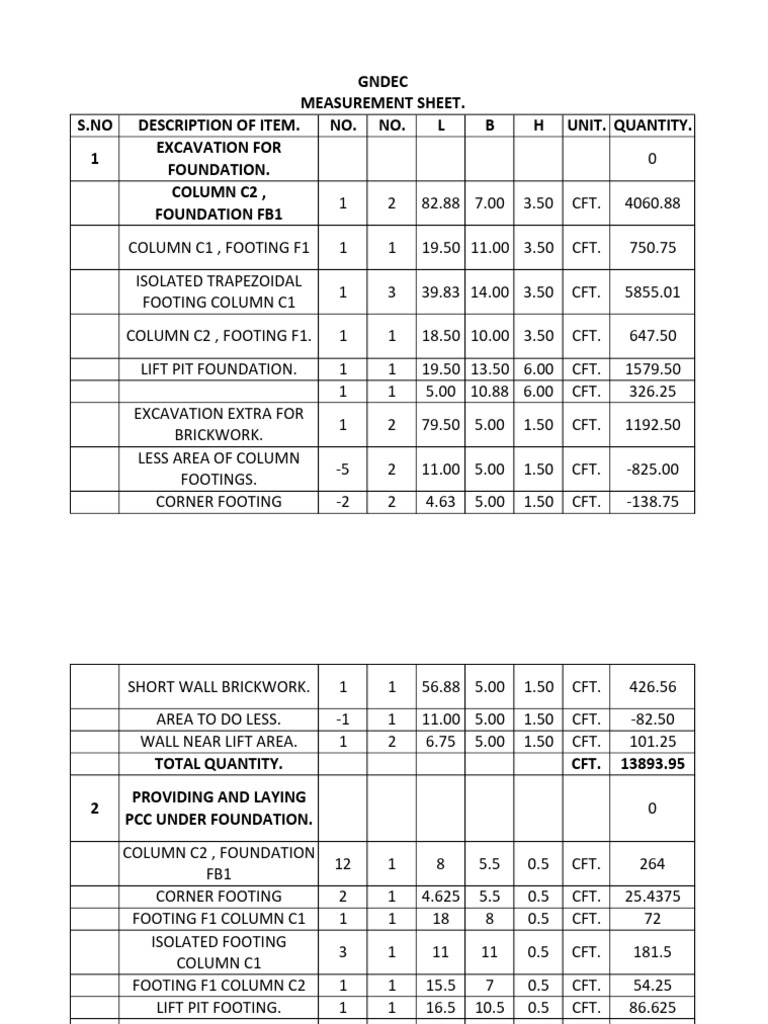

GNDEC

MEASUREMENT SHEET.
S.NO DESCRIPTION OF ITEM. NO. NO. L B H UNIT. QUANTITY.
EXCAVATION FOR
1 0
FOUNDATION.
COLUMN C2 ,
1 2 82.88 7.00 3.50 CFT. 4060.88
FOUNDATION FB1
COLUMN C1 , FOOTING F1 1 1 19.50 11.00 3.50 CFT. 750.75
ISOLATED TRAPEZOIDAL
1 3 39.83 14.00 3.50 CFT. 5855.01
FOOTING COLUMN C1
COLUMN C2 , FOOTING F1. 1 1 18.50 10.00 3.50 CFT. 647.50
LIFT PIT FOUNDATION. 1 1 19.50 13.50 6.00 CFT. 1579.50
1 1 5.00 10.88 6.00 CFT. 326.25
EXCAVATION EXTRA FOR
1 2 79.50 5.00 1.50 CFT. 1192.50
BRICKWORK.
LESS AREA OF COLUMN
-5 2 11.00 5.00 1.50 CFT. -825.00
FOOTINGS.
CORNER FOOTING -2 2 4.63 5.00 1.50 CFT. -138.75
 SHORT WALL BRICKWORK. 1 1 56.88 5.00 1.50 CFT. 426.56
AREA TO DO LESS. -1 1 11.00 5.00 1.50 CFT. -82.50
WALL NEAR LIFT AREA. 1 2 6.75 5.00 1.50 CFT. 101.25
TOTAL QUANTITY. CFT. 13893.95
PROVIDING AND LAYING
2 0
PCC UNDER FOUNDATION.

COLUMN C2 , FOUNDATION
12 1 8 5.5 0.5 CFT. 264
FB1
CORNER FOOTING 2 1 4.625 5.5 0.5 CFT. 25.4375
FOOTING F1 COLUMN C1 1 1 18 8 0.5 CFT. 72
ISOLATED FOOTING
3 1 11 11 0.5 CFT. 181.5
COLUMN C1
FOOTING F1 COLUMN C2 1 1 15.5 7 0.5 CFT. 54.25
LIFT PIT FOOTING. 1 1 16.5 10.5 0.5 CFT. 86.625
1 1 5 7.875 0.5 CFT. 19.6875
PCC FOR BRICK WORK
CFT. 0
FOOTING
LONG WALL FOOTING, 1 2 79.5 4 0.5 CFT. 318
 LESS COLUMNS AREA. -2 5 8 4 0.5 CFT. -160
-2 2 4.625 4 0.5 CFT. -37
SHORT WALL FOOTING. 1 1 56.96 4 0.5 CFT. 113.916
LESS COLUMN FOOTING
-1 1 8 4 0.5 CFT. -16
AREA.
-2 1 5.5 4 0.5 CFT. -22
BRICK WALL NEAR LIFT PIT. 1 2 6.75 4 0.5 CFT. 27
PCC UNDER FLOORING. 1 1 85.25 55.75 0.5 CFT. 2376.3438
TOTAL QUANTITY. CFT. 3303.7598
PROVIDING AND LAYING
3 0
RCC UNDER FOUNDATION.

FOR FOOTING FB1 COLUMN

12 1 7 5 1 CFT. 420
C2
14 1 5 1.25 1.25 CFT. 109.375
CORNER FOOTING. 2 1 4.125 5 1 CFT. 41.25
COLUMN C1 FOOTING F1 1 1 17.5 7 1 CFT. 122.5
ISOLATED FOOTING
3 1 10 10 1 CFT. 300
COLUMN C1
 UPPER TRAPEZOIDAL
PORTION A1(10*10=
100SFT. , A2= 2*1.75= 3.50,
H= 1.25') USING
3 1 50.83 CFT. 152.49
TRAPEZOIDAL
VOLUMECALCULATION
FORMULAE.) V = H/3
(A1+A2+(√A1 x A2)
COLUMN C2 FOOTING F1 1 1 14.5 6 1 CFT. 87
LIFT COLUMNS AND WALL
1 1 15.5 9.5 1.5 CFT. 220.875
FOOTING.
1 1 5 7.375 1.5 CFT. 55.3125
FOR LIFT PIT WALLS. UPTO
PLINTH LEVEL. ( PLINTH
CFT. 0
LEVEL IS + 2' FROM N.G.L
ASSUMED.)
LONG WALL. 1 2 7.5 0.75 6 CFT. 67.5
SHORT WALL. 1 2 6 0.75 6 CFT. 54
RCC COLUMNS UPTO
CFT. 0
PLINTH LEVEL.
 COLUMN C2 14 1 1.25 1.25 2.75 CFT. 60.15625
COLUMN C1 2 1 1.5 1.25 4 CFT. 15
COLUMN C1 3 1 1.5 1.25 2.75 CFT. 15.46875
COLUMN C2 2 1 1.25 1.25 2.75 CFT. 8.59375
C2 NEAR LIFT. 2 1 1.25 1.25 6 CFT. 18.75
PLINT BEAM. LONG WALL.. 2 1 79.5 0.75 0.75 CFT. 89.4375
LESS COLUMNS. -7 2 1.25 0.75 0.75 CFT. -9.84375
SHORT WALL 1 1 55.46 0.75 0.75 CFT. 31.195125
LESS COLUMNS -3 1 1.25 1.25 0.75 CFT. -3.515625
1 2 14.67 0.75 0.75 CFT. 16.498125
1 2 2.75 0.75 0.75 CFT. 3.09375
RCC GRADE SLAB UNDER
1 1 85.25 55.75 0.333 CFT. 1582.6449
FLOORING.
PROVIDING AND LAYING
RCC IN SUPER STRUCTURE.
ASSUME CLEAR HEIGHT
0
FROM FFL OF GROUND
FLOOR TO BOTTOM OF
SLAB = 14'.
 COLUMN C2 18 1 1.25 1.25 14 CFT. 393.75
COLUMN C1 5 1 1.5 1.25 14 CFT. 131.25
COLUMN C3 4 1 0.75 0.75 14 CFT. 31.5
TIE BEAM FOR LIFT WALL.
AT 7' LEVEL FROM FFL OF 4 1 6 0.75 0.75 CFT. 13.5
GROUND FLOOR.
RCC ROOF SLAB. 1 1 85.5 56.96 0.5 CFT. 2434.9545
BEAMS. CFT. 0
BEAM B4 2 1 79.5 0.75 0.875 CFT. 104.34375
BEAM B3 1 1 65 1.5 0.875 CFT. 85.3125
BEAM B4 2 1 12.17 0.75 0.875 CFT. 15.966563
LIFT BEAM B4 2 1 7.5 0.75 0.875 CFT. 9.84375
2 1 6 0.75 0.875 CFT. 7.875
BEAM B1 5 1 56.96 1 1.875 CFT. 533.98125
BEAM B2 2 1 56.96 1 1.375 CFT. 156.6345
RCC FIRST FLOOR.
COLUMNS. 1ST FLOOR.
COLUMN C2 18 1 1.25 1.25 14 CFT. 393.75
COLUMN C1 5 1 1.5 1.25 14 CFT. 131.25
COLUMN C3 4 1 0.75 0.75 14 CFT. 31.5
TIE BEAM FOR LIFT WALL.
AT 7' LEVEL FROM FFL OF 4 1 6 0.75 0.75 CFT. 13.5
GROUND FLOOR.
RCC ROOF SLAB. 1 1 85.5 56.96 0.5 CFT. 2434.9545
BEAMS. CFT. 0
BEAM B4 2 1 79.5 0.75 0.875 CFT. 104.34375
 BEAM B3 1 1 65 1.5 0.875 CFT. 85.3125
BEAM B4 2 1 12.17 0.75 0.875 CFT. 15.966563
LIFT BEAM B4 2 1 7.5 0.75 0.875 CFT. 9.84375
2 1 6 0.75 0.875 CFT. 7.875
BEAM B1 5 1 56.96 1 1.875 CFT. 533.98125
BEAM B2 2 1 56.96 1 1.375 CFT. 156.6345
COLUMNS 2ND FLOOR.
COLUMN C2 18 1 1.25 1.25 14 CFT. 393.75
COLUMN C1 5 1 1.5 1.25 14 CFT. 131.25
COLUMN C3 4 1 0.75 0.75 14 CFT. 31.5
TIE BEAM FOR LIFT WALL.
AT 7' LEVEL FROM FFL OF 4 1 6 0.75 0.75 CFT. 13.5
GROUND FLOOR.
RCC ROOF SLAB. 1 1 85.5 56.96 0.5 CFT. 2434.9545
BEAMS. CFT. 0
BEAM B4 2 1 79.5 0.75 0.875 CFT. 104.34375
BEAM B3 1 1 65 1.5 0.875 CFT. 85.3125
BEAM B4 2 1 12.17 0.75 0.875 CFT. 15.966563
LIFT BEAM B4 2 1 7.5 0.75 0.875 CFT. 9.84375
2 1 6 0.75 0.875 CFT. 7.875
 BEAM B1 5 1 56.96 1 1.875 CFT. 533.98125
BEAM B2 2 1 56.96 1 1.375 CFT. 156.6345
TOTAL QUANTITY. CFT. 15214.517
PROVIDING AND LAYING
4 BRICK WORK 9" AND 0
ABOVE.
BRICK WORK UNDER
0
FOUNDATION.
LONG WALL. 2 1 79.5 1.125 6.25 CFT. 1117.9688
SHORT WALL. 1 1 56.96 1.125 6.25 CFT. 400.48594
WALL NEAR LIFT AREA. 2 1 12.16 1.125 6.25 CFT. 171
LESS COLUMN FOOTINGS
-12 1 7 1.125 2.5 CFT. -236.25
AND PEDESTAL AREA.
LESS COLUMNS. -15 1 1.25 1.125 3.75 CFT. -79.10156
PROVIDING DPC OF
2.5cm(3")with damp proof
materials
LONG WALL 2 1 79.5 1.13 . SFT. 179.67
SHORT WALL 1 1 57 1.13 . SFT. 64.41
WALL NEAR LIFT AREA. 2 1 12.2 1.13 . SFT. 27.572
 LESS COLUMNS. -15 1 1.25 1.13 . SFT. -21.1875
TOTAL QUANTITY OF DPC SFT. 250.4645
BRICK WORK IN SUPER
CFT. 0
STRUCTURE.
LONG WALL. 2 1 70.75 0.75 13.13 CFT. 1392.8906
SHORT WALL. 1 1 52.96 0.75 12.13 CFT. 481.58681
LIFT PIT WALLS. 4 1 6 0.75 13.13 CFT. 236.25
LESS LIFT DOOR. -1 1 4 0.75 7 CFT. -21
WALL NEAR LIFT AREA. 2 1 12.16 0.75 13.13 CFT. 239.4
2 1 2 0.75 13.13 CFT. 39.375
1ST
FLOO LONG WALL. 2 1 70.75 0.75 13.13 CFT. 1392.8906
R.
SHORT WALL. 1 1 52.96 0.75 12.13 CFT. 481.58681
LIFT PIT WALLS. 4 1 6 0.75 13.13 CFT. 236.25
LESS LIFT DOOR. -1 1 4 0.75 7 CFT. -21
WALL NEAR LIFT AREA. 2 1 12.16 0.75 13.13 CFT. 239.4
2 1 2 0.75 13.13 CFT. 39.375
2ND
FLOO LONG WALL. 2 1 70.75 0.75 13.13 CFT. 1392.8906
R.
SHORT WALL. 1 1 52.96 0.75 12.13 CFT. 481.58681
LIFT PIT WALLS. 4 1 6 0.75 13.13 CFT. 236.25
LESS LIFT DOOR. -1 1 4 0.75 7 CFT. -21
WALL NEAR LIFT AREA. 2 1 12.16 0.75 13.13 CFT. 239.4
2 1 2 0.75 13.13 CFT. 39.375
TOTAL QUANTITY. CFT. 8980.5394
PLASTER 12MM TO 20MM
5 0
THICKNESS.
SLAB AREA. 1 1 85.5 56.96 SFT. 4869.909
WALLS. LONG WALL OUTER
2 1 79.5 14 SFT. 2226
SIDE.
SHORT WALL. 1 1 56.96 14 SFT. 797.412
LONG WALL INTERNAL SIDE. 2 1 78.75 14 SFT. 2205
SHORT WALL. 1 1 55.46 14 SFT. 776.412
LIFT PIT OUTER PLASTER. 4 1 7.5 14 SFT. 420
INNER 4 1 6 18 SFT. 432
 WALLS. ADJOINING LIFT
2 2 14.66 14 SFT. 820.96
AREA.
PLASTER COLUMNS. 4 4 1.25 14 SFT. 280
1ST
FLOO
R.
SLAB AREA. 1 1 85.5 56.96 SFT. 4869.909
WALLS. LONG WALL OUTER
2 1 79.5 14 SFT. 2226
SIDE.
SHORT WALL. 1 1 56.96 14 SFT. 797.412
LONG WALL INTERNAL SIDE. 2 1 78.75 14 SFT. 2205
SHORT WALL. 1 1 55.46 14 SFT. 776.412
LIFT PIT OUTER PLASTER. 4 1 7.5 14 SFT. 420
INNER 4 1 6 18 SFT. 432
WALLS. ADJOINING LIFT
2 2 14.66 14 SFT. 820.96
AREA.
PLASTER COLUMNS. 4 4 1.25 14 SFT. 280
2ND
FLOO
R.
SLAB AREA. 1 1 85.5 56.96 SFT. 4869.909
WALLS. LONG WALL OUTER
2 1 79.5 14 SFT. 2226
SIDE.
 SHORT WALL. 1 1 56.96 14 SFT. 797.412
LONG WALL INTERNAL SIDE. 2 1 78.75 14 SFT. 2205
SHORT WALL. 1 1 55.46 14 SFT. 776.412
LIFT PIT OUTER PLASTER. 4 1 7.5 14 SFT. 420
INNER 4 1 6 18 SFT. 432
WALLS. ADJOINING LIFT
2 2 14.66 14 SFT. 820.96
AREA.
PLASTER COLUMNS. 4 4 1.25 14 SFT. 280
TOTAL QUANTITY. SFT. 38483.079
CENTERING AND
6 0
SHUTTERING.
FOR FOOTING FB1 COLUMN
12 1 7 1 SFT. 84
C2
FOR FOOTING FB1 COLUMN
12 2 5 1 SFT. 120
C2
14 2 5 1.25 SFT. 175
CORNER FOOTING. 2 1 4.125 1 SFT. 8.25
2 1 5 1 SFT. 10
COLUMN C1 FOOTING F1 1 2 17.5 1 SFT. 35
 1 1 7 1 SFT. 7
ISOLATED FOOTING. 3 4 10 1 SFT. 120
COLUMN C2 FOOTING. F1 1 2 14.5 1 SFT. 29
1 2 6 1 SFT. 12
LIFT COLUMNS AND WALL
1 2 15.5 1.5 SFT. 46.5
FOOTING.
1 2 9.5 1.5 SFT. 28.5
1 2 5 1.5 SFT. 15
1 2 7.375 1.5 SFT. 22.125
FOR LIFT PIT WALLS. UPTO
PLINTH LEVEL. ( PLINTH
1 4 7.5 6 SFT. 180
LEVEL IS + 2' FROM N.G.L
ASSUMED.)
1 4 6 6 SFT. 144
1 1 6 6 SFT. 36
RCC COUMNS. 14 4 1.25 2.75 SFT. 192.5
2 2 1.5 4 SFT. 24
2 2 1.25 4 SFT. 20
3 2 1.5 2.75 SFT. 24.75
3 2 1.25 2.75 SFT. 20.625
 2 4 1.25 6 SFT. 60
PLINTH BEAM. 2 2 79.5 0.75 SFT. 238.5
1 2 55.46 0.75 SFT. 83.187
CENTERING AND
SHUTTERING IN SUPER SFT. 0
STRUCTURE.
COLUMN C2 18 4 1.25 14 SFT. 1260
COLUMN C1 5 2 1.5 14 SFT. 210
5 2 1.25 14 SFT. 175
COLUMN C3 4 4 0.75 14 SFT. 168
TIE BEAM LIFT WALL. 4 2 6 0.75 SFT. 36
SLAB SHUTTERING. 1 1 85.5 56.96 SFT. 4869.909
BEAMS. 2 2 79.5 0.875 SFT. 278.25
BEAM B3 1 2 65 0.875 SFT. 113.75
BEAM B4 2 2 12.17 0.875 SFT. 42.5775
LIFT BEAM. 2 2 7.5 0.875 SFT. 26.25
2 2 6 0.75 SFT. 18
BEAM B1 5 2 56.96 1.875 SFT. 1067.9625
2 2 56.96 1.375 SFT. 313.269
LIFT SLAB. 1 1 9 7.5 SFT. 67.5
 1ST
FLOO COLUMN C2 18 4 1.25 14 SFT. 1260
R.
COLUMN C1 5 2 1.5 14 SFT. 210
5 2 1.25 14 SFT. 175
COLUMN C3 4 4 0.75 14 SFT. 168
TIE BEAM LIFT WALL. 4 2 6 0.75 SFT. 36
SLAB SHUTTERING. 1 1 85.5 56.96 SFT. 4869.909
BEAMS. 2 2 79.5 0.875 SFT. 278.25
BEAM B3 1 2 65 0.875 SFT. 113.75
BEAM B4 2 2 12.17 0.875 SFT. 42.5775
LIFT BEAM. 2 2 7.5 0.875 SFT. 26.25
2 2 6 0.75 SFT. 18
BEAM B1 5 2 56.96 1.875 SFT. 1067.9625
2 2 56.96 1.375 SFT. 313.269
LIFT SLAB. 1 1 9 7.5 SFT. 67.5
2ND
FLOO COLUMN C2 18 4 1.25 14 SFT. 1260
R.
COLUMN C1 5 2 1.5 14 SFT. 210
 5 2 1.25 14 SFT. 175
COLUMN C3 4 4 0.75 14 SFT. 168
TIE BEAM LIFT WALL. 4 2 6 0.75 SFT. 36
SLAB SHUTTERING. 1 1 85.5 56.96 SFT. 4869.909
BEAMS. 2 2 79.5 0.875 SFT. 278.25
BEAM B3 1 2 65 0.875 SFT. 113.75
BEAM B4 2 2 12.17 0.875 SFT. 42.5775
LIFT BEAM. 2 2 7.5 0.875 SFT. 26.25
2 2 6 0.75 SFT. 18
BEAM B1 5 2 56.96 1.875 SFT. 1067.9625
2 2 56.96 1.375 SFT. 313.269
LIFT SLAB. 1 1 9 7.5 SFT. 67.5
TOTAL QUANTITY. SFT. 27675.341
8 FLOORING. 0
8.1 FILLING OF SOIL 1 1 85.25 55.75 1.16 CFT. 5513.1175
TOTAL QUANTITY. CFT. 5513.1175
0

PROVIDING AND LAYING 0

9 VITRIFIED TILE FLOORING.
GROUND FLOOR. 1 1 85.25 55.75 SFT. 4752.6875
1ST FLOOR. 1 1 85.25 55.75 SFT. 4752.6875
2ND FLOOR. 1 1 85.25 55.75 SFT. 4752.6875
TOTAL QUANTITY. SFT. 14258.063
