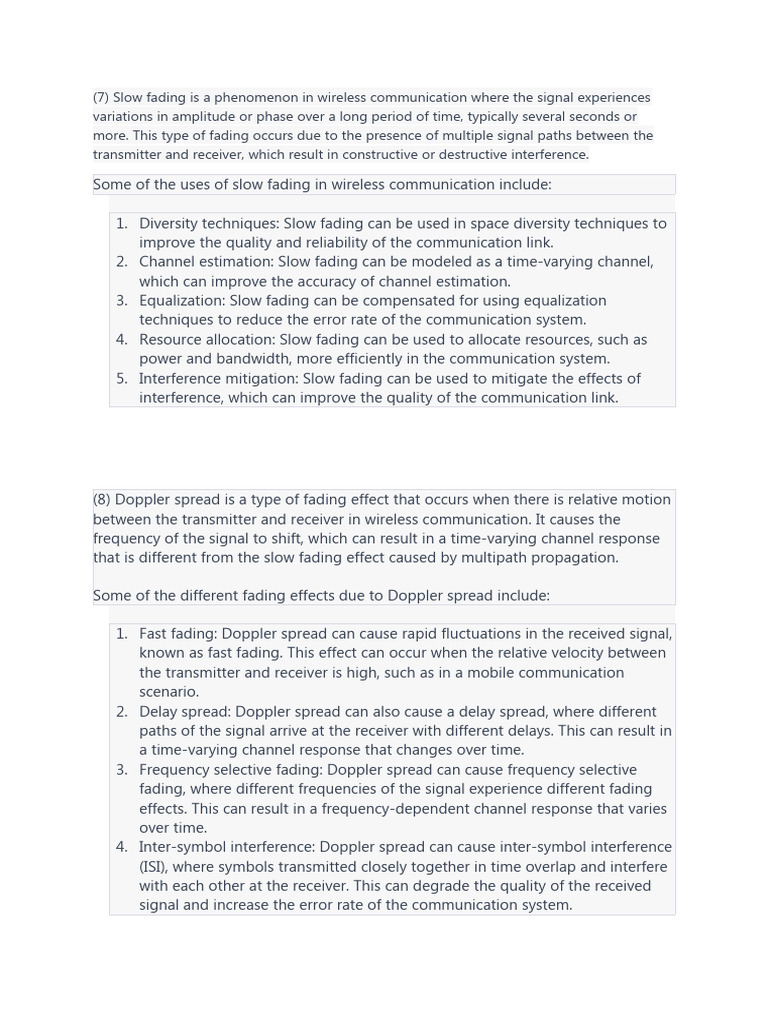

(7) Slow fading is a phenomenon in wireless communication where the signal experiences

variations in amplitude or phase over a long period of time, typically several seconds or
more. This type of fading occurs due to the presence of multiple signal paths between the
transmitter and receiver, which result in constructive or destructive interference.

Some of the uses of slow fading in wireless communication include:

1. Diversity techniques: Slow fading can be used in space diversity techniques to

improve the quality and reliability of the communication link.
2. Channel estimation: Slow fading can be modeled as a time-varying channel,
which can improve the accuracy of channel estimation.
3. Equalization: Slow fading can be compensated for using equalization
techniques to reduce the error rate of the communication system.
4. Resource allocation: Slow fading can be used to allocate resources, such as
power and bandwidth, more efficiently in the communication system.
5. Interference mitigation: Slow fading can be used to mitigate the effects of
interference, which can improve the quality of the communication link.

(8) Doppler spread is a type of fading effect that occurs when there is relative motion
between the transmitter and receiver in wireless communication. It causes the
frequency of the signal to shift, which can result in a time-varying channel response
that is different from the slow fading effect caused by multipath propagation.

Some of the different fading effects due to Doppler spread include:

1. Fast fading: Doppler spread can cause rapid fluctuations in the received signal,
known as fast fading. This effect can occur when the relative velocity between
the transmitter and receiver is high, such as in a mobile communication
scenario.
2. Delay spread: Doppler spread can also cause a delay spread, where different
paths of the signal arrive at the receiver with different delays. This can result in
a time-varying channel response that changes over time.
3. Frequency selective fading: Doppler spread can cause frequency selective
fading, where different frequencies of the signal experience different fading
effects. This can result in a frequency-dependent channel response that varies
over time.
4. Inter-symbol interference: Doppler spread can cause inter-symbol interference
(ISI), where symbols transmitted closely together in time overlap and interfere
with each other at the receiver. This can degrade the quality of the received
signal and increase the error rate of the communication system.
(9) The mobile multipath channel is a complex and time-varying communication
channel that arises due to the presence of multiple signal paths between the
transmitter and receiver. It is characterized by several parameters that describe the
channel response, including:

1. Delay spread: Delay spread is the difference in time between the arrival of the
first and last signal components at the receiver. It is determined by the
distance traveled by the signal components and the speed of light. A large
delay spread indicates a channel with a large number of signal paths, which
can cause significant inter symbol interference and make equalization more
challenging.
2. Doppler spread: Doppler spread is the spread in frequency caused by the
relative motion between the transmitter and receiver. It is determined by the
relative speed of the transmitter and receiver and the carrier frequency of the
signal. A large Doppler spread indicates a fast-varying channel that can cause
rapid fluctuations in the received signal.
3. Coherence time: Coherence time is the duration over which the channel
response remains relatively constant. It is determined by the speed of the
mobile device and the environment through which the signal travels. A short
coherence time indicates a highly time-varying channel that can cause
significant fading effects.
4. Coherence bandwidth: Coherence bandwidth is the frequency range over
which the channel response remains relatively constant. It is determined by
the distance between the signal paths and the bandwidth of the signal. A
narrow coherence bandwidth indicates a frequency-selective channel that can
cause significant distortion in the received signal.
5. Power delay profile: Power delay profile is a measure of the power of the
signal components as a function of time delay. It is determined by the location
and reflectivity of objects in the environment. A power delay profile with a
large number of significant signal paths indicates a highly dispersive channel.

(10) Multipath time delay spread is a phenomenon that occurs in wireless

communication when multiple versions of a signal reach the receiver with different
delays due to reflections, refractions, and diffractions in the propagation
environment. This can cause constructive or destructive interference, resulting in
variations in the amplitude and phase of the received signal, which is known as
multipath fading.

Some of the fading effects due to multipath time delay spread include:
 1. Inter-symbol interference (ISI): Multipath time delay spread can cause ISI,
where the symbols transmitted closely together in time overlap and interfere
with each other at the receiver. This can lead to errors in the received signal,
particularly in high-speed data transmission systems.
2. Frequency-selective fading: Multipath time delay spread can cause frequency-
selective fading, where different frequencies of the signal experience different
fading effects. This can result in a frequency-dependent channel response that
varies over time.
3. Rake receiver: Multipath time delay spread can also be exploited using a Rake
receiver, which can separate the different components of the received signal
with different delays and combine them to improve the quality of the received
signal. This technique is particularly effective in environments with a large
delay spread, such as in indoor environments.
4. Diversity techniques: Multipath time delay spread can be mitigated using
diversity techniques, such as space diversity, time diversity, or frequency
diversity. These techniques use multiple antennas or multiple signal paths to
improve the quality and reliability of the communication link.

(11) Coherence bandwidth is a term used to describe the range of frequencies over which a
wireless channel's frequency response remains relatively constant or coherent. It is an
important parameter for characterizing the frequency-selective nature of a wireless channel
and plays a significant role in designing wireless communication systems

(12) The ground reflection model is a simplified approach to estimating the

propagation of electromagnetic waves from a transmitter to a receiver over a flat
earth surface. It considers three basic propagation mechanisms: direct wave, ground-
reflected wave, and sky wave.

The direct wave is the electromagnetic wave that travels in a straight line from the
transmitter to the receiver without reflecting or refracting from any obstacles. It is the
most straightforward propagation mechanism and is often the dominant mechanism
at low frequencies and short distances.

The ground-reflected wave is the electromagnetic wave that reflects off the ground
and travels to the receiver. The reflected wave follows the law of reflection, which
states that the angle of incidence equals the angle of reflection. The ground-
reflected wave can be significant at low and medium frequencies and is dependent
on the terrain characteristics and distance between the transmitter and receiver.

The sky wave is the electromagnetic wave that travels upward and reflects off the
ionosphere back to the earth's surface. It is significant at high frequencies and can
propagate over long distances. However, it is also subject to ionospheric variations
and can suffer from attenuation and fading effects.

To calculate the total electric field at any distance d from the transmitter using the
ground reflection model, we can use the following equation:

E = E_d + E_g

where E is the total electric field, E_d is the electric field of the direct wave, and E_g is
the electric field of the ground-reflected wave.

The electric field of the direct wave can be calculated using the following equation:

E_d = (G_t * P_t * e^(-jkr))/d

where G_t is the gain of the transmitting antenna, P_t is the power transmitted by the
antenna, k is the wavenumber, r is the distance between the transmitter and receiver,
and j is the imaginary unit.

The electric field of the ground-reflected wave can be calculated using the following
equation:

E_g = (G_t * P_t * G_r * e^(-jkr))/d_g

where G_r is the gain of the receiving antenna, and d_g is the distance traveled by
the ground-reflected wave, which is equal to twice the height of the transmitter
above the ground.

By adding the electric fields of the direct and ground-reflected waves, we can obtain
the total electric field at any distance d from the transmitter, according to the ground
reflection model.

(14) The Doppler spread can be categorized into two types of small scale fading: fast
fading and slow fading.

1. Fast Fading: Fast fading occurs when the Doppler spread is greater than the
coherence bandwidth of the channel. The coherence bandwidth is the
frequency range over which the channel response is approximately constant.
Fast fading causes the received signal to vary rapidly in amplitude and phase
over a short time scale, typically on the order of microseconds. The causes of
fast fading include multipath propagation, moving obstacles, and rapidly
changing environments. To mitigate the effects of fast fading, techniques such
as channel equalization and diversity are used.
 2. Slow Fading: Slow fading occurs when the Doppler spread is much smaller
than the coherence bandwidth of the channel. The coherence time is the time
over which the channel response is approximately constant. Slow fading
causes the received signal to vary slowly in amplitude and phase over a longer
time scale, typically on the order of milliseconds or seconds. The causes of
slow fading include shadowing, blockage, and terrain features. To mitigate the
effects of slow fading, techniques such as power control and adaptive
modulation are used.
The two types of small scale fading based on coherence time are:

1. Rayleigh Fading: Rayleigh fading occurs when the coherence time of the
channel is shorter than the time delay spread of the channel. Time delay
spread is the difference in arrival times of the different paths of the signal due
to multipath propagation
2. Rician Fading: Rician fading occurs when there is a dominant line-of-sight
(LOS) path in addition to the reflected paths. The LOS path has a much
stronger signal strength than the reflected paths. The coherence time of the
channel in Rician fading is longer than the time delay spread of the channel.

(15) To show that the received power decreases by 6dB for every doubling of
distance in line-of-sight (LOS) transmission, we can use the Friis transmission
formula, which relates the received power to the transmitted power and the distance
between the transmitter and receiver:

Pr = Pt * Gt * Gr * (λ / 4πd)^2

where Pr is the received power, Pt is the transmitted power, Gt is the transmitter

antenna gain, Gr is the receiver antenna gain, λ is the wavelength of the signal, and d
is the distance between the transmitter and receiver.

Assuming the same transmitter power, antenna gains, and wavelength, we can
simplify the equation to:

Pr = K / d^2

where K is a constant.

Now, if we double the distance between the transmitter and receiver (i.e., d → 2d),
the received power becomes:

Pr' = K / (2d)^2 = K / 4d^2

(16) To find the ratio of Pr' to Pr in decibels (dB), we can take the logarithm of the
ratio and multiply by 10:

10 * log10 (Pr' / Pr) = 10 * log10 (K / 4d^2 / K * 1 / d^2) = -10 * log10 4 = -6 dB

Therefore, we can see that the received power decreases by 6dB for every doubling
of distance in line-of-sight (LOS) transmission. This means that if the distance
between the transmitter and receiver is doubled, the received power at the receiver is
reduced to one-fourth of the original power. This relationship between received
power and distance is an important consideration in wireless communication system
design and planning.

To calculate the electric field at a distance d from the transmitter at any time t, we
can use the method of images. The method of images involves adding an imaginary
source that is a mirror image of the real source with respect to the ground plane. This
allows us to consider the reflected path as a direct path from the imaginary source to
the receiver.

Let the transmitted signal be given by:

E_t(t) = E_0 cos(wt)

where E_0 is the amplitude of the signal and w is the angular frequency.

The electric field due to the direct path can be written as:

E_d(t) = E_0 / d_d cos(w(t - t_d))

where d_d is the distance of the direct path and t_d is the time delay due to the
direct path.

The electric field due to the reflected path can be written as:

E_r(t) = E_0 / d_r cos(w(t - t_r))

where d_r is the distance of the reflected path and t_r is the time delay due to the
reflected path.

Using the two-ray ground reflection model, we can express the distance of the
reflected path and the time delay as:

d_r = 2h + d - d_d
t_r = (d_r + d_d) / c

where h is the height of the reflecting surface above the ground, d is the distance
between the transmitter and the receiver, and c is the speed of light.

Using the method of images, we can consider the reflected path as a direct path
from an imaginary source located at a distance of 2h from the ground plane. The
distance of this path can be expressed as:

d_r' = 2h + d + d_d

The time delay due to this path can be expressed as:

t_r' = (d_r' + d_d) / c

The total electric field at the receiver due to both paths can be expressed as:

E(t) = E_d(t - t_d) + E_r(t - t_r) + E_r(t - t_r')

Substituting the expressions for E_d(t), E_r(t), d_r, d_d, t_r, d_r', and t_r', we get:

E(t) = E_0 / d_d cos(w(t - t_d)) + E_0 / (2h + d - d_d) cos(w(t - t_r)) + E_0 / (2h + d +
d_d) cos(w(t - t_r'))

This equation gives us the electric field at any time t at a distance d from the
transmitter using the two-ray ground reflection model and the method of images.

(17 ) The factors influencing small scale fading can be broadly classified into three
categories:

1. Physical factors: These include the distance between the transmitter and
receiver, the frequency of the transmitted signal, the environment through
which the signal propagates (e.g. urban or rural), and the mobility of the
transmitter or receiver.
2. Signal factors: These include the bandwidth of the transmitted signal, the
modulation scheme used, the coding and interleaving techniques used, and
the power level of the transmitted signal.
3. Receiver factors: These include the type and quality of the receiver, the
receiver's ability to process and mitigate multipath interference, and the
receiver's ability to adapt to changing channel conditions.
To model small scale fading as a linear filter with a time-varying impulse response,
we can use the concept of a time-varying channel. In this model, the channel is
treated as a linear filter with a time-varying impulse response that varies due to
changes in the channel caused by movement of the transmitter or receiver or
changes in the environment.

The time-varying impulse response of the channel can be represented by a complex-

valued function known as the channel transfer function, which describes the
channel's frequency response at any given time. The channel transfer function can be
estimated using techniques such as pilot symbols or channel sounding.

The time-varying impulse response of the channel can also be characterized by its
coherence time, which is the time duration over which the channel response remains
relatively constant. The coherence time is determined by the physical properties of
the channel and the speed of movement of the transmitter or receiver. In general, a
faster-moving transmitter or receiver will have a shorter coherence time.

Overall, the factors influencing small scale fading in the mobile radio channel are
complex and depend on a variety of physical, signal, and receiver-related factors.
However, modeling small scale fading as a linear filter with a time-varying impulse
response can provide a useful framework for understanding and predicting the
behavior of the channel in different environments and under different conditions.

Supplementary

(1) The impulse response model of a multipath channel is used to describe the time-varying
characteristics of the channel's response to a transmitted signal. The model assumes that the
transmitted signal can be represented as a series of pulses, and that each pulse will experience
different attenuation, delay, and phase shift as it travels through the channel due to multipath
propagation.

The impulse response model represents the channel's response to a single pulse of transmitted
energy, and can be written as a time-varying function h(t), where t represents time. The impulse
response can be thought of as the channel's transfer function, which relates the input pulse to
the output pulse at any given time.

Mathematically, the impulse response can be expressed as the convolution of the transmitted
pulse p(t) with the channel's transfer function h(t):

y(t) = p(t) * h(t)

where y(t) is the received signal at time t, * represents the convolution operation, and h(t) is the
impulse response of the channel.
The impulse response h(t) can be decomposed into a sum of delayed and attenuated versions of
the original pulse, each corresponding to a different path taken by the transmitted signal:

h(t) = ∑ a_i * δ(t - τ_i)

where a_i is the amplitude of the ith path, τ_i is the time delay associated with the ith path, and
δ(t) is the Dirac delta function.

In this model, the channel's response to the transmitted pulse is the sum of the responses of
each path, delayed and attenuated by the path's characteristics. The impulse response can also
be represented in the frequency domain using the Fourier transform, which allows for analysis of
the channel's frequency response and the effects of frequency-selective fading.

Overall, the impulse response model of a multipath channel provides a mathematical framework
for understanding the effects of multipath propagation on the transmitted signal, and is an
important tool for designing and analyzing wireless communication systems.

(2) A link budget is a calculation that takes into account all the gains and losses in a
communication system, to determine the overall performance of the system. The long distance
path loss model is a widely used model to calculate the path loss in a communication system.

To model the practical link budget design using the long distance path loss model, the following
steps can be taken:

1. Determine the frequency of operation: The frequency of operation determines the

wavelength of the signal, which in turn affects the propagation characteristics of the
signal.
2. Calculate the free-space path loss: The free-space path loss is the loss in signal strength
that occurs when a signal travels through free space without any obstructions or
reflections. It can be calculated using the following equation:
FSPL = (4πd/λ)^2
where d is the distance between the transmitter and receiver, λ is the wavelength of the
signal, and π is a mathematical constant.
3. Calculate the path loss due to terrain and other obstacles: In practical scenarios, the
signal may encounter obstacles such as buildings, hills, or trees, which can cause
additional path loss. The path loss due to terrain and obstacles can be estimated using
empirical models such as the Okumura-Hata model, the COST 231 model, or the SUI
model.
4. Calculate the antenna gains: The antenna gains at the transmitter and receiver can
significantly affect the received signal strength. The antenna gains depend on the
antenna type, frequency, and orientation.
5. Determine the receiver sensitivity: The receiver sensitivity is the minimum signal strength
required at the receiver to detect and decode the transmitted signal. It depends on the
modulation scheme, data rate, and error rate.
 6. Calculate the total link margin: The link margin is the difference between the received
signal strength and the receiver sensitivity. It represents the amount of additional signal
loss that the system can tolerate before the communication link is lost. The total link
margin can be calculated as:
LM = Tx power + Tx antenna gain - FSPL - path loss - Rx antenna gain - Rx sensitivity
where Tx power is the transmitter power, path loss includes both the free-space path loss
and the additional loss due to terrain and obstacles.
7. Ensure adequate link margin: The total link margin should be greater than zero to ensure
reliable communication. The link budget can be adjusted by varying the transmitter
power, antenna gains, or receiver sensitivity, to achieve the desired link margin.

In summary, the practical link budget design using the long distance path loss model involves
calculating all the gains and losses in a communication system, including the free-space path
loss, terrain and obstacle losses, antenna gains, and receiver sensitivity, and ensuring that the
total link margin is adequate for reliable communication.
