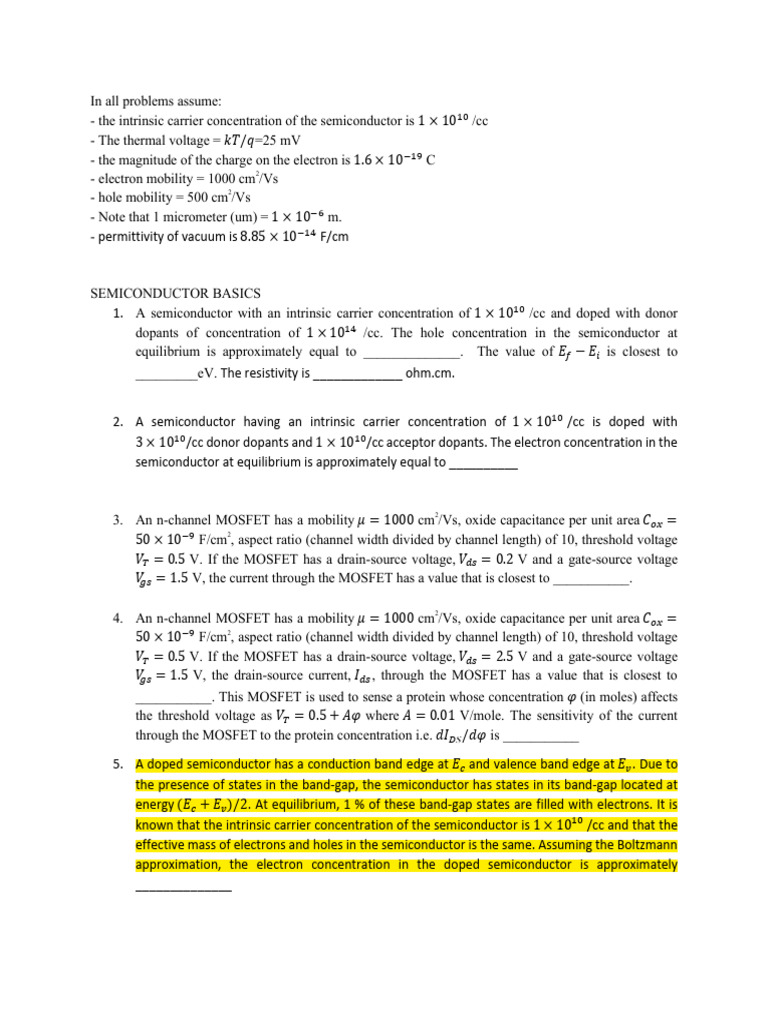

SEMICONDUCTOR BASICS
1. A semiconductor with an intrinsic carrier concentration of 1 × 1010 /cc and doped with donor
dopants of concentration of 1 × 1014 /cc. The hole concentration in the semiconductor at
equilibrium is approximately equal to ______________. The value of 𝐸𝑓 − 𝐸𝑖 is closest to
_________eV. The resistivity is _____________ ohm.cm.
3. An n-channel MOSFET has a mobility 𝜇 = 1000 cm2/Vs, oxide capacitance per unit area 𝐶𝑜𝑥 =
50 × 10−9 F/cm , aspect ratio (channel width divided by channel length) of 10, threshold voltage
2
𝑉𝑇 = 0.5 V. If the MOSFET has a drain-source voltage, 𝑉𝑑𝑠 = 0.2 V and a gate-source voltage
𝑉𝑔𝑠 = 1.5 V, the current through the MOSFET has a value that is closest to ___________.
4. An n-channel MOSFET has a mobility 𝜇 = 1000 cm2/Vs, oxide capacitance per unit area 𝐶𝑜𝑥 =
50 × 10−9 F/cm2, aspect ratio (channel width divided by channel length) of 10, threshold voltage
𝑉𝑇 = 0.5 V. If the MOSFET has a drain-source voltage, 𝑉𝑑𝑠 = 2.5 V and a gate-source voltage
𝑉𝑔𝑠 = 1.5 V, the drain-source current, 𝐼𝑑𝑠 , through the MOSFET has a value that is closest to
___________. This MOSFET is used to sense a protein whose concentration 𝜑 (in moles) affects
the threshold voltage as 𝑉𝑇 = 0.5 + 𝐴𝜑 where 𝐴 = 0.01 V/mole. The sensitivity of the current
through the MOSFET to the protein concentration i.e. 𝑑𝐼𝐷𝑆 /𝑑𝜑 is ___________
5. A doped semiconductor has a conduction band edge at 𝐸𝑐 and valence band edge at 𝐸𝑣 . Due to
the presence of states in the band-gap, the semiconductor has states in its band-gap located at
energy (𝐸𝑐 + 𝐸𝑣 )/2. At equilibrium, 1 % of these band-gap states are filled with electrons. It is
known that the intrinsic carrier concentration of the semiconductor is 1 × 1010 /cc and that the
effective mass of electrons and holes in the semiconductor is the same. Assuming the Boltzmann
approximation, the electron concentration in the doped semiconductor is approximately
______________
6. A semiconductor is placed in dark and with no applied fields. In this semiconductor there exists, at
some point in time, a linear variation in the electron concentration, 𝑛(𝑥), only in the 𝑥 direction as
shown in the figure. At 𝑥 = 0 um, 𝑛 = 1 × 106/cc whereas at 𝑥 = 10 um, 𝑛 = 1 × 105 /cc. The
magnitude of the current density (in nanoamperes (nA)) per cm2) in this region of the semiconductor
is approximately equal to _________________
