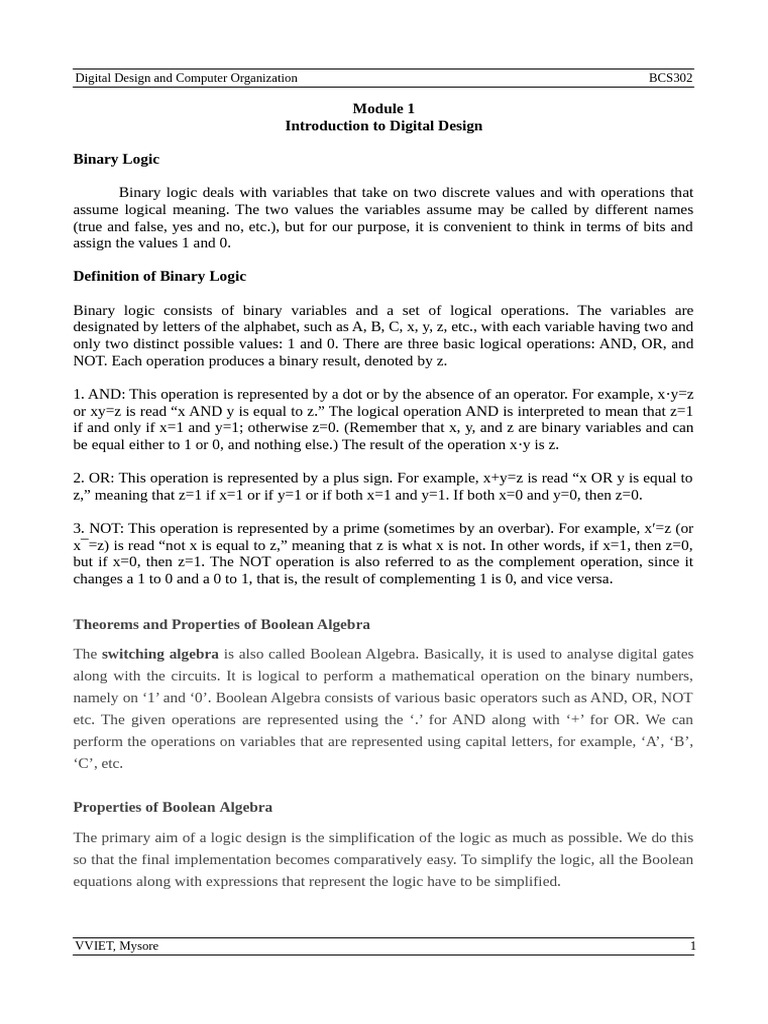

Digital Design and Computer Organization BCS302
Module 1
Introduction to Digital Design
Binary Logic
Binary logic deals with variables that take on two discrete values and with operations that
assume logical meaning. The two values the variables assume may be called by different names
(true and false, yes and no, etc.), but for our purpose, it is convenient to think in terms of bits and
assign the values 1 and 0.
Definition of Binary Logic
Binary logic consists of binary variables and a set of logical operations. The variables are
designated by letters of the alphabet, such as A, B, C, x, y, z, etc., with each variable having two and
only two distinct possible values: 1 and 0. There are three basic logical operations: AND, OR, and
NOT. Each operation produces a binary result, denoted by z.
1. AND: This operation is represented by a dot or by the absence of an operator. For example, x⋅y=z
or xy=z is read “x AND y is equal to z.” The logical operation AND is interpreted to mean that z=1
if and only if x=1 and y=1; otherwise z=0. (Remember that x, y, and z are binary variables and can
be equal either to 1 or 0, and nothing else.) The result of the operation x⋅y is z.
2. OR: This operation is represented by a plus sign. For example, x+y=z is read “x OR y is equal to
z,” meaning that z=1 if x=1 or if y=1 or if both x=1 and y=1. If both x=0 and y=0, then z=0.
3. NOT: This operation is represented by a prime (sometimes by an overbar). For example, x′=z (or
x¯=z) is read “not x is equal to z,” meaning that z is what x is not. In other words, if x=1, then z=0,
but if x=0, then z=1. The NOT operation is also referred to as the complement operation, since it
changes a 1 to 0 and a 0 to 1, that is, the result of complementing 1 is 0, and vice versa.
Theorems and Properties of Boolean Algebra
The switching algebra is also called Boolean Algebra. Basically, it is used to analyse digital gates
along with the circuits. It is logical to perform a mathematical operation on the binary numbers,
namely on ‘1’ and ‘0’. Boolean Algebra consists of various basic operators such as AND, OR, NOT
etc. The given operations are represented using the ‘.’ for AND along with ‘+’ for OR. We can
perform the operations on variables that are represented using capital letters, for example, ‘A’, ‘B’,
‘C’, etc.
Properties of Boolean Algebra
The primary aim of a logic design is the simplification of the logic as much as possible. We do this
so that the final implementation becomes comparatively easy. To simplify the logic, all the Boolean
equations along with expressions that represent the logic have to be simplified.
VVIET, Mysore 1
Here are a few laws that define the various properties present in a boolean algebra:
Annulment Law
It states that a variable that has been ANDed with 0 gives us a 0, while a variable that has been
ORed with 1 gives us a 1, i.e.,
X.0 = 0
X+1=1
Identity Law
This law states that a variable would remain unchanged when it is ANDed with ‘1’ or ORed with
‘0’, i.e.,
X.1 = X
X+0=X
Idempotent Law
This law states that a variable would remain unchanged when it is ANDed or ORed with itself, i.e.,
X+X=X
X.X = X
Complement Law
This law states that in case a complement is added to any variable, then it would give one, whereas
when we multiply this variable with its own complement, then it would result in ‘0’, i.e.,
X + X’ = 1
X.X’ = 0
Double negation Law
This law states that whenever a variable is with two negations, then its symbol would ultimately get
cancelled out while the original variable is obtained with it, i.e.,
((X)’)’ = X
Commutative Law
The order of the variable or two different terms does not matter according to this law. It can be
represented as follows,
X+Y=Y+X
VVIET, Mysore 2
X.Y = Y.X
Associative Law
According to this law, the order of an operation does not matter when the priority of the given
variables are similar, such as ‘*’ and ‘/’, i.e.,
X + (Y + Z) = (X + Y) + Z
X.(Y.Z) = (X.Y).Z
Distributive Law
Using this law, we try to understand how the opening up of the brackets available in an operation,
i.e.,
X.(Y+Z) = (X.Y) + (X.Z)

X + (Y.Z) = (X + Y).(X + Z)
Absorption Law
Using this law, we absorb similar variables, i.e.,
X.(X + Y) = X
X + XY = X
De Morgan’s Law or De Morgan’s Theorem
This law states that the operation of an OR or an AND logic circuit stays unchanged whenever all
inputs are inverted, while the operator actually changes from AND to OR whenever the outputs are
inverted, i.e.,
(X.Y)’ = X’ + Y’
(X + Y)’ = X’.Y’
De-Morgan's First Theorem:

According to the first theorem, the complement result of the AND operation is equal to the OR
operation of the complement of that variable. Thus, it is equivalent to the NAND function and is a
negative-OR function proving that (A.B)' = A'+B' and we can show this using the following table.
A B A.B (A.B)’ A’ B’ A’+B’

0 0 0 1 1 1 1
0 1 0 1 1 0 1
1 0 0 1 0 1 1
1 1 1 0 0 0 0
VVIET, Mysore 3
De-Morgan's Second Theorem:

According to the second theorem, the complement result of the OR operation is equal to the AND
operation of the complement of that variable. Thus, it is the equivalent of the NOR function and is a
negative-AND function proving that (A+B)' = A'.B' and we can show this using the following truth
table.
A B A+B (A+B)’ A’ B’ A’.B’

0 0 0 1 1 1 1
0 1 1 0 1 0 0
1 0 1 0 0 1 0
1 1 1 0 0 0 0
Logic Gates
VVIET, Mysore 4
A logic gate is a building block of a digital circuit. Most logic gates have two inputs and
one output and are based on Boolean algebra. At any given moment, every terminal is in
one of the two binary conditions false (low) or true (high). False represents 0, and true
represents 1. Depending on the type of logic gate being used and the combination of
inputs, the binary output will differ. A logic gate can be thought of like a light switch,
wherein one position the output is off (0), and in another, it is on (1). Logic gates are
commonly used in integrated circuits (IC).
Basic Logic gates
AND gate
An AND gate can have two or more inputs, its output is true if all inputs are true.
The output Q is true if input A AND input B are both true: Q = A . B
Input Input
Output Q
A B
0 0 0
0 1 0
1 0 0
1 1 1
Logical symbol
OR gate
An OR gate can have two or more inputs, its output is true if at least one
input is true. The output Q is true if input A OR input B is true (or both of
them are true): Q = A + B
Input A Input B Output Q

0 0 0
0 1 1
1 0 1
VVIET, Mysore 5
1 1 1
NOT gate (inverter)

A NOT gate can only have one input and the output is the inverse of the input. A NOT
gate is also called an inverter.
The output Q is true when the input A is NOT true: Q = 𝐴
Logical symbol
Universal Gates:
NAND gate
This is an AND gate with the output inverted, as shown by the 'o' on the symbol
output. A NAND gate can have two or more inputs, its output is true if NOT all inputs
are true. The output Q is true if
input A AND input B are NOT both true: Q = 𝐴 . 𝐵
0 0 1
0 1 1
1 0 1
1 1 0
VVIET, Mysore 6
Logical symbol
NOR gate
This is an OR gate with the output inverted, as shown by the 'o' on the symbol
output. A NOR gate can have two or more inputs, its output is true if no inputs are
true. The output Q is true if NOT
inputs A OR B are true: Q = 𝐴 + 𝐵
0 0 1
0 1 0
1 0 0
1 1 0
Exclusive gates
EX-OR gate
EXclusive-OR. This is like an OR gate but excluding both inputs being true. The
output is true if inputs A and B are DIFFERENT. EX-OR gates can only have 2
inputs.
The output Q is true if either input A is true OR input B is true, but not when both
of them are true: Q = A ⊕ B
0 0 0
0 1 1
1 0 1
1 1 0
VVIET, Mysore 7
Logical symbol
EX-NOR gate
EXclusive-NOR. This is an EX-OR gate with the output inverted, as shown by the 'o'
on the symbol output. EX-NOR gates can only have 2 inputs. The output Q is true if
inputs A and B are
the SAME (both true or both false): Q = 𝐴 ⊕ 𝐵
0 0 1
0 1 0
1 0 0
1 1 1
NAND and NOR Implementation
Why NAND and NOR gates are called Universal gates?
NOR gates and NAND gates have the particular property that any one of them can
create any logical Boolean expression if appropriately designed. Meaning that you can
create any logical Boolean expression using ONLY NOR gates or ONLY NAND gates.
Other logical gates do not have this property.
VVIET, Mysore 8
NOR Gate Operations
VVIET, Mysore 9
The Map Method (Karnaugh Map):

The Karnaugh Map also called as K Map is a graphical representation that provides a systematic
method for simplifying the boolean expressions.
For a boolean expression consisting of n-variables, number of cells required in K Map = 2n cells.
Two Variable K Map-
Two variable K Map is drawn for a boolean expression consisting of two variables.
The number of cells present in two variable K Map = 22 = 4 cells.
So, for a boolean function consisting of two variables, we draw a 2 x 2 K Map.
Two variable K Map may be represented as-
Here, A and B are the two variables of the given boolean function.
Three Variable K Map-

 Three variable K Map is drawn for a boolean expression consisting of three
variables.
 The number of cells present in three variable K Map = 23 = 8 cells.
 So, for a boolean function consisting of three variables, we draw a 2 x 4 K
Map.
Three variable K Map may be represented as-
VVIET, Mysore 10
Here, A, B and C are the three variables of the given boolean function.
Four Variable K Map-
Four variable K Map is drawn for a boolean expression consisting of four variables.
The number of cells present in four variable K Map = 24 = 16 cells.
So, for a boolean function consisting of four variables, we draw a 4 x 4 K Map.
Four variable K Map may be represented as-
VVIET, Mysore 11
Karnaugh Map Simplification Rules-

To minimize the given boolean function,
We draw a K Map according to the number of variables it contains.
We fill the K Map with 0’s and 1’s according to its function.
Then, we minimize the function in accordance with the following rules.
Rule-01:
We can either group 0’s with 0’s or 1’s with 1’s but we can not group 0’s and 1’s together.
X representing don’t care can be grouped with 0’s as well as 1’s.
Rule-02:
Groups may overlap each other.
Rule-03:
We can only create a group whose number of cells can be represented in the power of 2.
In other words, a group can only contain 2n i.e. 1, 2, 4, 8, 16 and so on number of cells.
VVIET, Mysore 12
Rule-04:
Groups can be only either horizontal or vertical.
We can not create groups of diagonal or any other shape.
Rule-05:
Each group should be as large as possible.
Rule-06:
Opposite grouping and corner grouping are allowed.
The example of opposite grouping is shown illustrated in Rule-05.

The example of corner grouping is shown below.
VVIET, Mysore 13
PROBLEMS BASED ON KARNAUGH MAP-

Problem-01:
Minimize the following boolean function-
F(A, B, C, D) = Σm(0, 1, 2, 5, 7, 8, 9, 10, 13, 15)
Solution-
Since the given boolean expression has 4 variables, so we draw a 4 x 4 K Map.
We fill the cells of K Map in accordance with the given boolean function.
Then, we form the groups in accordance with the above rules.
Then, we have-
Now,
F(A, B, C, D) = (A’B + AB)(C’D + CD) + (A’B’ + A’B + AB + AB’)C’D + (A’B’ + AB’)(C’D’ +
CD’)
= BD + C’D + B’D’
VVIET, Mysore 14
Thus, minimized boolean expression is-
F(A, B, C, D) = BD + C’D + B’D’
Problem-02:
F(A, B, C, D) = Σm(0, 1, 3, 5, 7, 8, 9, 11, 13, 15)

Solution-
 Since the given boolean expression has 4 variables, so we draw a 4 x 4 K Map.
 We fill the cells of K Map in accordance with the given boolean function.
 Then, we form the groups in accordance with the above rules.
Then, we have-
Now,
F(A, B, C, D) = (A’B’ + A’B + AB + AB’)(C’D + CD) + (A’B’ + AB’)(C’D’ + C’D)
= D + B’C’
F(A, B, C, D) = B’C’ + D
Problem-03:
F(A, B, C, D) = Σm(1, 3, 4, 6, 8, 9, 11, 13, 15) + Σd(0, 2, 14)
Solution-
VVIET, Mysore 15
Then, we have-
Now,
F(A, B, C, D)
= (AB + AB’)(C’D + CD) + (A’B’ + AB’)(C’D + CD) + (A’B’ + AB’)(C’D’ + C’D) + (A’B’ + A’B)
(C’D’ + CD’)
= AD + B’D + B’C’ + A’D’
F(A, B, C, D) = AD + B’D + B’C’ + A’D’
Problem-04:
F(A, B, C) = Σm(0, 1, 6, 7) + Σd(3, 5)
Solution-
Then, we have-
Now,
F(A, B, C) = A'(B’C’ + B’C) + A(BC + BC’)
= A’B’ + AB
VVIET, Mysore 16
F(A, B, C) = AB + A’B’
NOTE-
 It may be noted that there is no need of considering the quad group.
 This is because even if we consider that group, we will have to consider the other two duets.
 So, there is no use of considering that quad group.
Problem-05:
F(A, B, C) = Σm(1, 2, 5, 7) + Σd(0, 4, 6)
Solution-
Then, we have-
Now,
F(A, B, C) = (A + A’)(B’C’ + B’C) + A(B’C’ + B’C + BC + BC’) + (A + A’)(B’C’ + BC’)
= B’ + A + C’
F(A, B, C) = A + B’ + C’
Problem-06:
F(A, B, C) = Σm(0, 1, 6, 7) + Σd(3, 4, 5)
VVIET, Mysore 17
Solution-
Then, we have-
Now,
F(A, B, C) = (A + A’)(B’C’ + B’C) + A(B’C’ + B’C + BC + BC’)
= B’ + A
F(A, B, C) = A + B’
Problem-07:
F(A, B, C, D) = Σm(0, 2, 8, 10, 14) + Σd(5, 15)
Solution-
Then, we have-
VVIET, Mysore 18
Now,
F(A, B, C, D) = (AB + AB’)CD’ + (A’B’ + AB’)(C’D’ + CD’)
= ACD’ + B’D’
F(A, B, C, D) = ACD’ + B’D’
Problem-08:
F(A, B, C, D) = Σm(3, 4, 5, 7, 9, 13, 14, 15)
Solution-
Then, we have-
Now,
F(A, B, C, D) = A’B(C’D’ + C’D) + (A’B’ + A’B)(CD) + (AB + AB’)(C’D) + AB(CD + CD’)
= A’BC’ + A’CD + AC’D + ABC
F(A, B, C, D) = A’BC’ + A’CD + AC’D + ABC
Problem-09:
Consider the following boolean function-
F(W, X, Y, Z) = Σm(1, 3, 4, 6, 9, 11, 12, 14)
VVIET, Mysore 19
Solution-
Then, we have-
Now,
F(W, X, Y, Z)
= (W’X + WX)(Y’Z’ + YZ’) + (W’X’ + WX’)(Y’Z + YZ)
= XZ’ + X’Z
=X⊕Z
F(W, X, Y, Z) = X ⊕ Z
VVIET, Mysore 20
HDL
What is HDL?
HDL stands for Hardware Description Language. It is a programming language that is used to
describe, simulate, and create hardware like digital circuits (ICS). HDL is mainly used to discover
the faults in the design before implementing it in the hardware.
The main advantage of HDLs is that it provides flexible modeling capabilities and can express the
large complex designs (>107gates).
Today, there are many HDLs available in the market, but VHDL and Verilog are the most popular
HDLs.
What is VHDL?
VHDL stands for Very High-Speed Integration Circuit HDL (Hardware Description Language). It is
an IEEE (Institute of Electrical and Electronics Engineers) standard hardware description language
that is used to describe and simulate the behavior of complex digital circuits.
The most popular examples of VHDL are Odd Parity Generator, Pulse Generator, Priority
Encoder, Behavioral Model for 16 words, 8bit RAM, etc.
VHDL supports the following features:
 Design methodologies and their features.
 Sequential and concurrent activities.
 Design exchange
 Standardization
 Documentation
 Readability
 Large-scale design
 A wide range of descriptive capability

What is Verilog?
Verilog is also a HDL (Hardware Description Languages) for describing electronic circuits and
systems. It is used in both hardware simulation and synthesis.
The most popular examples of Verilog are network switch, a microprocessor, a memory, a simple
flip-flop, etc.
When we think of any digital circuit, either it is a combinational or a sequential circuit, we have
three aspects in our mind. They are:-
VVIET, Mysore 21
1.Circuit diagram or schematic,

2.Logical Expression,
3.and Truth table.
Syntax of Verilog
module <module_name>(Port_List)
//Statement
endmodule
Here module and endmodule are pair of the compiler directives.
So, when comes to Verilog HDL or any HDL, there are three aspects of Modelling:
1.Structural or Gate-level modelling,
2.Dataflow modelling,
3.Behavioral modelling.
These three modelling aspects in Verilog HDL relate to those three aspects of a digital circuit
respectively. Let’s glide into the next section…
Structural/Gate-level Modelling:
The Circuit diagram of a digital circuit shows the logic gates present in it. Likewise in Structural
modelling, we model a circuit by using Primitive gates, and predefined modules.
When we design a Verilog code entirely using Primitive Logic Gates, it is called “Gate Level
Modelling“. This is Lowest level abstraction, and it is hard to understand the intent of the code by
the human, but is easy and guaranteed for machine compiling and logical synthesis.
If we create smaller modules using Logic gates, and then we use those small modules to create a big
circuit, it is called “Structural Modelling“. We connect Gates and modules using wires here.
Example:-
module andgate(a,b,y);
VVIET, Mysore 22
input a,b;
output y;
and(y,a,b);
endmodule
Dataflow Modelling:
Dataflow modelling is completely done by the logical expression of the digital circuit. We have
logical and arithmetic operators in Verilog, which we can use to create logical expressions of the
digital circuit.
This is a medium level abstraction. This type of modelling along with structural modelling is Highly
Recommended in ASIC design.
Example
module andgate(a,b,y);
input a,b;
output y;
assign y = a & b;
endmodule
Behavioral Modelling:
The behavioural modelling completely depends on the truth table or behaviour of the circuit. In this
modelling, we can design hardware without even knowing the components present in it, because it
doesn’t care.
If we know the behaviour of the circuit, we can design it. This is the highest level abstraction. This
modelling is recommended for FPGA prototyping and other Reconfigurable devices.
Example
module AND_Gate_tb;
reg A;
reg B;
VVIET, Mysore 23
wire Y;
AND_Gate uut(.A(A), .B(B), .Y(Y));
initial
begin
A = 0;
B = 0;
#5;
A = 0;
B = 1;
#5;
A = 1;
B = 0;
#5;
A = 1;
B = 1;
#5;
end
endmodule
***
VVIET, Mysore 24

Introduction To Digital Design Module1

Uploaded by

Copyright:

Available Formats

You might also like

Introduction To Digital Design Module1

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Introduction To Digital Design Module1

Uploaded by

Copyright:

Available Formats

Digital Design and Computer Organization BCS302

Definition of Binary Logic

Theorems and Properties of Boolean Algebra

Properties of Boolean Algebra

Double negation Law

X.(Y+Z) = (X.Y) + (X.Z)

Using this law, we absorb similar variables, i.e.,

De Morgan’s Law or De Morgan’s Theorem

De-Morgan's First Theorem:

A B A.B (A.B)’ A’ B’ A’+B’

De-Morgan's Second Theorem:

A B A+B (A+B)’ A’ B’ A’.B’

Basic Logic gates

Input A Input B Output Q

NOT gate (inverter)

Input A Input B Output Q

Input A Input B Output Q

Input A Input B Output Q

Input A Input B Output Q

NAND and NOR Implementation

Why NAND and NOR gates are called Universal gates?

NOR Gate Operations

The Map Method (Karnaugh Map):

Three Variable K Map-

Karnaugh Map Simplification Rules-

We draw a K Map according to the number of variables it contains.

Then, we minimize the function in accordance with the following rules.

The example of opposite grouping is shown illustrated in Rule-05.

PROBLEMS BASED ON KARNAUGH MAP-

F(A, B, C, D) = Σm(0, 1, 2, 5, 7, 8, 9, 10, 13, 15)

Thus, minimized boolean expression is-

F(A, B, C, D) = BD + C’D + B’D’

F(A, B, C, D) = Σm(0, 1, 3, 5, 7, 8, 9, 11, 13, 15)

Thus, minimized boolean expression is-

F(A, B, C, D) = Σm(1, 3, 4, 6, 8, 9, 11, 13, 15) + Σd(0, 2, 14)

= AD + B’D + B’C’ + A’D’

Thus, minimized boolean expression is-

F(A, B, C, D) = AD + B’D + B’C’ + A’D’

F(A, B, C) = Σm(0, 1, 6, 7) + Σd(3, 5)

Thus, minimized boolean expression is-

F(A, B, C) = Σm(1, 2, 5, 7) + Σd(0, 4, 6)

F(A, B, C) = (A + A’)(B’C’ + B’C) + A(B’C’ + B’C + BC + BC’) + (A + A’)(B’C’ + BC’)

Thus, minimized boolean expression is-

F(A, B, C) = Σm(0, 1, 6, 7) + Σd(3, 4, 5)

Thus, minimized boolean expression is-

F(A, B, C, D) = Σm(0, 2, 8, 10, 14) + Σd(5, 15)

F(A, B, C, D) = (AB + AB’)CD’ + (A’B’ + AB’)(C’D’ + CD’)

Thus, minimized boolean expression is-

F(A, B, C, D) = ACD’ + B’D’

F(A, B, C, D) = Σm(3, 4, 5, 7, 9, 13, 14, 15)

F(A, B, C, D) = A’B(C’D’ + C’D) + (A’B’ + A’B)(CD) + (AB + AB’)(C’D) + AB(CD + CD’)

= A’BC’ + A’CD + AC’D + ABC

Thus, minimized boolean expression is-

F(A, B, C, D) = A’BC’ + A’CD + AC’D + ABC

F(W, X, Y, Z) = Σm(1, 3, 4, 6, 9, 11, 12, 14)

= (W’X + WX)(Y’Z’ + YZ’) + (W’X’ + WX’)(Y’Z + YZ)

Thus, minimized boolean expression is-

 Design methodologies and their features.
