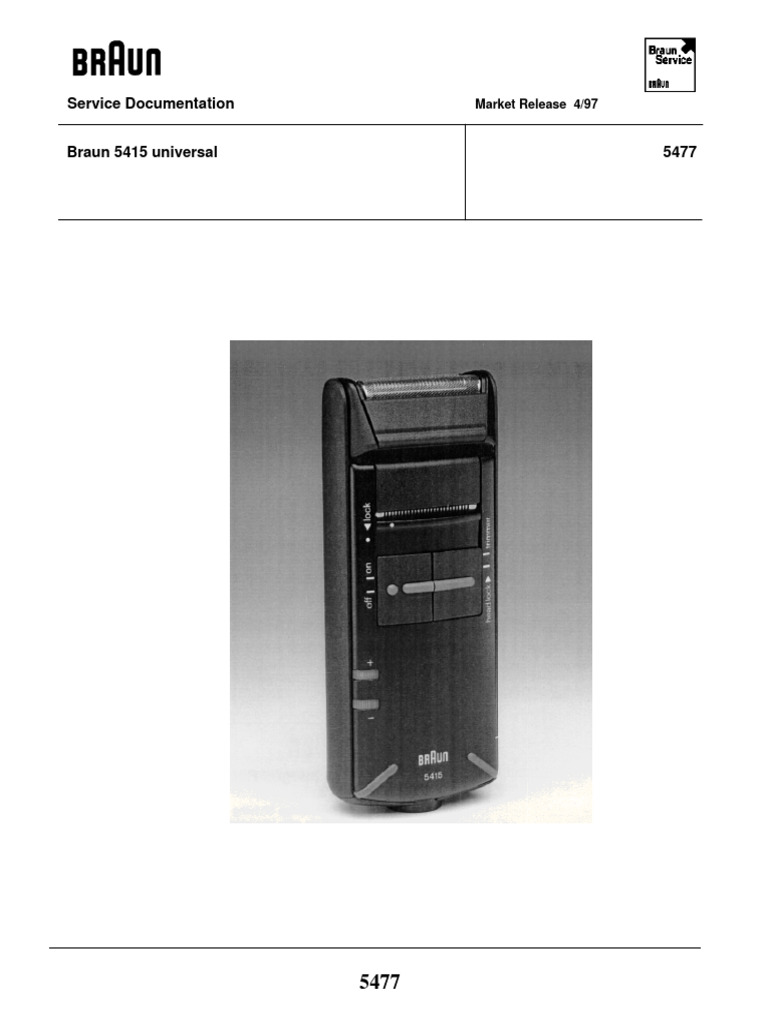

Service Documentation Market Release 4/97

Braun 5415 universal 5477

5477
BINC Rev: 4/97 Service Documentation
Exploded Drawing
BAG Rev: 11/96 5477

5477 - 2
BINC Rev: 4/97 Service Documentation
Spare Parts List
BAG Rev: 3/97 5477

Pos. No. Part Description Part Number

1 Protective cap 5503074
2 Shaving foil 5505760
3 Cutter block 5504761
4 Swivel frame 5505633
5 Sealing plate 5503014
6 Bearing screw 5504046
7 Long-hair trimmer 5476654
8 Housing cover 5477650
9 Insulating foil 5478008
10 PCB 5478655
11 Chassis 5477652
12 Housing bottom 5477651
13 Plug insert 5477653
14 Cover 5477036
15 Screw 5586038
16 Plug pin 5477037
17 Contact spring 5478056

Cleaning brush 5503120

Coiled cord 5323015
Case 5465040

5477 - 3
BINC Rev: 4/97 Service Documentation
Service Information
BAG Rev: 11/96 5477

Technical Data General: Battery power supply with eco-friendly nickel

Housing:
Housing frame:
Shaving head frame:
Cutter block:
Amplitude:
Long hair trimmer:
Drive:
Revolutions when run on:
batteries without LHT:
with Long hair trimmer:
Power transmission:
Power supply:
Voltage range:
Mains voltage:
Bat charging voltage:
Lowest charging voltage:
Power consumption:
Current input @ 230 VAC
hydride batteries. Oscillating head with triple
shaving system. Long hair trimmer can be
additionally switched on. Charging display.
Plastic material black.
Plastic material black.
Plastic material black, with integrated double
shaving foil and medium trimmer, can be snapped
off by means of a push button.
Double cutter block with 2 x 27 cutter blades,
6 mm diameter each.
2.8 mm (measured at the cutter block).
Integrated in the housing cover, can be
additionally switched on by a separate slider.
Via 1.2 V DC motor.
After min 3 minutes recharging time.
Min 6,300 RPM.
Max. 7,600 RPM.
Min. 5,700 RPM.
Via eccenter and oscillating frame onto the
shaving system.
By one built-in rechargeable battery resp.
automatically by a built-in battery charger and
independently from the mains voltage or
frequency.
100 - 240 V 50 - 60 Hz
12 - 240 V 50 - 60 Hz,
12 VDC.
Approx. 5 watts
17 mA (without long hair trimmer).

Charging time: From 100 V upwards approx. 1 hour.

At 12 V approx. 20 hours.
When completely discharged at least 4 hours.
Display:
LED, green: Charging light
- illuminates by connecting to the mains.
- flashes by fully charging battery.
LED, red Low charge indicator
- illuminates at a residual capacity of 20% max.

Operating capacity: Approx. 35 shaving minutes (after full recharge).

5477 - 4
BINC Rev: 4/97 Service Documentation
Service Information
BAG Rev: 11/96 5477

Dismantling Shaving foil (2) To be unlocked with button “A”

Cutter block (3) To be removed.

Swivel Frame (4) Unscrew bearing screws (6).

Remove swivel frame (4).

Housing (8, 12) Remove plug pins (16) by means of a needle

or a knife, remove screws (15). Remove cover
(14). Push the housing cover (8) in the middle
of the long hair trimmer approx. 1 mm in the
direction of the plug insert (13). Then remove
it from the bottom (12) by snapping it out to
the top on the left and right side of the
eccentric area.

Long Hair To be unfolded with the slider. Snap out LHT

Trimmer (7) (7) by pushing it out of the hinged angles in a
upward movement. Return the LHT to its
original position (in front of housing cover).
Then remove it from the indentation, turning
it 90° horizontally in front of the housing.
(The slider arm snaps out at the lead slot of
the LHT).

PCB (10) To be pressed out of the chassis (11) from the

direction of the soldering side.

Insulating foil (9) To be removed from PCB (10).

5477 - 5
BINC Rev: 4/97 Service Documentation
Service Information
BAG Rev: 11/96 5477

Plug insert (13) Snap out and remove the snap-on pin “C” in
the chassis (11).

Reassembly The reassembly has to be made in reversed order.

Attention is to be paid to the following points:

Long hair trimmer (7)
Lift the slider by approx. 6 mm out of the
indentation of the housing cover, fixing it by
laying a match underneath. Insert LHT
horizontally in front of the housing cover
(cutting side to the right) with the slider lead
slot into the cranked sliding lever head. Then
the LHT is to be turned 90° (the cutting side.
now, faces downwards), to be placed in the
working position and snapped into the hinges.
Remove the match.

PCB (10) Attention must be paid to the correct

assembling position of the spring contacts of
motor and plug insert.

Insulating foil (9): To be attached to the PCB soldering side.

Housing bottom (12): To be applied with the lower side to the plug
insert area and to be snapped in the eccentric
area.

Housing-cover (8) To be placed evenly onto the chassis (LHT to

be inserted approx. 1 mm underneath the
upper edge of the housing back (12), and then
to be pushed approx. 1 mm in the direction of

5477 - 6
BINC Rev: 4/97 Service Documentation
Service Information
BAG Rev: 11/96 5477

the eccenter). Now, the covers (14) are to be

screwed and the plug pins (16) to be inserted.

Eccentric stud To be lubricated with a small amount of

Vaseline.

Swivel frame (4) To be inserted and screwed into the head

carrier, the unlocking pin 'B' facing button
“A”. The eccentric stud must grip exactly in
the slot of the swivel frame. When the
switchplate is in position “head lock” and
“longhair trimmer”, the swivel frame (4) has
to be secured in the mid position.

Disposal of the batteries:
This appliance is equipped with a special mechanism which
has been developed for easy disassembly of the rechargeable
cell unit and other components for recycling purposes.
Prematurely activating this mechanism by twisting it opens
the housing and thereby destroys the appliance.

Therefore, the mechanism must not be activated before

the end of the useful life of the product

Compliance: This product conforms to the EMC-Requirements as laid

down by the Council Directive 89/336/EEC.

5477 - 7
