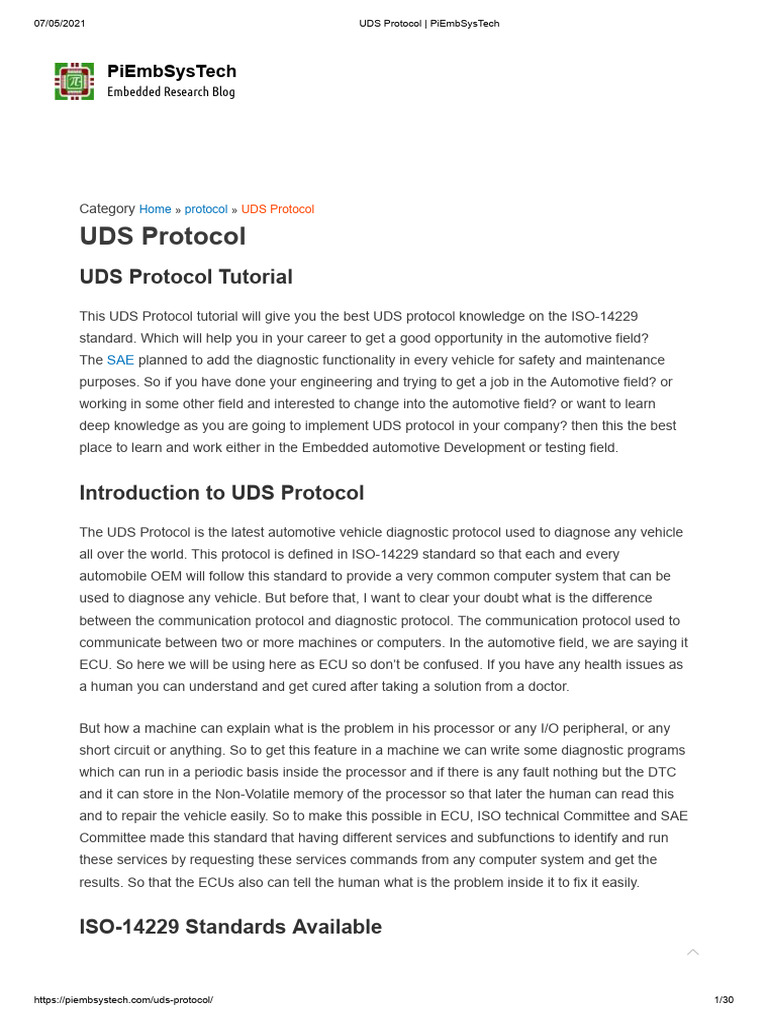

UDS Protocol
UDS Protocol Tutorial
This UDS Protocol tutorial will give you the best UDS protocol knowledge on the ISO-14229
standard. Which will help you in your career to get a good opportunity in the automotive field?
The SAE planned to add the diagnostic functionality in every vehicle for safety and maintenance
purposes. So if you have done your engineering and trying to get a job in the Automotive field? or
working in some other field and interested to change into the automotive field? or want to learn
deep knowledge as you are going to implement UDS protocol in your company? then this the best
place to learn and work either in the Embedded automotive Development or testing field.

Introduction to UDS Protocol


The UDS Protocol is the latest automotive vehicle diagnostic protocol used to diagnose any vehicle
all over the world. This protocol is defined in ISO-14229 standard so that each and every
automobile OEM will follow this standard to provide a very common computer system that can be
used to diagnose any vehicle. But before that, I want to clear your doubt what is the difference
between the communication protocol and diagnostic protocol. The communication protocol used to
communicate between two or more machines or computers. In the automotive field, we are saying it
ECU. So here we will be using here as ECU so don’t be confused. If you have any health issues as
a human you can understand and get cured after taking a solution from a doctor.

But how a machine can explain what is the problem in his processor or any I/O peripheral, or any
short circuit or anything. So to get this feature in a machine we can write some diagnostic programs
which can run in a periodic basis inside the processor and if there is any fault nothing but the DTC
and it can store in the Non-Volatile memory of the processor so that later the human can read this
and to repair the vehicle easily. So to make this possible in ECU, ISO technical Committee and SAE
Committee made this standard that having different services and subfunctions to identify and run
these services by requesting these services commands from any computer system and get the
results. So that the ECUs also can tell the human what is the problem inside it to fix it easily.

ISO-14229 Standards Available


https://piembsystech.com/uds-protocol/ 1/30
07/05/2021 UDS Protocol | PiEmbSysTech

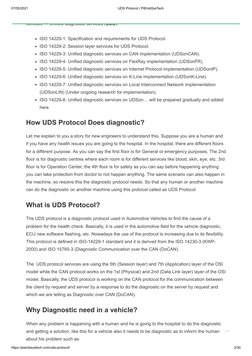

ISO-14229 Standard UDS Protocol consists of the following parts, under the general title Road
vehicles — Unified diagnostic services (UDS):

ISO 14229-1: Specification and requirements for UDS Protocol.


ISO 14229-2: Session layer services for UDS Protocol.
ISO 14229-3: Unified diagnostic services on CAN implementation (UDSonCAN).
ISO 14229-4: Unified diagnostic services on FlexRay implementation (UDSonFR).
ISO 14229-5: Unified diagnostic services on Internet Protocol implementation (UDSonIP).
ISO 14229-6: Unified diagnostic services on K-Line implementation (UDSonK-Line).
ISO 14229-7: Unified diagnostic services on Local Interconnect Network implementation
(UDSonLIN) (Under ongoing research for implementation).
ISO 14229-8: Unified diagnostic services on UDSon… will be prepared gradually and added
here

How UDS Protocol Does diagnostic?


Let me explain to you a story for new engineers to understand this. Suppose you are a human and
if you have any health issues you are going to the hospital. In the hospital, there are different floors
for a different purpose. As you can say the first floor is for General or emergency purposes, The 2nd
floor is for diagnostic centres where each room is for different services like blood, skin, eye, etc. 3rd
floor is for Operation Center, the 4th floor is for safety as you can say before happening anything
you can take protection from doctor to not happen anything. The same scenario can also happen in
the machine, so resolve this the diagnostic protocol needs. So that any human or another machine
can do the diagnostic on another machine using this protocol called as UDS Protocol

What is UDS Protocol?


The UDS protocol is a diagnostic protocol used in Automotive Vehicles to find the cause of a
problem for the health check. Basically, it is used in the automotive field for the vehicle diagnostic,
ECU new software flashing, etc. Nowadays the use of the protocol is increasing due to its flexibility.
This protocol is defined in ISO-14229-1 standard and it is derived from the ISO 14230-3 (KWP-
2000) and ISO 15765-3 (Diagnostic Communication over the CAN (DoCAN).

The UDS protocol services are using the 5th (Session layer) and 7th (Application) layer of the OSI
model while the CAN protocol works on the 1st (Physical) and 2nd (Data Link layer) layer of the OSI
model. Basically, the UDS protocol is working on the CAN protocol for the communication between
the client by request and server by a response to do the diagnostic on the server by request and
which we are telling as Diagnostic over CAN (DoCAN).

Why Diagnostic need in a vehicle?


When any problem is happening with a human and he is going to the hospital to do the diagnostic
and getting a solution, like this for a vehicle also it needs to be diagnostic as to inform the human

about his problem such as:


https://piembsystech.com/uds-protocol/ 2/30
07/05/2021 UDS Protocol | PiEmbSysTech

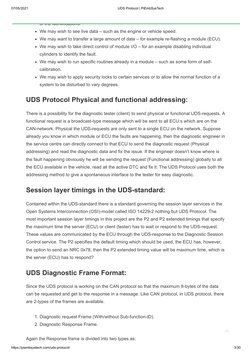

We may wish to see data stored within the system – such as Trouble codes – or some form
of the identifications.
We may wish to see live data – such as the engine or vehicle speed.
We may want to transfer a large amount of data – for example re-flashing a module (ECU).
We may wish to take direct control of module I/O – for an example disabling individual
cylinders to identify the fault.
We may wish to run specific routines already in a module – such as some form of self-
calibration.
We may wish to apply security locks to certain services or to allow the normal function of a
system to be disturbed to vary degrees.

UDS Protocol Physical and functional addressing:


There is a possibility for the diagnostic tester (client) to send physical or functional UDS-requests. A
functional request is a broadcast-type message which will be sent to all ECU:s which are on the
CAN-network. Physical the UDS-requests are only sent to a single ECU on the network. Suppose
already you know in which module or ECU the faults are happening, then the diagnostic engineer in
the service centre can directly connect to that ECU to send the diagnostic request (Physical
addressing) and read the diagnostic data and fix the issue. If the engineer doesn’t know where is
the fault happening obviously he will be sending the request (Functional addressing) globally to all
the ECU available in the vehicle, read all the active DTC and fix it. The UDS Protocol uses both the
addressing method to give a spontaneous interface to the tester for easy diagnostic.

Session layer timings in the UDS-standard:


Contained within the UDS-standard there is a standard governing the session layer services in the
Open Systems Interconnection (OSI)-model called ISO 14229-2 nothing but UDS Protocol. The
most important session layer timings in this project are the P2 and P2 extended timings that specify
the maximum time the server (ECU) or client (tester) has to wait or respond to the UDS-request.
These values are communicated by the ECU through the UDS-response to the Diagnostic Session
Control service. The P2 specifies the default timing which should be used, the ECU has, however,
the option to send an NRC 0x78, then the P2 extended timing value will be maximum time, which is
the server (ECU) has to respond?

UDS Diagnostic Frame Format:


Since the UDS protocol is working on the CAN protocol so that the maximum 8-bytes of the data
can be requested and get to the response in a message. Like CAN protocol, in UDS protocol, there
are 2-types of the frames are available.

1. Diagnostic request Frame (With/without Sub-function-ID).


2. Diagnostic Response Frame.

Again the Response frame is divided into two types as:


https://piembsystech.com/uds-protocol/ 3/30
07/05/2021 UDS Protocol | PiEmbSysTech

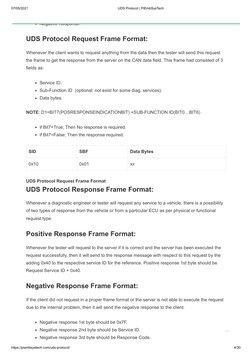

Positive Response.
Negative Response.

UDS Protocol Request Frame Format:


Whenever the client wants to request anything from the data then the tester will send this request
the frame to get the response from the server on the CAN data field. This frame had consisted of 3
fields as:

Service ID.
Sub-Function ID (optional: not exist for some diag. services).
Data bytes.

NOTE: D1=BIT7(POSRESPONSEINDICATIONBIT) +SUB-FUNCTION ID(BIT0…BIT6)

if Bit7=True; Then No response is required.


if Bit7=False; Then the response required.

SID SBF Data Bytes

0x10 0x01 xx

UDS Protocol Request Frame Format


UDS Protocol Response Frame Format:
Whenever a diagnostic engineer or tester will request any service to a vehicle, there is a possibility
of two types of response from the vehicle or from a particular ECU as per physical or functional
request type.

Positive Response Frame Format:


Whenever the tester will request to the server if it is correct and the server has been executed the
request successfully, then it will send to the response message with respect to this request by the
adding 0x40 to the respective service ID for the reference. Positive response 1st byte should be
Request Service ID + 0x40.

Negative Response Frame Format:


If the client did not request in a proper frame format or the server is not able to execute the request
due to the internal problem, then it will send the negative response to the client.

Negative response 1st byte should be 0x7F.


Negative response 2nd byte should be Service ID. 

Negative response 3rd byte should be Response Code.

https://piembsystech.com/uds-protocol/ 4/30
07/05/2021 UDS Protocol | PiEmbSysTech

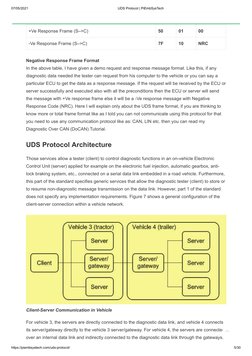

Request Frame (C–>S) 10 01 xx

+Ve Response Frame (S–>C) 50 01 00

-Ve Response Frame (S–>C) 7F 10 NRC

Negative Response Frame Format


In the above table, I have given a demo request and response message format. Like this, if any
diagnostic data needed the tester can request from his computer to the vehicle or you can say a
particular ECU to get the data as a response message. If the request will be received by the ECU or
server successfully and executed also with all the preconditions then the ECU or server will send
the message with +Ve response frame else it will be a -Ve response message with Negative
Response Code (NRC). Here I will explain only about the UDS frame format, if you are thinking to
know more or total frame format like as I told you can not communicate using this protocol for that
you need to use any communication protocol like as: CAN, LIN etc. then you can read my
Diagnostic Over CAN (DoCAN) Tutorial.

UDS Protocol Architecture


Those services allow a tester (client) to control diagnostic functions in an on-vehicle Electronic
Control Unit (server) applied for example on the electronic fuel injection, automatic gearbox, anti-
lock braking system, etc., connected on a serial data link embedded in a road vehicle. Furthermore,
this part of the standard specifies generic services that allow the diagnostic tester (client) to store or
to resume non-diagnostic message transmission on the data link. However, part 1 of the standard
does not specify any implementation requirements. Figure 7 shows a general configuration of the
client-server connection within a vehicle network.

Client-Server Communication in Vehicle

For vehicle 3, the servers are directly connected to the diagnostic data link, and vehicle 4 connects
its server/gateway directly to the vehicle 3 server/gateway. For vehicle 4, the servers are connected 

over an internal data link and indirectly connected to the diagnostic data link through the gateways.

https://piembsystech.com/uds-protocol/ 5/30
07/05/2021 UDS Protocol | PiEmbSysTech

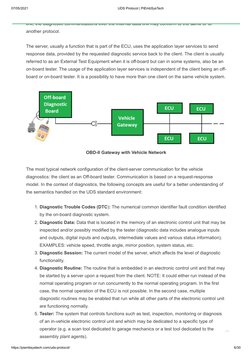

ISO 14229-1 or UDS Protocol applies to the diagnostic communications over the diagnostic data
link; the diagnostic communications over the internal data link may conform to the same or to
another protocol.

The server, usually a function that is part of the ECU, uses the application layer services to send
response data, provided by the requested diagnostic service back to the client. The client is usually
referred to as an External Test Equipment when it is off-board but can in some systems, also be an
on-board tester. The usage of the application layer services is independent of the client being an off-
board or on-board tester. It is a possibility to have more than one client on the same vehicle system.

OBD-II Gateway with Vehicle Network

The most typical network configuration of the client-server communication for the vehicle
diagnostics: the client as an Off-board tester. Communication is based on a request-response
model. In the context of diagnostics, the following concepts are useful for a better understanding of
the semantics handled on the UDS standard environment:

1. Diagnostic Trouble Codes (DTC): The numerical common identifier fault condition identified
by the on-board diagnostic system.
2. Diagnostic Data: Data that is located in the memory of an electronic control unit that may be
inspected and/or possibly modified by the tester (diagnostic data includes analogue inputs
and outputs, digital inputs and outputs, intermediate values and various status information).
EXAMPLES: vehicle speed, throttle angle, mirror position, system status, etc.
3. Diagnostic Session: The current model of the server, which affects the level of diagnostic
functionality.
4. Diagnostic Routine: The routine that is embedded in an electronic control unit and that may
be started by a server upon a request from the client. NOTE: It could either run instead of the
normal operating program or run concurrently to the normal operating program. In the first
case, the normal operation of the ECU is not possible. In the second case, multiple
diagnostic routines may be enabled that run while all other parts of the electronic control unit
are functioning normally.
5. Tester: The system that controls functions such as test, inspection, monitoring or diagnosis
of an in-vehicle electronic control unit and which may be dedicated to a specific type of
operator (e.g. a scan tool dedicated to garage mechanics or a test tool dedicated to the 

assembly plant agents).

https://piembsystech.com/uds-protocol/ 6/30
07/05/2021 UDS Protocol | PiEmbSysTech

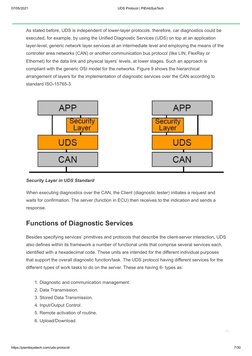

UDS Protocol Stack


As stated before, UDS is independent of lower-layer protocols. therefore, car diagnostics could be
executed, for example, by using the Unified Diagnostic Services (UDS) on top at an application
layer-level, generic network layer services at an intermediate level and employing the means of the
controller area networks (CAN) or another communication bus protocol (like LIN, FlexRay or
Ethernet) for the data link and physical layers’ levels, at lower stages. Such an approach is
compliant with the generic OSI model for the networks. Figure 9 shows the hierarchical
arrangement of layers for the implementation of diagnostic services over the CAN according to
standard ISO-15765-3.

Security Layer in UDS Standard

When executing diagnostics over the CAN, the Client (diagnostic tester) initiates a request and
waits for confirmation. The server (function in ECU) then receives to the indication and sends a
response.

Functions of Diagnostic Services


Besides specifying services’ primitives and protocols that describe the client-server interaction, UDS
also defines within its framework a number of functional units that comprise several services each,
identified with a hexadecimal code. These units are intended for the different individual purposes
that support the overall diagnostic function/task. The UDS protocol having different services for the
different types of work tasks to do on the server. These are having 6- types as:

1. Diagnostic and communication management.


2. Data Transmission.
3. Stored Data Transmission.
4. Input/Output Control.
5. Remote activation of routine.
6. Upload/Download.

https://piembsystech.com/uds-protocol/ 7/30
07/05/2021 UDS Protocol | PiEmbSysTech

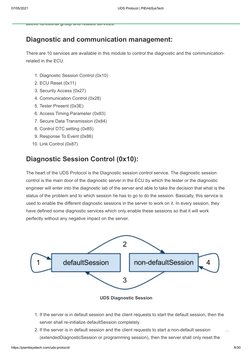

Each functional group has more than one service ID for different-2 tasks so to get the detail of the
above functional group and related services.

Diagnostic and communication management:


There are 10 services are available in this module to control the diagnostic and the communication-
related in the ECU.

1. Diagnostic Session Control (0x10)


2. ECU Reset (0x11)
3. Security Access (0x27)
4. Communication Control (0x28)
5. Tester Present (0x3E)
6. Access Timing Parameter (0x83)
7. Secure Data Transmission (0x84)
8. Control DTC setting (0x85)
9. Response To Event (0x86)
10. Link Control (0x87)

Diagnostic Session Control (0x10):


The heart of the UDS Protocol is the Diagnostic session control service. The diagnostic session
control is the main door of the diagnostic server in the ECU by which the tester or the diagnostic
engineer will enter into the diagnostic lab of the server and able to take the decision that what is the
status of the problem and to which session he has to go to do the session. Basically, this service is
used to enable the different diagnostic sessions in the server to work on it. In every session, they
have defined some diagnostic services which only enable these sessions so that it will work
perfectly without any negative impact on the server.

UDS Diagnostic Session

1. If the server is in default session and the client requests to start the default session, then the
server shall re-initialize defaultSession completely.
2. If the server is in default session and the client requests to start a non-default session 

(extendedDiagnosticSession or programming session), then the server shall only reset the

https://piembsystech.com/uds-protocol/ 8/30
07/05/2021 UDS Protocol | PiEmbSysTech

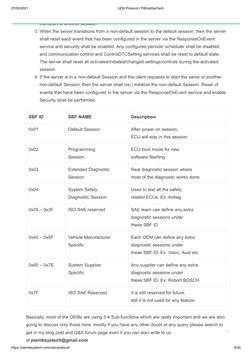

events that have been configured in the server via the ResponseOnEvent services before a
transition to another session.
3. When the server transitions from a non-default session to the default session, then the server
shall reset each event that has been configured in the server via the ResponseOnEvent
service and security shall be enabled. Any configured periodic scheduler shall be disabled
and communication control and ControlDTCSetting services shall be reset to default state.
The server shall reset all activated/initiated/changed settings/controls during the activated
session.
4. If the server is in a non-default Session and the client requests to start the same or another
non-default Session, then the server shall (re-) initialize the non-default Session. Reset of
events that have been configured in the server via the ResponseOnEvent service and enable
Security shall be performed.

SBF ID SBF NAME Description

0x01 Default Session After power on session,


ECU will stay in this session

0x02 Programming ECU boot mode for new


Session software flashing

0x03 Extended Diagnostic Real diagnostic session where


Session most of the diagnostic works done

0x04 System Safety Used to test all the safety


Diagnostic Session related ECUs. Ex: Airbag

0x05 – 0x3F ISO SAE reserved SAE team can define any extra
diagnostic sessions under
these SBF ID

0x40 – 0x5F Vehicle Manufacturer Each OEM can define any extra
Specific diagnostic sessions under
these SBF ID. Ex: Volvo, Audi etc.

0x60 – 0x7E System Supplier Any supplier can define any extra
Specific diagnostic sessions under
these SBF ID. Ex: Robort BOSCH

0x7F ISO SAE Reserved It is still reserved for future,


still it is not used for any feature

Basically, most of the OEMs are using 3-4 Sub-functions which are really important and we are also
going to discuss only those here. mostly if you have any other doubt or any query please search to

get in my blog post and Q&A forum page even if you can also write to us
at piembsystech@gmail.com
https://piembsystech.com/uds-protocol/ 9/30
07/05/2021 UDS Protocol | PiEmbSysTech

1. Default Session (0x01).


2. Programming Session (0x02).
3. Extended Diagnostic Session (0x03).
4. System Safety Diagnostic Session (0x04).

Default Session (0x01)


Whenever any ECU will get powered on, the ECU will be activated with the default diagnostic
session. In this session, only some basic diagnostic functionalities will have the access which can
be executed at the run time means if the vehicle is running you can do these task without any
hamper or disturbance of run time vehicle. Let’s go discuss the request and response frame format
details as to how it is really working or implemented by a developer.

PCI SID SBF DB4 DB3 DB2 DB1 DB0

02 10 01 00 00 00 00 00

Default session Request message from Client to Server


Here I will explain the byte from left to write for better understanding, so please don’t make
confusion yourself.

Where 1st byte is: 02–> PCI (Protocol Control Information) byte for CAN-TP.

The MSB 4-bit –> 0x0 –> CAN-TP frame type & 0x2 –> LSB 4-bit –> DLC.

2nd byte: SID –> 0x10

3rd byte: Sub-function –> 01.

Since for this request, 2-byte is sufficient, and 1-byte is used for PCI, except 3-byte others are not
required.

https://piembsystech.com/uds-protocol/ 10/30
07/05/2021 UDS Protocol | PiEmbSysTech

NOTE: If you are not understanding what is PCI and CAN-TP please search in my main menu for
CAN-TP, first learn the CAN-TP protocol and then come to this page for UDS protocol. Normally
before learning this protocol, first you need to know the CAN protocol and CAN-TP protocol. If any
doubt then you can comment in the comment below, else can send me the mail
at piembsystech@gmail.com.

UDS Response: Server –>Client:

Positive Response:

06 50 01 00 14 07 D0 00

Default session response from Server to Client


Where 1st byte is: 06 –> PCI (Protocol Control Information) byte for CAN-TP.

The MSB 4-bit –> 0x0 –> CAN-TP frame type & 0x6 –> LSB 4-bit –> DLC.

2nd byte: SID –> 0x50 (Positive response = Request SID + 0x40).

3rd byte: SFID –> 0X01.

4&5 byte: P2 Server timing parameter (0x14 –> 25 ms in decimal).

6&7 byte: P2* Server timing parameter (0x7D0 –> 2 second in decimal).

Negative Response:

03 7F 10 12/13/22 00 00 00 00

Where 1st byte is: 04 –> PCI (Protocol Control Information) byte for CAN-TP.

The MSB 4-bit –> 0x0 –> CAN-TP frame type & 0x4 –> LSB 4-bit –> DLC.

https://piembsystech.com/uds-protocol/ 11/30
07/05/2021 UDS Protocol | PiEmbSysTech

2nd byte: -Ve Response SID –> 0x7F.

3rd byte: 0x10 –> SID.

4th byte: 0x1 –> SFID.

5th byte: 0x12/13/22 –> -Ve response ID.

Diagnostic Session Control Request message layout:

Data byte Parameter name Hex value

0 PCI 0x01

1 Diagnostic Session Request Service ID 0x10

2 Diagnostic Session Type 0x01-0x05

Example: Request Programming Session:

Byte 0 1 2 3 4 5 6 7

Value 0x01 0x10 0x02 0x55 0x55 0x55 0x55 0x55

NOTE: All the negative response ID is defined below.

ECU Reset Service Identifier (0x11)


The objective of this service is to reset the particular target ECU or all the ECU nothing but the
vehicle. There are different types of reset available or defined in UDS Protocol standard document,
Such as hard reset, soft reset, key off-on reset etc for reset of any ECU. Each reset type has its own
functionality for how to reset and what needs to be reset. To know more and deep on this service
please select or click the above link to read the ECU Reset Service ID

Security Access (27X)


This service Identifier is used to unlock an ECU in a vehicle. To learn about the security access I
have written a separate tutorial for this. If you want to know more about it you can follow this link
as Security Access SID

(4) Communication Control Setting: UDS Protocol


This service is used to control the communication with server i.e enable or disable transmission and 
reception of messages from the server.

https://piembsystech.com/uds-protocol/ 12/30
07/05/2021 UDS Protocol | PiEmbSysTech

Sub-Function:

SBF-ID SBF Name

0x00 Enable Rx & Tx

0x01 Enable Rx & Disable Tx

0x02 Disable Rx & Enable Tx

0x03 Disable Rx & Tx

Example:

Request: Client–>Server: 03 28 00 03
Where, 03 –> PCI (0–> Single Frame & 3–> TP Data Length)
28 –> SID
00–> SBF (Enable Rx & Tx)
03–> Communication Type as both (Normal & Diagnostic)
+Ve Response: 02 68 00
Where, 02 –> PCI (0–> Single Frame & 3–> TP Data Length)
0x68 –> +Ve response ID (0X28 + 0X40)
0X00 –> SBF

(5) TesterPresent (3E hex): UDS Protocol


The purpose of this service is that the Indication to a server (or servers) that a client is still
connected to the vehicle and that certain diagnostic services and/or communications that have been
previously activated are to remain active. To keep one or multiple servers in a diagnostic session
other than the default Session. ServicesKeeps communication alive: avoid communication timeout.
There is no Subfunction parameter like other services.

Example:

Request: Client–>Server: 02 3E 00
+Ve Response: Server–>Client: 02 7E 00

(6) Access Timing Parameter (0x83): UDS Protocol


This service is used to read and change the default timing parameters of a communication link for
the duration that this communication link is active. By using this service the Timeout values and
message separation time can be read /written.


SBF-ID SBF Name

https://piembsystech.com/uds-protocol/ 13/30
07/05/2021 UDS Protocol | PiEmbSysTech

SBF-ID SBF Name

0x01 readExtendedTimingParameterSet.

0x02 setTimingParametersToDefaultValues.

0x03 readCurrentlyActiveTimingParameters.

0x04 setTimingParametersToGivenValues.

(7) Secure Data Transmission (0x84): UDS Protocol


The purpose of this service is to transmit data that is protected against attacks from third parties,
which could endanger data security, according to ISO 15764. This service is applicable if a client-
server intends to use diagnostic services defined in a secured mode. A secured mode in this
context means that the data transmitted is protected by cryptographic methods. Security Sub Layer
of the transmitter encodes the encapsulated service. Security Sub Layer of the receiver decodes
the encapsulated service.

(8) Control DTC setting (0x85): UDS Protocol


The ControlDTCSetting service shall be used by a client to stop or resume the setting of diagnostic
trouble codes (DTCs) in the ECU. It is used to Activate / Deactivate storing of errors into error
memory. Mostly, it is used during flash programming and development.

SBF-ID SBF Name

0x01 DTC On

0x02 DTC Off

Example:

Client –> Server (Request Message)


02 85 01
Where,02 –> PCI [0–> Single Frame & 2–> CAN_TP Length]
85 –> SID
01 –> SBF [DTC Control setting ON]
Server –> Client (+Ve Response)
02 C5 01
02 –> PCI [0–> Single Frame & 2–> CAN_TP Length]
C5 –> +Ve Response SID
01 –> +Ve response acceptance SBF

https://piembsystech.com/uds-protocol/ 14/30
07/05/2021 UDS Protocol | PiEmbSysTech

(9) Response On Event (0x86): UDS Protocol


The ResponseOnEvent service requests a server to start or stop transmission of responses on a
specified event. This service provides the possibility of automatically executing a diagnostic service
in the event that a specified event occurs in the server. The client specifies the event (including
optional event parameters) and the service (including service parameters) to be executed if the
event occurs. See Figure 12 for a brief overview of client and server behaviour. Using this service
you can Configure the ECU to send a response without a request in case of a defined event.

Sub-Functions:

SBF-ID SBF Name

0x00 stopResponseOnEvent

0x01 onDTCStatusChange

0x02 onTimerInterrupt

0x03 onChangeOfDataIdentifier

0x04 reportActivatedEvents

0x05 startResponseOnEvent

0x06 clearResponseOnEvent

0x07 onComparisonOfValues

(10) Link Control (0x87): UDS Protocol


This service is used to control the communication link baud rate between the Tester and the ECU(s)
for the exchange of diagnostic data. This service optionally applies to those data link layers which
allow for a baud rate transition during an active diagnostic session.

Sub-Functions:

SBF-ID SBF Name

0x1 verifyBaudrateTransitionWithFixedBaudrate

0x2 verifyBaudrateTransitionWithSpecificBaudrate

0x3 transitionBaudrate

https://piembsystech.com/uds-protocol/ 15/30
07/05/2021 UDS Protocol | PiEmbSysTech

The baudrateIdentifier value determines the Baudrate. For example, 11 – CAN 250 KBPS, 12 –
CAN500KBPS, 13 – CAN 1 Mbps

Data transmission functional unit: UDS Protocol


These Services are used to read or write the data to/from the server for the different functional
requirement.

Read Data By Identifier (22 hex): UDS Protocol


The ReadDataByIdentifier service allows the client to request data record values from the server
identified by one or more data identifiers. The ECU may limit the number of data identifiers that can
be read in one request. DataIdentifier – Identifies the ECU data record(s) that is being requested by
the ECU.

For Example:

F180 – bootSoftwareIdentificationDataIdentifier.
F181- applicationSoftwareIdentificationDataIdentifier.
F191 – vehicleManufacturerECUHardwareNumberDataIdentifier.

WriteDataByIdentifier (2E hex): UDS Protocol


This service allows the client/Tester to write information into the server/ECU at an internal location
specified by the provided data identifier. The WriteDataByIdentifier service is used by the client to
write a data Record to a server. The data is identified by a data identifier and may or may not be
secured.

Dynamically defined data identifier(s) shall not be used with this service. It is the vehicle
manufacturer’s responsibility that the server conditions are met when performing this service.
Possible uses for this service are:

https://piembsystech.com/uds-protocol/ 16/30
07/05/2021 UDS Protocol | PiEmbSysTech

–> programming configuration information into the server (e.g. VIN number);
–> clearing non-volatile memory;
–> resetting learned values.
–> setting option content.

ReadMemoryByAddress (0x23): UDS Protocol


The ReadMemoryByAddress service allows the client to request memory data from the server via a
provided starting address and to specify the size of memory to be read.

The ReadMemoryByAddress request message is used to request memory data from the server
identified by the parameter memory address and memory size. The number of bytes used for the
memory address and memory size parameter is defined by addressAndLengthFormatIdentifier (low
and high nibble). It is also possible to use a fixed addressAndLengthFormatIdentifier and unused
bytes within the memory address or memory size parameter are padded with the value 00 hex in
the higher range address locations.

WriteMemoryByAddress (0x3D): UDS Protocol


This service allows the client/Tester to write information into the server/ECU at one or more
contiguous memory locations. The tester sends a memory address, and the number of bytes and a
data string (according to the number of bytes ). The ECU writes the data string into its memory.
The addressAndLengthFormatIdentifier parameter in the request specifies The number of bytes
used for the memory address and memory size parameter.

ReadScalingDataByIdentifier (24 hex): UDS Protocol


This service is used to read the scaling information of a record identified by a provided data
identifier from the ECU. The client request message contains one data identifier value that identifies
data record(s) maintained by the server. The format and definition of the data record shall be
vehicle-manufacturer-specific and may include analogue input and output signals, digital input and
output signals, internal data and system status information if supported by the server.

ReadDataByPeriodicIdentifier (2A hex): UDS Protocol


The UDS Protocol used to read the periodic data identifier from the server by using 0x21 service
Identifier. This service allows the client to request the periodic transmission of data record values
from the server identified by one or more periodicDataIdentifiers.The client request message
contains one or more 1-byte periodicDataIdentifier values that identify data record(s) maintained by
the server. The periodicDataIdentifier represents the low byte of a data identifier out of the data
identifier range reserved for this service (F2xx hex, refer to C.1 for allowed periodicDataIdentifier
values), e.g. the periodicDataIdentifier E3 hex used in this service is the data identifier F2E3 hex.
The transmission mode is also specified in the request. For Ex :sendAtSlowRate,

https://piembsystech.com/uds-protocol/ 17/30
07/05/2021 UDS Protocol | PiEmbSysTech

sendAtMediumRate, sendAtFastRate, stop sending and the values for above is manufacturer
specific.

Dynamically Define Data Identifier (2C hex): UDS Protocol


The purpose of this service is to provide the client with the ability to group one or more data
elements into a data superset that can be requested en masse via the ReadDataByIdentifier or
ReadDataByPeriodicIdentifier service. The data elements to be grouped together can be referenced
by either. This provides the client with the ability to group one or more data elements into a data
superset that can be requested. The data elements to be grouped together can be reference by:

a source data identifier, a position and size, or


a memory address and a memory length, or
a combination of the two methods.

Stored Data Transmission Functional Unit: UDS Protocol

ReadDTCInformation (19 hex): UDS Protocol

The 0x19 service is the heart of ISO 14229 standard UDS Protocol. The main intent of this service
is to read the Diagnostic Trouble Codes from the server or ECU. It has multiple sub-functions by
which you can read different data required for diagnostic analysis. You can follow this link to read
more on the Read DTC Information (0x19) Service Identifier.

Clear Diagnostic Information (14 hex): UDS Protocol

Input-Output control functional unit: UDS Protocol

Input-Output Control By Identifier (2F hex): UDS Protocol

Remote activation of routine functional unit: UDS Protocol

Routine Control (31 hex): UDS Protocol


The Vehicle Diagnostics may require testing the faulty component in a given range of parameters.
Moreover, during the testing phase of the vehicle, some system tests may be required to run over a
period of time. in order to perform a test, a routine is triggered by the client, or to put it in another
word, and a routine is started by the client in the server’s memory. There are two methods in this
remote request service of UDS Protocol, one is where the client interrupts the routine to stop it, and
the other is when the server/ECU finishes the routine after a specified time frame. Using this
service, the client can start a routine, stop a routine and also check the result that the routine
produced after a successful execution.

https://piembsystech.com/uds-protocol/ 18/30
07/05/2021 UDS Protocol | PiEmbSysTech

One of the Routine Control services defined in the UDS-standard is the Erase Memory or Erase
Flash routine. It will perform the erasure of EEPROM and flash memory before loading a new block.
It has the routine identifier FF01, specified on bytes #3-4 in the UDS-request. The remaining bytes
of the request contains a routine control option record which is of variable length depending on
vehicle manufacturing specification and which routine identifier is used. An example of a start Erase
Flash Routine Control service.

Let me explain actually why we need this routine control service. the service diagnostic engineer in
the garage may use this service to run the engine fan for a certain period of time and record the
results. This would help him understand a particular issue well and rectify it without using any hit
and trial method.

Requests: RoutineControlType:

1. startRoutine (01 hex).


2. stopRoutine (02 hex).
3. reqestRoutineControl (03 hex).

RoutineIdentifier: This parameter identifies a server local routine.

Routine Control Request message layout:

Data byte Parameter name Hex value

0 PCI 0x01

1 Routine Control SID 0x31

2 routineIdentifier 0x00-0xFF

3 routineControlType 0x01-0x03

Example: 

https://piembsystech.com/uds-protocol/ 19/30
07/05/2021 UDS Protocol | PiEmbSysTech

A typical Erase Flash Routine Control UDS-request. This request aims to start an erasure of an
EEPROM or flash memory sector before downloading block 0x15.

Value 1 2 3 4 5 6 7 8

Byte 0x31 0x01 0xFF 0x00 0x01 0x15 – –

Responses:

Positive response codes:

routineControlType:This parameter is an echo of bits 6 – 0 of the sub-function parameter


from the request message.
routineIdentifier: This parameter is an echo of the routineIdentifier from the request
message.

Negative response codes:

Sub Function Not Supported (12 hex): This code is returned if the requested sub-function
is not supported.
Incorrect Message Length Or Invalid Format (13 hex): The length of the message is
wrong.
Conditions Not Correct (22 hex): This code shall be returned if the criteria for the request
RoutineControlare not met.
Request Sequence Error (24 hex): This code shall be returned if the “stop routine”
subfunction is received without first receiving a “start routine” for the requested routine
identifier.
Request Out Of Range (31 hex): This code shall be returned if the server does not support
the requestedroutineIdentifier.
Security Access Denied (33 hex): This code shall be sent if this code is returned if a client
sends a request with a valid secure routine identifier and the server’s security feature is
currently active.
General Programming Failure (72 hex): This return code shall be sent if the server detects
an error when performing a routine, which accesses server-internal memory. An example is
when the routine erases or programmes a certain memory location in the permanent memory
device (e.g. Flash Memory) and the access to that memory location fails.

Upload download functional unit: UDS Protocol

Request Download (34 hex): UDS Protocol

The request download service is called when data is to be transferred to the ECU. The request shall

contain the size of the data to be transferred and the address to where it shall be placed. The ECU

https://piembsystech.com/uds-protocol/ 20/30
07/05/2021 UDS Protocol | PiEmbSysTech

responds with the size of its buffer so that the sender can divide the data into appropriate sized
blocks and send them one at a time.

Requests: There are four different request parameters that shall be included in the request.

1. Request Download Service Identifier: This parameter is the Service ID for any kind of
download request.
2. DataFormatIdentifier: This data parameter is a one-byte value with each nibble encoded
separately. The high nibble specifies the “compression Method” and the low nibble specifies
the “encrypting Method”. The value 0x00 specifies that no compression Method or
encrypting Method is used.
3. AddressAndLengthFormatIdentifier:
bit 7 – 4: Length (number of bytes) of the memory size parameter.
bit 3 – 0: Lenght (number of bytes) of the memory address parameter.
4. Memory Address: The parameter memory Address is the starting address of the server
memory to which the data is to be written.
5. memory Size (unCompressedMemorySize): This parameter shall be used by the server to
compare the uncompressed memory size with the total amount of data transferred during the
TransferData service.

Request Download Request message Format:

Data byte Parameter name Hex value

0 PCI 0x01

1 Request Download SID 0x34

2 dataFormatIdentifier 0x00 – 0xFF

3 addressAndLengthFormatIdentifier 0x00 – 0xFF

4…n memoryAddress 0x00-0xFF

n…m memory Size 0x00-0xFF

Responses:

Positive response codes:

Length Format Identifier:


1. bit 7 – 4: length (number of bytes) of the maxNumberOfBlockLength parameter.
2. bit 3 – 0: reserved by document, to be set to 0 hex.

https://piembsystech.com/uds-protocol/ 21/30
07/05/2021 UDS Protocol | PiEmbSysTech

Max Number Of Block Length: This parameter is used by the request download positive response
message to inform the client how many data bytes (maxNumberOfBlockLength) shall be included in
each TransferData request message from the client. This length reflects the complete message
length, including the service identifier and the data parameters present in the TransferData request
message. This parameter allows the client to adapt to the receive buffer size of the server before it
starts transferring data to the server.

Request Download Response message LayOut:

Data byte Parameter name Hex value

0 PCI 0x01

1 Request Download RSID 0x74

2 lengthFormatIdentifier 0x00-0xFF

3 maxNumberOfBlockLength 0x00-0xFF

Example:

Client –> Server (Request)


34 00 45 01 00 04 00 00 00 09 93 78
Server –> Client (+Ve Response)
74 20 0F FA
Server –> Client (-Ve Response)
7F 74 13/22/31

Negative response codes:


Incorrect Message Length Or Invalid Format (13 hex): The length of the message is
wrong.
Conditions Not Correct (22 hex): This return code shall be sent if a server receives a
request for this service while in the process of receiving a download of a software or
calibration module. This could occur if there is a data size mismatch between the server and
the client during the download of a module.
Request Out Of Range (31 hex): This return code shall be sent if:
1. the specified data Format Identifier is not valid,
2. the specified addressAndLengthFormatIdentifier is not valid, or
3. the specified memory Address/memory Size is not valid.
SecurityAccessDenied (33 hex): This return code shall be sent if the server is secure (for
servers that support the SecurityAccess service) when a request for this service has been
received. 

https://piembsystech.com/uds-protocol/ 22/30
07/05/2021 UDS Protocol | PiEmbSysTech

UploadDownloadNotAccepted (70 hex): This response code indicates that an attempt to


download to a server’s memory cannot be accomplished due to fault conditions.

Request Upload (35 hex): UDS Protocol


The client requests the negotiation of a data transfer from the server to the client. This service is
just the reverse of the 0x34 SID. Suppose you have downloaded some software or DID’s or PID’s,
after some time it gets crashed, to check the original file what you downloaded and now either it
crashed or not you can upload to your computer and compare also.

Data Byte Parameter Name Hex Value

1 RequestUpload SID 35

2 dataFormatIdentifier 00-FF

3 addressAndLengthFormatIdentifier 00-FF

4 memoryAddress[]=[Byte1(MSB) – Byten()LSB] 00-FF to 00-FF

5 memorySize[]= [Byte1(MSB) – Byten()LSB] 00-FF to 00-FF

Data Format Identifier: This data parameter is a one-byte value with each nibble encoded
separately. The high nibble specifies the “compression Method”, and the low nibble specifies the
“encrypting Method”. The value 00 hex specifies that no compression Method nor encrypting
Method is used. Values other than 00 hex are vehicle manufacturer specific.

AddressAndLengthFormatIdentifier: This parameter is a one-byte value with each nibble


encoded separately for identification of address and data in the memory array.

Bit 7 – 4: length (number of bytes) of the “memory Size” parameter;


Bit 3 – 0: length (number of bytes) of the “memory Address” parameter.

Memory Address: The parameter memory Address is the starting address of server memory from
which data is to be retrieved. The number of bytes used for this address is defined by the low nibble
(bit 3 – 0) of the address Format Identifier. Byte#m in the memory Address parameter is always the
least significant byte of the address being referenced in the server. The most significant byte of the
address can be used as a memory Identifier.

Memory Size: This parameter shall be used by the server to compare the uncompressed memory
size with the total amount of data transferred during the Transfer Data service. This increases
programming security. The number of bytes used for this site is defined by the high nibble (bit 7 – 4)
of the address And Length Format Identifier.

Example:
https://piembsystech.com/uds-protocol/ 23/30
07/05/2021 UDS Protocol | PiEmbSysTech

Client –> Server (Request)


35 00 45 01 00 04 00 00 00 09 93 78
Server –> Client (Response)

Transfer Data (36 hex): UDS Protocol


The Transfer Data service receives blocks of data and checks so the blocks are received in the right
order. If the right block is received, then it is written to correct memory location and a positive
response is sent.

Requests:

BlockSequenceCounter: The blockSequenceCounter parameter value starts at 01 hex with the


first TransferData request that follows the RequestDownload (34 hex) service. its value is
incremented by 1 for each subsequent TransferData request. At the value of FF hex, the
blockSequenceCounter rolls over and starts at 00 hex with the next TransferData request message.

Transfer Data Request message Frame Format:

Data byte Parameter name Hex value

0 PCI 0x01/0x10/0x20-0x2F

1 Transfer Data SID 0x36

2 blockSequenceCounter 0x00-0xFF

3..n data 0x00-0xFF

Responses:

Positive response codes:

Block Sequence Counter.


This parameter is an echo of the block Sequence Counter parameter from the request
message.

Transfer Data Response message layout:

Data byte Parameter name Hex value

0 PCI 0x01/0x10/0x20-0x2F

1 Transfer Data SID 0x76 

https://piembsystech.com/uds-protocol/ 24/30
07/05/2021 UDS Protocol | PiEmbSysTech

Data byte Parameter name Hex value

2 block Sequence Counter 0x00-0xFF

Negative response codes:

Incorrect Message Length Or Invalid Format (13 hex): The length of the message is
wrong (e.g. message length does not meet the requirements of the max Number Of Block
Length parameter returned in the positive response to request Download).
Request Sequence Error (24 hex)

The server shall use this response code:

If the Request Download service is not active when a request for this service is received.
If the Request Download service is active, but the server has already received all data as
determined by the memory Size parameter in the active Request Download or Request
Upload service.

Request Out Of Range (31 hex): This return code shall be sent if the transfer Request Parameter
Record contains additional control parameters (e.g. additional address information) and this control
information is invalid.

Transfer Data Suspended (71 hex): This return code shall be sent if-
1. The response code indicates that a data transfer operation was halted due to a fault.
2. The download module length does not meet the requirements of the memory Size
parameter sent in the request message of the request Download service.
GeneralProgrammingFailure (72 hex): This return code shall be sent if the server detects
an error when erasing or programming a memory location in the permanent memory device
(e.g. Flash Memory) during the download of data.
WrongBlockSequenceCounter (73 hex): This return code shall be sent if the server detects
an error in the sequence of the blockSequenceCounter.

The repetition of a Transfer Data request message with a block Sequence Counter equal to the one
included in the previous Transfer Data request message shall be accepted by the server.

Request TransferExit (37 hex): UDS Protocol


When the transfer of data is complete a message to the Request Transfer Exit service is sent. If
Transfer Data is complete and have received all data a positive response is sent back.

Request:

Request Transfer Exit Request message layout:


https://piembsystech.com/uds-protocol/ 25/30
07/05/2021 UDS Protocol | PiEmbSysTech

Data byte Parameter name Hex value

0 PCI 0x01

1 Request Transfer Exit SID 0x37

Response:

Request Transfer Exit Response message layout:

Data byte Parameter name Hex value

0 PCI 0x01

1 Request Transfer Exit RSID 0x77

Negative response codes:


Incorrect Message Length Or Invalid Format (13 hex): The length of the message is
wrong.
Request Sequence Error (24 hex): The server shall use this response code:
1. The programming process is not completed when a request for this service is received.
2. The RequestDownload service is not active.

Request File Transfer (38 hex): UDS Protocol


The Request File Transfer service is used to initiate a file data transfer from client to server or
server to client by using the download or upload feature. This service is an alternate method of
request download and request upload service for better protection and advanced data transfer
method.

11 thoughts on “UDS Protocol”

DAN
01/04/2021 AT 4:39 PM

https://piembsystech.com/uds-protocol/ 26/30
07/05/2021 UDS Protocol | PiEmbSysTech

Isn’t the time resolution for the extended P2 time 10ms in the UDS standard? Which would make
the 7D0 actually 20seconds instead of 2seconds.

Log in to Reply

PIEMBSYSTECH
01/04/2021 AT 9:26 PM

Hi Dan, If you have any queries then could you please ask it in our forum
https://piestforum.com ?

Log in to Reply

SPARKY
10/03/2021 AT 2:46 AM

For Diagnostic Session Control (0x10) I’d appreciate more explanation of the timing parameters in
the server’s response.

Log in to Reply

PIEMBSYSTECH
10/03/2021 AT 7:44 AM

Hi Sparky,
Thank You for your query. We have our forum (https://piestforum.com) where you can ask your
query for a particular topic if you want deep knowledge on that.

Log in to Reply

K SAIKUMAR REDDY
11/02/2021 AT 3:47 PM


Excellent explanation sir. I am expecting explanation about the DTC subfunctions.

https://piembsystech.com/uds-protocol/ 27/30
07/05/2021 UDS Protocol | PiEmbSysTech

Log in to Reply

PIEMBSYSTECH
11/02/2021 AT 5:01 PM

Dear Sai, Thank you for your Appreciation. We have written some of the sub-functions and
some of them are under research for updating onto the website.
Please search or go to the posts you will get them.
Thank You…

Log in to Reply

ABHILASH
11/02/2020 AT 11:41 PM

Question :
If a Read Data By Identifier request is made to the server from client and the response uses TP
layer (since data is > 8). Now when this Transmission is going on if in between one more Read Data
Identifier request is made to the server from the client then what should be the behaviour of the
Server.

Log in to Reply

SUNIL_VARAPANA
13/03/2020 AT 12:33 PM

May be i think..negitive responce with NRC 0X24 request sequence error.

Log in to Reply

PAVAN
22/07/2020 AT 3:48 PM

There are 2 chances here based on the OEM


i. ECU will respond to the 2nd request after responding to the 1st request
or 
ii. ECU will not respond (no response) to the 2nd request.

https://piembsystech.com/uds-protocol/ 28/30
07/05/2021 UDS Protocol | PiEmbSysTech

Log in to Reply

AZHAR JAHAGIRDAR
27/07/2019 AT 2:04 PM

Very Nice explanation sir .


can you please tell more about Read DTC (0X19) and DTC Status Mask Availability?

Log in to Reply

PIEMBSYSTECH
27/07/2019 AT 3:48 PM

Thank you, Azhar for your suggestion. i accept your point and mostly in next week i will update
more depth knowledge on 0x19 SID.

Log in to Reply

Leave a Reply
You must be logged in to post a comment.

Search … 

JOIN OUR TELEGRAM GROUP

Recent Posts

Android ADB Setup In WSL Platform



Report Number Of DTC By Status Mask (0x01): UDS

https://piembsystech.com/uds-protocol/ 29/30
07/05/2021 UDS Protocol | PiEmbSysTech

Void Pointer In C/C++/Embedded C

CAN State Manager (CanSM) – AUTOSAR BSW

CAN Network Management (CanNM) – AUTOSAR BSW

Archives

Select Month

ÉQUIPEMENT
NIKE
TRAINING

Copyright © 2017-20 | PiEmbSysTech | All Rights Reserved


Privacy Policy Terms and Conditions Disclaimer Cookie Policy About Us Contact Us

https://piembsystech.com/uds-protocol/ 30/30

You might also like
