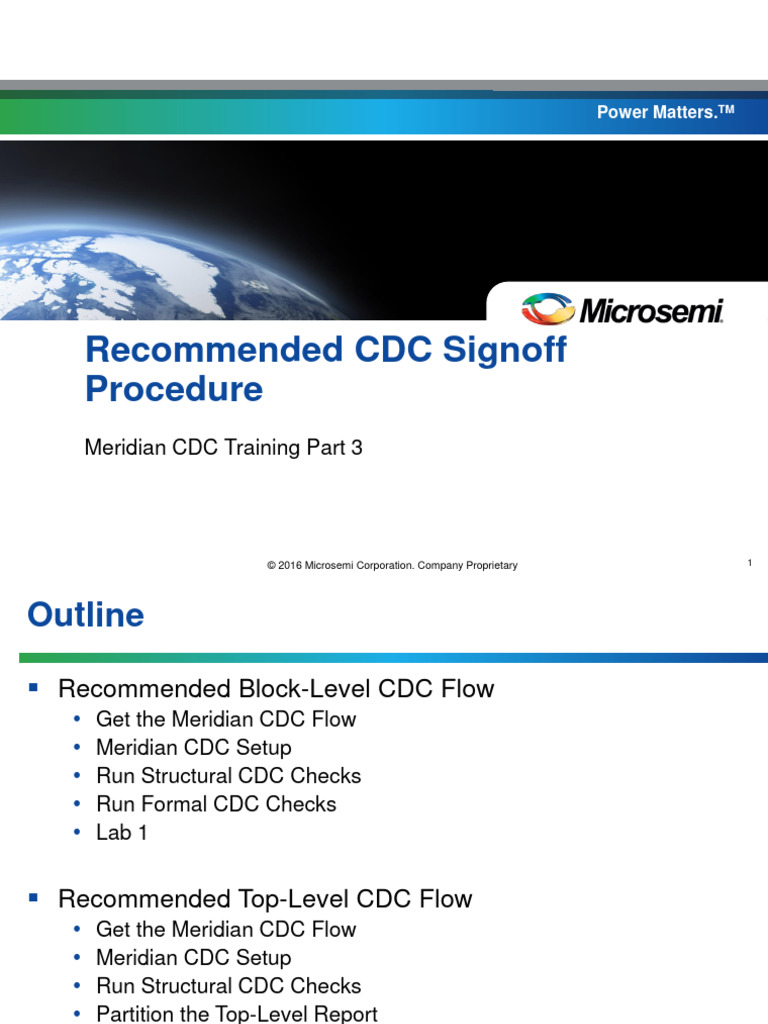

Recommended CDC Signoff

Procedure
Meridian CDC Training Part 3

© 2016 Microsemi Corporation. Company Proprietary 1

Outline

 Recommended Block-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Run Formal CDC Checks
• Lab 1

 Recommended Top-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Partition the Top-Level Report
• Lab 2

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 2

Outline

 Recommended Block-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Run Formal CDC Checks
• Lab 1

 Recommended Top-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Partition the Top-Level Report
• Lab 2

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 3

Recommended Block-Level CDC Flow

1. Get the Meridian CDC Flow

Goal: Get tool setup, directories created, and template files in place.
• Run the following command from your block’s scripts directory to get the latest
Meridian CDC flow component. You only need to do this step once to setup the flow.
% get_icdc_comp cad_dd_01036
% ../depend/unmodified/cad_dd_01036/do_gen_cdc.pl -
top pmxx_xx_xx -mlist list/pmxx_xx_xx_rtl.mlist
<-sdc ../syn/pmxx_xx_xx_cdc.sdc> <-overwrite>
• This populates the latest CDC component, and generates the following files:
- ./Makefile (CDC flow makefile with flow control variables)
- ./cdc/user_defined_elist.elist (files to exclude/replace)
- ./cdc/user_defined_libs_file.txt (user specified .lib files for analog blocks)
- ./cdc/user_env_file.env (environment file for .env additions)
- ./cdc/case_analysis.cfg (pin/signal constraints for things like DFT)

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 4

Recommended Block-Level CDC Flow

2. Meridian CDC Setup

Goal: Create a clean Meridian CDC environment file (.env).
• Run the following command to create an environment file:
% make create_env
• This Review/fix the generated pmxx_xx_xx.<sdc|no_sdc>.env file:
- Ensure all the clocks are being defined properly – no missing or extra clocks.
- Ensure clock associations to all pins/signals defined in the .env file are
correct.
- Reset inputs have been properly defined and associated.
• Once you are satisfied with the .env file, copy it to .base to ensure it is not overridden:
% cp ./cdc/pmxx_xx_xx.<sdc|no_sdc>.env
./cdc/pmxx_xx_xx.<sdc|no_sdc>.base.env

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 5

Recommended Block-Level CDC Flow

3. Run Structural CDC Checks

Goal: Perform structural CDC checks and fix or waive all structural
CDC messages.
• Once you have a clean CDC environment (all setup issues have been waived or
fixed), run the following command to perform structural CDC analysis:
% make verify_cdc
The end goal is for all Errors/Warnings/Review to ultimately end up in WAIVE.
• Once the structural analysis is done, calculate the design MTBF:
- Edit ./cdc/pmxx_xx_xx.clock_freq.txt.
- Run the following command to generate pmxx_xx_xx.mtbf.xml:
% make mtbf
- Open pmxx_xx_xx.mtbf.xml in excel and copy all crossings into the MTBF
calculator spreadsheet.
- Select technology flops for all crossings to calculate the design MTBF.

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 6

Recommended Block-Level CDC Flow

4. Run Formal CDC Checks

Goal: Perform functional/formal CDC checks and fix or waive all
functional/formal CDC messages.
• Select functional/formal checks that you want to run in GUI, and run the following
command:
% make verify_cdc_formal
Note: Formal constraints may be needed to ensure the normal mode of operation
of your design.

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 7

Lab 1 – 45 Minutes

 Goal: get familiar with the block-level CDC workflow

 Instructions
• Change directory to lab1/eth_top/scripts
• Follow the steps in README.txt

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 8

Outline

 Recommended Block-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Run Formal CDC Checks
• Lab 1

 Recommended Top-Level CDC Flow

• Get the Meridian CDC Flow
• Meridian CDC Setup
• Run Structural CDC Checks
• Partition the Top-Level Report
• Lab 2

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 9

Recommended Top-Level CDC Flow

1. Get the Meridian CDC Flow

Goal: Get tool setup, directories created, and template files in place.
• Run the following command from your block’s scripts directory to get the latest
Meridian CDC flow component. You only need to do this step once to setup the flow.
% get_icdc_comp cad_dd_01036
% ../depend/unmodified/cad_dd_01036/do_gen_cdc.pl -
top pmxx_xx_xx -mlist list/pmxx_xx_xx_rtl.mlist
<-sdc ../syn/pmxx_xx_xx_cdc.sdc> <-overwrite>
• This populates the latest CDC component, and generates the following files:
- ./Makefile (CDC flow makefile with flow control variables)
- ./cdc/user_defined_elist.elist (files to exclude/replace)
- ./cdc/user_defined_libs_file.txt (user specified .lib files for analog blocks)
- ./cdc/user_env_file.env (environment file for .env additions)
- ./cdc/case_analysis.cfg (pin/signal constraints for things like DFT)

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 10

Recommended Top-Level CDC Flow

2. Meridian CDC Setup

Goal: Create a clean Meridian CDC environment file (.env).
• Run the following command to create an environment file:
% make create_env
• This Review/fix the generated pmxx_xx_xx.<sdc|no_sdc>.env file:
- Ensure all the clocks are being defined properly – no missing or extra clocks.
- Ensure clock associations to all pins/signals defined in the .env file are
correct.
- Reset inputs have been properly defined and associated.
• Once you are satisfied with the .env file, copy it to .base to ensure it is not overridden:
% cp ./cdc/pmxx_xx_xx.<sdc|no_sdc>.env
./cdc/pmxx_xx_xx.<sdc|no_sdc>.base.env

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 11

Recommended Top-Level CDC Flow

3. Run Structural CDC Checks

Goal: Perform structural CDC checks and fix or waive all structural
CDC messages.
• At top-level, shelling should be enabled to shell out block-level warnings/errors. In
your Makefile, use the following variables:
USE_SHELL_MODULES=1
SHELL_MODULES_LIST=“A B C“
USE_SHELL_INSTANCES=1
SHELL_INSTANCES_LIST="A B C"
• Once you have a clean CDC environment (all setup issues have been waived or
fixed), run the following command to perform structural CDC analysis:
% make verify_cdc
At device-level, shelling should filter out all lower-level messages. Analyze the
remaining top-level interconnect warnings/errors.
The end goal is for all Errors/Warnings/Review to ultimately end up in WAIVE.
• At device-level, it is not required to calculate design MTBF.

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 12

Recommended Top-Level CDC Flow
4. Partition the Top-Level CDC Report
Goal: Partition the top-level structural CDC report and work with
SubSystem designers to fix or waive all structural CDC messages.
• Partition the top-level report using View Criteria:
You will need to create separate View Criteria reports for different error/warning
categories for each sub-system block.
• Have the SS designers to analyze their block’s View Criteria reports. They can
remotely access the reports by running:
% make debug_cdc
Note: In their workspaces, they need to get the Meridian CDC flow (see step 1),
copy your Makefile, and edit to enable the following variables:
REMOTE_DEBUG=1
REMOTE_WORKSPACE=
• Once SS designers finish, integrate all SS results back into the main top-level CDC
environment.

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 13

Lab 2 – 45 Minutes

 Goal: get familiar with the top-level CDC workflow

 Instructions
• Change directory to lab2/eth_top/scripts
• Follow the steps in README.txt

© 2016 Microsemi Corporation. Company Proprietary Power Matters.TM 14

Rev DATE Initials Description
===================================================================================================================
1 2016-03-22 HC Initial creation based on TSB CDC training.
