5.

How to disassemble

Disassembling Picture

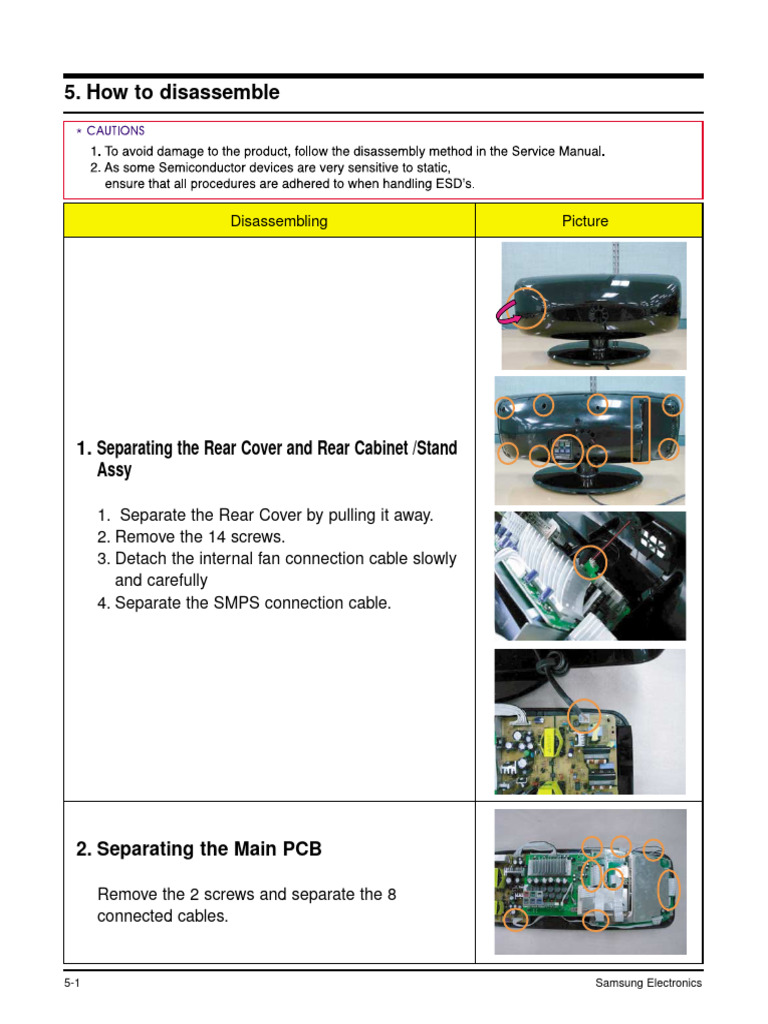

1. Separating the Rear Cover and Rear Cabinet /Stand

Assy

1. Separate the Rear Cover by pulling it away.

2. Remove the 14 screws.
3. Detach the internal fan connection cable slowly
and carefully
4. Separate the SMPS connection cable.

2. Separating the Main PCB

Remove the 2 screws and separate the 8

connected cables.

5-1 Samsung Electronics

 Disassembling Picture

3. Separating the Wireless PCB

Remove the screw.

4. Separating the Tuner PACK

Remove the screw.

Carefully separate the Tuner PACK, which is held
on by 2 catches.

5. Separating the AUX-PCB and HDMI-PCB

Remove the 2 screws and separate the cable

connected to the AUX-PCB and HDMI-PCB.

6. Separating the AMP-PCB

Remove the 2 screws and separate the connected

cable.

Samsung Electronics 5-2

 Disassembling Picture

7. Separating the AMP-PCB

Remove the screw.

8. Separating the Phone/USB PCB

Remove the screw.

9. Separating the DVD-Mecha

1. Remove the 2 screws. Separate the Holder

PCB Main.
2. Remove the 3 screws.

10. Separating the Power / Open PCB

Remove the 3 screws.

Remove the 2 screws.

5-3 Samsung Electronics

 Disassembling Picture

11. Separating the FUNCTION

Remove the 3 screws and separate the cable con-

nected.

12. Separating the Front PCB

1. Remove the 3 screws and separate the

Central Cabinet.
2. Remove the 3 screws.

Samsung Electronics 5-4

5-2. Disassembling the HT-XQ100 Mecha (Mecha-Deck)-DECK)

Disassembling Picture

1. You have to short the marked part on the

figure before separating the Flat Cable to
protect the Pick-Up.

2. Separate the Pick-Up Cable from the Holder.

5-5 Samsung Electronics

 Disassembling …Pictureł

3. Remove the 2 screws and separate the

Holder Cable.

4. Remove the 2 screws and separate the

Traverse-Deck.

5. After replacing the Traverse Deck, reassem-

ble in the reverse order.

Samsung Electronics 5-6
