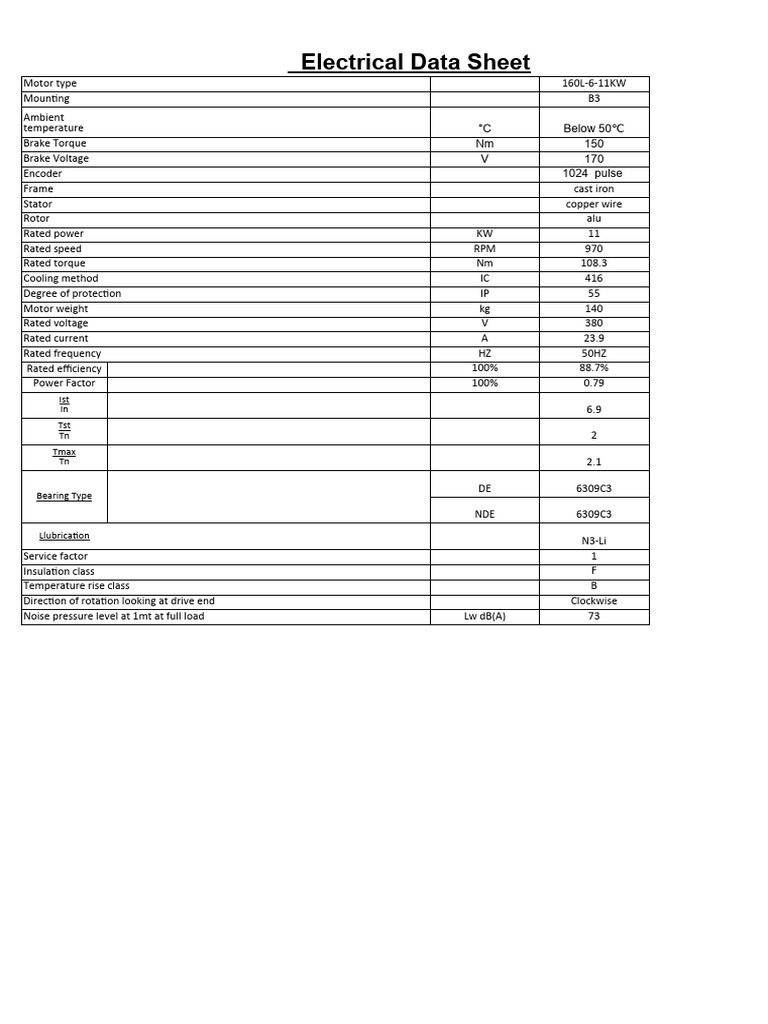

    Electrical Data Sheet

    Motor type 160L-6-11KW


    Mounting B3
    Ambient
    temperature °C Below 50℃
    Brake Torque Nm 150
    Brake Voltage V 170
    Encoder 1024 pulse
    Frame cast iron
    Stator copper wire
    Rotor alu
    Rated power KW 11
    Rated speed RPM 970
    Rated torque Nm 108.3
    Cooling method IC 416
    Degree of protection IP 55
    Motor weight kg 140
    Rated voltage V 380
    Rated current A 23.9
    Rated frequency HZ 50HZ
    Rated efficiency 100% 88.7%
    Power Factor 100% 0.79
    Ist
    In 6.9
    Tst
    Tn 2
    Tmax
    Tn 2.1

    DE 6309C3
    Bearing Type
    NDE 6309C3
    Llubrication
    N3-Li
    Service factor 1
    Insulation class F
    Temperature rise class B
    Direction of rotation looking at drive end Clockwise
    Noise pressure level at 1mt at full load Lw dB(A) 73
    250M-6-45KW
    B3

    Below 50℃
    600
    170
    1024 pulse
    cast iron
    copper wire
    alu
    45
    985
    436.3
    416
    55
    450
    380
    89.3
    50HZ
    92.2%
    0.83

    2.1

    6314C3

    6314C3

    N3-Li
    1
    F
    B
    Clockwise
    76
