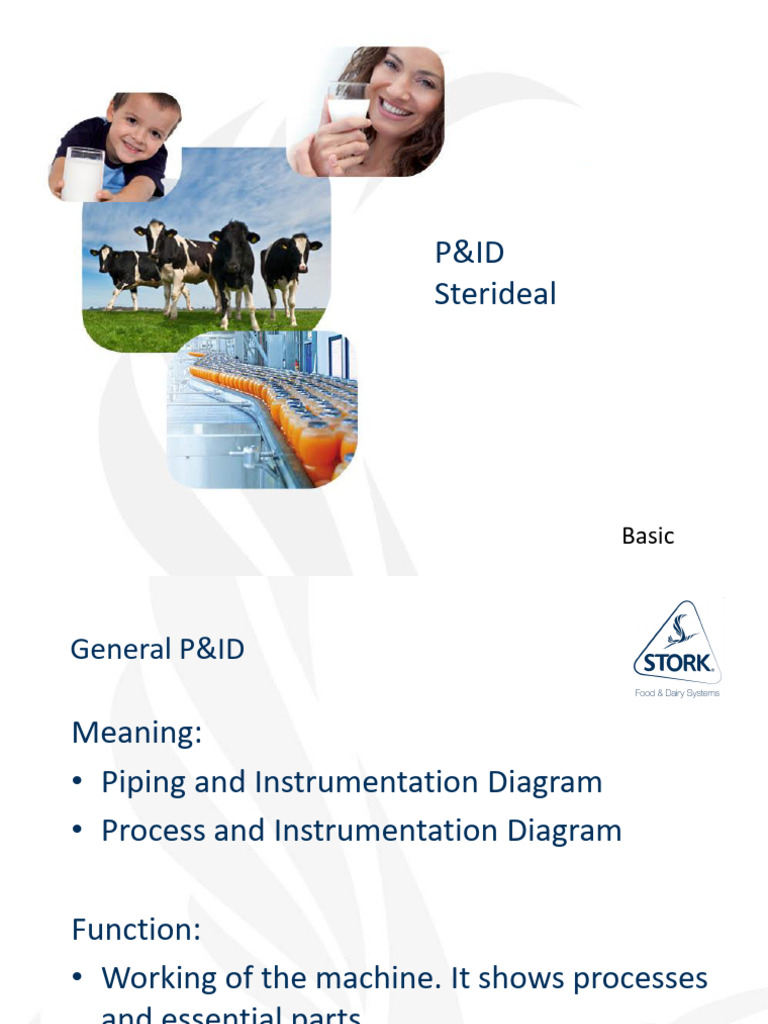

    P&ID

    Sterideal

    Basic
    General P&ID

    Meaning:
    • Piping and Instrumentation Diagram
    • Process and Instrumentation Diagram

    Function:
    • Working of the machine. It shows processes
    and essential parts.
    General P&ID

    • Main parts are EM 03


    called equipment
    modules same
    module  same
    number
    • Equipment module
    contains different
    control modules
    same module 
    same number
    General P&ID

    • Tag number is a
    unique number
    • Present on
    label
    • Mentioned in
    manual, HMI,
    Eplan and
    alarms
    Balance Tank and Heat Exchanger
    Pump

    • Centrifugal pump

    • Membrane pump

    • Plunger pump

    • Worm pump
    Sensors

    1 2a (what) 2b (transfer)
    d Differential P Pressure A Alarm AL Low
    alarm
    L Level C Controlling AH High
    alarm
    T Temperature I Indicator
    F Flow R Recording
    Q Quality U Mechanical
    displacement
    T Transmitting
    Valves

    Symbol Function Symbol Function

    Non-return valve
    Safety valve

    Hand valve

    Automatic valve Three way valve

    Back pressure valve


    Valves
    • Normal position is drawn on the P&ID
    • Safe position
    • Closed position is black
    Examples:

    Automatic angle valve, closed if not activated

    Three way valve AB(nC)

    Three way valve AnB (C)


    Valves
    Two way valve normally closed AnB(nC)
    Valves
    Two way valve normally open AB(nC)
    Valves
    3 way valve normally closed AnB(C)
    Valves
    4 way valve normally open
    Utilities

    • Steam
    • Cooling water
    • Product
    • Process water
    • Lye
    • Acid
    • Air
    • Ice water
    ANY QUESTIONS ?
    Exercise
    •Can you write with colors the utilities
    on the P&ID?
    •Indicate the flow under normal
    conditions (until first closed valve)?
